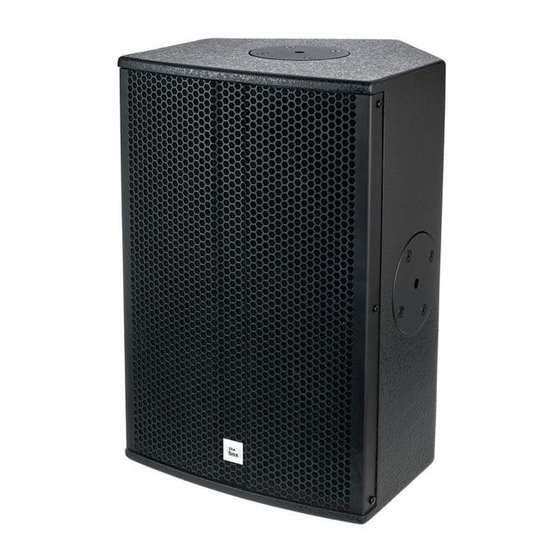

thomann the box pro Achat 110 MA MKII Owner's Manual

Hide thumbs Also See for the box pro Achat 110 MA MKII:
Table of Contents

Advertisement

Quick Links

Achat 110 MA MKII
Achat 112 MA MKII
Achat 115 MA MKII
active speaker
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the the box pro Achat 110 MA MKII and is the answer not in the manual?

Questions and answers

Related Manuals for thomann the box pro Achat 110 MA MKII

Summary of Contents for thomann the box pro Achat 110 MA MKII

  • Page 1 Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII active speaker user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 16.03.2021, ID: 498102, 498103, 498105...

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 9 Features............................... 11 Installation..............................14 4.1 Tips on handling speakers......................16 4.2 Mounting bracket..........................17 Connections and operating elements...................

  • Page 4: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. active speaker...

  • Page 5: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 6: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 8 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. active speaker...

  • Page 9: Safety Instructions

    Safety instructions Safety instructions Intended use This device is designed for sound reinforcement. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
  • Page 10 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.

  • Page 11: Features

    Features Features Achat 110 MA MKII Special features of the device: Powered multifunction loudspeaker 10" ferrite woofer and 1" compression driver, (woofer with 3" voice coil) 140 W RMS, 550 W peak output power 2 × XLR / 1/4" jack combo mic / line input 1 ×...
  • Page 12 Features Achat 112 MA MKII Special features of the device: Powered multifunction loudspeaker 12" ferrite woofer and 1.75" ferrite driver, (woofer with 3" voice coil) 350 W RMS, 1400 W peak output power 2 × XLR / 1/4" jack combo mic / line input 1 ×...
  • Page 13 Features Achat 115 MA MKII Special features of the device: Powered multifunction loudspeaker 15" woofer and 3" ferrite mid-range / tweeter 350 W RMS, 1400 W peak output power 2 × XLR / 1/4" jack combo mic / line input 1 ×...

  • Page 14: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 15 Installation WARNING! Risk of injury caused by falling objects Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field.

  • Page 16: Tips On Handling Speakers

    Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area.

  • Page 17: Mounting Bracket

    Installation 4.2 Mounting bracket Using the optional mounting brackets (U brackets) for vertical and horizontal mounting, the speaker can stably and securely mounted to the wall, the ceiling or a pipe clamp (half coupler), and, thus, secured to trusses. Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII...

  • Page 18: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Achat 110 MA MKII 1 [STANDBY | CONDITION] Slide switch to enable or disable the power saving mode. If the speaker box is in power save mode and receives no signal for 60 minutes, it switches to standby mode.
  • Page 19 Connections and operating elements 3 [TREBLE] Controller to increase or decrease the treble by up to 15 db. 4 [BASS] Controller to increase or decrease the bass by up to 15 db. 5 [MIX OUT] Line output for the mixed input signal from both channels. 6 [POWER ON/OFF] Use this mains switch to turn the device on or off.
  • Page 20 Connections and operating elements 10 [LINE - MIC] Switch for toggling the sensitivity of the respective input between microphone and line level. 11 [CH1 VOL | CH2 VOL] Volume control for the respective channel. 12 [POWER] This LED lights up when the device is turned on. 13 [SIG/PEAK] This LED flickers or lights up green when a signal is present in at least one of the two channels.
  • Page 21 Connections and operating elements Achat 112 & 115 MA MKII 1 [PEAK] This LED indicates that the permissible input level has been exceeded. Then reduce the volume in the relevant channel. 2 [BASS BOOST | FLAT | 120Hz HPF] Preset switch [BASS BOOST]: Increasing the low frequencies.
  • Page 22 Connections and operating elements 6 [POWER ON/OFF] Use this mains switch to turn the device on or off. 7 [INPUT] Power Twist connector for powering the device. 8 [OUTPUT] Power Twist connector for powering another device. 9 [CH1 IN | CH2 IN] Signal input, designed as XLR / ¼"...
  • Page 23 Connections and operating elements 12 [POWER] This LED lights up when the device is turned on. 13 [SIG] This LED lights up when a signal is present in at least one of the two channels. Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII...

  • Page 24: Technical Specifications

    Technical specifications Technical specifications Achat 110 MA MKII Inputs 2 × XLR / 1/4" jack combo socket Input sensitivity Line: 1 V (RMS) ± 10 % Mic: 20 mV ± 10 % Output connections Line output XLR chassis plug Power supply Lockable Power Twist Socket Output current max.
  • Page 25 Technical specifications Tweeter 38 W ± 10 %, THD ≤ 1 %, f = 6,3 kHz Maximum SPL 120 dB Operating supply voltage 100 - 240 V 50/60 Hz Dimensions (W × H × D) 300 mm × 450 mm × 290 mm Weight 12.6 kg Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII...
  • Page 26 Technical specifications Frequency response active speaker...
  • Page 27 Technical specifications Achat 112 MA MKII Inputs 2 × XLR / 1/4" jack combo socket Input sensitivity Line: 1 V (RMS) ± 10 % Mic: 20 mV ± 10 % Output connections Line output XLR chassis plug Power supply Lockable Power Twist Socket Output current max.
  • Page 28 Technical specifications Operating supply voltage 100 - 240 V 50/60 Hz Dimensions (W × H × D) 360 mm × 600 mm × 365 mm Weight 20.7 kg active speaker...
  • Page 29 Technical specifications Frequency response Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII...
  • Page 30 Technical specifications Achat 115 MA MKII Inputs 2 × XLR / 1/4" jack combo socket Input sensitivity Line: 1 V (RMS) ± 10 % Mic: 20 mV ± 10 % Output connections Line output XLR chassis plug Power supply Lockable Power Twist Socket Output current max.
  • Page 31 Technical specifications Operating supply voltage 100 - 240 V 50/60 Hz Dimensions (W × H × D) 436 mm × 766 mm × 438 mm Weight 38.7 kg Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII...
  • Page 32 Technical specifications Frequency response active speaker...

  • Page 33: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 34 Notes active speaker...
  • Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
