IDS-330-ADL-P
MODEL:
IDS-330-ADL-P Series

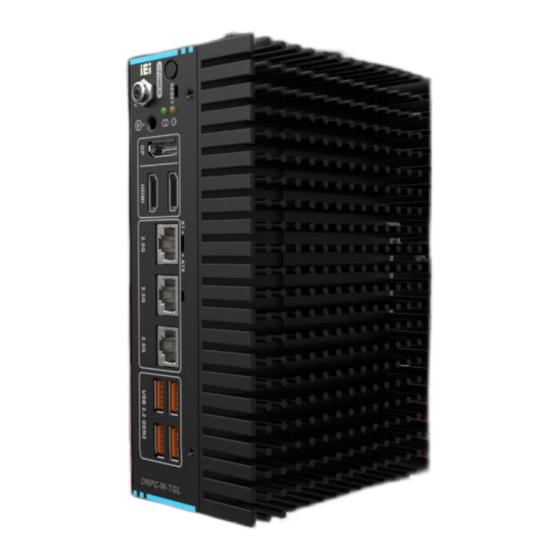

Embedded System with Intel® Core® i5-1235U / i7-1255U,
8GB Memory Pre-installed, Dual 2.5GbE LAN,
Four HDMI, RS-232/422/485,12V DC and RoHS
User Manual
Page I
Rev. 1.00 – January 30, 2023
[MODEL NAME]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDS-330-ADL-P Series and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology IDS-330-ADL-P Series

Summary of Contents for IEI Technology IDS-330-ADL-P Series

  • Page 1 IDS-330-ADL-P MODEL: IDS-330-ADL-P Series Embedded System with Intel® Core® i5-1235U / i7-1255U, 8GB Memory Pre-installed, Dual 2.5GbE LAN, Four HDMI, RS-232/422/485,12V DC and RoHS User Manual Page I Rev. 1.00 – January 30, 2023 [MODEL NAME]...
  • Page 2 IDS-330-ADL-P Revision Date Version Changes January 30, 2023 1.00 Initial release Page II [MODEL NAME]...
  • Page 3 IDS-330-ADL-P Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 IDS-330-ADL-P Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product. NOTE These messages inform the reader of essential but non-critical information.

  • Page 5: Table Of Contents

    IDS-330-ADL-P Table of Contents 1 INTRODUCTION ......................1 1.1 O ........................2 VERVIEW 1.2 F ........................3 EATURE 1.3 M ....................3 ODEL ARIATIONS 1.4 T ..................3 ECHNICAL PECIFICATIONS 1.5 F ......................5 RONT ANEL 1.6 R ....................... 5 ANEL 1.7 L .......................
  • Page 6 IDS-330-ADL-P 3.8.1 Installation Checklist ..................23 3.8.2 Power-on Procedure ..................24 3.9 R ....................25 ESET THE YSTEM 3.10 M ....................... 25 AINTENANCE 3.10.1 Flash Descriptor Override Setting Jumper ............ 26 3.10.2 Clear CMOS Button ..................27 3.11 A ....................28 VAILABLE RIVERS 3.11.1 Driver Download....................
  • Page 7 IDS-330-ADL-P 5.1.5 BIOS Menu Bar ....................53 5.2 M ........................54 5.3 A ....................... 57 DVANCED 5.3.1 CPU Configuration ..................58 5.3.2 Trusted Computing ................... 63 5.3.3 IT55771 Super IO Configuration ..............64 5.3.3.1 Serial Port 1 Configuration ............... 65 5.3.4 IT5571 H/W Monitor ..................
  • Page 8 IDS-330-ADL-P F HAZARDOUS MATERIALS DISCLOSURE ............105 F.1 R HS II D (2015/863/EU) ..............106 IRECTIVE F.2 C HS ......................107 HINA Page VIII [MODEL NAME]...
  • Page 9 IDS-330-ADL-P List of Figures Figure 1-1: IDS-330-ADL-P Series Embedded System ..............2 Figure 1-2: Front Panel ........................5 Figure 1-3: Top Panel ........................5 Figure 1-4: Left Side Panel ......................6 Figure 1-5: Physical Dimensions ....................7 Figure 3-1: Remove the Cover .....................14 Figure 3-2: Inserting the M.2 Module into the Slot ..............15...
  • Page 10 IDS-330-ADL-P Figure 4-3: Fan Connector Location ...................34 Figure 4-4: Power Button Connector Location ................35 Figure 4-5: EC Debug Connector Location ................36 Figure 4-6: EC Flash Connector Location ..................37 Figure 4-7: MPS PWM IC Programmer Connector Location ............38 Figure 4-8: BIOS Programming Connector Location ..............39 Figure 4-9: System 80/81 Port Connector Location ..............40 Figure 4-10: M.2 B-key Slot Location ..................41 Figure 4-11: M.2 M-key Slot Location ..................43...
  • Page 11 IDS-330-ADL-P List of Tables Table 1-1: IDS-330-ADL-P Series Model Variations ..............3 Table 1-2: Technical Specifications ....................4 Table 2-1: Packing List .........................10 Table 2-2: Optional Items ......................11 Table 3-1: RJ-45 Ethernet Connector LEDs ................20 Table 3-2: Power Connector Pinouts ..................20 Table 3-3: RS-232/422/485 Connector Pinouts ................22...
  • Page 12 IDS-330-ADL-P BIOS Menus BIOS Menu 1: Main (1/2) .......................54 BIOS Menu 2: Main (2/2) .......................54 BIOS Menu 3: Advanced ......................57 BIOS Menu 4: CPU Configuration (1/3)..................58 BIOS Menu 5: CPU Configuration (2/3)..................59 BIOS Menu 6: CPU Configuration (3/3)..................60 BIOS Menu 7: PCH-FW Configuration ..................63 BIOS Menu 8: IT5571 Super IO Configuration ................64 BIOS Menu 9: Serial Port 1 Configuration Menu ...............65 BIOS Menu 10: IT5571 H/W Monitor ....................66...

  • Page 13: Introduction

    IDS-330-ADL-P Chapter Introduction Page 1...

  • Page 14: Overview

    It is powered by Intel® Alder Lake processor and on board 8 GB LPDDR4X memory (up to 16GB). The IDS-330-ADL-P Series includes four HDMI, two 2.5GbE LAN, one RS-232/422/485, four USB 3.2 Gen 2 ports, audio (line-out and mic-in) and one external fan connector.

  • Page 15: Feature

    One RS-232/422/485 serial port with AFC (DB9) ▪ Support audio line-out and mic-in ▪ RoHS compliant design 1.3 Model Variations The model variations of the IDS-330-ADL-P Series are listed in Table 1-1. Model No. IDS-330-ADL-P-i5C-R10 Intel® Alder Lake-P i5-1235U IDS-330-ADL-P-i7C-R10 Intel® Alder Lake-P i7-1255U Table 1-1: IDS-330-ADL-P Series Model Variations 1.4 Technical Specifications...

  • Page 16: Table 1-2: Technical Specifications

    IDS-330-ADL-P Model Name IDS-330-ADL-P Series 4.4GHz, 10-core, 15W TDP) 4.7GHz, 10-core, 15W TDP) Chipset Memory Onboard LPDDR4X 8GB (up to 16GB) 1 x M.2 B key 3042/52/80 with SIM slot (PCIex1 / USB2.0 / SATA) Storage Storage 1 x M.2 M key 2280 (PCIe Gen4 x4) 4 x USB 3.2 Gen 2...

  • Page 17: Front Panel

    IDS-330-ADL-P 1.5 Front Panel The front panel of the IDS-330-ADL-P Series is shown below. Figure 1-2: Front Panel 1.6 Rear Panel The rear panel of the IDS-330-ADL-P Series is shown below. Figure 1-3: Top Panel Page 5...

  • Page 18: Left Side Panel

    IDS-330-ADL-P 1.7 Left Side Panel The left side panel of the IDS-330-ADL-P Series is shown below. Figure 1-4: Left Side Panel Page 6...

  • Page 19: Physical Dimensions

    IDS-330-ADL-P 1.8 Physical Dimensions The physical dimensions are shown in Figure 1-5. Figure 1-5: Physical Dimensions Page 7...

  • Page 20: Unpacking

    IDS-330-ADL-P Chapter Unpacking Page 8...

  • Page 21: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the IDS-330-ADL-P Series. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the IDS-330-ADL-P Series or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 22: Unpacking Checklist

    If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the IDS-330-ADL-P Series from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@ieiworld.com.

  • Page 23: Table 2-2: Optional Items

    IDS-330-ADL-P The following table lists the optional items that can be purchased separately. Optional Wi-Fi module (P/N: EMB-WIFI-KIT02I3-R10) Table 2-2: Optional Items Page 11...

  • Page 24: Installation

    IDS-330-ADL-P Chapter Installation Page 12...

  • Page 25: Installation Precautions

    Electric shock and personal injury might occur if the rear panel of the IDS-330-ADL-P Series is opened while the power cord is still connected to an electrical outlet.

  • Page 26: Cover Removal

    Take off the cover (Figure 3-1). Figure 3-1: Remove the Cover 3.3 Storage Installation The IDS-330-ADL-P Series has M.2 Key to support storage. To install an M.2 module, please follow the steps below. Step 1: Locate the M.2 module slot.

  • Page 27: Wi-Fi Module Installation (Optional)

    IDS-330-ADL-P Figure 3-2: Inserting the M.2 Module into the Slot Step 4: Secure the M.2 module with the previously removed retention screw (Figure 3-3) Figure 3-3: Securing the M.2 Module 3.4 Wi-Fi Module Installation (Optional) The Wi-Fi module is an optional accessory. You can purchase it from IEI or other providers.

  • Page 28: Figure 3-4: Inserting The Wlan Module

    IDS-330-ADL-P Figure 3-4: Inserting the WLAN Module Step 4: Secure the WLAN module with the retention screw previously removed (Figure 3-5). Figure 3-5: Securing the WLAN Module Step 5: Connect the two RF cables to the antenna connectors on the WLAN module (Figure 3-6).

  • Page 29: Cover Installation

    Install the cover, and fasten the 6 screws. Figure 3-8: Install the cover 3.6 System Fan Installation (Optional) When encountering high performance and high heat, additional cooling was needed. The optional external fan can help the IDS-330-ADL-P Series solve the thermal problem. Page 17...

  • Page 30: External Peripheral Interface Connectors

    Remove the 4 screws (2 on the front panel, 2 on the rear panel) on the IDS-330-ADL-P Series as shown in the figure below. Step 2: Install the external fan module to the IDS-330-ADL-P Series, and secure it using the 4 screws removed previously. Step 3: Connect the fan cable to the fan connector on the side panel.

  • Page 31: Hdmi/Dp Connector

    Chapter 1 Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of the RJ-45 connectors on the IDS-330-ADL-P Series. Figure 3-11: LAN Connection Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN cable...

  • Page 32: Power Connector

    IDS-330-ADL-P The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green LED indicates activity on the port and the yellow LED indicates the port is linked. See Figure 3-12: RJ-45 Ethernet Connector Activity/Link LED Speed LED STATUS DESCRIPTION STATUS...

  • Page 33: Usb 3.2 Gen 2 (10Gb/S) Connectors

    IDS-330-ADL-P 3.7.4 USB 3.2 Gen 2 (10Gb/s) Connectors The IDS-330-ADL-P Series have four USB 3.2 ports. To connect a USB device, please follow the instructions below Step 1: Located the USB connectors. The locations of the USB connectors are shown in...

  • Page 34: Rs-232/422/485 Serial Port Connection

    IDS-330-ADL-P 3.7.5 RS-232/422/485 Serial Port Connection The system has one RS-232/422/485 port. The pinouts for the serial ports are listed in the table below (See Table 3-3). PIN NO. RS232 RS422 RS485 DCD# DTR# DSR# RTS# CTS# Table 3-3: RS-232/422/485 Connector Pinouts Figure 3-15: DB-9 Serial Port Connector Figure 3-16: Serial Device Connection Page 22...

  • Page 35: Atx/At Mode Selection

    IDS-330-ADL-P 3.7.6 ATX/AT Mode Selection AT and ATX power modes can both be used on the IDS-330-ADL-P Series. The selection is made through an AT/ATX switch on the top panel as shown below (See Figure 3-17). Figure 3-17: ATX/AT Mode Selection 3.8 Powering On/Off the System...

  • Page 36: Power-On Procedure

    Connect the power source to the power input jack. Figure 3-18: Power Connector Step 2: To power-on the IDS-330-ADL-P Series, press the power button for 3 seconds. Step 3: The power LED indicator should turn on. Figure 3-19: Power Button...

  • Page 37: Reset The System

    IDS-330-ADL-P 3.9 Reset the System The reset button enables user to reboot the system when the system is turned on. The reset button location is shown in. Press the reset button to reboot the system. Figure 3-20: Reset Button Location 3.10 Maintenance To configure the jumper settings, please follow the steps below.

  • Page 38: Flash Descriptor Override Setting Jumper

    IDS-330-ADL-P 3.10.1 Flash Descriptor Override Setting Jumper CN Label: ME_FLASH1 CN Type: 2-pin header CN Location: See Figure 3-21 CN Pinouts: See Table 3-4 The ME_FLASH1 connector is used for Flash Descriptor Security Override. Figure 3-21: Flash Descriptor Override Setting Jumper Location PIN NO.

  • Page 39: Clear Cmos Button

    IDS-330-ADL-P Step 4: Restart the system. The system will reboot 2 ~ 3 times to complete the ME firmware update. 3.10.2 Clear CMOS Button CN Label: J_CMOS1 CN Type: Button CN Location: See Figure 3-22 CN Pinouts: See Table 3-5 To clear the CMOS Setup (for example if you have forgotten the password, you should clear the CMOS and then reset the password), you should disconnect the RTC battery and press the button for about 3 seconds.

  • Page 40: Available Drivers

    IDS-330-ADL-P 3.11 Available Drivers All the drivers for the IDS-330-ADL-P Series are available on IEI Resource Download Center (https://download.ieiworld.com). Type IDS-330-ADL-P Series and press Enter to find all the relevant software, utilities, and documentation. Figure 3-23: IEI Resource Download Center 3.11.1 Driver Download...
  • Page 41 IDS-330-ADL-P Step 5: Click the driver file name on the page and you will be prompted with the  following window. You can download the entire ISO file ( ), or click the small  arrow to find an individual driver and click the file name to download ( NOTE: To install software from the downloaded ISO image file in Windows 10 (or later), double-click the ISO file to mount it as a virtual drive to view...

  • Page 42: System Motherboard

    IDS-330-ADL-P Chapter System Motherboard Page 30...

  • Page 43: Peripheral Interface Connectors

    IDS-330-ADL-P 4.1 Peripheral Interface Connectors The connectors and jumpers of the system motherboard are listed in the following sections. 4.1.1 Layout The following diagram shows the locations of the internal/external connectors and jumpers on the motherboard. Figure 4-1: System Motherboard Page 31...

  • Page 44: Peripheral Interface Connectors

    IDS-330-ADL-P 4.2 Peripheral Interface Connectors The table below lists all the connectors on the board. Connector Type Label Battery Connector 2-pin wafer BAT1 CPU Fan Connector 4-pin wafer CPU_FAN1 Power Button Connector 2-pin wafer PWR_BTN1 EC Debug Connector 2-pin header EC_DEBUG1 EC Programmer Connector 4-pin header...

  • Page 45: Battery Connector

    Dispose of used batteries according to instructions and local regulations. NOTE: It is recommended to attach the RTC battery onto the system chassis in which the IDS-330-ADL-P Series is installed. CN Label: BAT1 CN Type: 2-pin wafer, p=1.25 mm...

  • Page 46: Fan Connector

    IDS-330-ADL-P PIN NO. DESCRIPTION PIN NO. DESCRIPTION VBAT+ Table 4-2: CMOS Battery Header Pinouts 4.2.2 Fan Connector CN Label: CPU_FAN1 CN Type: 4-pin wafer, p=2.54 mm CN Location: See Figure 4-3 CN Pinouts: See Table 4-3 The fan connector attaches to a smart cooling fan. Figure 4-3: Fan Connector Location PIN NO.

  • Page 47: Power Button Connector

    IDS-330-ADL-P 4.2.3 Power Button Connector CN Label: PWR_BTN1 CN Type: 2-pin wafer, p=2.00 mm CN Location: See Figure 4-4 CN Pinouts: See Table 4-4 The power button allows users to turn the system on and off. Figure 4-4: Power Button Connector Location Description PWR_BTN+ PWR_BTN-...

  • Page 48: Ec Debug Connector

    IDS-330-ADL-P 4.2.4 EC Debug Connector CN Label: EC_DEBUG1 CN Type: 2-pin header, p=1.27 mm CN Location: See Figure 4-5 CN Pinouts: See Table 4-5 Figure 4-5: EC Debug Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION SDAI Table 4-5: EC Debug Connector Pinouts Page 36...

  • Page 49: Ec Flash Connector

    IDS-330-ADL-P 4.2.5 EC Flash Connector CN Label: EC_FLASH1 CN Type: 4-pin header, p=1.25 mm CN Location: See Figure 4-6 CN Pinouts: See Table 4-6 Figure 4-6: EC Flash Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION EC_FLASH_DAT EC_FLASH_CLK Table 4-6: EC Flash Connector Pinouts Page 37...

  • Page 50: Mps Pwm Ic Programmer Connector

    IDS-330-ADL-P 4.2.6 MPS PWM IC Programmer Connector CN Label: CN Type: 3-pin header, p=2.54 mm CN Location: See Figure 4-7 CN Pinouts: See Table 4-7 Figure 4-7: MPS PWM IC Programmer Connector Location PIN NO. DESCRIPTION Table 4-7: MPS PWM IC Programmer Connector Pinouts Page 38...

  • Page 51: Bios Programming Connector

    IDS-330-ADL-P 4.2.7 BIOS Programming Connector CN Label: J_SPI1 CN Type: 6-pin header, p=1.25 mm CN Location: See Figure 4-8 CN Pinouts: See Table 4-8 Figure 4-8: BIOS Programming Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION VCC3.3V MISO MOSI Table 4-8: BIOS Programming Connector Pinouts Page 39...

  • Page 52: System 80/81 Port Connector

    IDS-330-ADL-P 4.2.8 System 80/81 Port Connector CN Label: DBG_PORT1 CN Type: 6-pin header, p=2 mm CN Location: See Figure 4-9 CN Pinouts: See Table 4-9 Figure 4-9: System 80/81 Port Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION VCC5V SMCLK_EC SMDAT_EC RST# Table 4-9: System 80/81 Port Connector Pinouts...

  • Page 53: B-Key Slot

    IDS-330-ADL-P 4.2.9 M.2 B-key Slot CN Label: M2_B1 CN Type: M.2 B-key slot CN Location: See Figure 4-10 CN Pinouts: See Table 4-10 The M.2 B key 3042/52/80 slot with PCIe x1, USB 2.0 and SATA signal supports NVMe storage or 5G module with SIM holder Figure 4-10: M.2 B-key Slot Location PIN NO.

  • Page 54: Table 4-10: M.2 B-Key Slot Pinouts

    IDS-330-ADL-P WWAN_CONFIG0 PSE_I2S1_TXD PCIE_WAKE# PSE_I2S1_RXD SAR_DPR_WWAN GNSS_DISABLE_N PCIE_RXN5 WWAN_UIM_RST PCIE_RXP5 WWAN_UIM_CLK WWAN_UIM_DATA PCIE_TXN5 UIM_PWR PCIE_TXP5 SSD_DEVSLP PCIE_RXN4 PCIE_RXP4 PCIE_TXN4 PCIE_TXP4 WWAN_PERST# CLK_M2_B_N WWAN_WAKE# CLK_M2_B_P WWAN_SIM1_DET WWAN_RST WWAN_SUSCLK DET_OS-PCIE/ +3.3V GND-SATA +3.3V +3.3V WWAN_CONFIG2 Table 4-10: M.2 B-key Slot Pinouts Page 42...

  • Page 55: M-Key Slot

    IDS-330-ADL-P 4.2.10 M.2 M-key Slot CN Label: M2_M1 CN Type: M.2 M-key slot CN Location: See Figure 4-11 CN Pinouts: See Table 4-11 The M.2 slot is keyed in the M position and accepts 2280 size of M.2 modules. The M.2 slot supports PCIe x4 signals.

  • Page 56: Table 4-11: M.2 M-Key Slot Pinouts

    IDS-330-ADL-P Description Description PCIE_TXN2 PCIE_TXP2 PCIE_RXN1 PCIE_RXP1 PCIE_TXN1 PCIE_TXP1 DEVSLP PCIE_RXN0 PCIE_RXP0 PCIE_TXN0 PCIE_TXP0 PERST# CLKREQ# REFCLKN PEWAKE REFCLKP Module Key Module Key Module Key Module Key Module Key Module Key Module Key Module Key SUSCLK PEDET +3.3V +3.3V +3.3V Table 4-11: M.2 M-Key Slot Pinouts Page 44...

  • Page 57: E-Key Slot

    IDS-330-ADL-P 4.2.11 M.2 E-key Slot CN Label: M2_E1 CN Type: M.2 E-key slot CN Location: See Figure 4-12 CN Pinouts: See Table 4-12 The 2230 M.2 E key slot with PCIe x1 and USB 2.0 supports Vpro. Figure 4-12: M.2 E-key Slot Location PIN NO.

  • Page 58: Table 4-12: M.2 E-Key Slot Pinouts

    IDS-330-ADL-P WGR_CLKP UART_TX/RGI_DT UART_CTS/RGI_RSP PCIE_TXP0 UART_RTS/BRI_DT PCIE_TXN0 CLINK_RESET CLINK_DATA PCIE_RXP0 CLINK_CLK PCIE_RXN0 REFCLKP0 REFCLKN0 SUSCLK PERST0# CLKREQ0# W_DISABLE2# PEWAKE0# W_DISABLE1# A4WP_I2C_DAT WT_D1N A4WP_I2C_CLK WT_D1P A4WP_IRQ# WT_D0N REST1# WT_D0P CLKREQ1# PEWAKE1# WT_CLKN +3.3V WT_CLKP +3.3V Table 4-12: M.2 E-Key Slot Pinouts Page 46...

  • Page 59: Lt86101X Ic Programmer Connector

    IDS-330-ADL-P 4.2.12 LT86101X IC Programmer Connector CN Label: J_HDM1~4 CN Type: 3-pin header, p=2 mm CN Location: See Figure 4-13 CN Pinouts: See Table 4-13 Figure 4-13: LT86101X IC Programmer Connector Location Description Table 4-13: LT86101X IC Programmer Connector Pinouts Page 47...

  • Page 60: Sim Card Slot

    IDS-330-ADL-P 4.2.13 SIM Card Slot CN Label: SIM1 CN Type: 7-pin SIM holder CN Pinouts: See Table 4-14 PIN NO. DESCRIPTION SIM_VCC SIM_RST SIM_Clock SIM_DATA Table 4-14: SIM Card Slot Pinouts CAUTION: A WWAN module must be installed in the M.2 B-key slot to provide WWAN communication.

  • Page 61: Bios

    IDS-330-ADL-P Chapter BIOS Page 49...

  • Page 62: Introduction

    IDS-330-ADL-P 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 63: Using Setup

    IDS-330-ADL-P 5.1.2 Using Setup The BIOS Setup menu can be navigated by using a keyboard or a touchscreen. 5.1.2.1 Keyboard Navigation For keyboard navigation, use the navigation keys shown in Table 5-1 Function Up arrow Move to previous item Down arrow Move to next item Left arrow Move to the item on the left hand side...

  • Page 64: Touch Navigation

    IDS-330-ADL-P 5.1.2.2 Touch Navigation For touchscreen navigation, use the on-screen navigation keys shown below. On-screen Button Function Previous Values Load the last value you set. Optimized Defaults Load the factory default values in order to achieve the best performance. Back Return to the previous menu.

  • Page 65: Getting Help

    IDS-330-ADL-P 5.1.3 Getting Help When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears. To exit the Help Window, press the key. 5.1.4 Unable to Reboot after Configuration Changes If the computer cannot boot after changes to the system configuration is made, CMOS defaults.

  • Page 66: Main

    IDS-330-ADL-P 5.2 Main The Main BIOS menu (BIOS Menu 1 & BIOS Menu 2) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. BIOS Menu 1: Main (1/2) BIOS Menu 2: Main (2/2) Page 54...
  • Page 67 IDS-330-ADL-P ➔ BIOS Information The BIOS Information lists a brief summary of the BIOS. The fields in BIOS Information cannot be changed. The items shown in the system overview include: ▪ BIOS Vendor: Installed BIOS vendor ▪ Core Version: Current BIOS version ▪...
  • Page 68 IDS-330-ADL-P ➔ PCH Information The PCH Information lists a brief summary of the PCH. The fields in PCH Information cannot be changed. The items shown in the system overview include: ▪ Name: Displays the PCH Name ▪ PCH SKU: Displays the PCH SKU ▪...

  • Page 69: Advanced

    IDS-330-ADL-P 5.3 Advanced Use the Advanced menu (BIOS Menu 3 ) to configure the CPU and peripheral devices through the following sub-menus: WARNING! Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings made are compatible with the hardware.

  • Page 70: Cpu Configuration

    IDS-330-ADL-P 5.3.1 CPU Configuration Use the CPU Configuration menu (BIOS Menu 4 & BIOS Menu 5 & BIOS Menu 6) to view detailed CPU specifications or enable the Intel Virtualization Technology. BIOS Menu 4: CPU Configuration (1/3) Page 58...
  • Page 71 IDS-330-ADL-P BIOS Menu 5: CPU Configuration (2/3) Page 59...
  • Page 72 IDS-330-ADL-P BIOS Menu 6: CPU Configuration (3/3) ➔ EIST [Enabled] Use the EIST option to enable or disable the capability that allows more than two frequency ranges to be supported. ➔ Disabled Disables the EIST Technology ➔ Enabled Enables the EIST Technology EFAULT ➔...
  • Page 73 IDS-330-ADL-P ➔ Enabled Enables CPU power management ➔ Turbo Mode [Enabled] Use the Turbo Mode option to enable or disable Turbo Mode which requires Intel Speed Step or Intel Speed Shift to be available and enabled. ➔ Disabled Disables Turbo Mode Technology ➔...
  • Page 74 IDS-330-ADL-P ➔ Enable three E-cores in the processor package. ➔ Enable four E-cores in the processor package. ➔ Enable five E-cores in the processor package. ➔ Enable six E-cores in the processor package. ➔ Enable seven E-cores in the processor package. ➔...

  • Page 75: Trusted Computing

    IDS-330-ADL-P 5.3.2 Trusted Computing Use the Trusted Computing menu (BIOS Menu 7) to configure settings related to the Trusted Computing Group (TCG) Trusted Platform Module (TPM). BIOS Menu 7: PCH-FW Configuration ➔ Security Device Support [Enable] Use the Security Device Support option to configure support for the TPM. ➔...

  • Page 76: It55771 Super Io Configuration

    IDS-330-ADL-P ➔ None TPM information is previous.S EFAULT ➔ TPM Clear TPM information is cleared 5.3.3 IT55771 Super IO Configuration Use the IT5571 Super IO Configuration menu (BIOS Menu 8) to set or change the configurations for the serial port. BIOS Menu 8: IT5571 Super IO Configuration Page 64...

  • Page 77: Serial Port 1 Configuration

    IDS-330-ADL-P 5.3.3.1 Serial Port 1 Configuration Use the Serial Port 1 Configuration menu (BIOS Menu 9) to configure the serial port 1. BIOS Menu 9: Serial Port 1 Configuration Menu ➔ Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. ➔...

  • Page 78: It5571 H/W Monitor

    IDS-330-ADL-P ➔ IO=3F8h; Serial Port I/O port address is 3F8h and the interrupt IRQ=4 address is IRQ4 5.3.4 IT5571 H/W Monitor The IT5571 H/W Monitor menu (BIOS Menu 10) contains the smart fan mode configuration submenu and shows the state of H/W real-time operating temperature, fan speeds and system voltages.

  • Page 79: Smart Fan Mode Configuration

    IDS-330-ADL-P ▪ Voltages: +VCCIN +V5S +V12S +VDDQ +V3.3S 5.3.4.1 Smart Fan Mode Configuration Use the Smart Fan Mode Configuration submenu (BIOS Menu 11) to configure the CPU/system fan start/off temperature and control mode. BIOS Menu 11: Smart Fan Mode Configuration ➔...

  • Page 80: Rtc Wake Settings

    IDS-330-ADL-P ➔ Auto Mode The fan adjusts its speed using Auto Mode EFAULT settings. ➔ Auto mode fan start temperature Use the + or – key to change the Auto mode fan start temperature value. Enter a decimal number between 1 and 100. ➔...
  • Page 81 IDS-330-ADL-P BIOS Menu 13: RTC Wake Settings (2/2) ➔ Wake system with Fixed Time [Disabled] Use the Wake system with Fixed Time option to enable or disable the system wake on alarm event. ➔ Disabled The real time clock (RTC) cannot generate a wake EFAULT event ➔...

  • Page 82: Serial Port Console Redirection

    IDS-330-ADL-P 5.3.6 Serial Port Console Redirection The Serial Port Console Redirection menu (BIOS Menu 14) allows the console redirection options to be configured. Console Redirection allows users to maintain a system remotely by re-directing keyboard input and text output through the serial port. BIOS Menu 14: Serial Port Console Redirection ➔...

  • Page 83: Console Redirection Settings

    IDS-330-ADL-P 5.3.6.1 Console Redirection Settings The following options are available in the Console Redirection Settings submenu (BIOS Menu 15) when the COM Console Redirection (for COM1 to COM6) option is enabled. BIOS Menu 15: COM Console Redirection Settings ➔ Terminal Type [ANSI] Use the Terminal Type option to specify the remote terminal type.
  • Page 84 IDS-330-ADL-P ➔ Bits per second [115200] Use the Bits per second option to specify the serial port transmission speed. The speed must match on the other side. Long or noisy lines may require lower speeds. ➔ 9600 Sets the serial port transmission speed at 9600. ➔...

  • Page 85: Nvme Configuration

    IDS-330-ADL-P ➔ Stop Bits [1] Use the Stop Bits option to specify the number of stop bits used to indicate the end of a serial data packet. Communication with slow devices may require more than 1 stop bit. ➔ Sets the number of stop bits at 1. EFAULT ➔...

  • Page 86: Chipset

    IDS-330-ADL-P 5.4 Chipset Use the Chipset menu (BIOS Menu 17) to access the PCH IO and System Agent (SA) configuration menus. WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction. BIOS Menu 17: Chipset Page 74...

  • Page 87: System Agent (Sa) Configuration

    IDS-330-ADL-P 5.4.1 System Agent (SA) Configuration Use the System Agent (SA) Configuration menu (BIOS Menu 18) to configure the System Agent (SA) parameters. BIOS Menu 18: System Agent (SA) Configuration ➔ VT-d [Enabled] Use the VT-d option to enable or disable the VT-d capability. ➔...

  • Page 88: Memory Configuration

    IDS-330-ADL-P 5.4.1.1 Memory Configuration Use the Memory Configuration submenu (BIOS Menu 19) to view memory information. BIOS Menu 19: Memory Configuration（1/2） Page 76...

  • Page 89: Bios Menu 20: Memory Configuration（2/2

    IDS-330-ADL-P BIOS Menu 20: Memory Configuration（2/2） Page 77...

  • Page 90: Graphics Configuration

    IDS-330-ADL-P 5.4.1.2 Graphics Configuration Use the Graphics Configuration (BIOS Menu 21) menu to configure the video device connected to the system. BIOS Menu 21: Graphics Configuration ➔ Primary Display [Auto] Use the Primary Display option to select the primary graphics controller the system uses. The following options are available: ▪...

  • Page 91: Pch-Io Configuration

    IDS-330-ADL-P ➔ Internal Graphics [Enabled] Use the Internal Graphics option to configure whether to keep IGFX enabled. If user wants to support dual display by internal graphics and external graphics, this Internal Graphics option should be set to Enabled and the above Primary Display option should be set to IGFX.
  • Page 92 IDS-330-ADL-P ➔ Auto Power Button Status [Disable (ATX)] Use the Auto Power Button Status BIOS option to show the power mode state. Use the J_ATX_AT1 to switch the AT/ATX power mode. ➔ Enabled (AT) The system power mode is AT. ➔...

  • Page 93: Table 5-2: Bios Options And Configured Usb Ports

    IDS-330-ADL-P ➔ USB Power SW2 [+5V DUAL] Use the USB Power SW2 BIOS option to configure the USB power source for the corresponding USB connectors (Table 5-2). ➔ +5V DUAL Sets the USB power source to +5V dual EFAULT ➔ Sets the USB power source to +5V BIOS Options Configured USB Ports...

  • Page 94: Pci Express Configuration

    IDS-330-ADL-P 5.4.2.1 PCI Express Configuration Use the PCI Express Configuration submenu (BIOS Menu 23) to configure the PCI Express slots. BIOS Menu 23: PCI Express Configuration PCIe Speed [Auto] ➔ Use the PCIe Speed option to specify the PCI Express port speed. Configuration options are listed below.
  • Page 95 IDS-330-ADL-P ➔ Detect Non-Compliance Device [Disabled] Use the Detect Non-Compliance Device option to configure whether to detect if a non-compliance PCI Express device is connected to the PCI Express port. ➔ Disabled Do not detect if a non-compliance PCI Express EFAULT device is connected to the PCI Express port.

  • Page 96: Sata Configuration

    IDS-330-ADL-P 5.4.2.2 SATA Configuration Use the SATA Configuration menu (BIOS Menu 24) to change and/or set the configuration of the SATA devices installed in the system. BIOS Menu 24: SATA Configuration ➔ SATA Controller(s) [Enabled] Use the SATA Controller(s) option to configure the SATA controller(s). ➔...
  • Page 97 IDS-330-ADL-P Use the SATA Mode Selection option to determine how the SATA devices operate. ➔ AHCI Configures SATA devices as AHCI EFAULT device. ➔ Intel RST Premium With Intel Configures SATA devices to the Intel Optane System Acceleration RST Premium With Intel Optane System Acceleration mode.

  • Page 98: Hd Audio Configuration

    IDS-330-ADL-P 5.4.2.3 HD Audio Configuration Use the HD Audio Configuration menu (BIOS Menu 25) to configure the PCH Azalia settings. BIOS Menu 25: HD Audio Configuration ➔ HD Audio [Enabled] Use the HD Audio option to enable or disable the High Definition Audio controller. ➔...

  • Page 99: Security

    IDS-330-ADL-P 5.5 Security Use the Security menu (BIOS Menu 26) to set system and user passwords. BIOS Menu 26: Security (1/2) Page 87...
  • Page 100 IDS-330-ADL-P BIOS Menu 27: Security (2/2) ➔ Administrator Password Use the Administrator Password to set or change an administrator password. ➔ User Password Use the User Password to set or change a user password. Page 88...

  • Page 101: Boot

    IDS-330-ADL-P 5.6 Boot Use the Boot menu (BIOS Menu 28) to configure system boot options. BIOS Menu 28: Boot 5.6.1 Boot Configuration Quiet Boot [Enabled] ➔ Use the Quiet Boot BIOS option to select the screen display when the system boots. ➔...

  • Page 102: Boot Option Priorities

    IDS-330-ADL-P ➔ Launch PXE OpROM [Disabled] Use the Launch PXE OpROM option to enable or disable boot option for legacy network devices. ➔ Disabled Ignore all PXE Option ROMs EFAULT ➔ Enabled Load PXE Option ROMs. ➔ Option ROM Messages [Force BIOS] Use the Option ROM Messages option to set the Option ROM display mode.

  • Page 103: Save & Exit

    IDS-330-ADL-P 5.7 Save & Exit Use the Save & Exit menu (BIOS Menu 29) to load default BIOS values, optimal failsafe values and to save configuration changes. BIOS Menu 29: Save & Exit ➔ Save Changes and Reset Use the Save Changes and Reset option to save the changes made to the BIOS options and reset the system.
  • Page 104 IDS-330-ADL-P ➔ Restore Defaults Use the Restore Defaults option to load the optimal default values for each of the parameters on the Setup menus. F3 key can be used for this operation. ➔ Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults. ➔...

  • Page 105: A Regulatory Compliance

    IDS-330-ADL-P Appendix Regulatory Compliance Page 93...
  • Page 106 IDS-330-ADL-P DECLARATION OF CONFORMITY This equipment has been tested and found to comply with specifications for CE marking. If the user modifies and/or installs other devices in the equipment, the CE conformity declaration may no longer apply. FCC WARNING This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: ◼...

  • Page 107: B Product Disposal

    IDS-330-ADL-P Appendix Product Disposal Page 95...
  • Page 108 IDS-330-ADL-P CAUTION: Risk of fire or explosion or defeat the safeguard of equipment if the battery is replaced by an incorrect type. Replace only with the same or equivalent type. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.

  • Page 109: Cbios Options

    IDS-330-ADL-P Appendix BIOS Options Page 97...
  • Page 110 IDS-330-ADL-P Below is a list of BIOS configuration options in the BIOS chapter. ➔ BIOS Information .........................55 ➔ Processor Information ......................55 ➔ PCH Information ........................56 ➔ System Date [xx/xx/xx] ......................56 ➔ System Time [xx:xx:xx] .......................56 ➔ EIST [Enabled] ........................60 ➔ C states [Disabled] .......................60 ➔...
