Operating Guide Termix VMTD MIX Compact 28
5.0 Design
5.1 Design

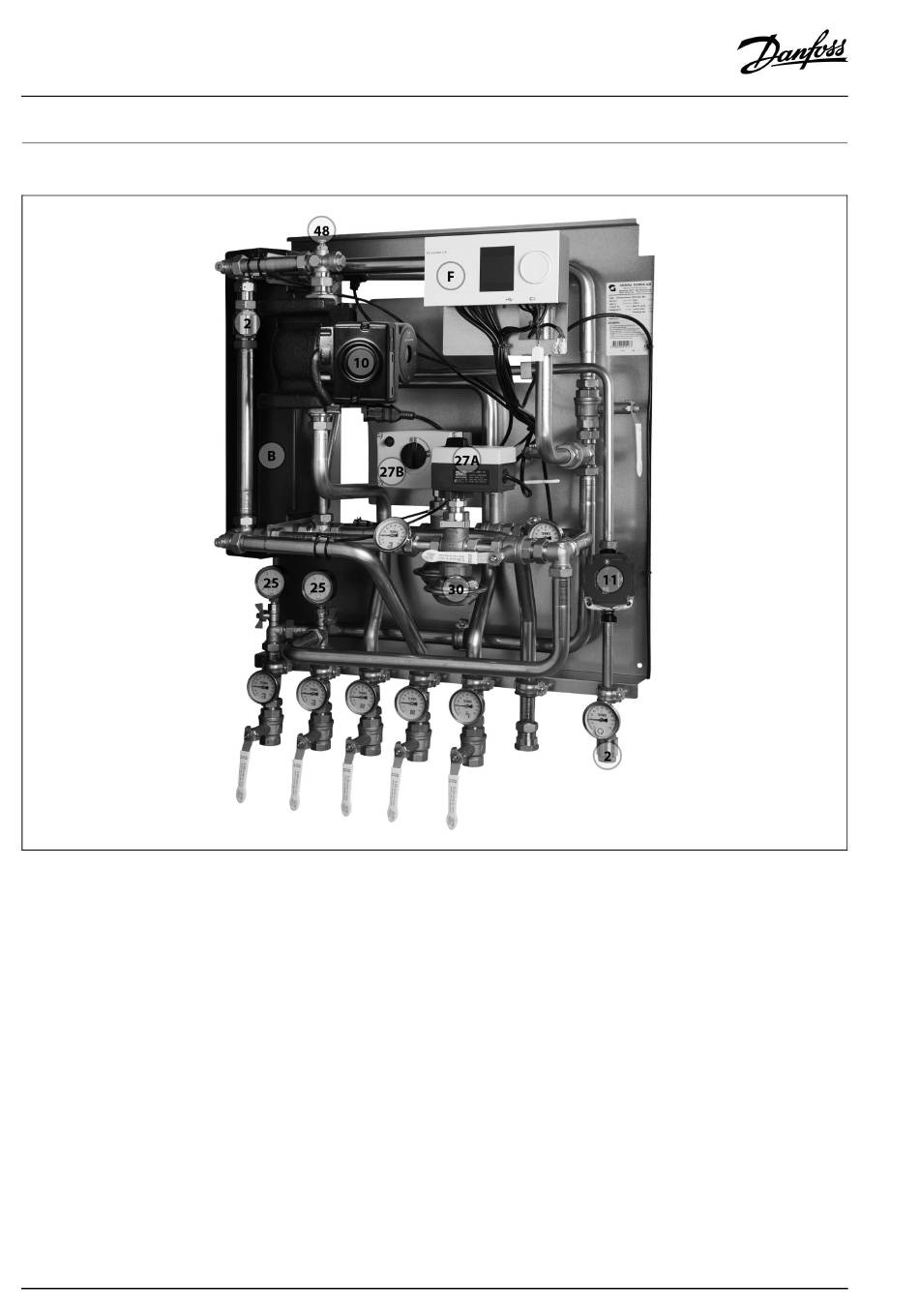

Your substation might look different than the substation shown.
Design description
B
Heat exchanger, DHW
F
Electronic controller
2
Single check valve
10 Circulator pump, HE
8 | © Danfoss | 2019.01
11
Domestic hot water pump
25
Pressure gauge with ball valve
27A Actuator, HE
27B Actuator, DHW
30 Flow controller with integrated control valve
48 Air vent, manual
VI.CW.Y5.02 / LUK42260
