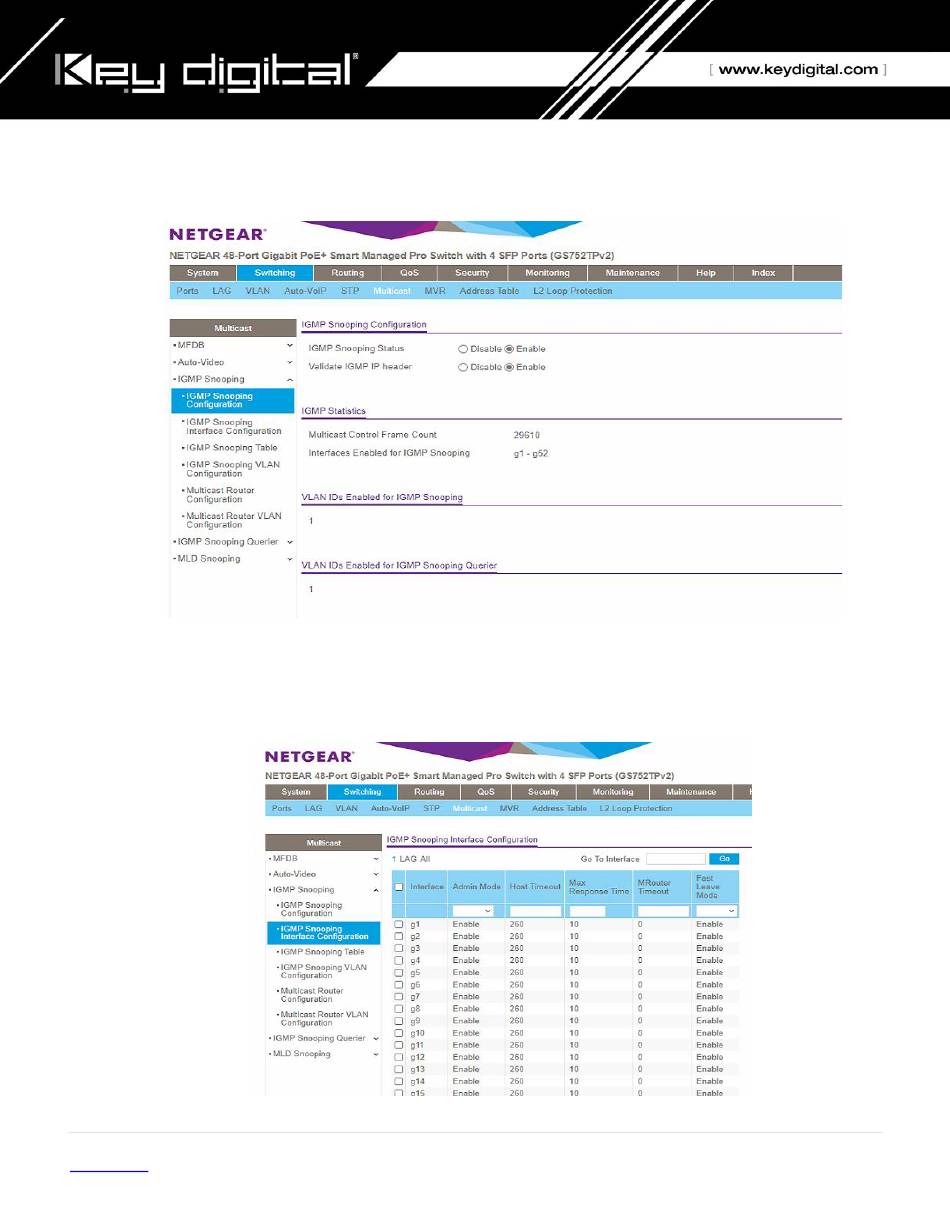

8. To enable IGMP Snooping of the switch, go to Switching -> Multicast -> IGMP Snooping -> IGMP Snooping
Configuration. (IP922 requires IGMP Snooping for multicasting video/audio transmission via 1G-BaseT),
Enable IGMP settings as shown below and press Apply button
9. Go to Switching -> Multicast -> IGMP Snooping -> IGMP Snooping Interface Configuration. Select the empty
checkbox that is above the checkbox beside g1 Port in the table to select all the ports. All selected ports
highlight to yellow color. Enable Admin Mode and Fast Leave Admin Mode as shown below and press Apply
button
Back to top
76 |
P a g e
