Aqara Wireless Remote Switch H1 - Double Rocker Switch Manual

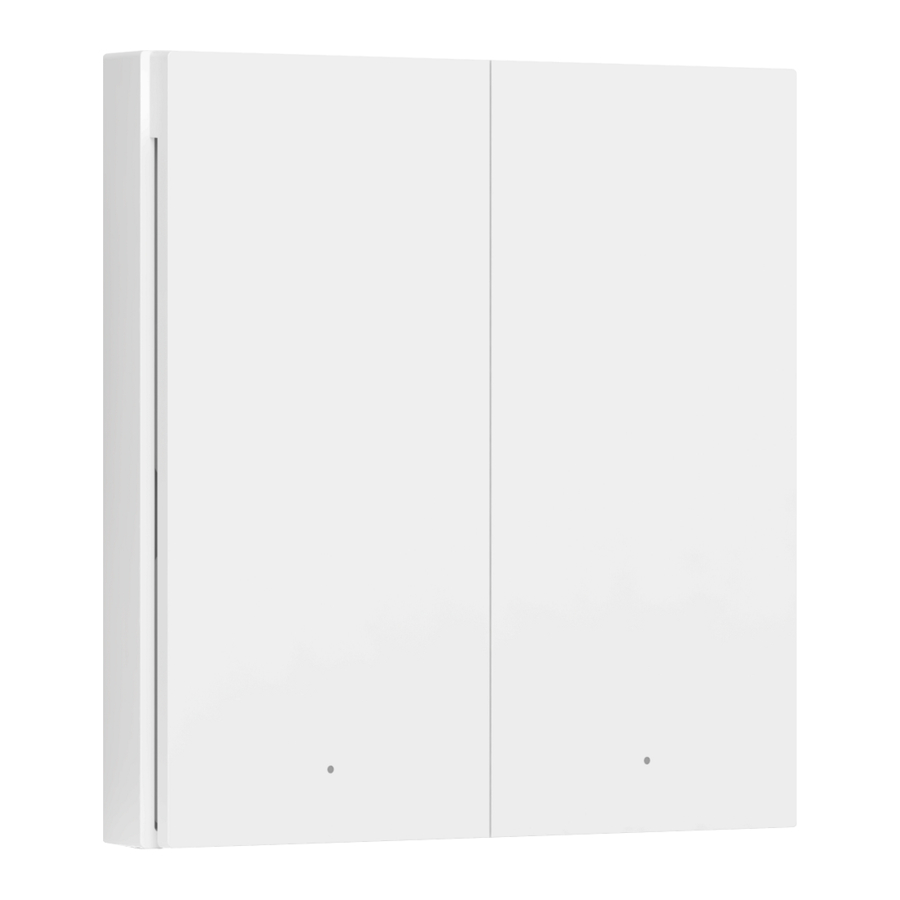

Product Overview

The Aqara Wireless Remote Switch HI (Double Rocker) is a new wireless remote switch. It supports single press in the high speed click mode, and 7 functions in the multifunction mode including single press left button, single press right button, double press left button, double press right button, long press left button and long press right button. It is able to be placed or attached anywhere indoors. It also works with the Aqara hub and other Aqara smart devices to implement a variety of smart scenes.

• An Aqara hub is required. Some functions require specific models of the Aqara hub. Please visit www.aqara.com/support for more details.

Button:
Long press for 10s: binding/reset
Quickly press five times: Effective communication range test/ device searching

Quick Setup

This product works with Aqara Home app. You can scan the following QR code to download the Aqara Home app from the Apple App store:

Android users can find the Aqara Home app on Google Play:

With the Aqara Home app, it can work with other Aqara smart devices.

1. Before activating the accessory, please make sure you have downloaded the Aqara Home app and the Aqara hub that supports Zigbee 3.0 installed.
2. Please open the app, go to the homepage and select "+" in the top right corner to enter Add Accessory page. Select "Aqara Wireless Remote Switch HI (Double Rocker)" and add it according to the instructions.
3. Please visit www.aqara.com/support for more information.

• If adding fails, please move the hub closer to the product and try again.
• Press the switch quickly for 5 times, if the hub makes voice prom pts, it indicates that the accessory can communicate effectively with the hub.
• Different hubs have different ways to indicate the effective connection. Please refer to the instructions of your model of the Aqara hub.

Installation Methods

• Effective Range Test: After it is bound with the hub, put the device at the preferred location and press the button of the device quickly for 5 times, if the hub makes voice prompts, it indicates that the accessory can communicate effectively with the hub.
• To ensure stable connections, please avoid setting up the device on metallic surfaces.

Option 1

Adhesivefree, place it on a sufface directly.

Option 2

Remove the protective film from the adhesive tape and attach the device on the desired surface.

• Please keep the surface clean and dry.

Option 3

Open the back of the Wireless Remote Switch HI (Double Rocker) with a flat blade screwdriver, drill through the thin piece at the screw of the back cover with a sharp tool or an electric drill (Attention! Make sure you are drilling the back cover, not the main part of the switch that incorporates hardware and buttons), fix it to the wall box with the screw that comes with the box, and then put the cover of the Wireless Remote Switch HI (Double Rocker) back.

1. Open the back of the Wireless Remote Switch HI (Double Rocker) with a screwdriver.

2. Drill through the back cover with an awl/electric drill to install the screw.

3. Fix the screw and put the cover back.


Battery Replacement

Open the back of the Wireless Remote Switch HI (Double Rocker) with a flatblade screwdriver, remove the old battery and replace it with a new battery (battery model: CR2450), and then put the cover back.

1. Open the cover of the Wireless Remote Switch HI (Double Rocker) with a screwdriver.

2. Replace with new battery.

3. Put the cover back.


Switch Modes

1. On the Device page on the app, find the corresponding device in the device list.
2. Select the corresponding device to enter the page of the device.
3. Select the three black dots on the upper right corner on the page of the device and enter the Device Settings page.
4. Select More Settings.
5. Select Switch Modes, select the desired mode, and complete the corresponding configuration according to the instructions on the app.

• When the corresponding device is not found, you can quickly press the switch 5 times, and the corresponding device will flash in the Device list.
• During the mode switching process, quickly press the switch 5 times to better realize the device mode switching.
• To implement the above steps, please refer to Aqara Home app.

Indicator Status Description

Specifications

Model: WRS-R02
Weight: 82.5 g
Item Dimensions: 85.8 x 86 x 12.5 mm
Wireless Connectivity: Zigbee 3.0
Battery Model: CR2450
Operating Temperature: -10 ^oC to 50 ^oC
Operating Humidity: 0-95% RH, no condensation
Zigbee Frequency Range: 2405-2480 MHz
Zigbee Power Transmission: ≤13 dBm

Warnings

1. This product is not a toy, please keep children away from this product.
2. This product is designed for indoor use only. Do not use it in humid environment or outdoors.
3. Do not spill water or other liquids on this product.
4. Do not place this product near a heat source. Place the switch in a well ventilated area.
5. Do not attempt to repair the product by yourself. All repairs should be performed by authorized personnel.
6. This product is designed only for improving the convenience of household life. If the user violates the product instructions and this warning, the manufacturer is not responsible for any risks and property losses caused thereby.

Online Customer Service: www.aqara.com/support
Email: support@aqara.com

Under normal use of condition, this equipment should be kept a separation distance of at least 20cm between the antenna and the body of the user.

• Risk of explosion if the battery is replaced by an incorrect type.
• Dispose of used batteries according to the instructions.
• Do not ingest battery, Chemical Burn Hazard.
• This product contains a coin / button cell battery. If the coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
