Product Introduction

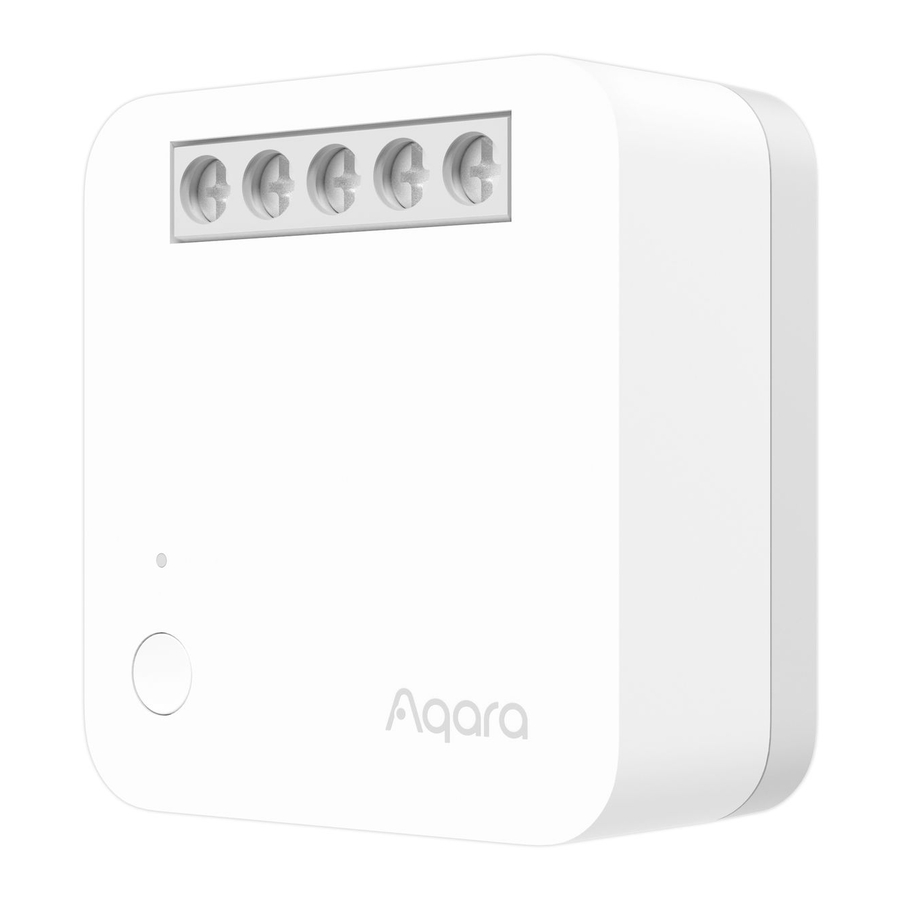

Aqara Single Switch Module T1 (No Neutral) is based on the Zigbee 3.0 wireless
communication protocol. It can control the on/off status of lights. With the Aqara
Hub, it can realize functions such as app remote control and timing control. It can
work with other Aqara smart devices to realize more smart scenes.
* This device requires a compatible Zigbee 3.0 hub.
* To work with HomeKit, a specific hub is required.
Visit www.aqara.com/support for more details.
* This product is for indoor use only.
Single Press: Turn on/off
Long Press for 8s: Reset/
Connect to Network
Triple Press: Effective Range Test
* When the external switch is connected,
please turn it on and off 5 times, and then it enters the networking status.
Indicator Light
Button
Antenna
01
Advertisement
Table of Contents
Related Manuals for Aqara SSM-U02
Summary of Contents for Aqara SSM-U02
- Page 1 Product Introduction Aqara Single Switch Module T1 (No Neutral) is based on the Zigbee 3.0 wireless communication protocol. It can control the on/off status of lights. With the Aqara Hub, it can realize functions such as app remote control and timing control. It can work with other Aqara smart devices to realize more smart scenes.
- Page 2 Warnings Do not cover when the plug is working. Make sure that the main switch of the power supply is off before removing plug. Do not connect in series. This product is NOT a toy. Please keep children away from this product. This product is designed for indoor use only.
-
Page 3: Installation
Installation Please make sure that the main switch of the power supply is off before installation! After the device powers on, all the conductors (including the antenna) of the device may be connected with strong electricity. Please make sure that the product is installed in a protective environment that cannot be reached by hands, such as a switch pattress and a protective cover of the bulb. - Page 4 S0 S1 Diagram 1 Method 2: L1 is connected to the load wire. One end of the external switch is connected to S0, and the other end is connected to the live wire. L is connected to the live wire(Diagram 2). If the external switch is a dual-control switch, the end of the original switch, which is connected to the load wire, can be connected to S0 to realize an external dual control (Diagram 3).
- Page 5 S0 S1 S0 S1 Diagram 2 Diagram 3 * The maximum cross-sectional area of the conductor is 2.5mm². * If no external switch is connected, S0 and S1 can be left in idle and the device can be controlled by automation or the app.
- Page 6 2. The single switch module is fixedly embedded in the device (such as the pendant lamp and the switch pattress) to avoid the danger of accidental touch; 3. Paste the fixed antenna; * The inner conductor of the antenna is connected with strong electricity. Please do not put it in an environment that could be touched in your daily life;...
-
Page 7: Quick Setup
4. Turn on the main power switch, and press the button on the module or on the external switch. If you can turn on/off the device normally, this indicates that it works normally. Quick Setup 1. Before activating the accessory, please make sure you have the Aqara Home app downloaded and the Aqara Hub installed. -
Page 8: Indicator Light Description
2. Please open the app, tap “Home” and then tap “+” in the top right corner to enter “Add Device (Accessory)” page. Select “Single Switch Module T1 (No Neutral)”, and add it according to instructions. * If the connection fails, please move the Hub closer to the Single Switch Module T1 (No Neutral), in and try again. -
Page 9: Specifications
Zigbee Operation Frequency: 2405-2480 MHz Zigbee Maximum Output Power ≤ 13 dBm * This product is only suitable for non-remote control 3W+ lights. Online Customer Service: www.aqara.com/support Manufacturer: Lumi United Technology Co., Ltd. Address: 8th Floor, JinQi Wisdom Valley, No.1 Tangling Road, Liuxian Ave,... - Page 10 20cm between the antenna and the body of the user. Hereby, [Lumi United Technology Co., Ltd] declares that the radio equipment type [Single Switch Module T1 (No Neutral), SSM-U02] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.aqara.com/DoC/...
