SOLIS S5-GR3P13K Installation And Operation Manual
  1. Manuals
  2. Brands
  3. SOLIS Manuals
  4. Inverter
  5. S5-GR3P13K
  6. Installation and operation manual

SOLIS S5-GR3P13K Installation And Operation Manual

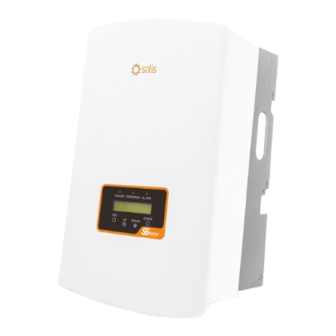

Three phase inverter
Hide thumbs Also See for S5-GR3P13K:
Table of Contents

Advertisement

Quick Links

Ginlong Technologies Co., Ltd.
No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo,
Zhejiang, 315712, P.R.China.
Tel: +86 (0)574 6578 1806
Fax: +86 (0)574 6578 1606
Please adhere to the actual products in case of any discrepancies in this user manual.
If you encounter any problem on the inverter, please find out the inverter S/N
and contact us, we will try to respond to your question ASAP.
Solis S5 Three Phase Inverter
Installation and Operation Manual
S5-GR3P(3-13)K
Ginlong Technologies Co., Ltd.
Ver1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S5-GR3P13K and is the answer not in the manual?

Questions and answers

Related Manuals for SOLIS S5-GR3P13K

Summary of Contents for SOLIS S5-GR3P13K

  • Page 1 Solis S5 Three Phase Inverter Installation and Operation Manual S5-GR3P(3-13)K Ver1.3 Ginlong Technologies Co., Ltd. No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo, Zhejiang, 315712, P.R.China. Tel: +86 (0)574 6578 1806 Fax: +86 (0)574 6578 1606 Please adhere to the actual products in case of any discrepancies in this user manual.

  • Page 2: Table Of Contents

    Contents 1. Introduction …………………………………………………………………………………………………………………………… 1.1 Product Description ………………………………………………………………………………………………………… 1.2 Packaging ………………………………………………………………………………………………………………………… 2. Safety Instructions …………………………………………………………………………………………………………… 2.1 Safety Symbols ………………………………………………………………………………………………………………… 2.2 General Safety Instructions …………………………………………………………………………………………… 2.3 Notice For Use ………………………………………………………………………………………………………………… 2.4 Notice for Disposal ……………………………………………………………………………………………………………… 3. Overview ……………………………………………………………………………………………………………………………… 3.1 Front Panel Display ………………………………………………………………………………………………………...

  • Page 3: Introduction

    1. Introduction 1.2 Packaging 1.1 Product Description Solis S5 three phase inverters integrate DRM and backflow power control function, that When you receive the inverter, please ensure that all the parts listed below are included: could suitable for smart grid requirement.

  • Page 4: Safety Instructions

    This product shall not be disposed of with household waste. They should with the NEC Article 690, Part II. All Solis three phase inverters feature be segregated and brought to an appropriate collection point to enable an integrated DC switch.

  • Page 5: Overview

    3. Overview 4. Product handing and storage 3.1 Front Panel Display 4.1 Product handling Please review the instruction below for handling the inverter: 1 The red circles below denote cutouts on the product package. Push in the cutouts to form handles for moving the inverter (see Figure 4.1). Figure 3.1 Front Panel Display 3.2 LED Status Indicator Lights Figure 4.1 move the inverter...

  • Page 6: Product Storage

    4. Product handing and storage 5. Installation 4.2 Product Storage 5.1 Select a Location for the Inverter If the inverter is not to be installed immediately, storage instructions and environmental To select a location for the inverter, the following criteria should be considered: conditions are below: WARNING: Risk of fire Use the original box to repackage the inverter, seal with adhesive tape with the...

  • Page 7: Mounting The Inverter

    5. Installation 5. Installation 5.2 Mounting the Inverter ≤15° Dimensions of mounting bracket: √ √ Vertical Backward Inverted × × Figure 5.3 Inverter wall mounting Refer to figure 5.4 and figure 5.5. Inverter shall be mounted vertically. The steps to mount the inverter are listed below. The visibility of LED status indicator lights and LCD should be considered.

  • Page 8: Electrical Connections

    5. Installation 5. Installation 5. Anti-theft lock mount(optional) Anti-theft lock( User-supplied) function is that inverter is fixed in bracket in case theft. WARNING: The lock is selected by 5mm(the keyhole diameter), and the lock of stainless steel is The inverter must be mounted vertically. preferred.
  • Page 9 5. Installation 5. Installation 5.3.1 Grounding To effectively protect the inverter, two grounding methods must be performed. Connect the AC grounding cable (Please refer to section 5.3.3). Connect the external grounding terminal. To connect the grounding terminal on the heat sink, please follow the steps below: 1) Prepare the grounding cable: recommend to use the outdoor ≥...
  • Page 10 5. Installation 5. Installation 5.3.2 Connect PV side of inverter 5. Measure PV voltage of DC input with multimeter, verify DC input cable polar (see figure 5.17), and ensure each string of PV voltage in range of inverter operation. Before connecting inverter, please make sure the PV array open circuit Connect DC connector with inverter until hearing a slight clicking sound indicates voltage is within the limit of the inverter.
  • Page 11 5. Installation 5. Installation 5.3.3 Connect grid side of inverter The steps of AC grid terminal connector for installation are as follows: For all AC connectors, cables with 6mm² diameter are required to be used. Please make sure the resistance of AC cable is lower than 1.5 ohm. A) Fix the wires into the correct position and the torque is 0.8N.m Please try to pull out the wire slightly to make sure that the wires are well connected.
  • Page 12 Table 5.2 Rating of grid OCPD L2' L3 5.3.5 Inverter monitoring connection 2-Pin Connector The inverter can be monitored via Wi-Fi or GPRS. All Solis communication devices are optional (Figure 5.25). For connection instructions, please refer to the Solis Monitoring Device installation manuals. INV L1...
  • Page 13 5. Installation 5. Installation Pre-made Cable in Meter Package Pre-made Cable in Meter Package 2-Pin Connector 2-Pin Connector INV L1 Grid L1 INV L1 Grid L1 INV L2 Grid L2 INV L2 Grid L2 INV L3 Grid L3 INV L3 Grid L3 INV N Grid N...

  • Page 14: Start & Stop

    1--8 Rj45 plug Correspondence between the cable s 2). Turn off the AC Switch between Solis inverter and Grid. Rj45terminal and the stitch es of plug, Pin5 and Pin6 3). Wait approximately 30 seconds (during this time, the AC side capacitors are dissipating...

  • Page 15: Operation

    7.2 Information 7.2.1 Lock screen The Solis three Phase S5 Inverter main menu provides access to operational data and Pressing the ESC key returns to the Main Menu. Pressing the ENTER key locks information. The information is displayed by selecting "Information" from the menu (Figure 7.2(a)) or unlocks (Figure 7.2 (b)) the screen.

  • Page 16: Settings

    Press the ESC key to return to the Main Menu. The address number can be assigned from “01”to “99”(see Figure 7.4). The default address number of Solis Three Phase Inverter is “01”. 7.4.1 Alarm Message The display shows the latest alarm messages (see Figure 7.6).
  • Page 17 7. Operation 7. Operation 7.4.6 Yearly Energy The function is for checking the energy generation for selected year. Model: 08 Software Version: D20001 YES=<ENT> NO=<ESC> Select: 2015 Figure 7.7 Model Version and Software Version Figure 7.12 Select year for yearly energy 7.4.4 Daily Energy Press DOWN key to move the cursor to day and year, press UP key to change the digit.

  • Page 18: Advanced Settings

    Press the ENTER key to confirm the setting. Press the ESC key to cancel changes and returns to previous menu. 7.5.2 Grid ON/OFF This function is used to start up or stop the power generation of Solis Three Phase NOTE: Inverter (see Figure 7.18).
  • Page 19 If again while the meter data can be uploaded to the Solis monitoring system the monitoring website is used the data will be synchronous with this setting automatically.
  • Page 20 Inverters can work with a smart meter to monitor the load consumption data for Thescreenshowsasbelow: the whole day and the data will be displayed on the Solis monitoring system. Smart meter can only be installed on the grid side. Are you sure? YES=<ENT>...
  • Page 21 OFF: Functions are disabled the inverter will keep the output power as the last moment when the Meter in Load: Solis Smart Meter is connected in the load branch circuit. CT/Meter is still connected. After a restart, the inverter will output at full Meter in Grid: Solis Smart Meter is connected in the grid connection point power without limit.

  • Page 22: Afci Function

    This setting should only be turned on when Solis external EPM device is used. Solis inverters have the built-in AFCI function which can detect the arc fault on the DC circuit and shut down the inverter to prevent a fire disaster.

  • Page 23: Maintenance

    7. Operation 8. Maintenance Solis Three Phase Inverter does not require any regular maintenance. However, cleaning the dust on heat-sink will help the inverter to dissipate the heat and increase its life time. NOTE: The dust can be removed with a soft brush.

  • Page 24: Troubleshooting

    1. Serial number of Solis Three Phase Inverter; DC-INTF 2.Identify and remove the string to the fault MPPT DC input overcurrent 2. The distributor/dealer of Solis Three Phase Inverter (if available); OV-DCA-I 2.Change power board 3. Installation date. Grid current tracking fail IGFOL-F 4.

  • Page 25: Specifications

    10. Specifications 10. Specifications Model S5-GR3P3K Model S5-GR3P4K Max. DC input voltage (Volts) Max. DC input voltage (Volts) 1100 1100 Rated DC voltage (Volts) Rated DC voltage (Volts) Start-up voltage (Volts) Start-up voltage (Volts) MPPT voltage range (Volts) MPPT voltage range (Volts) 160...1000 160...1000 Max.
  • Page 26 10. Specifications 10. Specifications Model S5-GR3P5K Model S5-GR3P6K Max. DC input voltage (Volts) Max. DC input voltage (Volts) 1100 1100 Rated DC voltage (Volts) Rated DC voltage (Volts) Start-up voltage (Volts) Start-up voltage (Volts) MPPT voltage range (Volts) MPPT voltage range (Volts) 160...1000 160...1000 Max.
  • Page 27 10. Specifications 10. Specifications Model S5-GR3P8K Model S5-GR3P9K Max. DC input voltage (Volts) Max. DC input voltage (Volts) 1100 1100 Rated DC voltage (Volts) Rated DC voltage (Volts) Start-up voltage (Volts) Start-up voltage (Volts) MPPT voltage range (Volts) MPPT voltage range (Volts) 160...1000 160...1000 Max.
  • Page 28 10. Specifications 10. Specifications Model S5-GR3P10K Model S5-GR3P12K Max. DC input voltage (Volts) Max. DC input voltage (Volts) 1100 1100 Rated DC voltage (Volts) Rated DC voltage (Volts) Start-up voltage (Volts) Start-up voltage (Volts) MPPT voltage range (Volts) MPPT voltage range (Volts) 160...1000 160...1000 Max.
  • Page 29 10. Specifications 10. Specifications Model S5-GR3P13K Model S5-GR3P5K-LV Max. DC input voltage (Volts) Max. DC input voltage (Volts) 1100 1100 Rated DC voltage (Volts) Rated DC voltage (Volts) Start-up voltage (Volts) Start-up voltage (Volts) MPPT voltage range (Volts) MPPT voltage range (Volts) 160...1000...
  • Page 30 10. Specifications 10. Specifications Model S5-GR3P6K-LV Model S5-GR3P8K-BE Max. DC input voltage (Volts) Max. DC input voltage (Volts) 1100 1100 Rated DC voltage (Volts) Rated DC voltage (Volts) Start-up voltage (Volts) Start-up voltage (Volts) MPPT voltage range (Volts) MPPT voltage range (Volts) 160...500 160...1000 Max.

  • Page 31: Appendix

    3/N/PE~230/400 change. It is for your reference only. If customer has any doubts or uncertainty, please Rated output current (Amps) 14.4 consult Solis service department for confirmation. Max. output current (Amps) 14.4 >0.99 (0.8 leading - 0.8 lagging) Power Factor (at rated output power)
  • Page 32 11. Appendix Code in LCD Country/Region Comments G98 NI North Ireland For North Ireland Low Voltage Grid <16A G99 NI North Ireland For North Ireland Low Voltage Grid >16A User-define Customized Protection Limits Gen50 Generator Connected, Frequency-Derating, 50Hz Gen 60 Generator Connected, Frequency-Derating, 60Hz East Denmark For East Danish low voltage grid...
