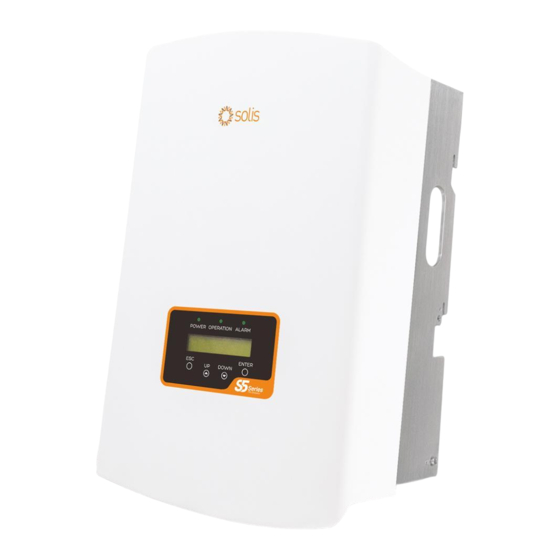

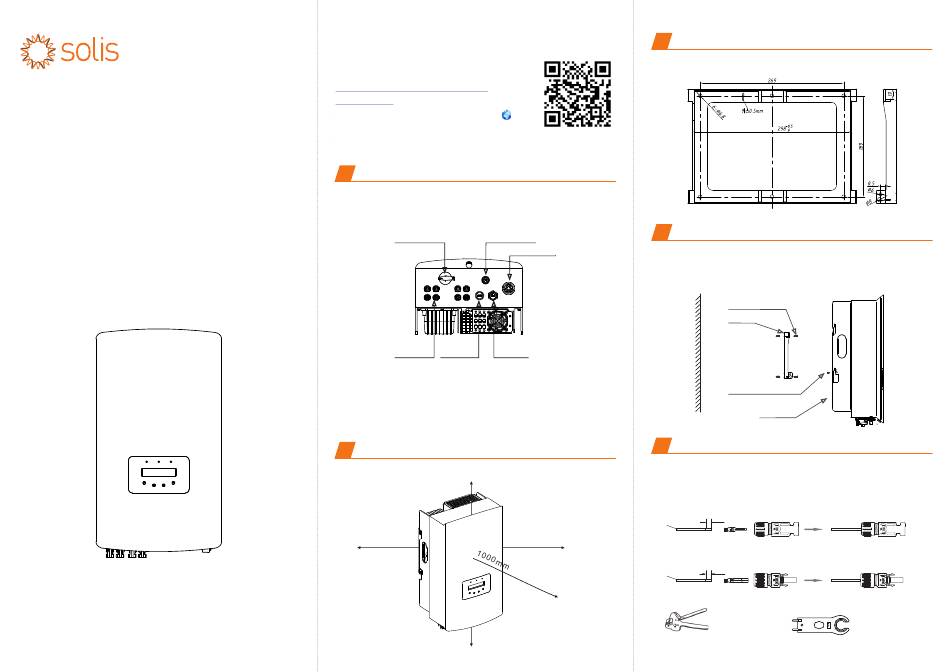

SOLIS S5-GR3P K Series Quick Installation Manual

Quick Installation Guide
(For India)
Version 1.0
S5-GR3P(3-13)K
Ginlong Technologies Co., Ltd.
Note: Installation Manual Download
For access to the manual please scan
the QR code below or you can go the URL
https://www.ginlong.com/global/
service.html
After entering the page, you can click "
icon to change to preferred language.
1

Bottom of the Inverter

Some models may have a different number of DC inputs,
please refer to datasheet/nameplate/actual product.
DC Switch
(optional)
RS485
DC input
CT/Meter DRM
If no PV string connects to the DC input terminals, please install
the watertight cap onto the empty DC input terminals to guarantee
the inverter ingress protection rating.
2

Installation Clearance

Minimum clearance is required.
500mm
500mm
500mm
3

Mounting Hole Size

Use a 10mm drill bit to drill a hole of 60mm depth.
"
4 Inverter Installation
AC output
Ensure the mounting bracket is horizontal and use a Phillips
screwdriver to fasten the expansion bolts.
Lift the inverter and hang it on the bracket.
5

DC Connector Wiring and Assemble

Use a wire crimper to fasten the metal connector and insert it
into the top of the MC4 connector. Use the MC4 special tool
to fasten the MC4 assembly.
outer diameter
2.5-4mm²
500mm
outer diameter
2.5-4mm²
Expansion screw x4
Bracket
Fixing screw
Inverter
7±0.5mm
7±0.5mm
Crimping plier MC4 special tool
（-）
（+）
