HGZ7/1620+1860

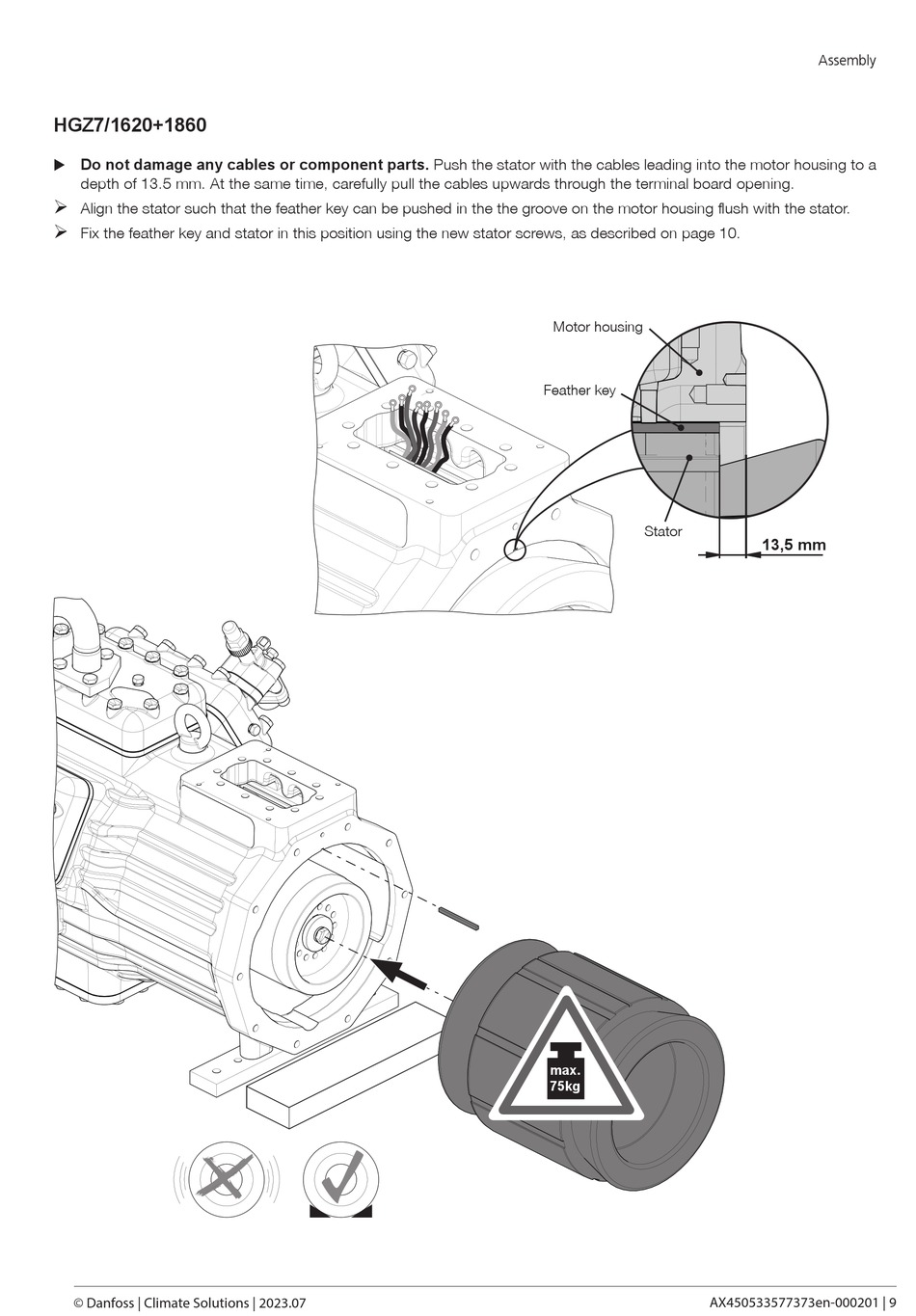

Do not damage any cables or component parts. Push the stator with the cables leading into the motor housing to a
X
depth of 13.5 mm. At the same time, carefully pull the cables upwards through the terminal board opening.
¾
Align the stator such that the feather key can be pushed in the the groove on the motor housing flush with the stator.
¾
Fix the feather key and stator in this position using the new stator screws, as described on page 10.
© Danfoss | Climate Solutions | 2023.07
Motor housing
Feather key
Stator
max.
75kg
AX450533577373en-000201 | 9
Assembly
13,5 mm
