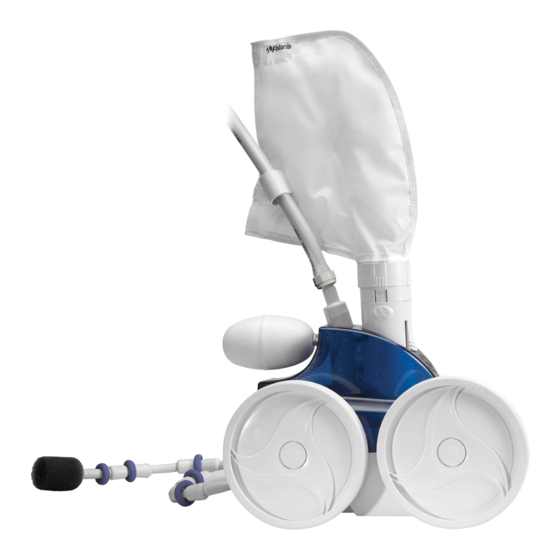

Zodiac Vac-Sweep 380 Manual

Zodiac Vac-Sweep 380 Manual

Advertisement

Quick Links

IMPORTANT INFORMATION
Always disconnect the Polaris from the pool wall when cleaning or backwashing the pool
filter.
After cleaning or backwashing, let the filtration system run for at least five minutes before
re-connecting the Polaris.
New plumbing lines should be flushed out before installing the Polaris.
The Polaris should not be used to remove plaster dust in new pools.
Always remove the Polaris
Except when checking the wheel RPM, do not handle the Polaris while it is operating.
Always remove the Polaris from the pool before chemical shock treatments.
FOR CUSTOMER SERVICE OR SUPPORT:
Please mail Warranty Card immediately.
For on-line support: www.polarispool.com
To contact Polaris:
US and Canada
Customer Service
2620 Commerce Way
Vista, CA 92081-8438
1-800-822-7933
This one year limited warranty is extended to the original consumer purchaser of this Polaris
Vac-Sweep 380 Automatic Pool Cleaner manufactured by Zodiac Pool Care, Inc., from date of
manufacture of the unit as established by the serial number, or one year from date of purchase
with proof of purchase, whichever is later. Zodiac warrants this product, including all parts and
components thereof, to be free of defects in material and workmanship. Normal replacement items
such as bags, tires, sweep hoses or sweep hose scrubbers which have been worn out by use or
improper installation are not covered by this warranty. The Polaris 380 frame is warranted for a
period of ten years.
This limited warranty does not apply if the failure is caused or contributed to by any of the
following: improper handling, improper usage, improper storage, winter freezing, abuse, improper
installation, removal of the in-filter screen, unsuitable application of the unit, improper maintenance,
lack of reasonable and necessary maintenance, damage in transit or during installation, or damage
from repairs/alterations made or attempted by anyone other than Zodiac or one of its Authorized
Service Centers. In no event shall Zodiac be liable for incidental or consequential damages of
any nature or for damages to persons or property, including damage to vinyl liners, plaster, tile,
aggregate-based and other pool surfaces, or damages resulting from the use of this product with a
substandard pool circulation system or chemical imbalance.
Authorization to return a unit or part to the plant of manufacture must be obtained from the
Zodiac Customer Service Department. Check with your dealer for the local procedure before
exercising this warranty. If further directions or instructions should be required, contact the
Customer Service Department at 1-800-822-7933 (USA and Canada only) or (760) 599-9600. Be
sure to insure the shipment against loss or damage in transit.
This limited warranty is valid only in the United States of America, Canada and Australia, and
it does not apply to Polaris Vac-Sweep 380 Automatic Swimming Pool Cleaners sold or installed in
any other country. Polaris Vac-Sweep 380 Automatic Pool Cleaners sold in the United Kingdom are
warranted for a period of two years from date of invoicing to the first user.
before swimmers enter the pool.
Polaris Vac-Sweep® 380 Limited Warranty

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vac-Sweep 380 and is the answer not in the manual?

Questions and answers

Summary of Contents for Zodiac Vac-Sweep 380

  • Page 1 This limited warranty is valid only in the United States of America, Canada and Australia, and it does not apply to Polaris Vac-Sweep 380 Automatic Swimming Pool Cleaners sold or installed in any other country. Polaris Vac-Sweep 380 Automatic Pool Cleaners sold in the United Kingdom are...
  • Page 2 Zodiac is not responsible for, and the Limited Warranty does not cover, pattern removal, abrasion or markings on vinyl liners.
  • Page 3: Quick Installation Instructions

    QUICK INSTALLATION INSTRUCTIONS 1. Install the Universal Wall Fitting Installs in minutes on pools with a dedicated cleaner return line and a threaded 1-1/2” female pipe fitting. Turn on the filtration pump and flush out the plumbing line.Turn pump off. Remove the UWF from the Quick Disconnect and screw the UWF with the blue restrictor disk into the return opening.
  • Page 4 3. Assemble the Cleaner Use the nut to attach the feed hose to the feed pipe. Feed Pipe Pull out the bag and attach the bag collar to the feed hose. Bag Collar Push head float all the way in against the cleaner body.
  • Page 5: Thrust Jet Adjustment

    FINE TUNING THE POLARIS CLEANER When operating correctly, the Polaris 380 vacuums, sweeps and scrubs all surfaces randomly throughout the pool. Approximately every three minutes the Polaris 380 goes into back-up mode. This action pulls the Polaris away from pool obstacles and increases its random pattern.
  • Page 6: Troubleshooting

    TROUBLESHOOTING If the Polaris cleaner displays the following actions, adjustments may be necessary to restore performance. Refer to exploded parts diagram for part references. Action: Cleaner hangs up on steps or other obstacles for longer than 3 minutes. Solution: 1. Check the wheel RPM. 2.
  • Page 7 Action: Polaris only turns in one direction. Solution: 1. Adjust the thrust jet. 2. Make sure feed hose is floating. Action: Feed hose becomes tangled. Solution: 1. Remeasure the hose to verify that it is adjusted to the proper length for the pool shape.
  • Page 8: Troubleshooting Worksheet

    Troubleshooting Worksheet If these solutions do not result in improved performance, contact the Polaris dealer who sold you the cleaner or call Customer Service. In order to provide faster and more convenient service, please have the following information available at the time of your call or when taking the Polaris in for service.
