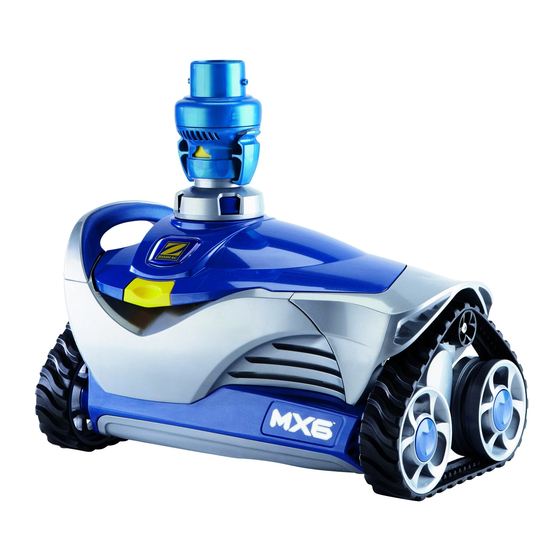

Zodiac MX6 Instructions For Installation And Use Manual
Hydraulic cleaner
Hide thumbs
Also See for MX6:
- Owner's manual (32 pages) ,
- Instructions for installation and use manual (17 pages) ,
- Quick start manual (3 pages)
Related Manuals for Zodiac MX6
Summary of Contents for Zodiac MX6

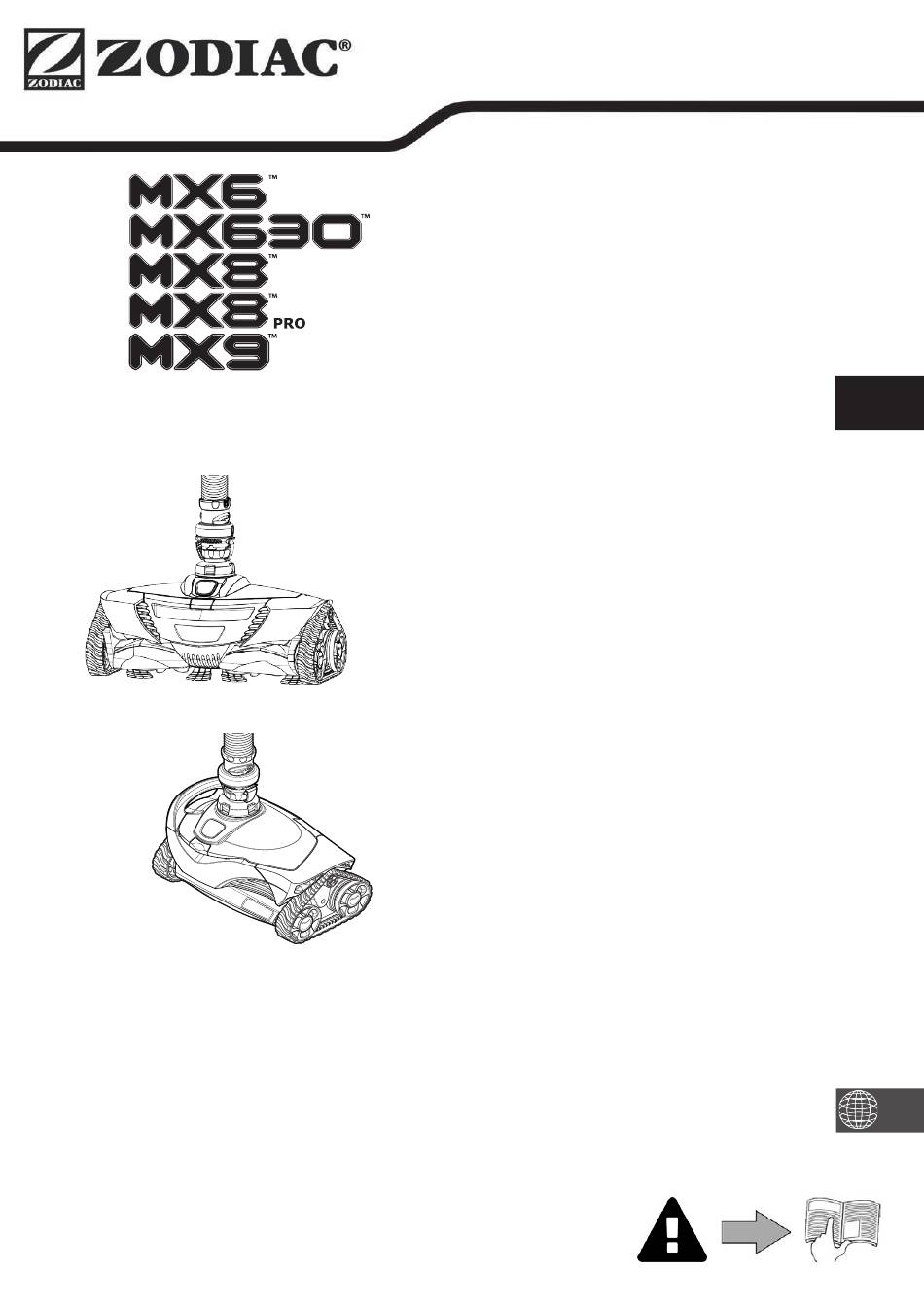

- Page 1 Instructions for installation and use - English Hydraulic cleaner Translation of the original instructions in French More documents on: www.zodiac.com H0354600_REVH - 2018/04...
- Page 2 • Do not spray insecticide or any other chemical (inflammable or non-inflammable) in the direction of the appliance, as this may damage the body and cause a fire. • Zodiac® heat pump, filtration pump and filter appliances are compatible with the most commonly used types of pool water treatment systems.
-
Page 3: Table Of Contents
It is prohibited to distribute or modify this document in any way without authorisation from • Zodiac®. Zodiac® is constantly developing its products to improve their quality; therefore, the • information contained in this document may be modified without notice. -
Page 4: ❶ Specifications
❶ Specifications 1.1 I Description 6 - MX 8 PRO Cleaner 1 metre Twist Lock hose float section (x1) 1 metre Twist Lock hose section ( x9) ( x11) ( x11) ( x11) Flow regulator valve In-ground valve cuff 45° flexible elbow Flowkeeper valve 45°... -
Page 5: I Technical Specifications And Marking
1.2 I Technical specifications and marking 1.2.1 Technical specifications 6 - MX 8 PRO Cleaner size (L x W x h) 31 x 19 x 22 cm 41 x 19 x 22 cm Package size (L x W x h) 102 x 23 x 37 cm Cleaner weight 2.5 kg... -
Page 6: ❷ Installation
❷ Installation 2.1 I Setup Hose length necessary : Cleaner : Hose sections : Pool valves : Suction line : Skimmer : Filtering pump : Filter Suction line connection example 2.2 I Hose section assembly 2.2.1 Determine the number of sections you need •... -
Page 7: I Hydraulic Connections
2.3 I Hydraulic connections • Turn off the filtration pump. • Clean the skimmer basket, the filtration pump filter basket and the filter if necessary. 2.3.1 Connection to the suction line : Hose section : Suction line : 45° elbow extended (according to model) : Rotating 45°... - Page 8 2.3.3 "Cyclonic™ Leaf Catcher" connection (according to model) • Connect the Cyclonic Leaf Catcher to the hose assembly which is closest to the suction line or the skimmer (see image • Tilt the Cyclonic Leaf Catcher by following the indications: "PUMP" = filtration pump side / "CLEANER" = cleaner side (see image •...
-
Page 9: ❸ Use
❸ Use 3.1 I Operating principle The hydraulic cleaners connect to the filtration system (either to a suction line or a skimmer); they use the filtration pump’s energy to move around the pool. The wall climbing capacity varies according to the shape of the pool and the available water flow. -
Page 10: I Adjusting The Water Flow
3.4 I Adjusting the water flow • The filtration pump must be operating. • Check the water flow regularly to ensure the best possible cleaning performance and to make it easier for the cleaner to climb the sides. • The cleaner is equipped with a flow regulator valve which automatically adjusts the water flow through the cleaner. It indicates whether the water flow is ok or excessive: YELLOW = flow ok / RED = flow excessive : Flow regulator valve : Control... -
Page 11: I Choice Of Suction Mode: Small Or Large Debris (According To Model)
3.5 I Choice of suction mode: small or large debris (according to model) Before starting this operation and to avoid serious injury: • Turn off the filtration pump. • Disconnect the cleaner from the Twist Lock hose assembly. • The cleaner has a suction adaptor; it is located under the cleaner. •... -
Page 12: ❹ Maintenance
❹ Maintenance • The device must be cleaned regularly using clean or slightly soapy water. Do not use any solvents. • Rinse the device generously using clean water. • Never store the cleaner in direct sunlight. Store the hoses laying flat and not coiled to prevent unwanted hose memory. 4.1 I Cleaning the filtration pump basket •... -
Page 13: I Removing Debris From The Motor
4.3 I Removing debris from the motor Before starting this operation and to avoid serious injury: • Turn off the filtration pump. • Disconnect the cleaner from the Twist Lock hose assembly. • Press the button on the top and lift the lid (see image •... -
Page 14: I Storage And Wintering
4.5 I Storage and winterizing • For winterizing, drain off all the water from the cleaner (damage caused by frost is not covered by the warranty). • Clean the whole device and the hoses in clean water then leave to dry. •... -
Page 15: ❺ Troubleshooting
❺ Troubleshooting • Before you contact your reseller, please carry out these few simple checks using the following tables if a problem occurs. • If the problem continues contact your reseller. 5.1 I Device behaviour • Close the main drain line. •... - Page 16 Votre revendeur Your retailer Modèle appareil Appliance model Numéro de série Serial number Trouvez plus d’informations et enregistrez votre produit sur More informations and register your product on www.zodiac.com ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license.
