We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this ceiling fan.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Home Decorators Collection!
USE AND CARE GUIDE

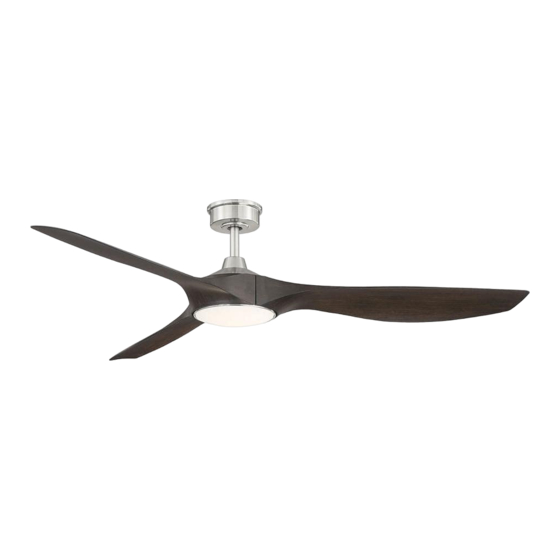

84 IN. MARLON
INDOOR CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
Item #1008 636 440
Model # YG825C-BN
THANK YOU
#1008 636 439
#1008 636 398
#1008 636 438
# YG825C-BNV1
# YG825C-NI
# YG825C-NIV6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection YG825C-BN
Summary of Contents for Home Decorators Collection YG825C-BN
- Page 1 THANK YOU We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for...
-
Page 2: Table Of Contents
The following responsible party designated in FCC §2.909 is turned off at the circuit breaker or fuse box before beginning. responsible for this declaration: Model Number: YG825C-BN,YG825C-BNV1,YG825C-NI,YG825C-NIV6 All wiring must be in accordance with the National Electrical Company Name: TAL INTERNATIONAL CORPORATION Code “ANSI/NFPA 70”... -
Page 3: Warranty
Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of ve years after the date of purchase by the original purchaser. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Plastic wire nut Blade screw with lock washer 1.5V AAA battery 2-pin extension cord 3-pin extension cord...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Mounting bracket (preassembled) Blade support plate Canopy Light kit mounting plate Canopy bottom cover (preassembled) 25 watt LED light kit Hanger ball/downrod assembly Glass shade Coupling cover Receiver Fan motor assembly Remote control Blade HOMEDEPOT.COM/HOMEDECORATORS...
-
Page 6: Installation
Installation MOUNTING OPTIONS WARNING: To reduce the risk of re, electric shock, or NOTE: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked acceptable The maximum angle allowable is 18°... -
Page 7: Assembly
Assembly Preparing the canopy Preparing the motor □ □ Remove the cotter pin (GG) and clevis pin (HH), and Remove the canopy bottom cover (C) from the canopy loosen the two collar set screws (II) from the motor (B) by turning the canopy bottom cover (C) collar. - Page 8 Assembly — Hanging the Fan Attaching the mounting bracket to Hanging the fan on the mounting the electrical box bracket WARNING: To reduce the risk of re, electric shock or WARNING: The tab in the ring must rest in the groove of other personal injury, mount the fan only to an outlet box or the hanger ball/downrod assembly (D).
- Page 9 Assembly — Hanging the Fan (continued) Making the electrical connections Ground WARNING: Check to see that all connections are tight, conductor White Black including ground, and that no bare wire is visible at the wire nuts, except for the ground wire. CAUTION: To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
- Page 10 Assembly — Hanging the Fan (continued) Installing the canopy Outlet Box WARNING: Make sure the tab on the mounting bracket (A) properly sits in the groove in the hanger ball/downrod assembly (D) before attaching the canopy (B) to the mounting bracket (A) by turning the canopy (B) until it drops into place.
- Page 11 Assembly — Installing the Light Kit Attaching the light kit mounting Attaching the LED light kit and plate to the mounting ring glass shade □ Remove one of the three light kit mounting plate screws CAUTION: Before starting installation, disconnect the (RR) from the mounting ring (SS) and loosen the other power by turning off the circuit breaker or removing the fuse two screws.
-
Page 12: Operation
Operation SETTING UP THE TRANSMITTER NOTE: Batteries will weaken with age and should be replaced before leaking takes place as this will damage the remote control. Dispose of used batteries properly and keep them out of the reach of children. □... - Page 13 Operation (continued) To clear all other remotes from your fan’s memory, use the steps below: □ Ensure AC power to the fan is OFF to begin the learning process. □ Slide the dip switch in the battery compartment to the "0" position.
- Page 14 Operation (continued) OPERATING YOUR FAN AND REMOTE CONTROL NOTE: The fan will store the last used speed setting for the next time it is turned on. NOTE: You must turn the fan on prior to using the speed or time functions. NOTE: On each start up of your ceiling fan, the fan blades will oscillate back and forth.
- Page 15 Operation (continued) Timer □ Pressing the timer button will automatically turn fan and light (if light is on) off after 2, 4, or 8 hours. When you activate the timer mode, the LED to the left of the time above the clock will illuminate. Disables timer Fan reverse button (Must be pushed when the fan is in operation) □...
- Page 16 Operation (continued) WARM/COOL WEATHER OPERATING INSTRUCTIONS Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, numbers of fans. NOTE: The fan reverse buttons must be pressed while the fan is running. Warm weather - (Counterclockwise direction) A downward air ow creates a cooling effect.
-
Page 17: Care And Cleaning
Care and Cleaning Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling. Clean your fan periodically. - Page 18 - Consult the dealer or an experienced radio/TV technician for help. Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
