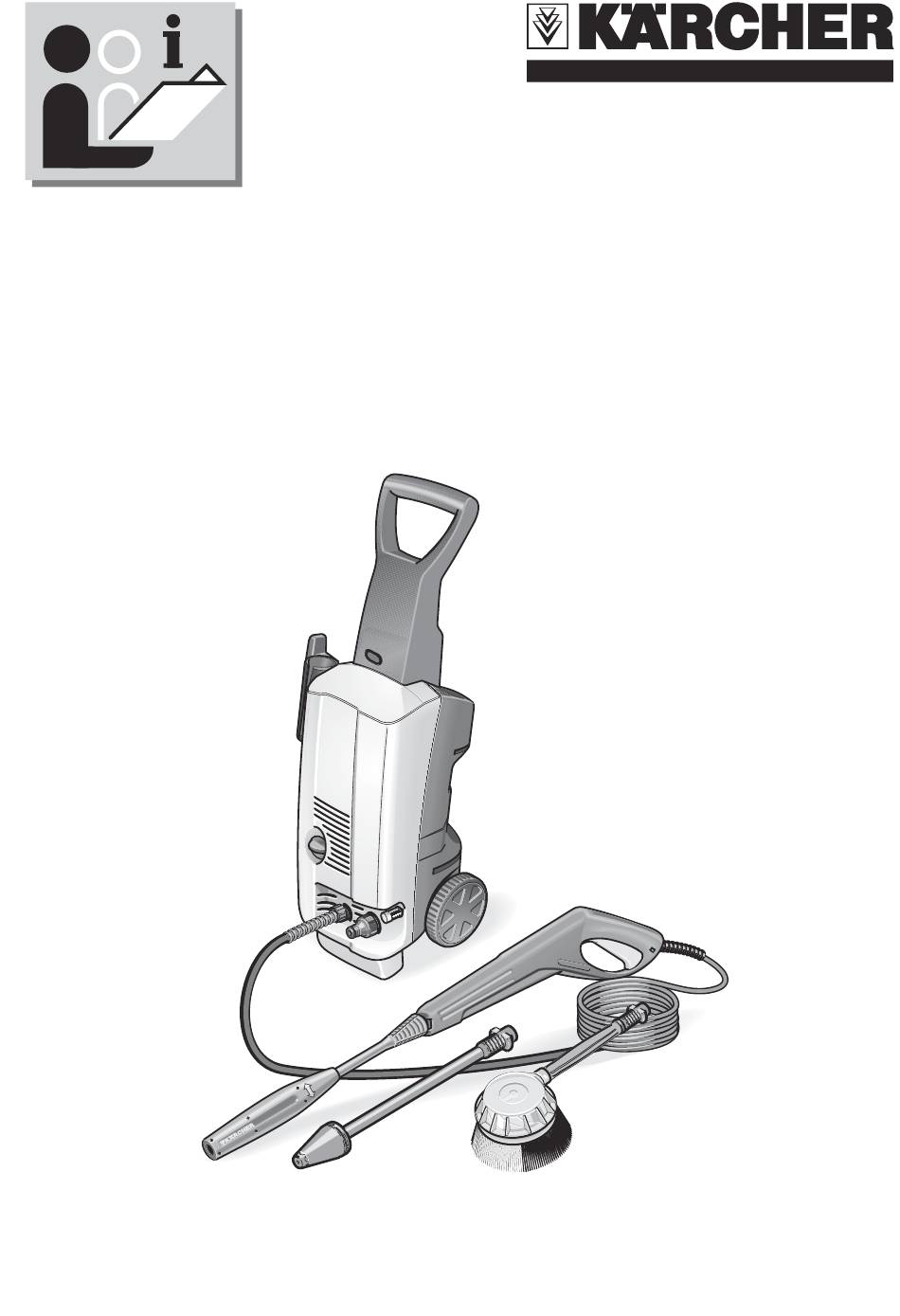

- Page 1 K 4.99 M 5.960–843 02/04_2007118 Operating Instructions PRESSURE WASHER Before first use of the unit read these operating instructions and act in accordance with them...
- Page 2 THANK YOU FOR PURCHASING A KARCHER PRESSURE WASHER PLEASE READ THIS LEAFLET CAREFULLY BEFORE OPERATING YOUR MACHINE. WHAT IS A PRESSURE WASHER? A Pressure Washer is essentially a powerful electric motor driving a set of pistons that force water through a small nozzle, thus creating a pressurised jet of water.
-
Page 3: Table Of Contents
INDEX APPLICATIONS ..........................SAFETY INSTRUCTIONS 4 - 6 ..................GETTING STARTED ....................... Contents Water Connection Electrical Connection Suction Mode Detergent OPERATING YOUR PRESSURE WASHER 10 - 12 ....High Pressure Operation Low Pressure Operation with Detergent Low Pressure Operation with Brush End Of Operation IMPORTANT –... -
Page 4: Applications
1. APPLICATIONS The main applications for this product are DOMESTIC cleaning tasks: • Cars, motorbikes, caravans, boats and bicycles • Patio’s, fences, garden walls, pathways, driveways and house facades – particularly useful for cleaning block driveways • Removal of algae and moss from roofs, brickwork and guttering •... - Page 5 Electrical Connection Never use defect connection or extension lines! If the connection line is damaged, it must be replaced with a special connection line that is available from the manufacturer or his customer service. Please make sure that the connection or extension lines are not dama- ged by being ran over, pulled or dragged.
- Page 6 The appliance is not intended for use by young children or infirm per- sons without supervision. Young children should be supervised to ensure that they do not play with the appliance. The operator must use the appliance properly. He must take the local conditions into consideration and must pay attention to third persons, in particular children, while working with the appliance.
-
Page 7: Getting Started
3. GETTING STARTED 3.1 Contents Upon opening the carton, if you do not have all the items as detailed please contact the Help-line on 0906 6800632 (calls to this number are from 8.30am to 5.00pm Monday - Friday. charged at 25p per minute) A s s e m b l y s e e P a g e 1 9 A s s e m b l y s e e P a g e 1 9 1 Detergent suction hose... -
Page 8: Water Connection
Please follow these instructions carefully for troublefree cleaning Use the diagram on Page 7 for reference purposes 3.2 Water Connection • The minimum length of supply hosepipe advised for maximum user convenience is 7.5 metres with a diameter of 12.5 mm (1/2") to avoid backpressure and any associated potential damage to your machine. -
Page 9: Detergent
3.5 Detergent Only cleaning agents recommended by Karcher (UK) Ltd. should be used. Unsuitable detergents could damage your Pressure Washer and the object being cleaned. Recommended Detergents 1. The following cleaning agent may be used undiluted: Universal Cleaner ......Profi RM 555 ASF 2. -
Page 10: Operating Your Pressure Washer
4. OPERATING YOUR PRESSURE WASHER If you have followed all the instructions so far, you are now ready to have fun cleaning the KARCHER way!!! • Assembly the Spray Gun (No. 8) and the high-pressure hose (No. 7), shown on page 19. •... -
Page 11: High Pressure Operation
4.1 High Pressure Operation • Ensure the Spray Lance with Vario Power Nozzle (No. 6a) or the Dirt Blaster (No. 6b) are attached se- curely to the Spray Gun (No. 8). • Set vario power nozzle to high pressure mode "+". •... -
Page 12: Low Pressure Operation With Brush
4.3 Low Pressure Operation with Brush When cleaning surfaces with a grease contamination - typically car paint- work that always has a greasy traffic film covering. Follow the procedure of: • Washing loose dirt away with the clean water high pressure spray. •... -
Page 13: Important - Care And Maintenance
5. IMPORTANT – CARE AND MAINTENANCE To ensure prolonged life and trouble-free use of your Karcher Pressure Washer we strongly recommend that you always adopt the following procedures: Water • Before use, always check the inlet filter for dirt or debris. •... -
Page 14: Accessories / Spare Parts
IMPORTANT REMEMBER FROST WILL DAMAGE YOUR KARCHER PRESSURE WASHER IF IT IS NOT BEEN COMPLETELY EMP- TIED OF WATER AFTER USE. ALWAYS STORE IN A FROST FREE AREA. 6. ACCESSORIES A wide range of popular accessories are available from your local store selling Karcher Pressure Washers. - Page 15 6. SPARE PARTS In the event that your Karcher Pressure Washer requires replacement parts – please refer to the diagram below AND identify the particular model of your machine by reference to the data plate on the underside. Then telephone 0906 6800632 for assistance (calls to this number are from 8.30am to 5.00pm Monday - Friday.
-
Page 16: Problem Checklist / Troubleshooting
7. PROBLEM CHECKLIST The machine you have chosen is of the highest quality. Correctly stored away from frost it should operate without problems. If a problem does arise, please check the following chart as a solution may be at hand. c i f v i t v i t... -
Page 17: After Sales Service
8. Help-Line Karcher (UK) Limited operate a help-line allowing customers to dis- cuss any problems experienced with our products. The help-line operates during normal business hours, if you have diffi- culty getting through, please understand that there are peak periods during the day when our consultants are unable to take all calls co- ming in. -
Page 18: Technical Data
9. TECHNICAL DATA Power Connection Voltage ..............240 V -AC Current ............1~50 Connected/Load ..........1.9 Mains Fuse ............13 Safety class ..........1, IPX5 Water Connection Supply Temperature (Max) .........40 °C Supply Rate (Min) ..........10 litres per minute Supply Pressure (Max) (12 bar) ....Supply Hose Length ...........7.5 metres Diameter ............1/2... -
Page 19: Assembly
10. ASSEMBLY... - Page 20 EU Declaration of Conformity We hereby declare that the equipment described below conforms to the relevant fundamental safety and health requirements of the appropriate EU Directives, both in its basic design and construc- tion as well as in the version marketed by us.This declaration will cease to be valid if any modifications are made to the machine wit- hout our express approval.
