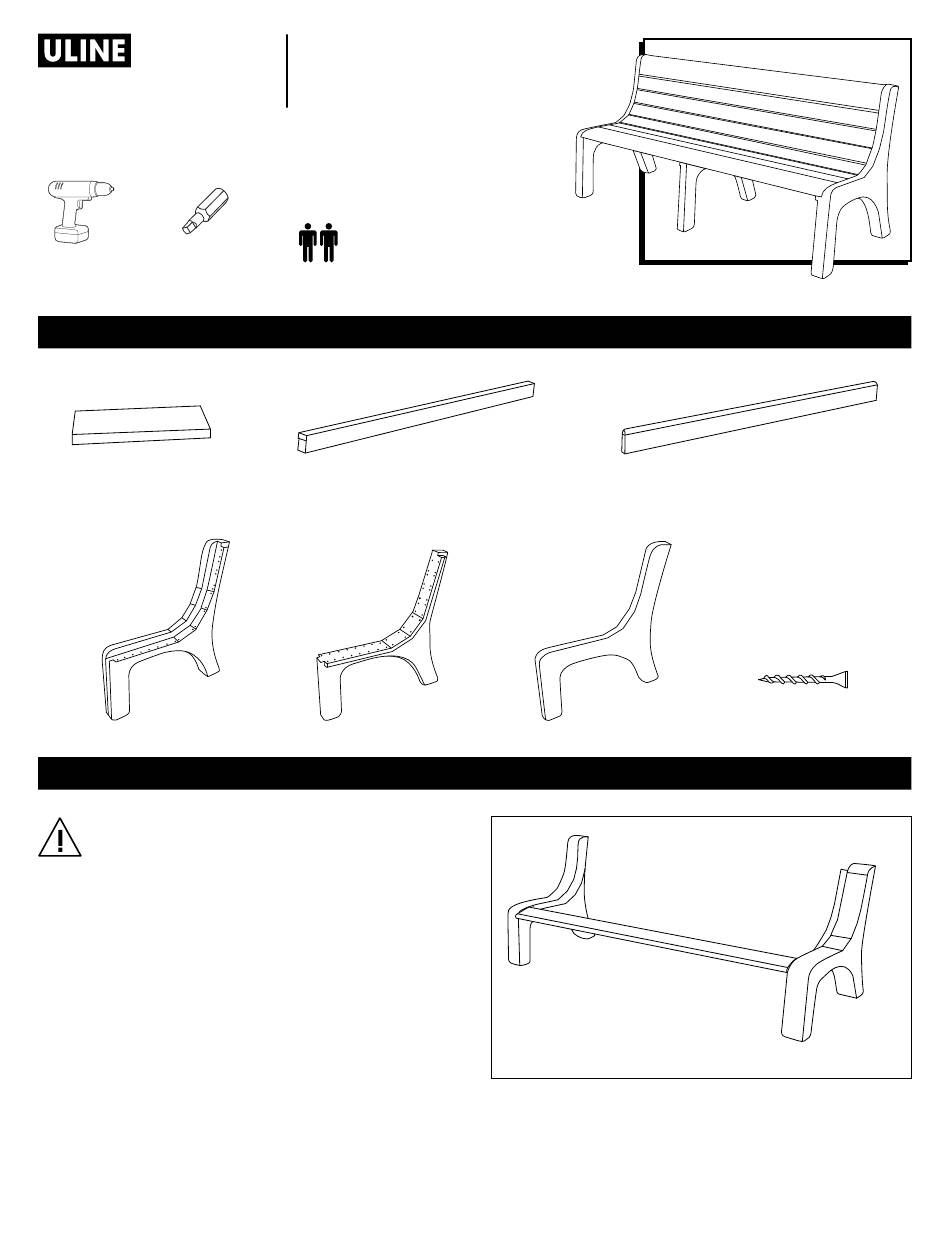

H-6570

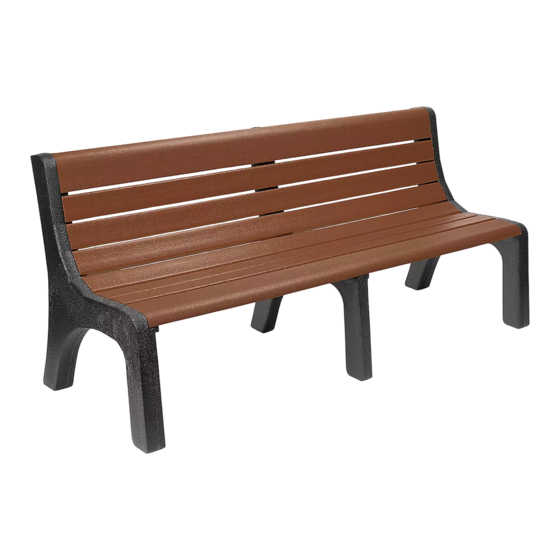

6' LAGUNA BENCH
TOOL NEEDED
Square Head Bit
Power Drill
3/8" Spacer x 2
Left Leg x 1
CAUTION! Do not drive attachment screws too
deeply, as the screw could protrude through
slat on the seating side of bench.
1. Verify all parts are present before beginning.
2. With one person holding the left leg and another
person holding the right leg, insert a rounded-edge
board between each leg, in line with the front of
the legs. From underneath, attach the front board
to the supports by fastening screws through the
pre-drilled holes on the underside of the leg. Do not
overtighten. (See Figure 1)
PAGE 1 OF 6
1-800-295-5510
uline.com
Two Person Assembly
Recommended
PARTS
Seat and Back
Board x 6
Center Leg x 1
ASSEMBLY
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Front and Top Board
with Rounded Edge x 2
Square Head Screw x 64
Right Leg x 1
Figure 1
0823 IH-6570
Advertisement
Table of Contents
Related Manuals for U-Line H-6570
Summary of Contents for U-Line H-6570
- Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-6570 1-800-295-5510 uline.com 6' LAGUNA BENCH TOOL NEEDED Two Person Assembly Recommended Square Head Bit Power Drill PARTS Seat and Back Front and Top Board 3/8" Spacer x 2...
- Page 2 ASSEMBLY CONTINUED 3. Repeat step 2 for the top rounded-edge board. (See Figure 2) Figure 2 4. Align the center leg with the center of the installed boards and attach with screws fastened through the pre-drilled holes. (See Figure 3) Figure 3 5.
- Page 3 H-6570 800-295-5510 uline.mx BANCA LAGUNA DE 6' HERRAMIENTAS NECESARIAS Se Recomienda Armar Entre Dos Personas Taladro Broca de Cabeza Cuadrada PARTES 2 Espaciadores de 3/8" 6 Tablas de Asiento y Respaldo 2 Tablas Frontal y Superior con Borde Redondeado 96 Tornillos de...
- Page 4 CONTINUACIÓN DE ENSAMBLE 3. Repita el paso 2 para la tabla superior con bordes redondeados. (Vea Diagrama 2) Diagrama 2 4. Alinee la pata central con el centro de las tablas ya instaladas y fíjela con tornillos a través de los orificios preperforados.
- Page 5 H-6570 1-800-295-5510 uline.ca BANC DE STYLE LAGUNA – 6 pi OUTILS REQUIS Montage à deux personnes (recommandé) Perceuse Embout à tête carrée PIÈCES Entretoise de 3/8 po x 2 Planche de dossier et de siège x 6 Planchette frontale et supérieure à...
- Page 6 MONTAGE SUITE Répétez l'étape 2 pour la planche supérieure à bords arrondis. (Voir Figure 2) Figure 2 2. Alignez le pied central avec le centre des planches installées. Fixez les planches aux supports centraux, en insérant les vis à tête carrée au niveau des trous prépercés.
