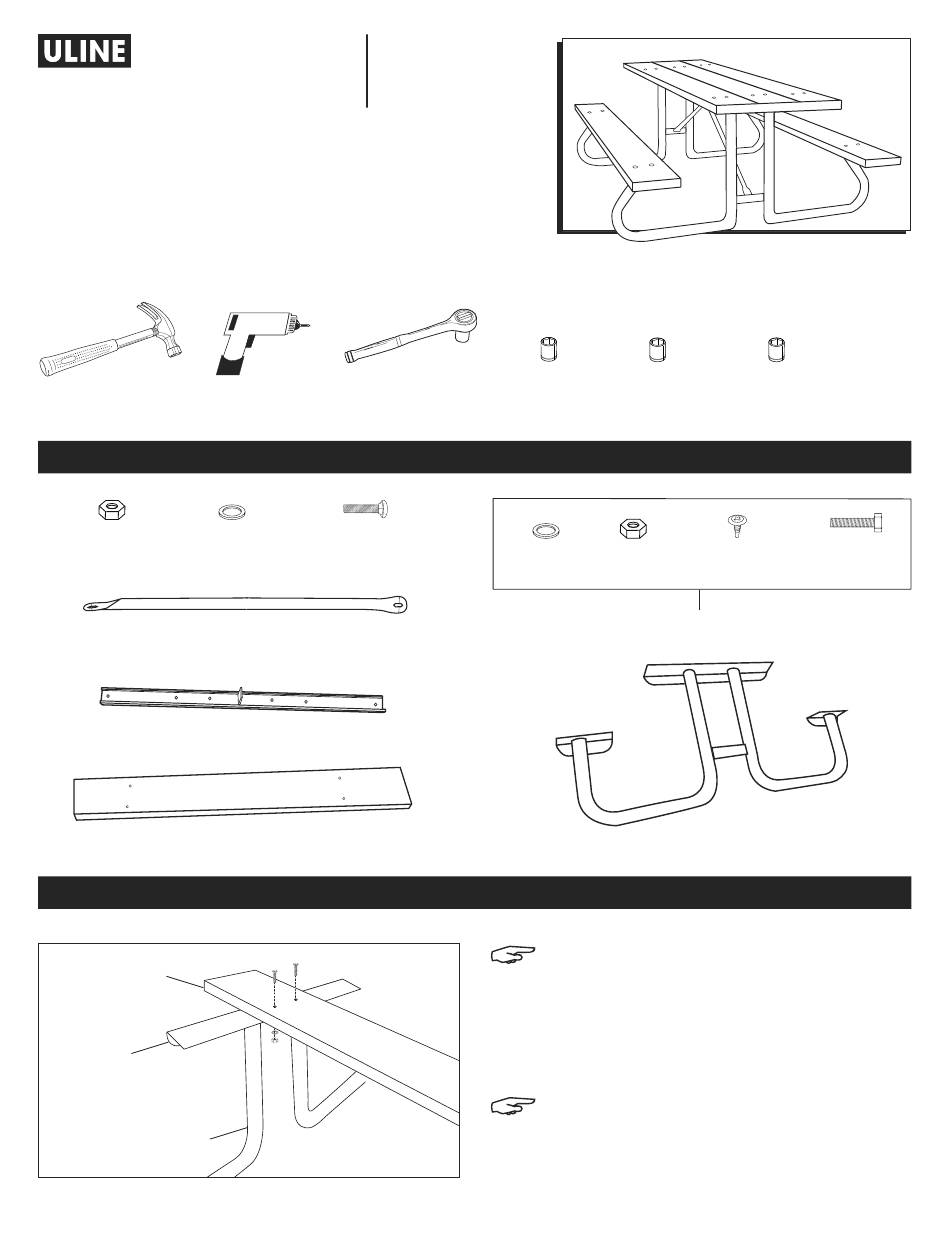

H-4405, H-6578

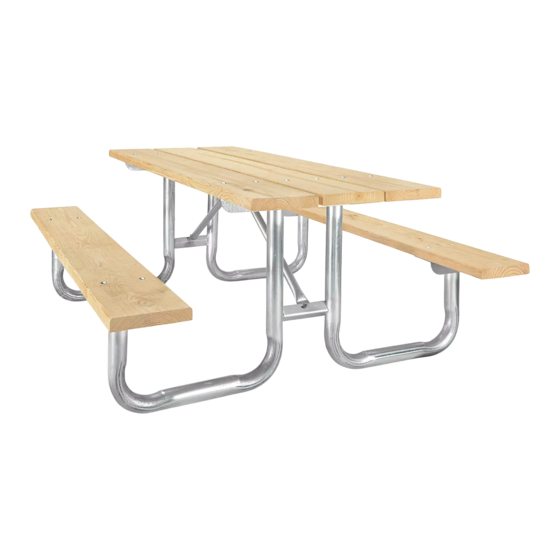

STEEL FRAME
PICNIC TABLE
TOOLS NEEDED
Hammer
(Optional)
Nut x 20
Washer x 20
29" Support Brace x 2
26½" Center Brace
Board x 5
Board
Frame Lip
Leg Frame
PAGE 1 OF 6
1-800-295-5510
uline.com
Power Drill
Socket Wrench
3/8" Bolt x 20
Figure 1
3/8" Socket
PARTS
Washer x 3
ASSEMBLY
NOTE: Two person assembly is recommended.
1. Verify all parts are present before beginning.
Hardware is located in a white box.
2. Stand up the leg frames and loosely attach one
board in the center of the tabletop using the 3/8"
bolts, washers and nuts. (See Figure 1)
NOTE: The frame lips should face toward the
outside of the table.
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
5/16" Socket
9/16" Socket
Nut x 3
#14 Self-Tapping
Screw x 6
Brace Hardware
Leg Frame x 2
5/16" Bolt x 3
0321 IH-4405
Advertisement
Related Manuals for U-Line H-4405
Summary of Contents for U-Line H-4405
- Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-4405, H-6578 1-800-295-5510 uline.com STEEL FRAME PICNIC TABLE TOOLS NEEDED Hammer Power Drill Socket Wrench 3/8" Socket 5/16" Socket 9/16" Socket (Optional) PARTS Nut x 20 Washer x 20 3/8"...
- Page 2 ASSEMBLY CONTINUED 3. Attach the remaining two boards to form the table 6. Connect the support braces to the center brace. top using the 3/8" bolts, washers and nuts. (See Figure 4) (See Figure 2) Support Braces Figure 4 Figure 2 Center Brace 7.
-
Page 3: Herramientas Necesarias
H-4405, H-6578 800-295-5510 uline.mx MESA CON ARMAZÓN DE ACERO PARA PÍCNIC HERRAMIENTAS NECESARIAS Martillo Taladro Matraca Dado de 3/8" Dado de 5/16" Dado de 9/16" (Opcional) Eléctrico PARTES 20 Tuercas 20 Rondanas 20 Pernos de 3 Rondanas 3 Tuercas 6 Tornillos #14 3 Pernos 10 mm (3/8") - Page 4 CONTINUACIÓN DE ENSAMBLE 3. Fije las dos tablas restantes para formar la cubierta 6. Conecte los soportes transversales al soporte central. de la mesa utilizando los pernos de 3/8", rondanas y (Vea Diagrama 4) tuercas. (Vea Diagrama 2) Diagrama 4 Soportes Transversales Diagrama 2 Soporte...
-
Page 5: Outils Requis
H-4405, H-6578 1-800-295-5510 uline.ca TABLE DE PIQUE-NIQUE AVEC CADRE EN ACIER OUTILS REQUIS Marteau Perceuse Clé à douilles Douille de 3/8 po Douille de 5/16 po Douille de 9/16 po (Optionnel) électrique PIÈCES Écrou x 20 Rondelle x 20 Boulon Rondelle x 3 Écrou x 3 Vis autotaraudeuse... - Page 6 MONTAGE SUITE 3. Fixez les deux planches restantes du dessus de table 6. Raccordez les renforts de soutien au renfort central. à l'aide de boulons, de rondelles et d'écrous 3/8 po. (Voir Figure 4) (Voir Figure 2) Renforts de soutien Figure 4 Figure 2 Renfort central...
