H-6570

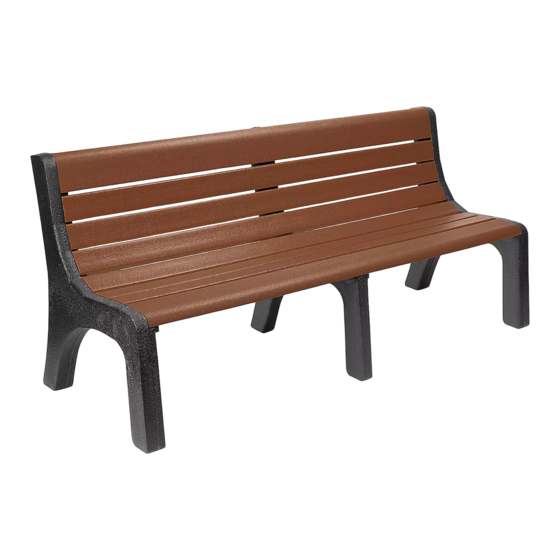

6' LAGUNA BENCH
TOOL NEEDED
Power Drill
3/8" Spacer x 2
Left Leg x 1
NOTE: Two people are required to assemble
this bench.
CAUTION! Do not drive attachment screws too
deeply, as the screw could protrude through
slat on the seating side of bench.
1. Verify all parts are present before beginning.
2. With one person holding the left leg and another
person holding the right leg, insert a rounded-edge
board between each leg, in line with the front of
the legs. From underneath, attach the front board
to the supports by fastening screws through the
pre-drilled holes on the underside of the leg. Do not
overtighten. (See Figure 1)
PAGE 1 OF 6
1-800-295-5510
uline.com
Two Person Assembly
Phillips Bit
(Optional)
Seat and Back
Board x 6
Center Leg x 1

PARTS

Right Leg x 1

ASSEMBLY

Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Front and Top Board
with Rounded Edge x 2
2" Screw x 64
Figure 1
1020 IH-6570

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-6570 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for U-Line H-6570

  • Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-6570 1-800-295-5510 uline.com 6' LAGUNA BENCH TOOL NEEDED Two Person Assembly Phillips Bit Power Drill (Optional) PARTS Seat and Back Front and Top Board 3/8" Spacer x 2...
  • Page 2 ASSEMBLY CONTINUED 3. Repeat step 2 for the top rounded-edge board. (See Figure 2) Figure 2 4. Align the center leg with the center of the installed boards and attach with screws fastened through the pre-drilled holes. (See Figure 3) Figure 3 5.
  • Page 3 H-6570 800-295-5510 uline.mx BANCA LAGUNA DE 6' HERRAMIENTAS NECESARIAS Dos Personas para el Broca Taladro Ensamble (Opcional) PARTES 2 Espaciadores de 3/8" 6 Tablas de Asiento y Respaldo 2 Tablas Frontal y Superior con Borde Redondeado 64 Tornillos de 2"...
  • Page 4 CONTINUACIÓN DE ENSAMBLE 3. Repita el paso 2 para la tabla superior con bordes redondeados. (Vea Diagrama 2) Diagrama 2 4. Alinee la pata central con el centro de las tablas ya instaladas y fíjela con tornillos a través de los orificios preperforados.
  • Page 5 H-6570 1-800-295-5510 uline.ca BANC DE STYLE LAGUNA – 6 pi OUTILS REQUIS Embout Montage à deux Perceuse cruciforme personnes (optionnel) PIÈCES Entretoise de 3/8 po x 2 Planchette de dossier et de siège x 6 Planchette frontale et supérieure à bords arrondis x 2...
  • Page 6 MONTAGE SUITE 3. Répétez l'étape 2 pour la planche supérieure à bords arrondis. (Voir Figure 2) Figure 2 4. Positionnez le pied central au milieu des planches déjà installées et fixez-le à l'aide des vis insérées dans les trous prépercés. (Voir Figure 3) Figure 3 5.
