H-4405, H-6578
STEEL FRAME
PICNIC TABLE
TOOLS NEEDED
Hammer
(Optional)
Nut x 20
Washer x 20
Mounting Hardware
Screw x 8
Brace Hardware
Washer x 3
Nut x 3
Board
Frame Lip
Leg Frame
PAGE 1 OF 9
1-800-295-5510
uline.com
Power Drill
Socket Wrench
3/8" Bolt x 20
Drill Bit x 1
Bracket x 4
(Mounting Optional, See Page 3)
#14 Self-Tapping
5/16" Bolt x 3
Screw x 6
Figure 1
Two Person Assembly
Recommended
5/16" Socket
PARTS
ASSEMBLY

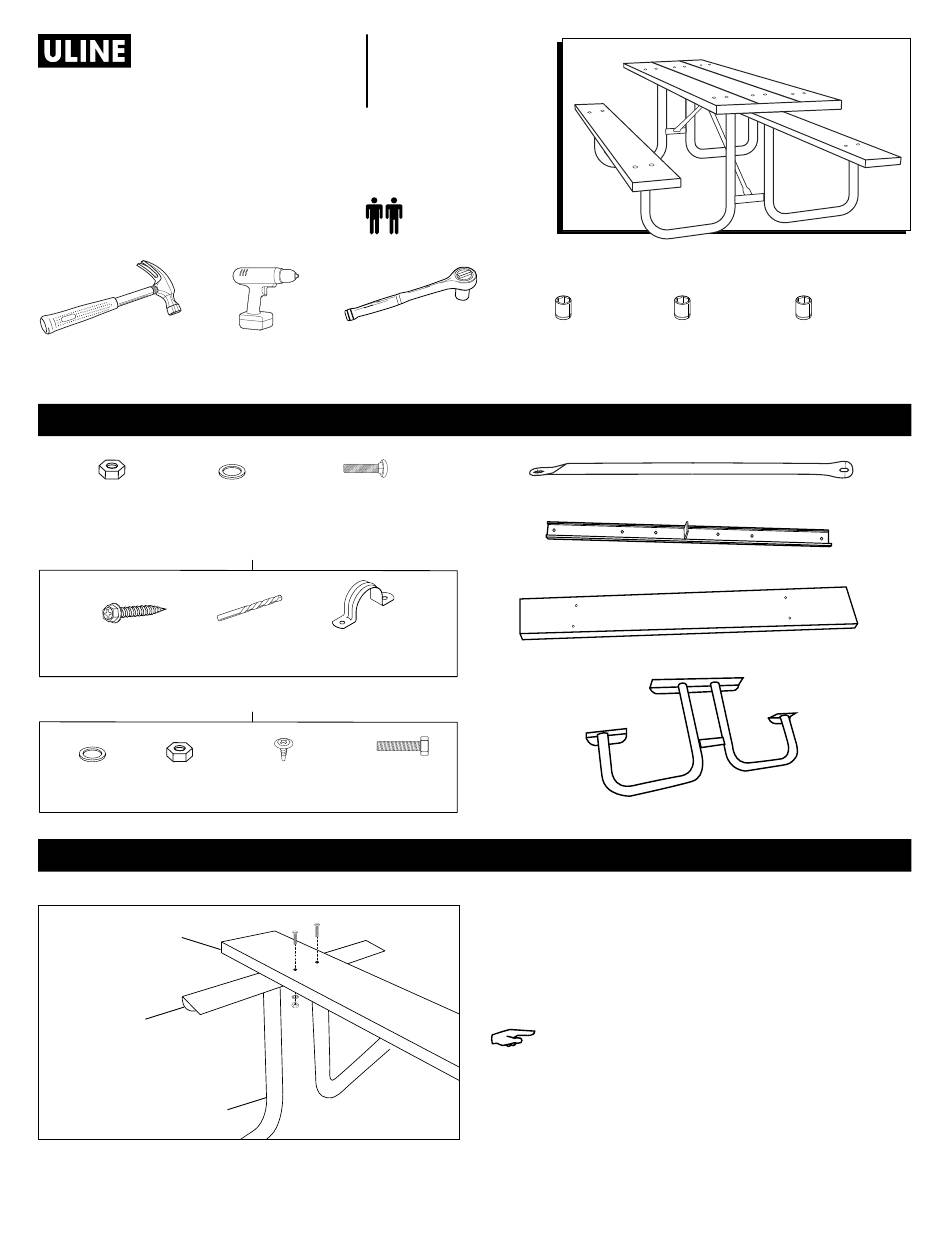

1. Verify all parts are present before beginning.
Hardware is located in a white box.
2. Stand up the leg frames and loosely attach one
board in the center of the tabletop using the 3/8"
bolts, washers and nuts. (See Figure 1)
NOTE: The frame lips should face toward the
outside of the table.
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
9/16" Socket
11/16" Socket
29" Support Brace x 2
26½" Center Brace
Board x 5
Leg Frame x 2
1024 IH-4405
