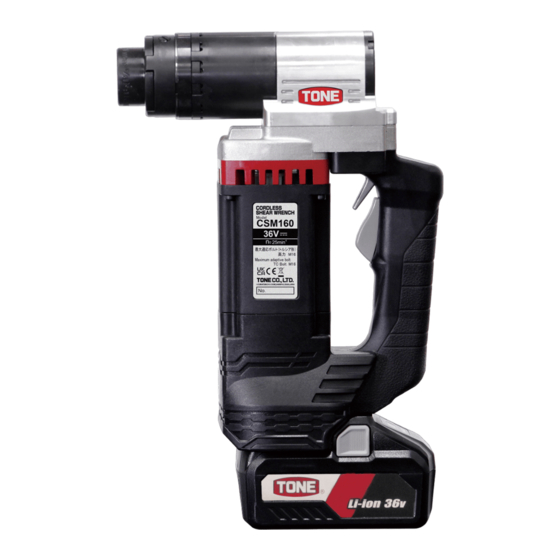

- Page 1 CORDLESS SHEAR WRENCH INSTRUCTION MANUAL CSM160 CSM220 MODEL CSH240 Read and fully understand all the instructions before use. Keep this manual in the designated place for easy and quick reference. TONE CO., LTD.
-
Page 2: Table Of Contents
Contents GENERAL SAFETY INSTRUCTIONS......................3 Work area safety ..........................3 Electrical safety ........................... 3 Personal safety ............................ 3 Power tool use and care ........................3 Battery tool use and care ........................4 Service ..............................4 INTENDED USE ............................5 SHEAR WRENCH SAFETY WARNINGS ...................... 5 PART NAMES AND ACCESSORIES ...................... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS When using electric tools, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock, and personal injury. Read and keep all these Work area safety instructions before operating this wrench. 1. -
Page 4: Battery Tool Use And Care
4. When not in use, store power tools out of the reach of children and do not allow people unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. 5. -
Page 5: Intended Use
INTENDED USE The TONE shear wrench (corded or cordless) is an electric tool for tightening Tension Control Bolt SHEAR WRENCH SAFETY WARNINGS bolting assemblies. 1. Beware of electric shocks. Never use a shear wrench in wet weather conditions. 2. Ensure sockets are fitted correctly with all the appropriate accessories. -
Page 6: Part Names And Accessories
PART NAMES AND ACCESSORIES Accessories MODEL WORKING PARTS AND ACCESSORIES Inner Socket Outer Socket CSM160-BTL Inner Socket Spring CSM200-BTL Ejector Pin CSM220-BTL CSH240-BTL Ejector Spring Screwdriver (-) Metal Case Instruction Manual • Contact your distributor for long sockets or accessories. -
Page 7: Before Use
BEFORE USE 1. Check for any deformation, crack or damage on the shear wrench body, socket, storage battery, charger, parts, etc. 2. Do not use the wrench if any problem is found. 3. Please check the power supply. Only use the power supply indicated on the nameplate of the charger. -
Page 8: Recycling Of Batteries
Recycling of batteries Batteries are a valuable recyclable resource. When disposing of storage batteries or products, please co-operate with recycling and take them to a recycling center or recycling scheme. INSTALLATION/REMOVAL OF BATTERY PACK When removing the battery pack from the wrench body, press the latches on both sides and slide the battery pack out. -
Page 9: Remaining Batterery Power Level
REMAINING BATTERERY POWER LEVEL Batteries have a fitted power level indication system. • Press the check button and the indicator lamps show the battery pack’s remaining power level. • The indicator lamps turn off about 3 seconds after pressing the battery level indicator button. •... -
Page 10: Precautions For Operation
PRECAUTIONS FOR OPERATION Continuous use. 1. Cordless shear wrenches are equipped with a temperature protection circuit to protect the motor and the electronic components that control the drive of the motor. 2. If the wrench is used continuously and the temperature of the motor rises, the temperature protection circuit may activate. -
Page 11: Inspection And Maintenance
INSPECTION AND MAINTENANCE 1. Turn off the switch and remove the storage battery from the wrench. Also, remove the power plug from the outlet of the charger before inspection and maintenance. 2. Replace the inner socket when sheared bolt spline falls out of the inner socket without pulling the ejector lever. -
Page 12: Fully Charge The Lithium-Ion Battery Before Storing It
Fully charge the lithium-ion battery before storing it. If a battery pack is stored for a long time (3 months or more) with low remaining capacity, the storage battery may deteriorate, the usage time may be significantly shortened, or the battery may not work when charged. -
Page 13: Specifications
SPECIFICATIONS Wrench Body No-load rpm Weight Model Motor Storage Battery (min (kg) CSM160-BTL DC brushless CSM220-BTL DC 36V motor CSH240-BTL • Weight excludes sockets. Bolt Dimensions(mm) Model TC Bolt Gear Diameter Length × Height × Width CSM160-BTL M12, M16 φ58 218×278×90... -
Page 14: Eu Declaration Of Conformity
EU DECLARATION OF CONFORMITY We hereby declare that the following products conform to the essential health and safety requirements of EU Directives. Product CORDLESS SHEAR WRENCH (Battery operated tools) Model No. CSM160-BTL CSM220-BTL CSH240-BTL... -
Page 15: Uk Declaration Of Conformance
UK DECLARATION OF CONFORMANCE We hereby declare that the following products conform to the essential health and safety requirements of UK Regulations. Product CORDLESS SHEAR WRENCH (Battery operated tools) Model No. CSM160-BTL CSM220-BTL CSH240-BTL...
