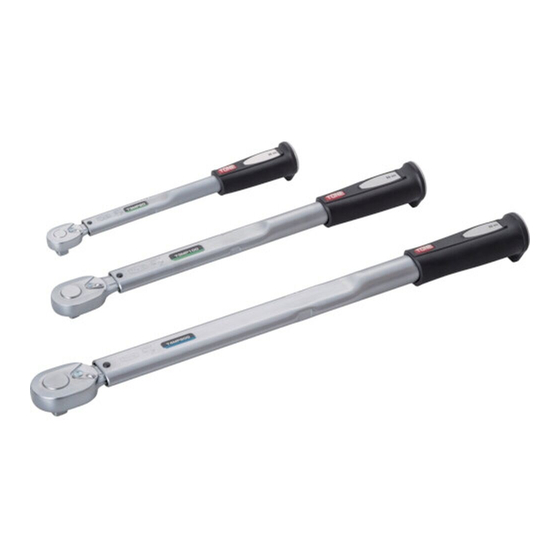

TORQUE WRENCH,
SINGLE PURPOSE TYPE
ホイルナット用トルクレンチ
1607
Read and understand all the instructions before use.
Keep this manual in designated place for easy and quick reference.
T2MP6 T2MP13
T3MP20 T3MP50 T3MP100
T4MP50 T4MP100 T4MP140 T4MP200
T4MP300
T6MP300
T4MP85 T4MP103 T4MP108
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tone T2MP6
Summary of Contents for Tone T2MP6

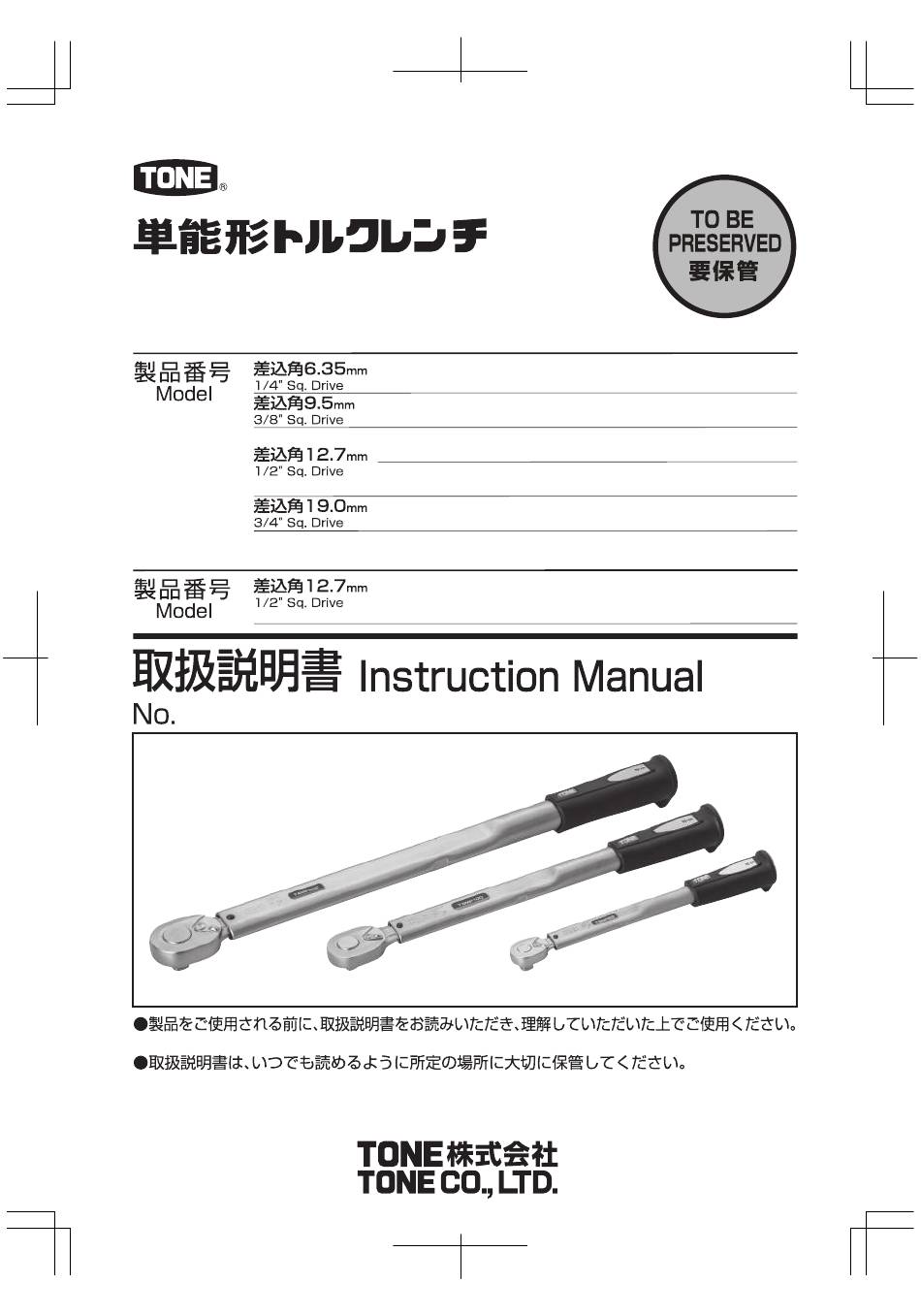

- Page 1 TORQUE WRENCH, SINGLE PURPOSE TYPE T2MP6 T2MP13 T3MP20 T3MP50 T3MP100 T4MP50 T4MP100 T4MP140 T4MP200 T4MP300 T6MP300 ホイルナット用トルクレンチ T4MP85 T4MP103 T4MP108 1607 Read and understand all the instructions before use. Keep this manual in designated place for easy and quick reference.
- Page 2 目 次 ご使用上の注意 ２ ～ ６ 内容品 ６ 各部の名称 ６ ご使用になる前に ７ トルク設定方法 ７ ～ ８ ご使用方法 ８ ～１０ 修理点検 １０ 校正証明書の有効期限 １０ 仕様 １１ ～１２ TABLE OF CONTENTS Precautions for Use １４ ～１８ Contents of Packing １８ Part Name １８ Before Use １９ Torque Setting １９ ～２０ Operating Procedure ２０...
- Page 8 ご使用上の注意 必ずお守りください。 ●使用後は汚れを取り ○使用後は､故障､精度不良､サビなどの原因となるゴミ､ほこり､ 泥､油､水分などの汚れを取り除き､ヘッド部に薄く防錆油を 除きケースに収納の 塗布の上､付属のケースに収納して、 上､所定の場所に保管 乾燥した場所に保管して してください。 ください。 トルクの異常、 故障 ・ けがの原因になります。 内容品 1607 ※１ ●樹脂ケース ●校正証明書 ●取扱説明書 ●本体 ●六角棒 L 形レンチ 製品番号 ： Ｔ２ＭP６､Ｔ２ＭP１３､Ｔ３ＭP２０は トルク 設定済 Ｔ３ＭP５０､Ｔ３ＭP１００､ 剥がさないこと。 Ｔ４ＭP５０､Ｔ４ＭP１００､Ｔ４ＭP１４０､Ｔ４ＭP２００､ は ※２ LCTMP ●トルク設定済みシール Ｔ６ＭP３００､Ｔ４ＭP８５､Ｔ４ＭP１０３､Ｔ４ＭP１０８ ※１...
- Page 10 －８－...
- Page 13 仕様 ONLY Ｌ ｄ ｒ . ± 差込角 ヘッド幅 ヘッド高さ ヘッド厚み 全 長 質 量 設定範囲 ｄｒ. 表示単位 Ｂ Ｈ Ｔ Ｌ 製品番号 最小～最大 N・m Ｔ２ＭＰ６ 1 ～ ６ ６.３５ ２４.０ １８.３ １０.４ ２１１ ０.１９ Ｔ２ＭＰ１３ ３～ １３ ６.３５ ２４.０ １８.３...
- Page 14 仕様 ONLY Ｌ トルク設定済 ｄ ｒ . ± 差込角 ヘッド幅 ヘッド高さ ヘッド厚み 全 長 質 量 設定 ｄｒ. 表示単位 Ｂ Ｈ Ｔ Ｌ 製品番号 トルクレンチ トルク N・m Ｔ４ＭＰ８５ Ｔ４ＭＰ１００ ８５ １２.７ ３６.０ ３０.４ １４.０ ３６９ ０.６８ Ｔ４ＭＰ１０３ Ｔ４ＭＰ１４０ １０３ N・m １２.７...
- Page 15 Thank you for purchasing TONE TORQUE WRENCH <SINGLE PURPOSE TYPE.> ■ This product is used only for tightening bolts and nuts. ■ Torque wrench preset by a tester can be used repeatedly. If the manual is lost or becomes illegible, or if additional manuals are required, contact your distributor. If you have any questions about the products or the contents of this instruction manual, contact your distributor. Instructions are classified by degree of risk and described as follows. －１３－...
- Page 16 ■This product is used only for tightening bolts and nuts. Do not use this product for other purposes. Confirm that no one is underneath the working site before operation. Failure to follow this instruction may result in electric shock. ONLY －１４－...
- Page 17 Failure to follow this instruction may result in over torque or inadequate torque output. ●Use Torque Tester etc. ○Use a torque tester with an accuracy of ±1% or above. as a setting torque. －１５－...
- Page 18 －１６－...
- Page 19 －１７－...
- Page 20 Failure to follow this instruction may result in torque fluctuations, malfunction or injury. 1607 ※１ ●Hex Key Wrench L-type Model： Ｔ２ＭP６､Ｔ２ＭP１３､Ｔ３ＭP２０ トルク 設定済 Ｔ３ＭP５０､Ｔ３ＭP１００､ 剥がさないこと。 Ｔ４ＭP５０､Ｔ４ＭP１００､Ｔ４ＭP１４０､Ｔ４ＭP２００､ ※２ LCTMP Ｔ６ＭP３００ ●Supplied Sticker ※1：Calibration Certificate is provided when the torque value is adjusted by TONE as requested. ※2：A sticker is provided separately when torque setting is NOT finished. Adjusting Screw, Hex Socket Head ONLY End cap Supplied Sticker ※A supplied sticker is attached to the end cap, トルク 設定済 when the torque value is adjusted by TONE as requested. 剥がさないこと。 LCTMP －１８－...
-
Page 21: Torque Setting
Torque Setting ① Prepare a torque tester. ●Use a setting tool with an accuracy of ±1% or below. ② Measure the torque value with a torque tester. ③ Torque Setting ●When the first time set a torque value Insert into the square hole of the end cap. Hex Key Wrench L-type To increase the torque value measured in step ②, turn the adjusting tool to the CW direction. To decrease, turn it to the CCW direction. (Caution) The torque wrench is setted around min. torque value at first. ●When change a torque value Rid a supplied sticker attached to the end cap. Insert into the square hole of the end cap. Hex Key Wrench L-type To increase the torque value measured in step ②, turn the adjusting tool to the CW direction. To decrease, turn it to the CCW direction. －１９－... -
Page 22: Operating Procedure
Torque Setting Adjusting Tool (Hex Key Wrench etc.) ：For T2MP6 〜 T3MP20 ：For T3MP50 〜 T6MP300 ④Attach a supplied sticker. Supplied Sticker ●When the first time set a torque value トルク Cover a square-drive hole with a supplied 設定済 剥がさないこと。 sticker. LCTMP ●When torque value is changed End cap To cover the square-drive hole of the end cap or reuse a supplied sticker or トルク use an alternative sticker. 設定済 剥がさないこと。 LCTMP Square-drive Hole Operating Procedure ●Before use, check the torque value with a torque tester. Torque value may not be precise when the wrench is left for a long time. －２０－... - Page 23 Operating Procedure ③ ④ ⑤ －２１－...
- Page 24 The calibration certificate expires 1 year from the date of coming into use, or up to 100,000 tightening(whichever comes first) that is mentioned in "Repair and Maintenance" section. 1.When not in use. The calibration certificate expires 2 years from the date of calibration. 2.When coming into use less than 2 years from the date of calibration on the calibration certificate. The calibration certificate expires 1 year from the date of coming into use, or up to 100,000 －２２－...
- Page 25 ONLY Ｌ ｄ ｒ . Ｔ２ＭＰ６ 1 ～ ６ ６.３５ ２４.０ １８.３ １０.４ ２１１ ０.１９ Ｔ２ＭＰ１３ ３～ １３ ６.３５ ２４.０ １８.３ １０.４ ２４０ ０.２４ Ｔ３ＭＰ２０ ４～ ２０ ９.５ ２４.０ ２１.６ １０.４ ２４０ ０.２５ Ｔ３ＭＰ５０ １０～ ５０ ９.５ ３６.０ ２６.４ １４.０ ２９１...
- Page 26 ONLY Ｌ ｄ ｒ . Torque Wrench Ｔ４ＭＰ８５ Ｔ４ＭＰ１００ ８５ １２.７ ３６.０ ３０.４ １４.０ ３６９ ０.６８ Ｔ４ＭＰ１０３ Ｔ４ＭＰ１４０ １０３ １２.７ ３６.０ ３０.４ １４.０ ４３２ ０.８０ Ｔ４ＭＰ１０８ Ｔ４ＭＰ１４０ １０８ １２.７ ３６.０ ３０.４ １４.０ ４３２ ０.８０ －２４－...
