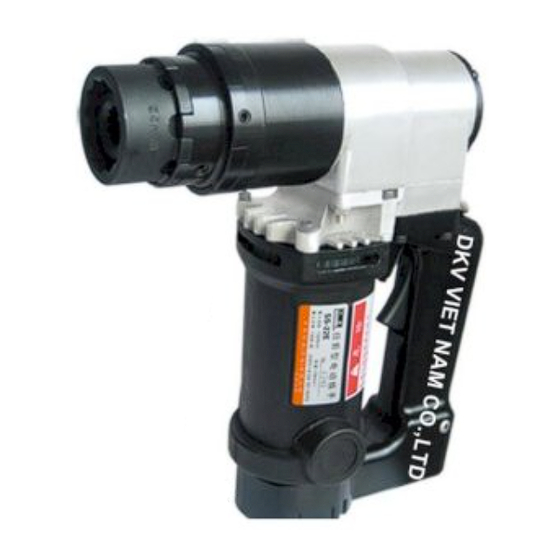

- Page 1 SHEAR WRENCH INSTRUCTION MANUAL GM161EZ GM162EZ GM221EZ GM222EZ MODEL GH241EZ GH242EZ GV301EZ GV302EZ Read and fully understand all the instructions before use. Keep this manual in the designated place for easy and quick reference. TONE CO., LTD.
-
Page 2: Table Of Contents
Contents Contents ..............................1 GENERAL SAFETY INSTRUCTIONS......................2 Work area safety ..........................2 Electrical safety ........................... 2 Personal safety ............................ 2 Power tool use and care ........................2 Service ..............................3 INTENDED USE ............................3 SHEAR WRENCH SAFETY WARNINGS ...................... 3 PART NAMES AND ACCESSORIES ...................... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS When using electric tools, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock, and personal injury. Read and keep all these Work area safety instructions before operating this wrench. 1. -
Page 4: Service
2. Never service damaged battery packs . Service of battery packs should only be performed by INTENDED USE the manufacturer or authorised service providers. The TONE shear wrench (corded or cordless) is an electric tool for tightening Tension Control Bolt SHEAR WRENCH SAFETY WARNINGS bolting assemblies. -
Page 5: Part Names And Accessories
PART NAMES AND ACCESSORIES Accessories MODEL WORKING PARTS AND ACCESSORIES Inner Socket Outer Socket Inner Socket Spring GM161EZ/GM162EZ Ejector Pin GM221EZ/GM222EZ Ejector Spring GH241EZ/GH242EZ Screwdriver (-) GV301EZ/GV302EZ Metal Case Instruction Manual ● Contact your distributor for long sockets or accessories. -
Page 6: Before Use
BEFORE USE 1. Check for any deformation, crack or damage on the shear wrench body, socket, storage battery, charger, parts, etc. 2. Do not use the wrench if any problem is found. 3. Please check the power supply. Only use the power supply indicated on the motor rating plate. 4. -
Page 7: Inspection And Maintenance
INSPECTION AND MAINTENANCE 1. Remove the power plug from the mains power supply before inspection and maintenance. 2. Replace the inner socket when sheared bolt spline falls out of the inner socket without pulling the ejector lever. 3. There is a risk of unexpected bolt spline ejection when inner drive of the inner socket is worn down. The inner socket should be replaced. -
Page 8: Specifications And Dimensions
SPECIFICATIONS AND DIMENSIONS Model GM161EZ GM162EZ GM221EZ GM222EZ GH241EZ GH242EZ GV301EZ GV302EZ Voltage 115V 230V 115V 230V 115V 230V 115V 230V 5.5A 5.5A 5.5A Current Input 1100W 1200W 1200W 1200W Power Frequency 50 – 60 Hz Speed 29 rpm 14 rpm... -
Page 9: Eu Declaration Of Conformity
EU DECLARATION OF CONFORMITY We hereby declare that the following products conform to the essential health and safety requirements of EU Directives. Product ELECTRIC SHEAR WRENCH Model No. GM161EZ/GM162EZ GM221EZ/GM222EZ GH241EZ/GH242EZ GV301EZ/GV302EZ... -
Page 10: Uk Declaration Of Conformance
UK DECLARATION OF CONFORMANCE We hereby declare that the following products conform to the essential health and safety requirements of UK Regulations. Product ELECTRIC SHEAR WRENCH Model No. GM161EZ/GM162EZ GM221EZ/GM222EZ GH241EZ/GH242EZ GV301EZ/GV302EZ... - Page 11 NOTES:...
