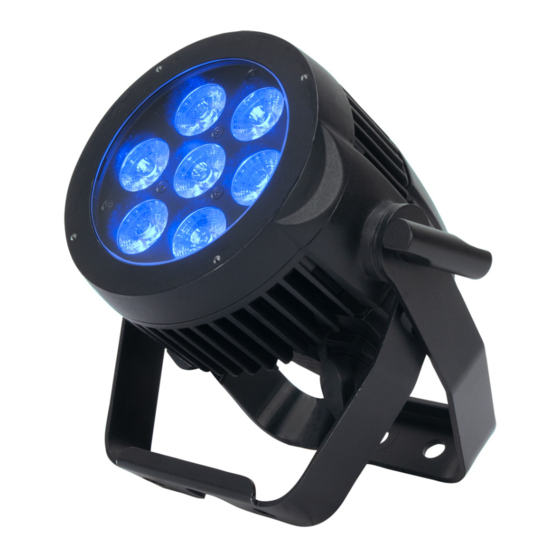

7P HEX IP
User Instructions
4 0 1 0 7 6 5

Advertisement

Table of Contents
loading

Related Manuals for ADJ 7P HEX IP

Summary of Contents for ADJ 7P HEX IP

  • Page 1 7P HEX IP User Instructions 4 0 1 0 7 6 5...
  • Page 2 All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: Table Of Contents

    System Menu Operating Instructions Primary-Secondary Configuration Dimmer Mode Chart I Dimmer Curve Chart Dimensional Drawings Power Linking I Trouble Shooting I Cleaning Limited Warranty (USA Only) Technical Specifications ADJ Products, LLC - www.adj.com - 7P Hex IP User Manual Page 2...

  • Page 4: Introduction

    7P Hex IP Introduction Unpacking: Thank you for purchasing the 7P Hex IP by ADJ Products, LLC. Every 7P Hex IP has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact.
  • Page 5 7P Hex IP Warranty Registration The 7P Hex IP carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number.
  • Page 6 B. Objects have fallen, or liquid has been spilled into the fixture. C. The fixture does not appear to operate normally or exhibits a marked change in performance. D. The fixture has fallen and/or subjected to extreme handling. ADJ Products, LLC - www.adj.com - 7P Hex IP User Manual Page 5...
  • Page 7 INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY RECEIVE DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE. ADJ Products, LLC - www.adj.com - 7P Hex IP User Manual Page 6...
  • Page 8 O P T I O N A L C O R R O S I O N - R E S I S T A N T C O A T I N G Optional Corrosion-Resistant Coatings may be available for this fixture. Please consult your ADJ Products, LLC sales representative for details. ADJ Products, LLC - www.adj.com - 7P Hex IP User Manual Page 7...

  • Page 9: Layout

    7P Hex IP Layout LCD Screen Mode Button Up Button Down Button Enter Button IP65 Locking Power Connection In/Out IP65 Locking 3-Pin XLR Connector In/Out ADJ Products, LLC - www.adj.com - 7P Hex IP User Manual Page 8...

  • Page 10: Dmx Set Up

    Data Cable (DMX Cable) Requirements (For DMX Operation): The 7P Hex IP can be controlled via DMX-512 protocol. The 7P Hex IP has 4 DMX channel modes. The DMX address is set on the rear panel of the 7P Hex IP. Your unit and your DMX controller require a standard 3-pin XLR connector for data input...
  • Page 11 Pin 1 Data Compliment (- signal) Pin 2 Pin 2 Data True (+ signal) Pin 3 Pin 3 Not Used Do Not Use Not Used Do Not Use ADJ Products, LLC - www.adj.com - 7P Hex IP User Manual Page 10...
  • Page 12 In the case of the 7P Hex IP, when in 13 channel mode you should set the starting DMX address of the first unit to 1, the second unit to 14 (13 + 1), the third unit to 27 (14 + 13), and so on. (See chart below for more details.)
  • Page 13 From slow to fast 0 - 255 Dimmer Modes 0 - 20 Standard 21- 40 Stage 41- 60 61- 80 Architectural 81- 100 Theatre 101- 255 Default to unit setting ADJ Products, LLC - www.adj.com - 7P Hex IP User Manual Page 12...
  • Page 14 Color56 Color24 93-96 Color57 Color25 97-100 Color58 Color26 101-104 Color59 Color27 105-108 Color60 Color28 109-112 Color61 Color29 113-116 Color62 Color30 117-120 Color63 Color31 121-124 Color64 Color32 125-128 ADJ Products, LLC - www.adj.com - 7P Hex IP User Manual Page 13...
  • Page 15 201-204 Color52 205-208 Color53 209-212 Color54 213-216 Color55 217-220 Color56 221-224 Color57 225-228 Color58 229-232 Color59 233-236 Color60 237-240 Color61 241-244 Color62 245-248 Color63 249-252 Color64 253-255 ADJ Products, LLC - www.adj.com - 7P Hex IP User Manual Page 14...

  • Page 16: Dmx Addressing

    Last Time The Running Time Info Was Cleared (Hours) TimeInfo TimeInfo TimerPIN Clear 0 Password: （Password=050） ADJ Products, LLC - www.adj.com - 7P Hex IP User Manual Page 15 Total Time Clear 0: （Password=060） Menu Info Current Running Info TempInfo...
  • Page 17 Last Time The Running Time Info Was Cleared (Hours) TimeInfo TimeInfo TimerPIN Clear 0 Password: （Password=050） ADJ Products, LLC - www.adj.com - 7P Hex IP User Manual Page 16 Total Time Clear 0: （Password=060） Menu Info Current Running Info TempInfo...
  • Page 18 ManCtrl Dimmer 000~ ManCtrl Red 000~255 ManCtrl Green 000~255 Menu ManCtrl Blue 000~255 Manual Control Manual ManCtrl White 000~255 ManCtrl Amber 000~255 ManCtrl Purple 000~255 ManCtrl Strobe 000~255 ADJ Products, LLC - www.adj.com - 7P Hex IP User Manual Page 17...

  • Page 19: Operating Instructions

    Operating through a DMX controller gives the user the freedom to create their own programs tailored to their own individual needs. The 7P Hex IP has 4 DMX modes: 6 Channel mode, 7 Channel mode, 8 Channel mode, and a 12 Channel mode.
  • Page 20 3. Use the UP or DOWN button to toggle between “ON’ and “OFF”, press ENTER to make your selection. Press the MODE button to make no selection and exit. ADJ Products, LLC - www.adj.com - 7P Hex IP User Manual Page 19...
  • Page 21 ENTER. Press the UP or DOWN buttons so that “Dim Mode” is highlighted. 2. There are 4 dimmer curve settings to choose from. Please see the Dimmer Curve Chart on page 22. ADJ Products, LLC - www.adj.com - 7P Hex IP User Manual Page 20...

  • Page 22: Primary-Secondary Configuration

    3. Set the “Primary” unit to your desired mode of operation. On the “Secondary” unit’s press the MODE button and use the UP or DOWN buttons until “Menu Secondry” is displayed and press ENTER. ADJ Products, LLC - www.adj.com - 7P Hex IP User Manual Page 21...
  • Page 23 1580 1940 2230 2280 7P Hex IP Dimmer Curve Chart 100% 100% 100% 100% DMX % DMX % DMX % DMX % LINEAR SQUARE INVERSE SQUARE S-CURVE ADJ Products, LLC - www.adj.com - 7P Hex IP User Manual Page 22...

  • Page 24: Dimensional Drawings

    7P Hex IP Dimensional Drawing *NOT TO SCALE 6.44” / 163.5mm 10.08” / 256mm 2.52” / 64mm 6.71” / 170.4mm 9.15” / 232.5mm ADJ Products, LLC - www.adj.com - 7P Hex IP User Manual Page 23...
  • Page 25 The maximum that can be connected is 20 fixtures @ 120V and 37 fixtures @ 240V. After the maximum connected fixtures you will need to use a new power outlet. NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES TO THE 7P HEX IP AS THE POWER CONSUMPTION OF OTHER LIGHTING FIXTURES WILL VARY!

  • Page 26: Limited Warranty (Usa Only)

    ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual.

  • Page 27: Technical Specifications

    & 13 Channel Mode Warranty: 2 Year (730 days) Please Note: Specifications and improvements in the design of this unit and this manual are subject to change. ADJ Products, LLC - www.adj.com - 7P Hex IP User Manual Page 26...
