A/C INSTALLATION

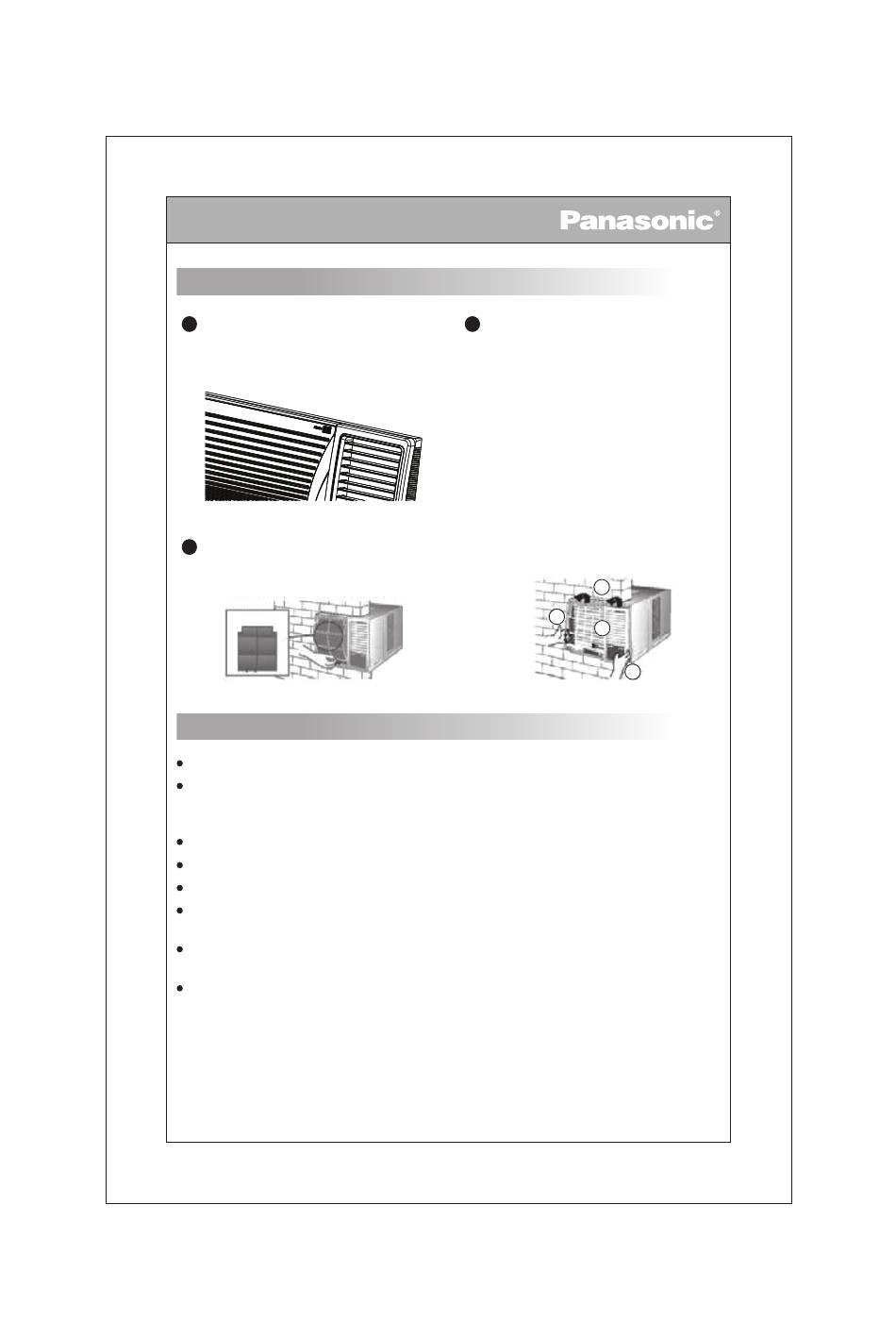

REMOVAL OF FRONT GRILLE
Please hold the Ribs(Shown in Photo)
1
with your thumbs from top and bottom
and push in left direction to open the
Grille and to take out filter for cleaning.
Remove the air filter.
2
Tilt up and pull out the air filter by the
holder
Air Filter
ELECTRIC WORK
Always use at the rated voltage and with a specific air conditioning circuit.
This equipment must be earthed and strongly recommended to be installed with Earth
Leakage Circuit Breaker (ELCB) or Residential Current Device (RCD). Otherwise, it may
cause electric shock or fire in case of malfunction.
A 16 ampere time delay fuse or circuit breaker is required.
Nominal cross sectional area of power supply wire must be 3 core x 1.5mm .
The power supply must be from an independent circuit.
All electrical installation must be made in accordance with local wiring and safety regulation
wherever applicable.
There must be a double pole switch with a minimum of 3.5mm contact gap in the fixed
installation circuit.
Please engage an authorized dealer or specialist for the installation work.
Remove the front grille.
3
(a) Remove air filter then remove the
screw on the front.
(b) At bottom right side of the front grille,
press inward on cabinet near the
power cord, and pull the grille outward
to the right until right tab releases.
(c) At the bottom left side, push inward on
cabinet and pull the grille outward to
the left to release the left tab. Do not
pull the bottom edge toward you more
than 3 inches to prevent the two top
tabs from damage.
(d) Slide the front grille upwards to loosen
the two top tabs from slots at the top of
the cabinet.
d
c
a
-: 9 :-
b
2
