OPERATIONAL INSTRUCTIONS

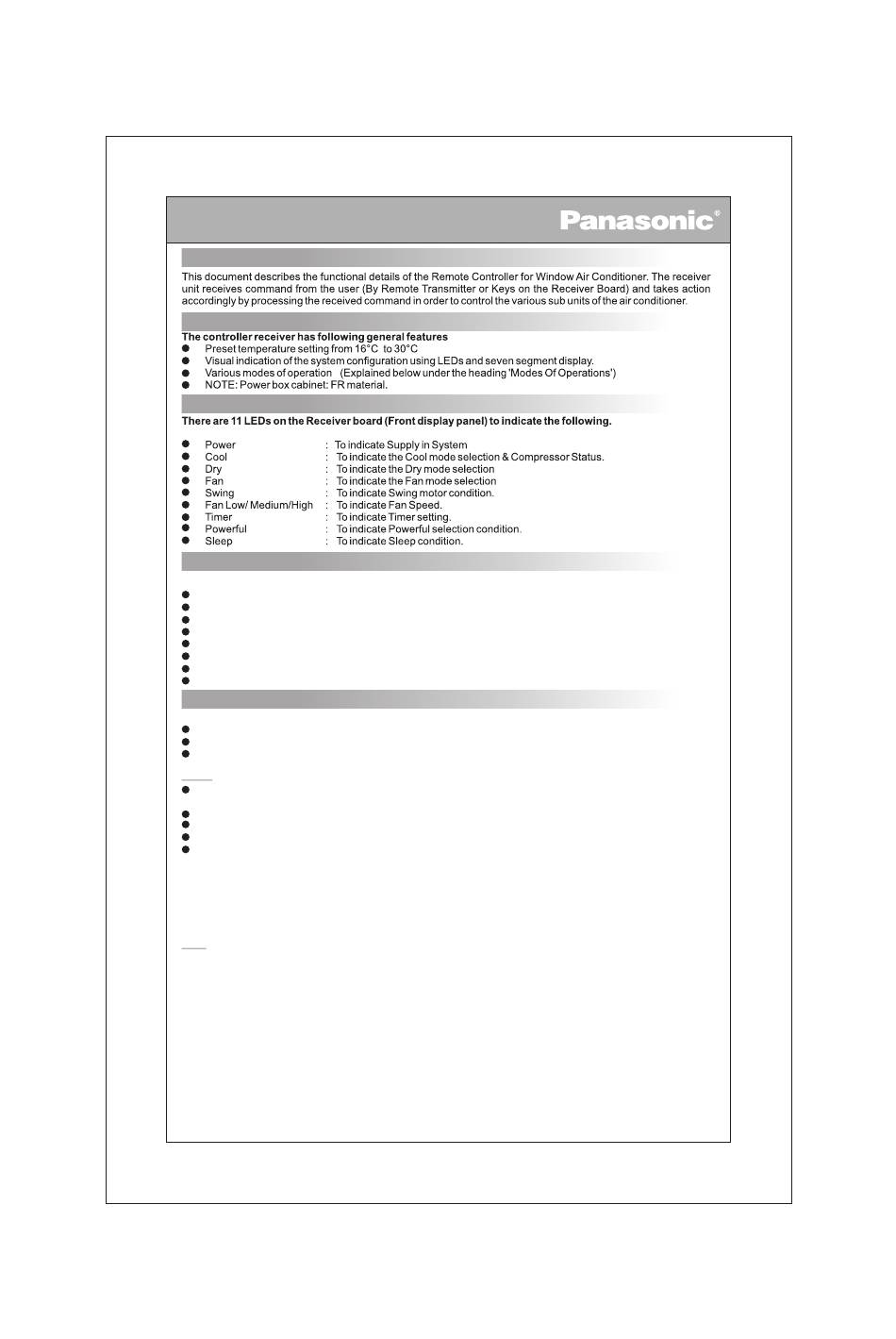

INTRODUCTION
GENERAL FEATURES
DISPLAY
DUAL DIGIT 7 SEGMENT DISPLAY
The Seven Segment shows:
Set Temperature (ST) in Cool Mode and Dry Mode.
'Fn' in Fan Mode.
'E1' when Room Sensor Short or Open.
'E2' when Coil Sensor Short or Open.
"SL" for Sleep in Cool Mode only for 5 second in every one minute if Sleep is active.
'CL' visible only when operated from Display Panel button.
'dr' visible only when operated from Display Panel button.
'Po' visible only when operated from Display Panel button.
MODES OF OPERATIONS
Various modes of operation of the unit are as follows:
Cool
Dry
Fan
Cool :
In this mode of operation, compressor will be switched on after a delay of three minute depending on the
differential of Room Temp & Set Temperature.
Cool LED blinks during the ON delay time of the compressor.
Preset temperature and fan speed can be changed by the user.
Fan Speed can be selected (Fan auto, High, Medium or Low).
Compressor will work as per the following conditions:
Compressor will cut off,
If Room temperature = Preset temperature - 1ºC or Below
Compressor will cut in,
If Room temperature = Preset temperature + 1° C or Above
NOTE: Compressor should take 3 min times delay if it required as per the timing protection and 3mins required
for thermostatic cutoff from Comp Switch On (minimum Run Time).
Dry :
Initial startup
Fan motor run at only low speed and cannot be changed. The comp On/Off duration is controlled by difference
between room temp and set temp. as follows:
Room Temp = Set Temp + 2ºC or above
Room Temp = Set Temp + 1ºC
Room Temp = Set Temp
Room Temp = Set Temp-1ºC
Room Temp = Set Temp -2ºC or Below
Comp On for 15 min Off for 5min
Comp On for 10 min Off for 10min
Comp On for 10 min Off for 10min
Comp On for 10 min Off for 10min
Comp On for 5 min Off for 15min
-: 4 :-
