A/C INSTALLATION

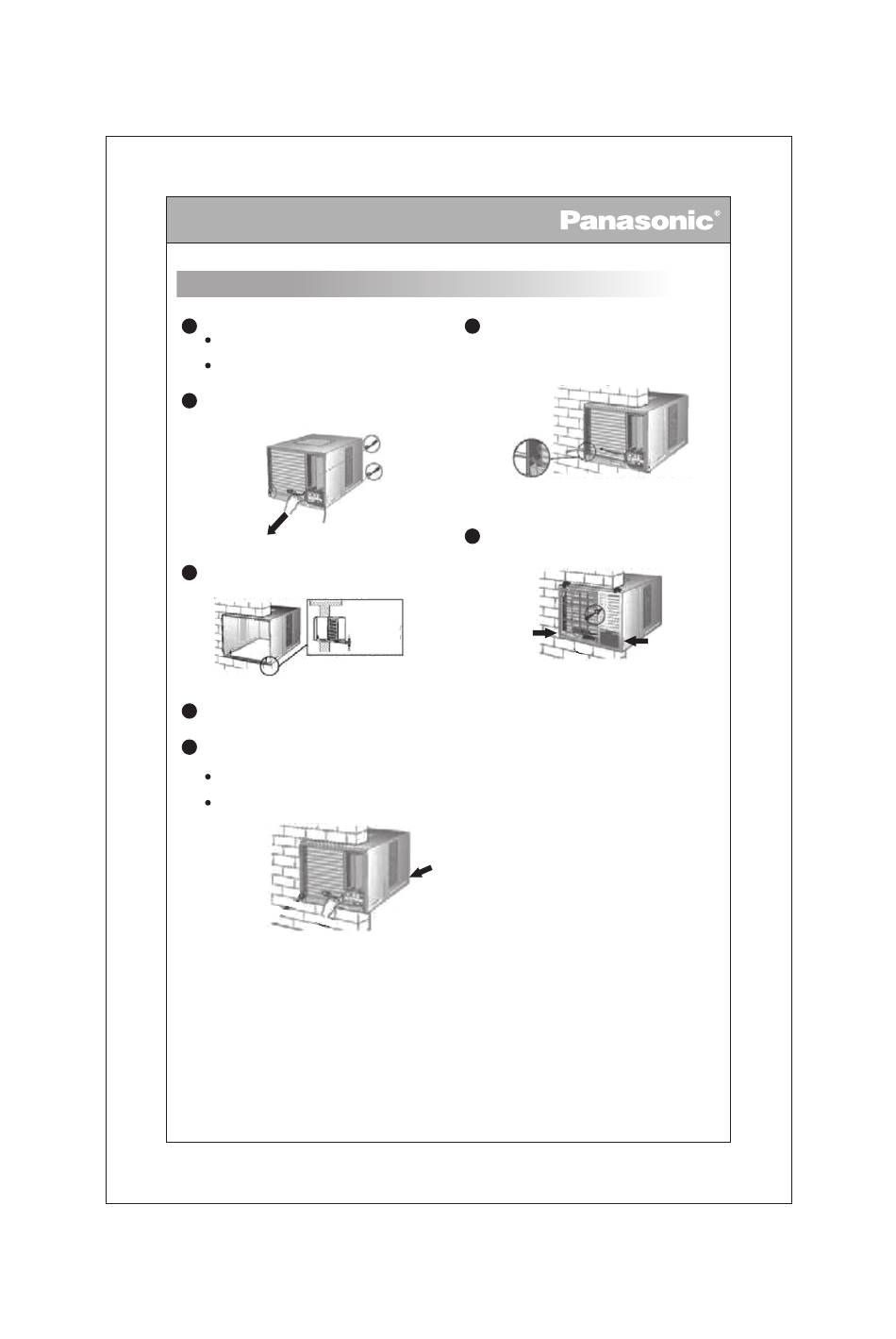

INSTALLATION PROCEDURES
Remove the cabinet screws.
1
LC Series from left (1 nos) and
right (1 nos) side.
XC Series from back side (2 nos).
Slide the chassis out from the cabinet.
2
Place cabinet into the installation hole.
3
Secure it with wood screws or
nails
4 Slide the chassis into the cabinet.
5 Lock the chassis to the cabinet with
screws.
LC Series from left (1 nos) and
right (1 nos) side.
XC Series from back side (2 nos).
Depending upon the location of the AC
6
outlet, route the AC cord to either
left or right side while installing the
front grille.
This figure shows the AC cord routed to the left side.
Attach the front grille to the cabinet
7
and fasten it with screws.
Tilt down for
better drainage
(max. 10mm).
