RVON-I/O User Manual
9350-7772-000 Rev E
6/2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RVON-I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RTS RVON-I

Summary of Contents for RTS RVON-I

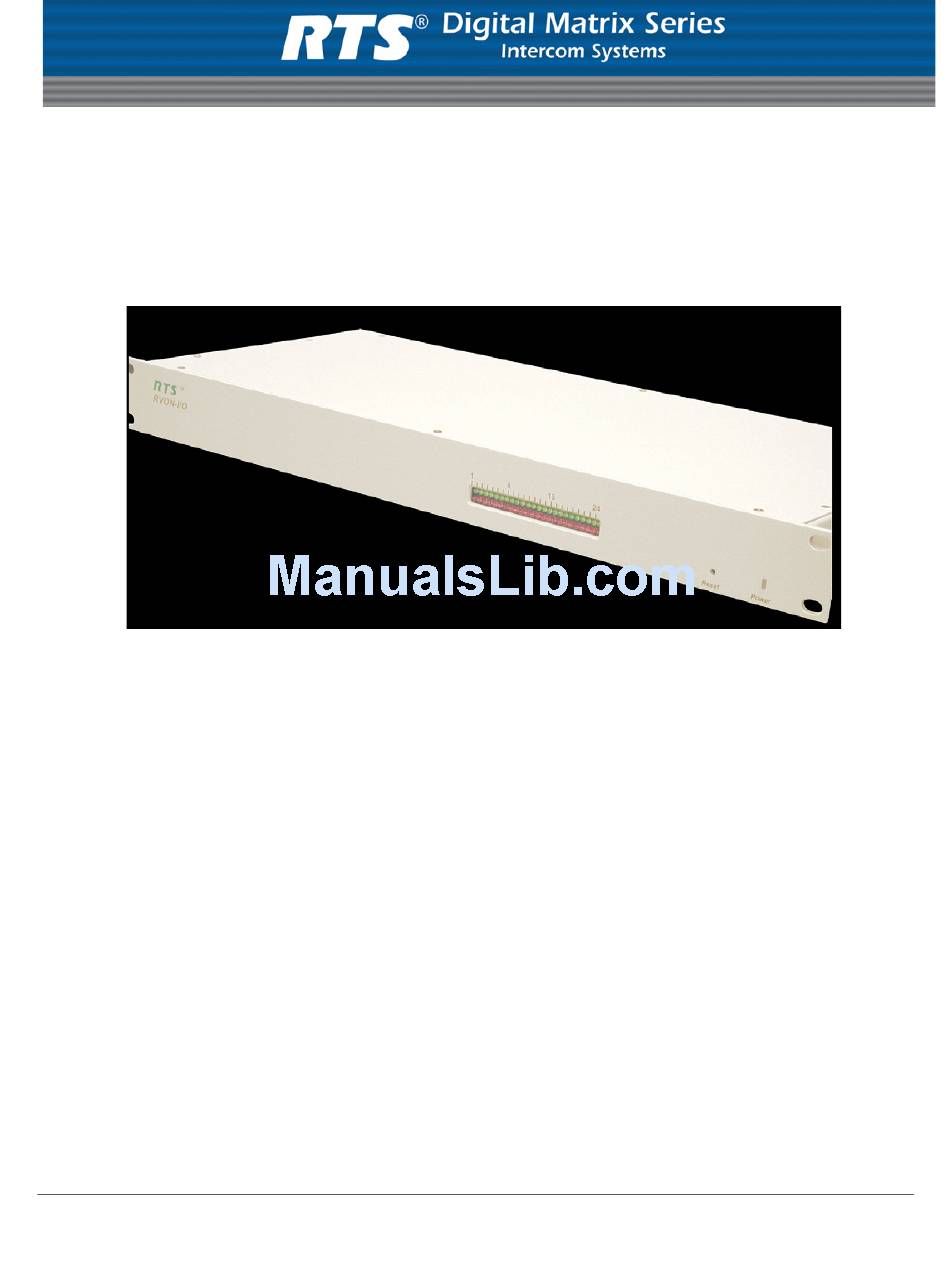

  • Page 1 RVON-I/O User Manual 9350-7772-000 Rev E 6/2006...
  • Page 2 COPYRIGHT NOTICE Copyright 2006 by Telex Communications, Inc. All rights reserved. Reproduction, in whole or in part, without prior written permission from Telex is prohibited. WARRANTY NOTICE See the enclosed warranty card for further details.

  • Page 3: Table Of Contents

    Pin Outs for Connections ...4 DIP Switches ...5 Installation ...7 System Requirements ...7 Reset the Current IP Address to the Default RVON-I/O IP Address ...8 Basic Installations ...8 Basic Local Mode Setup ...9 Basic Remote Mode Setup ...9 RVON-I/O Trunk Setup ...10 RVON Serial Pass-through Setup ...11...

  • Page 5: Introduction

    Description Coupled with the same VOIP technology used with the RVON-8, the RVON-I/O can take legacy analog audio and convert it to digital VOIP audio. Being able to convert analog audio systems to digital VOIP audio, the RVON-I/O expands the boundaries of digital audio to include analog conversion.

  • Page 6: Reference View

    I/O 3 I/O 5 I/O 7 I/O 2 I/O 4 I/O 6 I/O 8 RVON-I/O RVON-I/O Reference View FIGURE 1. LED Explanation of the LED device status module Red LED Green LED VOIP not connected VOIP connected channel 1 Channel 1*...

  • Page 7: Specifications

    Specifications Specifications Connections RJ-45 Ethernet DB-9 I/O Port (8 bidirectional audio and keypanel data; Male) DB-25 GPI/O Connection (Female) DB-9 Relay Port (Female) DB-9 Serial Port Power 90-240 VAC Physical 1 RU (height) 19 inches (482.6 mm) wide X 8 inches (203.2 mm) deep Digital Digital Specifications TABLE 1.

  • Page 8: Pin Outs For Connections

    RVON-I/O Audio OUT- RVON-I/O Audio OUT+ See page Figure 2, “DB-9 Crossover Cable Connection Diagram,” on page 6. DB-9 Function Serial Port RXD, RVON-I/O Received Data TXD, RVON-I/O Transmitted Data DB-9 Pin Function Relay 1&2 Closed 0 Open 0 +12V Through 300 Ohm Resistor...

  • Page 9: Dip Switches

    I/O using a compatible keypanel (KP-32, KP-632, KP-832, and KP-812) connected serially to I/O Port 8 on the back of the RVON-I/O. IP Configurations are made from the keypanel service menu. Note, you must have keypanel firmware version 2.02 or higher to configure the IP Address.
  • Page 10 Optional: On the ADAM CS and the Zeus, connect pins 3, 6, and 9 to sheild. DB-9 Crossover Cable Connection Diagram FIGURE 2. RJ-12 to DB-9 Crossover Cable Connection Diagram DB-9 F RJ-12 To RVON-I/O To Matrix RJ-12 to DB-9 Crossover Cable Connection Diagram FIGURE 3.

  • Page 11: Installation

    The RVON-I/O can operate in one of two modes, LOCAL mode or REMOTE mode. When operating in LOCAL mode, key- panels are directly connected to the RVON-I/O. For example, a KP-32 is connected serially to the RVON-I/O, which is con- nected via Ethernet to the RVON-8.

  • Page 12: Reset The Current Ip Address To The Default Rvon-I/O Ip Address

    To reset the IP Address to default on the RVON-I/O, do the following: On the front of the RVON-I/O unit, push and hold buttons 1 and 2, then push the RESET button. Hold the buttons in for 15 seconds or until all the LED lights blink rapidly.

  • Page 13: Basic Local Mode Setup

    On the back of the RVON-I/O, put DIP switch 1 in the CLOSED position (Remote Mode). Power ON the RVON-I/O unit. Connect the matrix system to the RVON-I/O (I/O ports), using a DB-9 crossover cable. See page 6 for the different connection diagrams.

  • Page 14: Rvon-I/O Trunk Setup

    On the back of the RVON-I/O, put DIP switch 1 in the CLOSED position (Remote Mode). Power ON the RVON-I/O unit. Connect the Matrix to the RVON-I/O (via I/O ports), using a DB-9 crossover cable. See page 6 for the different connection diagrams.

  • Page 15: Rvon Serial Pass-Through Setup

    NOTE: To see actual Telnet commands, see “RVON-I/O Command Table” on page 25. Once you are finished configuring the RVON-I/O, type ACTIVATE into the command prompt to activate the configuration setup on the RVON-I/O Serially connected Desktop PC Serial Pass-Through system diagram FIGURE 4.

  • Page 16: System Diagrams

    Installation System Diagrams Local Mode - This system diagram shows Local mode. It is called local mode because the keypanel is FIGURE 5. connected directly to the RVON-I/O. LAN/WAN RTS™ RVON-I/O Reset Power DB-9 Straight Cable AUTO Listen Headset MENU...
  • Page 17 Remote Mode - Remote Mode means the keypanels are not connected to the RVON-I/O directly. In the FIGURE 6. example, the KP-32 with RVON-1 or the VKP has to pass through the LAN/WAN before connecting to the RVON-I/ POWER RESET...
  • Page 18 TVON-I/O will be changed from analog to digital audio (and vice versa). The same holds true for the upper portion of the graphic, where the audio coming from the RVON-I/O going towards the Zeus is converted to analog.
  • Page 19 System Diagrams Trunking with RVON-I/O - When you trunk two intercom systems together using two RVON-I/O’s, you FIGURE 8. can configure one as Remote and the other as Local. However, remote to remote setup is the preferred system setup for trunking.

  • Page 20: Rvon-1 Jumpers And Connections

    J21 must be jumped from pins 1 to 2 to select UART B for RS485 RVON-1 keypanel operation. J2 Connector The RVON-1 card is designed to be used with either a keypanel or an RVON-I/O card. The J2 connector mounts the RVON-1 card onto a keypanel.

  • Page 21: Configuration

    Setup IP Addresses There are three ways in which the IP Address can be set on the RVON-I/O; via a keypanel, through Telnet, or using the Serial Debug Port. If you are using a keypanel to set the IP Address of the RVON-I/O, you must use a KP-32, KP-632, KP-832, or a KP-812.

  • Page 22: Configure The Ip Address From A Kp-812

    Configuration NOTE: Press PGM to skip over any octet that does not need modification. Repeat steps 8 and 9 until the entire IP Address is entered. Press PGM. The Netmask menu item appears. NOTE: Once you have entered the IP Address, you will then enter the Netmask. The Netmask is a string of numbers similar to an IP Address, except that it masks or screens out the network port of an IP Address so that only the host computer part of the address remains (for example, 255.255.255.0).

  • Page 23: Configure The Ip Address Using Telnet

    Configure the IP Address Using Telnet NOTE: In order to use Telnet to set a new IP Address for you RVON-I/O, you must know the existing IP Address. If you do not know the existing IP Address, you can reset the IP Address. See “Configure the IP Address Using Telnet” on page 19.
  • Page 24 To Display settings for the RVON-I/O, do the following: Open a Command Prompt application session. At the prompt type TELNET <IP Address> (The IP Address is the existing IP Address assigned to the RVON-I/O). Figure 2. Press Enter.

  • Page 25: Configure The Ip Address Using The Serial Debug Port

    Configure the IP Address Using the Serial Debug Port NOTE: In order to use the Serial Debug Port to set the IP Address for your RVON-I/O, you must know the intended IP Address. Also, you must make sure DIP switch 2 is not enabled (CLOSED).

  • Page 26: Configure The Rvon-I/O Using Telnet Or A Serial Port

    Configure RVON-I/O Using Telnet and Serial Port IMPORTANT: Because the RVON-I/O is shipped with a default IP Address it may not be accessible on the network. The IP Address should already be configured before attempting to try to connect through Telnet. To set the IP Address, see “Setup IP Addresses”...
  • Page 27 Setup IP Addresses At the prompt, type TELNET <IP Address> (The IP Address is the IP Address assigned to the RVON-I/O). Figure 6. Press Enter. The RVON login screen appears. Figure 7. In the login field, type the RVON login (default = telex).
  • Page 28 Configuration At the prompt, type dbgcmd to access the debug command screens. Figure 8. Press Enter. An MXP prompt appears.

  • Page 29: Rvon-I/O Command Table

    Set the IP Address for the RVON-I/O. X.X.X.X Set the Network Mask for the RVON-I/O. X.X.X.X Set the Gateway IP Address for the RVON-I/O. Set the RVON-I/O user name for Telnet access. username Default = telex Set the RVON-I/O password for Telnet access (8-40 characters).
  • Page 30 Examples: Set RVON ip_addr to 10.3.210.12. At the command prompt, type set rvon ip_addr 10.3.210.12 Set the destination channel type to RVON-I/O. At the command prompt, type: set channel [chan_dest num_type 2 Set the RVON login user name to Keypanel...
  • Page 31 RVON-I/O Command Table Codec Specifications. TABLE 10. 0,3,6,9 G.711 1,4,7,10 G.711 2,5,8,11 G.711 12,16 G.729 13,17 G.729 14,18 G.729 15,19 G.729 20,22 G.723 5.3k 24,26 G.723 6.3k 21,23 G.723 5.3k 25,27 G.723 6.3k NOTE : A channel consists of a transmitting and a receiving side, so the bandwidth is double for a bi-directional audio stream.
  • Page 32 Size 5.3k 5.3k 5.3k 5.3k 6.3k 6.3k 6.3k 6.3k DESCRIPTION IP address for the RVON-I/O Network mask for the RVON-I/O Gateway IP address for the RVON-I/O RVON-I/O username for Telnet access. RVON-I/O password for Telnet access (8-40 characters). VAD Threshold...

  • Page 33: Set Serial

    Address of the destination GPI/O pass-through port. 1 Keypanel (Single Port) Mode:In 1 Keypanel mode, also referred to as single port mode, all GPI/O on the RVON-I/O are associated with only one keypanel. Associating the GPI/O with a keypanel allows you to access/address the GPI/O in UPL Statements.

  • Page 34: Set Panel

    RVON-I/O B is connected to Zeus ports 3 and 4 on RVON-I/O ports 1 and 2. Because the Zeus cannot differentiate either of the RVON-I/O ports 1 and 2, it is necessary to adding an address to the ports: •...
  • Page 35 RVON-I/O B If you are using Cronus or AIO-16 with RVON-I/0 in Remote mode for keypanels, you will still have to set a panel poll ID. This is because the RVON-I/O has a default panel poll ID of 0 (zero). This must be changed to a non-zero number.
  • Page 36 Configuration...

  • Page 37: Rvon-I/O Quick Start

    NOTE: In this example, the RVON-I/O is directly connected to the ADAM Intercom System with an RVON-8 installed. This example installs a keypanel on the first port of an RVON-I/O that connects back to the first channel of the RVON-8.

  • Page 38: Setting Channel Information Of An Rvon-I/O For A Remote Keypanel

    At the prompt, type set channel 0 dest_type 0 (this tells the RVON-I/O it is connecting to an RVON-8). Press Enter. At the prompt, type set channel 0 dest_chan 0 (this tells the RVON-I/O it is connecting to channel 0 of the RVON-8). Press Enter.
  • Page 39 Type the set panel 0 poll_id 1 and press Enter. This tells the RVON-I/O channel that is connection back to a matrix port with a poll id address of 1, por 1,9,17,25, etc.). Type set panel 0 baud 9600 and press Enter.
