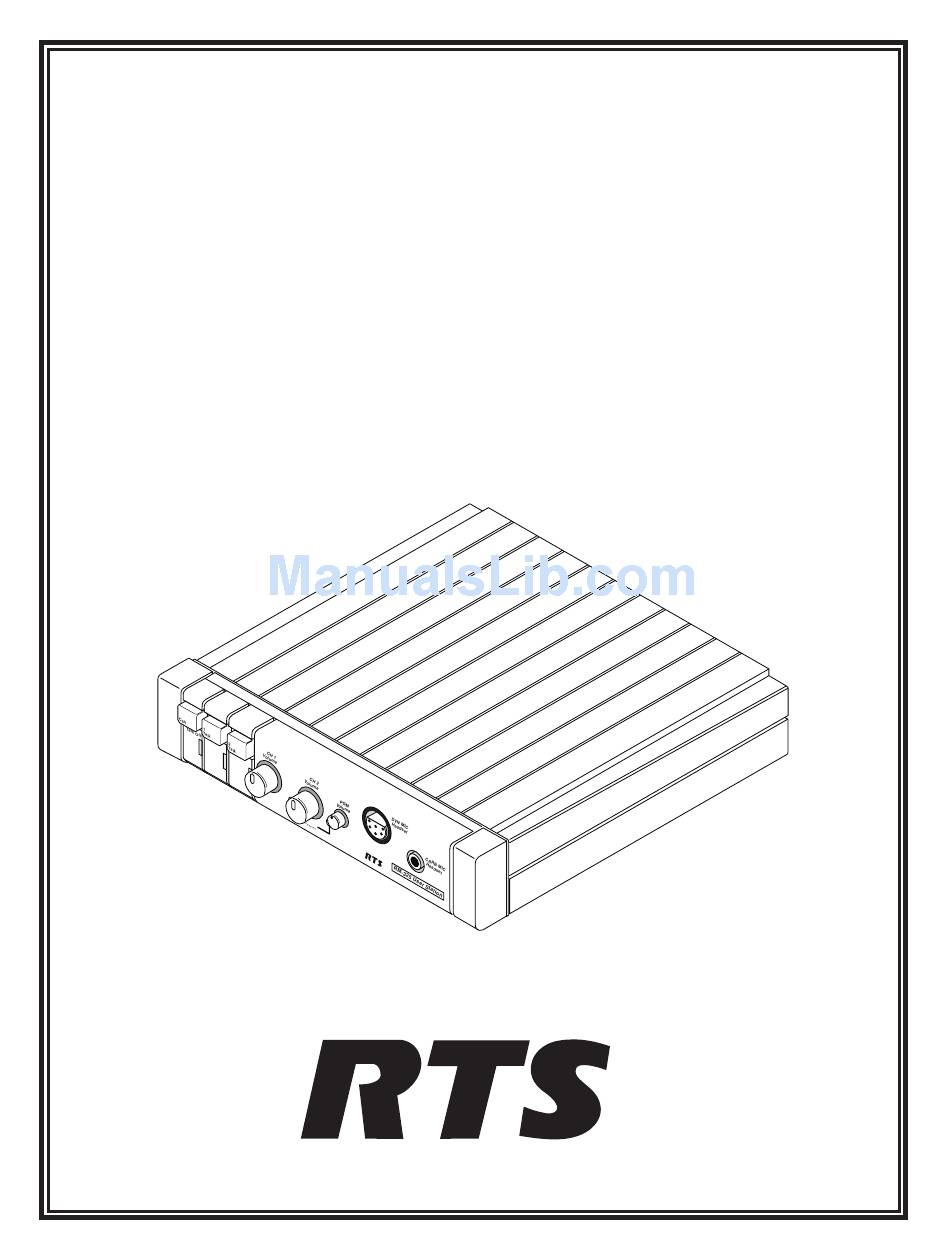

USER MANUAL

RM-325
Rack Mount Intercom Station
™
™
9350-7491-000 Rev B 3/98

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RM-325 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RTS RM-325

Summary of Contents for RTS RM-325

  • Page 1: User Manual

    USER MANUAL RM-325 Rack Mount Intercom Station ™ ™ 9350-7491-000 Rev B 3/98...

  • Page 2: Proprietary Notice

    PROPRIETARY NOTICE The RTS product information and design disclosed herein were originated by and are the property of Telex Communications, Inc. Telex reserves all patent, proprietary design, manufacturing, reproduction, use and sales rights thereto, and to any article disclosed therein, except to the extent rights are expressly granted to others.

  • Page 3: Table Of Contents

    RM-325 General Specifications ........
  • Page 4 Figure 1. RM-325 Front and Rear Panel Reference View ....... .

  • Page 5: Description And Specifications

    DESCRIPTION AND SPECIFICATIONS 1.1 DESCRIPTION 1.1.1 GENERAL The RM-325 is a two-channel intercom user station for the RTS TW Intercom System. It is designed for use with a headset, and it can be placed on a desktop, or rack mounted with optional rack mount hardware.

  • Page 6: Specifications

    ± Receive: 24 kHz 200 Hz, 100 mVrms 1.2.2 RM-325 General Specifications Power Requirements, Channel Powered RM-325: 30 VDC nominal (standard TW line), 60 to 100 mA Power Requirements, Locally Powered RM-325: 24 VDC nominal, 60 to 100 mA Environmental Requirements: °...

  • Page 7: Installation

    Set W3 for left headphone program and set W4 to disable right headphone program. 2.1.2 Program Assignment (W3 & W4) Normally, the RM-325 is set for stereo headphone operation (W5 jumper pins 1&2 shorted) and the program input is assigned to both right and left headphones via jumpers W3 and W4.

  • Page 8: Audible Alert Option (X1)

    1 and no change should be required. There are some situations, however, where you may need to power the RM-325 from channel 2, or from a local power source. See “Intercom Channel and Power Connections”, page 9, for details.

  • Page 9: Talk-Off Receive Enable (S4-8)

    2.3.1 Standard TW Connection You can connect the RM-325 directly to a PS-15 or PS-31 power supply using a standard 2-channel TW intercom cable (Figure 3). Connect from the power supply’s...

  • Page 10: Channel 2 Power When Using Tw Power Supplies

    The RM-325 will now receive power from the local power supply, while both channels will be terminated by the TW power supply. Note that since the RM-325 is not drawing any power from the channels, you should not include this station if you are computing total power consumption for the TW power supply.

  • Page 11: Headset Connections

    If your headset is equipped with a mic on/off switch, you can probably use it with the remote mic switch feature of the RM-325. See “Mic On/Off Switch” in the operation instructions, page 15. If your headset does not have a mic switch, but you want to use this feature, you can connect a remote mic switch to the AUX connector.

  • Page 12: Headphone Sound Isolation

    Low impedance headphones are louder, causing the RM-325 to draw more current from the power supply. High impedance headphones are not as loud, drawing less current from the power supply. The RM-325 design range of impedances for the headphone part of the headset is 25 to 600 .

  • Page 13: Signal

    Water mud and snow in connectors can cause considerable hum. RM-325 User Manual...

  • Page 14: Figure 6. Optional Mounting Configurations

    Side-By-Side Rack Mount Configuration Using an MCP1 Rack Mount Kit Single-unit Rack Mount Configuration Using an MCP2 Rack Mount Kit Console Mount Configuration Using an MCP3 Console Mount Kit Tandem Configuration Using an MCP4 Tandem Mount Kit Figure 6. Optional Mounting Configurations RM-325 User Manual...

  • Page 15: Rm-325 Operation

    RM-325 OPERATION There are several operating features that are configured with internal jumpers and switches. If the default settings for these are changed, your RM-325 may not operate exactly as described below. The operating procedures describe the factory default operation first, and then explain how the operation could be affected by the internal settings.

  • Page 16: Sending A Talk-Off Signal

    3.6 Sending a Talk-off Signal The RM-325 can generate an inaudible signal which can be used to deactivate the microphones on other intercom stations connected to the intercom channel (works with models BP-318, BP-325, BP-350, RM-325, MCE-325 and MRT-327). This feature is useful when there is a microphone activated on an unattended intercom station, and it is causing noise on the intercom channel.

  • Page 17: Replacement Parts

    REPLACEMENT PARTS 4.1 Where To Obtain Parts Parts may be obtained directly from Telex at: Telex/RTS Systems 9600 Aldrich Ave. So. Minneapolis, MN 55420 800-828-6107 Fax: 800-323-0498 4.2 Mechanical Parts FINAL ASSEMBLY (Refer to Figure 4-1 for Item No. locations) Item No.
  • Page 18 LED, T-1 3/4, Green LED, T-1 3/4, Green LED, T-1 3/4, Red LED, T-1 3/4, Mount Inductor, Ferrite Bead Inductor, Ferrite Bead RM-325 User Manual CIRCUIT BOARD ASSEMBLY (Refer to Figures 4-3 and 4-4) Part No. Ref. No. 102884-606 Inductor, Ferrite Bead...
  • Page 19 , 5%, 1/8W 102513-220 , 5%, 1/8W 102513-220 , 5%, 1/8W 102513-220 , 5%, 1/8W 102513-220 , 5%, 1/8W 102513-220 , 5%, 1/8W 102513-220 , 5%, 1/8W 102513-220 , 5%, 1/8W 14112202-00 14112202-00 19110047-00 19110047-00 19110047-00 19090002-SM 20170014-00 20170014-00 RM-325 User Manual...
  • Page 20 Connector, ST Header, 0.100, M-3 Connector, ST Header, 0.100, M-3 Connector, ST Header, 0.100, M-3 Connector, ST Header, 0.100, M-3 Connector, ST Header, 0.100, M-3 Y100 Crystal, SM, 4 MHz RM-325 User Manual Part No. 20170014-00 20170014-00 16030833-SM 53266-123 16030131-SM...

  • Page 21: Figure 7. Final Assembly, Rm-325

    FINISH: 64 SHT. OF INT. CLASS 2B MOLD FINISH: SPI-SPE NO. 3 MODEL NEXT ASS'Y MINNEAPOLIS, MINNESOTA PLANT DIST. DRAFT 2° Figure 7. Final Assembly, RM-325 RM-325 User Manual DRFT CHKR APP DATE 12/12/95 REF. TO J 2 9010-7491 B.E.

  • Page 22: Figure 8. Pc Board Assembly, Rm-325

    Figure 8. PC Board Assembly, RM-325 RM-325 User Manual...

  • Page 23: Figure 9. Schematic, Rm-325, Sheet 1 Of 2

    Figure 9. Schematic, RM-325, Sheet 1 of 2 RM-325 User Manual...

  • Page 24: Figure 10. Schematic, Rm-325, Sheet 2 Of 2

    Figure 10. Schematic, RM-325, Sheet 2 of 2 RM-325 User Manual...
