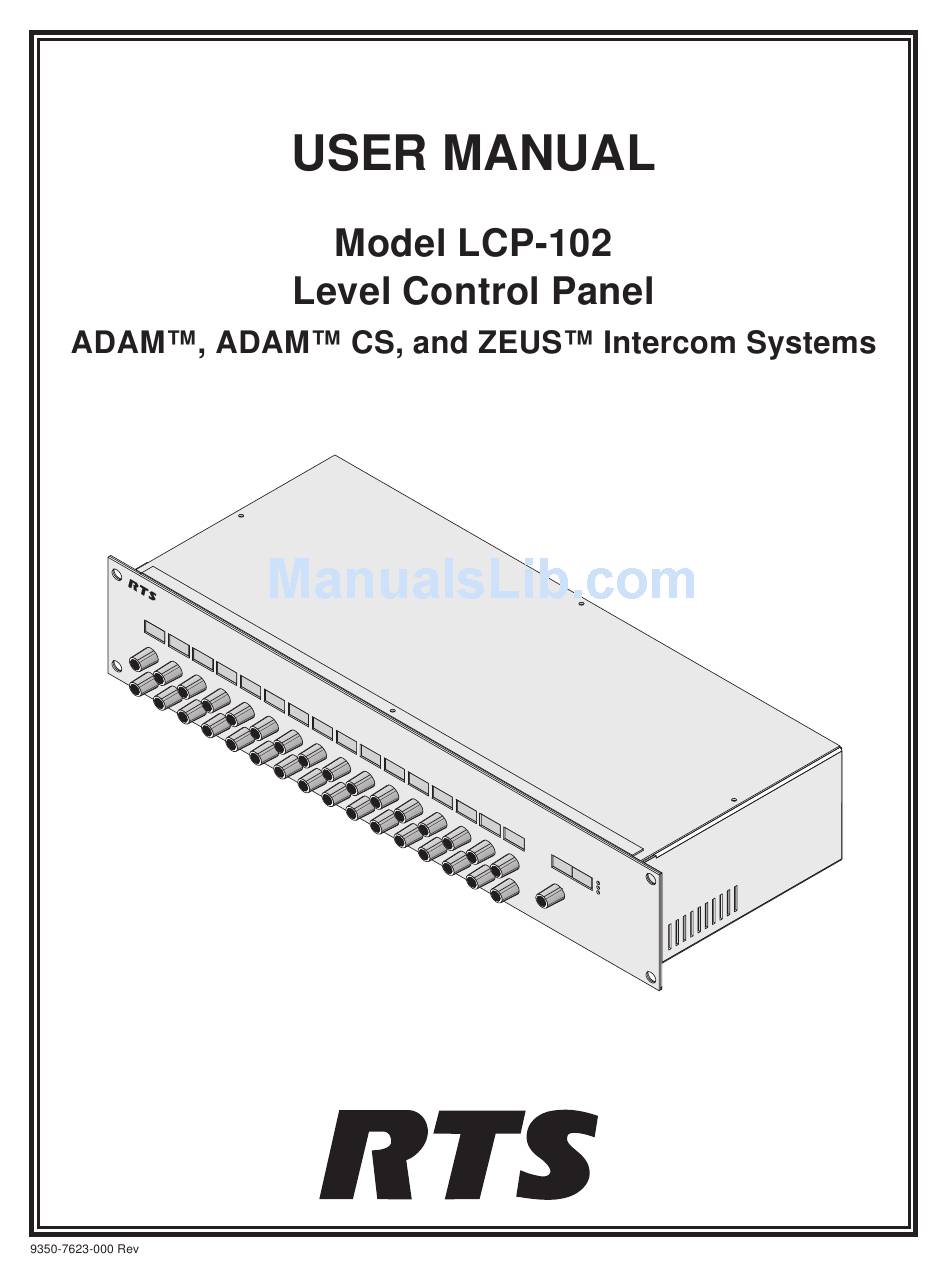

- Page 1 B 04/2006 ™...
- Page 2 ROPRIETARY OTICE The product information and design disclosed herein were originated by and are the property of Telex Communications, Inc. Telex reserves all patent, proprietary design, manufactur- ing, reproduction, use and sales rights thereto, and to any arti- cle dislcosed therein, except to the extent rights are expressly granted to others.
-
Page 3: Table Of Contents
Figure 8. Cable to connect a UIO-256 to the LCP-102 (All intercom systems)...... -
Page 4: Introduction

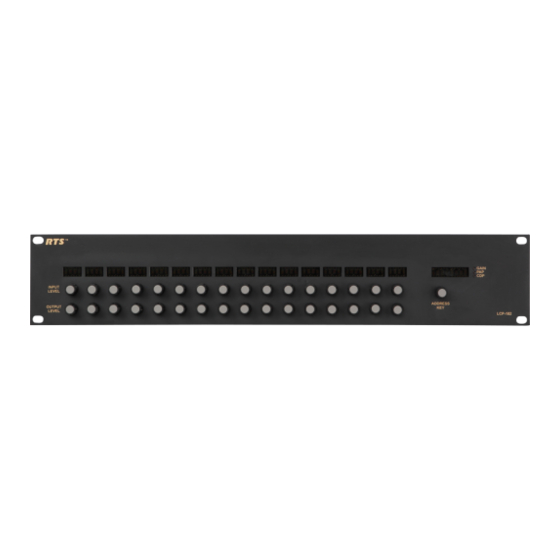

INTRODUCTION These instructions describe the installation and operation of the LCP-102 Level Control Panel, Version 1.0, in an ADAM™, ADAM™ CS, or Zeus™ Intercom System. Note that the LCP-102 is not compatible with the CS9000 Series Intercom Systems. To complete the... -
Page 5: Package Contents
UIO-256 Frame along with the LCP-102, you have a choice of two methods: either using the LOOP connector of the LCP-102, or using a "Y" cable. If you have several LCP-102's connected in a chain, you can connect the UIO-256 to the LOOP connector of the last LCP-102 in the chain, or you can insert it anywhere in the chain with a "Y"... -
Page 6: Adjusting The Dimmer
OPERATION 6.1. Panel Mode Selection The LCP-102 has three panel modes: TRIMS, PAP and CDP. Select the panel mode as follows: 1. Rotate the ADDRESS KEY to display SERVICE then click. 2. Rotate the ADDRESS KEY to display SET MODE then click. -
Page 7: Cdp Mode Assignments And Operation
For each IFB, you can define or change the input port either from the intercom system configuration software or from the LCP-102, but you must always define the output port first using the intercom system configuration software. 2. Place the LCP-102 in PAP mode as previously described. -
Page 8: Saving Configuration Changes
6.6. Saving Configuration Changes The settings for address, current panel mode and current setup page are saved in the LCP-102 and will be retained if the power is turned off. All display assignments and level settings are uploaded to the intercom system and become part of the on-line configuration. -
Page 9: Figure 2. Typical Connection Methods For The Lcp-102
XCP-ADAM-MC J3 (ADAM) DATA LCP-102 LOOP TWO METHODS FOR CONNECTING A UIO-256 WITH THE LCP-102 UP TO THREE MORE UIO-256 FRAMES MAY BE CONNECTED TO THE FIRST UIO-256 IN A RING CONFIGURATION AS ILLUSTRATED IN THE UIO-256 MANUAL ZEUS J26... -
Page 10: Figure 3. Interconnect Cable From A Zeus Or Adam Intercom System To The Lcp-102
DE-9P (Male) ZEUS J26 XPC-ADAM-MC J3 (ADAM) DE-9P (Male) ZEUS J26 XPC-ADAM-MC J3 (ADAM) DE-9P (Male) TO FIRST LCP-102 TO SECOND LCP-102 LOOP DE-9S DE-9S (Female) (Female) TO ADAM CS TO LCP-102 J902 DATA DE-9P DE-9S (Male) (Female) TO ADAM CS...
