General Description

The LCP-100 Level Control Panel connects to
a KP-9X Keypanel or EKP-9X Expansion Panel. It
lets you adjust individual channel listen levels.
The LCP-100 works only with the ADAM and
ADAM CS Intercom Systems. It is not compatible
with the earlier CS9000 Series Intercoms.
Note: Due to controller bus limitations, no more than
3 level control panels and 2 expansion panels should
be daisy-chained from a keypanel.

Keypanel Firmware Update

A keypanel firmaware update has been provided with
your LCP-100. This must be installed in the keypanel
for proper operation with the LCP-100. Update the
keypanel firmware as follows:
1. Unplug the keypanel power cord.
2. Remove the top cover.
3. Use normal precautions about handling static-
sensitive devices. Remove the old IC U305 from
the keypanel circuit board and install the new IC.
4. Replace the top cover and reconnect power.
TM ADVANCED DIGITAL AUDIO MATRIX
USER INSTRUCTIONS

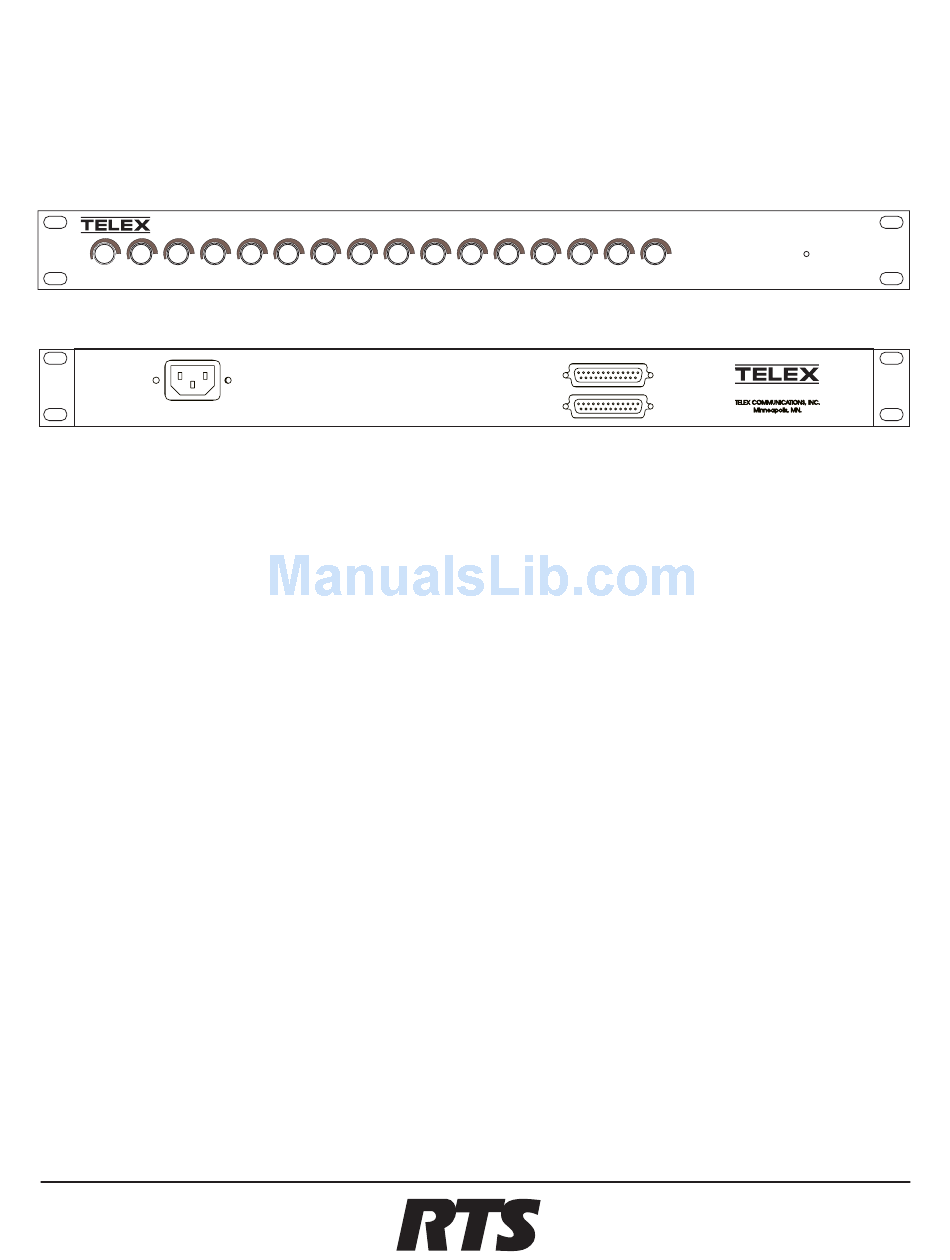

MODEL LCP-100 LEVEL CONTROL PANEL
EXP. DATA IN
EXP. DATA OUT

Connections and Positioning

For connections, refer to the figures on the reverse
side of this sheet. For ease of use, when positioning
the components it may help to locate each level con-
trol panel directly above or below the keypanel or ex-
pansion panel that it will be used with. Otherwise,
you may wish to label each LCP control knob accord-
ing to the key assignment alphas on the keypanel or
expansion panel.

Operation

To adjust a listen level, first activate the listen key for
that channel. While monitoring the level in your key-
panel speaker or headphones, adjust the correspond-
ing knob on the LCP .
The LCP can only be used to adjust the level
Note
for listen keys that are assigned to ports or
party lines. Levels for IFB's, ISO's, and spe-
cial lists are not adjustable.
™
LCP-100
®
