LCP-32/16 Level Control Panel
Installation Guide

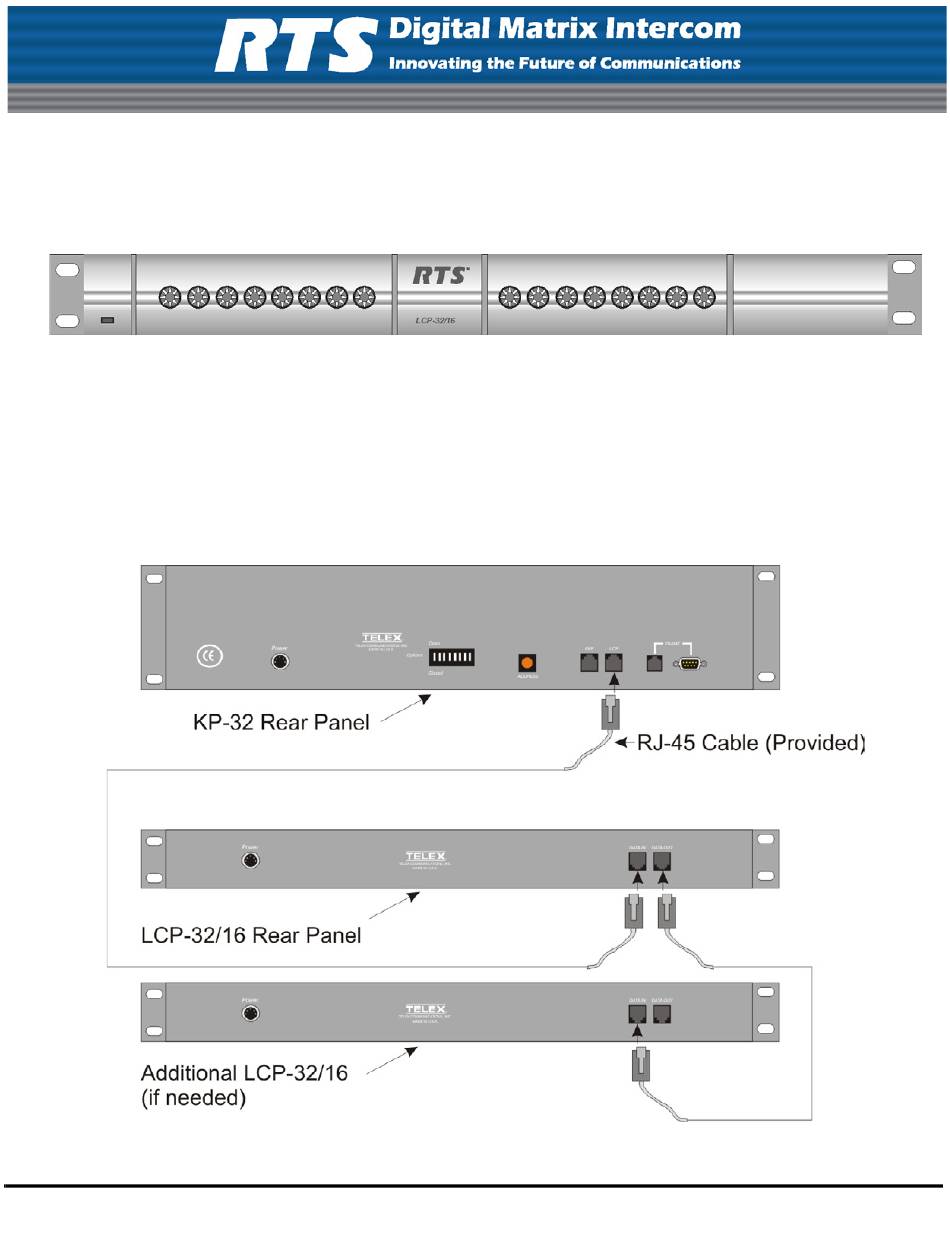

The LCP-32/16 Level Control Panel is connected to KP-32 Keypanels and additional LCP-32/16 panels, as shown in the
diagram below. Configuration instructions are included on the back of this document. A maximum of three (3) LCP-32/
16 panels may be connected to one
KP-32 keypanel.
Do not connect a KP-32 power supply to the LCP-32/16. Doing so could cause damage to the unit.
CAUTION:
93507672000 Rev B
02/2009
