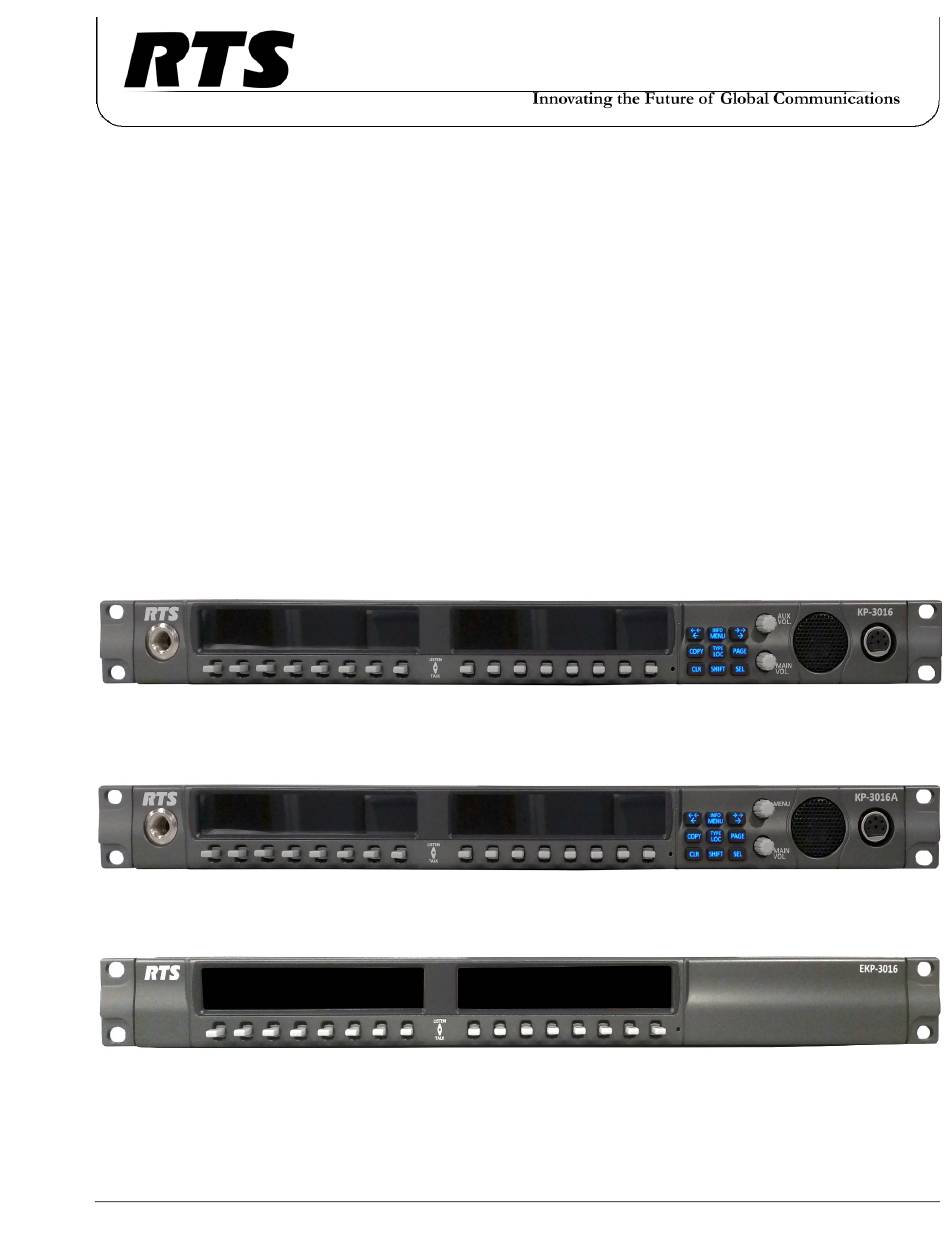

KP-3016 Keypanel
KP-3016A Keypanel
and
EKP-3016 Keypanel
Technical Manual
up to and including version 1.1.0
KP-3016
KP-3016A
EKP-3016
01/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KP-3016 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RTS KP-3016

  • Page 1 KP-3016 Keypanel KP-3016A Keypanel EKP-3016 Keypanel Technical Manual up to and including version 1.1.0 KP-3016 KP-3016A EKP-3016 Rev. 02 01/2017 F.01U.315.927...
  • Page 2 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, GROUNDING OF THE CENTER PIN OF THIS PLUG MUST BE MAINTAINED. RTS Intercoms ......www.rtsintercoms.com/warranty RTS Digital WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT RTSTW EXPOSE THIS APPRATUS TO RAIN OR MOISTURE.
  • Page 3: Important Safety Instructions

    KP-3016/3016A Series Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 4 KP-3016/3016A Series Bosch Security Systems, Inc. Rev. 02 F.01U.315.927 Technical Manual...
  • Page 5: Table Of Contents

    Basic Intercom Key Operation .......................36 Crosspoint Gain Adjustment ........................37 Keypanel Volume Adjustments ......................38 Aux Volume Adjustments (KP-3016 Only) ...................39 Operation of Intercom Keys with Auto Functions .................40 Operation of Intercom Keys with Options .....................41 Operation of Intercom Talk Keys with the Speaker DIM Setting ............41 Call Waiting Operation ..........................42...
  • Page 6 Download Firmware Using the Bootloader ..................72 Enable Downloading New Bootloader from the Keypanel ..............74 Display the FPGA Version ........................74 Download and Upgrade the FPGA in the KP-3016/3016A ..............74 Download a Splash Screen ........................77 Download a Font File ..........................79 Download a Icon File ..........................
  • Page 7 Male Headset Connector Set Screw Access Hole ............. 25 FIGURE 7. KP-3016 Keypad ....................... 32 FIGURE 8. KP-3016 AUX VOL. Knob and KP-3016A MENU Knob ..........35 FIGURE 9. Key Function Position Explanation .................. 36 FIGURE 10. Talk/Listen Indicators ....................... 37 FIGURE 11.
  • Page 8 KP-3016/KP-3016A Series F.01U.315.927 Technical Manual Rev. 02 Bosch Security Systems, Inc.
  • Page 9: Introduction

    CHAPTER 1 Introduction Part of the KP-Series keypanel family, the KP-3016 provides the same superior digital audio as the flagship KP-4016 model, by using OMNEO media networking technology (developed by RTS parent company Bosch and incorporating Dante high-quality audio over IP). The analog-only KP-3016A is also available. Both versions deliver top-notch sound quality, free of noise, delay, and other artifacts sometimes present in older technology.
  • Page 10: Specifications

    Color Resolution ......16-bit (64K) RGB color Speaker View Angle.......80 degrees (typical; all directions) SPL ......84dBSPL for 1kHz sine wave @ 1 meter Power Supply: Digital (KP-3016 Only): Type:..............External DC OMNEO Channels AC Input:..........100–240VAC 50/60Hz Typical OMNEO Latency..........1.0ms Inputs: Frequency Response ..........
  • Page 11 KP-3016/KP-3016A Series Introduction 13 Power Consumption: KP-3016 Nominal..............11 Watts Maximum ..............13 Watts Maximum Volt Amp ............36 VA KP-3016A Nominal................ 8 Watts Maximum ..............10 Watts Maximum Volt Amp ............. 36 VA Certification: CE Compliance • EN55022 Class A •...
  • Page 12: Kp-3016/3016A Block Diagram

    14 Introduction KP-3016/KP-3016A Series KP-3016/3016A Block Diagram KP-3016/3016A Audio Flow Block Diagram FIGURE 1. Technical Manual Bosch Security Systems, Inc. F.01U.315.927 Rev. 02...
  • Page 13: Reference View - Kp-3016

    POWER Connector Keypanel Reset FRAME Connector Keypad EXP Connector AUX VOL. Encoder Knob/Menu Navigation OMNEO ETHERNET Connector (See “Ethernet Connector (KP-3016 ONLY)” on page 23) MAIN VOLUME Knob KP-3016A Reference View FIGURE 3. Microphone Connector POWER Connector Lever Keys FRAME Connector...
  • Page 14: Connector Pinouts

    Pin 3 Chassis GND RS485 + RS485 - Matrix Connector: J8 RJ-45 RJ-12 RS485 + ETHERNET: J11 (only for KP-3016, not KP-3016A) RS485 - RS485 - FROM MATRIX + FROM MATRIX + Assignment TO MATRIX + TO MATRIX + TO MATRIX -...
  • Page 15: Installation

    CHAPTER 2 Installation Requirements The following keypanel firmware versions are needed for the specified KP-3016/3016A model: AZedit ....V5.2.0 or later IPedit....V3.2.0 or later MCII-e....V3.2.0 or later AIO-16....V1.6.0 or later FWUT....V3.3.0 or later (3016 Only) DNS-SD....V3.3.0 or later (3016 Only) OMI ....
  • Page 16: Kp-3016/Kp-3016A Installation

    To install the KP-3016/3016A, do the following: On the rear panel of the KP-3016/3016A, plug the 24 VDC power connector (A) of the power supply into the power connector on the back panel of the unit.
  • Page 17: Connecting The Keypanel

    You can connect the OMI using AZedit and IPedit; however, only IPedit can be used to connect the keypanel. Configure the OMI using AZedit To connect the OMI to the KP-3016 using AZedit, do the following: From the Status menu in AZedit, select I/O Cards.
  • Page 18 From the Destination Channel drop down menu, select the channel to which the OMI will connect. Send the changes to the OMI. Add the KP-3016 to the Device Catalog in IPedit To add the keypanel to IPedit, do the following: Open IPedit.
  • Page 19: Power Up

    To do this, a connection needs to be established using the OMNEO Offers menu on the keypanel. For more information, see “Menu System, OMNEO Offers (Only available for KP-3016)” on page 120. To configure a connection offer, do the following: Starting at the OMNEO Offers|Keypanel menu, select OKP.
  • Page 20: Address Setting

    See the RVON-I/O user manual for further instruction. a. To manually address the KP-3016/3016A, see “Service Menu, Set Address” on page 133. To see specific addressing information for: ADAM with AIO-8 cards, see the ADAM technical manual (P/N F01U216986).
  • Page 21: Connections

    Use the Frame connector to connect to an intercom port of the intercom system. For the frame connector location, see Figure 3 on page 15. The intercom port you connect to should agree with the address you set previously. Ethernet Connector (KP-3016 ONLY) Use the Ethernet connector to connect the keypanel to a network system. Each RJ-45 Ethernet connector has two (2) LEDs: Left LED.
  • Page 22 24 Installation KP-3016/3016A Series Headset Connector A stereo headset may be connected to the front of the unit for use along with or in place of the front panel speaker and a separate microphone. Headphones may be connected for use with a separate microphone.
  • Page 23 KP-3016/3016A Series Installation 25 Male Headset Connector For a male headset connector, the set screw access hole is located on the right-side of the unit. IMPORTANT: The right-side rack ear must be removed to expose the set screw access hole.
  • Page 24 26 Installation KP-3016/3016A Series Changing the Headset Connector The headset connector can be switched between a 4-pin XLR and 5-pin XLR (also compatible with 6-pin) connector. To replace the front panel headset connector, do the following: Using a flat-blade screwdriver with 2.4 mm wide (3/32 in.) tip, turn the set screw counterclockwise to loosen the connector from the unit.
  • Page 25 KP-3016/3016A Series Installation 27 Cut the shrink-tubing from around the cables. Pay attention not to cut through the cables. Disconnect both cables by pulling the cable-to-cable connectors apart. Using the replacement headset connector, thread the cables through the supplied shrink-tubing.
  • Page 26 28 Installation KP-3016/3016A Series Position both pieces of shrink-tubing so any portion of the cable without an outer insulation layer is covered. Using a heat gun, apply even heat over the length and diameter of the tubing (minimum temperature 100°C).
  • Page 27: Basic Operation

    Intercom Keys and Displays Color Display Descriptions for Intercom Keys The KP-3016/KP3016A display uses key colors to distinguish the type of key assignment programmed on each key. Use Table 2, to help you determine the available key assignment colors. You can customize these colors to your preference by using the “Keypanel Color Window” on page 49.
  • Page 28 Download chunk progress overall progress chunk/overall progress NOTE: For more information, see “Download Firmware to the KP-3016/3016A From AZedit” on page 67. Headphones The headphones are enabled. This indicates the headset microphone is not enabled. Headset The headset is enabled.
  • Page 29 **This is only applicable for the KP-3016 keypanel.** The OMNEO matrix interface is enabled on the panel. For more information on OMNEO Offers, see“Menu System, OMNEO Offers (Only available for KP-3016)” on page 120. OMNEO Disabled **This is only applicable for the KP-3016 keypanel.** The OMNEO matrix interface is disabled on the panel.
  • Page 30: Keypad Reference View

    KP-3016/KP-3016A Series Keypad Reference View With both the KP-3016/3016A there are two (2) tiers to each keypanel’s keypad: Primary Mode and SHIFT Mode. Primary Mode Primary Mode is used for the most common keypanel functions, such as CLR, SEL, and accessing the Main menu. There are no special keypad sequences to use these functions.
  • Page 31 KP-3016/KP-3016A Series Basic Operation 33 Keypad Shift Description Button Function The MENU/INFO button is used to access the top level menu structure or access a secondary MENU INFO menu of commonly used features (see, “INFO button” on page 34). The MENU button is used to access the top-level menu structure.
  • Page 32: Info Button

    Enables the Test Panel feature. For more information, see “Service Menu, Test Panel” on page 135. Version Displays the firmware version of the KP-3016/3016A. For more information, see “Display Menu, Version” on page 108. To access the Info Menu, do the following: On the keypad, press the SHIFT button.
  • Page 33: Menu Navigation And Shaft Encoder Knobs

    Aux Volume shaft encoder while in menu mode is the equivalent to SEL key operation. Conversely, pressing the MAIN Volume shaft encoder in menu mode is the equivalent to the CLR key operation. KP-3016 AUX VOL. Knob and KP-3016A MENU Knob FIGURE 8.
  • Page 34: Basic Intercom Key Operation

    Basic Intercom Key Operation IMPORTANT: The KP-3016/3016A series keypanels, as well as the EKP-3016, do not have side to side movement on the lever keys. You are only able to press up or down. Left and right motions are not available.
  • Page 35: Crosspoint Gain Adjustment

    KP-3016/KP-3016A Series Basic Operation 37 Talk/Listen Indicator The Talk/Listen Indicator, shown in Figure 10, displays a visual indicator when the talk and/or listen key is active. The talk and listen states of each key are represented by an LED-like horizontal bar at the bottom (talk) and top (listen) of each key.
  • Page 36: Keypanel Volume Adjustments

    By default, the main volume control adjusts the Output Volume for the speaker or headset, whichever is currently active. Output volume ranges from +10dB to -48dB and Mute. To adjust output volume level, do the following: On the KP-3016/3016A, turn the MAIN VOLUME encoder to the right to increase the volume for the selected > output.
  • Page 37: Aux Volume Adjustments (Kp-3016 Only)

    Input volume ranges from +10dB to -48dB and Mute. To adjust input volume level, do the following: On the KP-3016/3016A, turn the AUX VOLUME encoder to the right to increase the volume for the selected input. > Turn the AUX VOLUME encoder to the left to decrease the volume for the selected input.
  • Page 38: Operation Of Intercom Keys With Auto Functions

    40 Basic Operation KP-3016/KP-3016A Series To change the focus of the volume control, do the following: On the KP-3016, push the AUX VOLUME encoder once. > The aux volume focus switches to the next available input. Operation of Intercom Keys with Auto Functions NOTE: Assignment of keys with auto functions is described in the programming section that follows.
  • Page 39: Operation Of Intercom Keys With Options

    KP-3016/KP-3016A Series Basic Operation 41 Operation of Intercom Keys with Options Group Option Keys Activating the master key in a key group activates all keys in the group according to each key’s individual key assignment. Activating a slave key does not affect any other keys in the group. For more information, see “Key Options Menu, Key Groups”...
  • Page 40: Call Waiting Operation

    Occasionally, a keypanel may call and there is not a key assigned to talk back to the caller. In this case, the caller’s name appears in the CWW (Call Waiting Window). NOTE: The KP-3016/3016A keypanels support a graphical call waiting window. For more information, see “Graphical Call Waiting Window Operation” on page 44. To answer a CWW call, do the following: Press down and hold the CWW key to talk back.
  • Page 41: Graphical Call Waiting Window

    Traditionally, incoming calls have been displayed on key 16 on the keypanel, flashing to indicate an incoming call. The KP-3016/3016A Series keypanel can keep a history of the last nine (9) callers and display them in a scrollable, graphical window above keys 15 and 16. The CWW displays three (3) calls at a time (only two in Unicode) with a scroll arrow appearing if there are more than three (3) calls in the list.
  • Page 42 Incoming Calls When a call is received at the KP-3016/3016A panel, the graphical CWW list appears on the keypanel display. Unlike the keypanel talley indicators in previous keypanel versions: the graphical CWW list appears on the keypanel display.
  • Page 43 KP-3016/KP-3016A Series Basic Operation 45 To answer a call on the graphical CWW, do the following: Scroll the CWW to highlight the call you want to answer. The highlighted call is shown with a cyan background. Press down and hold the CWW key to talk to the caller.
  • Page 44: Mic Select

    46 Basic Operation KP-3016/KP-3016A Series Mic Select The mic (input) or speaker/headset (output) can be configured as Always On or Enabled, or Disabled. For more information, see: “Audio Options Menu, Headset Speaker” on page 99. • “Audio Options Menu, Panel Mic” on page 105.
  • Page 45: Setup Pages

    KP-3016/KP-3016A Series Basic Operation 47 Setup Pages Setup Pages are used to provide access to more key assignments than a panel has keys, enabling the user to quick switch one set of assignments for another. You can have up to 15 Setup Pages per keypanel port.
  • Page 46: Menu Passwords

    KP-3016/KP-3016A Series Menu Passwords As with other keypanels, the KP-3016/3016A allows you to lock the entire menu structure or only the service menu. This is implemented through AZedit (System|Miscellaneous|Keypanel Menu Password). For more information, see the AZedit user manual (p/n F01U239453).
  • Page 47: Keypanel Color Window

    KP-3016/KP-3016A Series Basic Operation 49 Keypanel Color Window The Keypanel Color window, shown in Figure 13, is used to change the text and background colors assigned to function types, key assignments, and talk/listen indications. You can modify local intercom key assignments and function type colors, as well as remote intercom function type colors, giving you the flexibility to distinguish different systems through the use of color patterns.
  • Page 48 50 Basic Operation KP-3016/KP-3016A Series Function Types Page The Function Types page, shown in Figure 13, is used to change the default colors assigned to the various keypanel function types. Select Intercom Drop Down Menu The Select Intercom drop down menu is used to select the intercom system (local or remote) in which you want to change the color of the key function types.
  • Page 49 KP-3016/KP-3016A Series Basic Operation 51 Color Grid Color Grid FIGURE 14. Function Type Column The Function Type column displays the different function types you can make key color changes for. Available selections are: Null, Special Functions, Ports, Party Lines, IFBs, Special Lists, GPI Outputs, ISOs, UPL Resources, and IFB Special Lists.
  • Page 50 52 Basic Operation KP-3016/KP-3016A Series Key Assignment Page The Key Assignment page, shown in Figure 15, is used to change the colors assigned to the various assignment types. This means you can assign different colors to the individual function type resources. For example, you can change the display color for the party line assignment number 003.
  • Page 51 KP-3016/KP-3016A Series Basic Operation 53 Function Number Column The Function Number column displays the function numbers (resources available) you can modify the color of the assigned key for. NOTE: Key colors are associated with assignment types, not the keys they are assigned to.
  • Page 52 54 Basic Operation KP-3016/KP-3016A Series Select Assignment Group Drop Down Menu The Select Assignment Group drop down menu is used to select the assignment group whose members you want to modify the key colors for. Intercom Column The Intercom column displays the name of the intercom where the group resides.
  • Page 53 The Miscellaneous Colors page, shown in Figure 17, is used to change the colors of the talk and listen indicators seen on the KP-3016/3016A series keypanel when talk and/or listen is activated. For more information on Talk and Listen indicators, “Talk/Listen Indicator” on page 37.
  • Page 54: Enhanced Tallies

    56 Basic Operation KP-3016/KP-3016A Series Enhanced Tallies Enhanced Tallies allow you to configure, using AZedit, how tallies look on the keypanel. You are able to change how incoming calls, PLs, IFBs, etc look on the keypanel. By default, an incoming call tally is indicated by a flashing alpha. With enhanced tallies, you can configure the text and background colors used to display the key in both flashing and normal states for the duration of the tally.
  • Page 55 KP-3016/KP-3016A Series Basic Operation 57 Tally # Column The Tally # column displays the tally number. This number is associated with the tally description and is used in selecting tallies to generate via UPL statements. AZedit supports 20 different tallies, however, the first 10 are predefined.
  • Page 56 58 Basic Operation KP-3016/KP-3016A Series Characteristics Column The Characteristics column is used to configure the characteristics or behavior of the visual tally. Depending on what you select in the Mode column determines what is seen in this column. From the Characteristics column, you can access a configuration window for either Text or Icon selections.
  • Page 57 KP-3016/KP-3016A Series Basic Operation 59 Legacy Action Column The Legacy Action column is used to select how the tally descriptions is implemented on keypanels that do not support Enhanced Tallies. Available options are: No Tally Incoming Call Tally In-Use Tally...
  • Page 58: Flash Text Characteristics Window

    60 Basic Operation KP-3016/KP-3016A Series Flash Text Characteristics Window The Flash Text Characteristics window is used to configure the way a text tally behaves for the selected tally. Flash Text Characteristics Window FIGURE 18. Swap Foreground / Background Colors Check Box The Swap Foreground / Background Colors check box indicates the foreground color swaps with the background color creating a blinking effect on the keypanel display.
  • Page 59 KP-3016/KP-3016A Series Basic Operation 61 Selected Color Cell and Ellipsis Button The Selected Color cell displays the currently selected color of the background. The Ellipsis button opens the Select Color window where you can assign a different color to the background.
  • Page 60: Show Icon Characteristics Window

    62 Basic Operation KP-3016/KP-3016A Series OK Button The OK button is used to accept/apply the changes and close the window. Cancel Button The Cancel button is used to reject the changes and close the window. Show Icon Characteristics Window The Show Icon Characteristics window is used to configure which icon to display during a tally event and the rate at which it flashes during the event.
  • Page 61 KP-3016/KP-3016A Series Basic Operation 63 Enhanced Tally Icons Tally Icon Descriptions TABLE 8. Enhanced Tally Icons, shown in Table 8, are used to visually Icon Icon Name Description alert keypanel users of different events occurring on the Question Available for UPL Tally (animation keypanel and in the Matrix system.
  • Page 62 64 Basic Operation KP-3016/KP-3016A Series Tally (Key Overlays) To create your own tally icons (key icons), the icons are 16x16 pixels. 32 key icons are supported, as well as 4-frame animation, so the bitmap must be 512x64, producing a table of 32x4 icons (each icon 16x16 pixels), see Figure 20. AZedit accepts a narrower image (as long as it is a multiple of 16) and uses white space to fill in the missing pixels.
  • Page 63: Bosch Security Systems, Inc. Technical Manual F.01U.315.927 Rev

    KP-3016/KP-3016A Series Basic Operation 65 Panel Icons For panel icons, the icons are 32x32 pixels. 16 panel icons are supported, as well as 4-frame animation, so the bitmap must be 512x128, producing a table of 16x4 icons (each icon 32x32 pixels), see Figure 21. Like key icons, AZedit accepts a narrower image (as long as it is a multiple of 32) and uses white space to fill in the missing pixels.
  • Page 64 66 Basic Operation KP-3016/KP-3016A Series Technical Manual Bosch Security Systems, Inc. F.01U.315.927 Rev. 02...
  • Page 65: Firmware Download

    To download firmware to the keypanel, do the following: Open AZedit. From the Status menu, select Port. The Port Status window appears. Find the port number where the KP-3016/3016A is connected. Technical Manual Bosch Security Systems, Inc. F.01U.315.927 Rev. 02...
  • Page 66 Click Open. The Download Device Firmware window appears. Click Begin Download. The download begins. Click OK. The KP-3016/3016A firmware download finishes. Verify the keypanel displays the Processing Download icon with progression bar. Technical Manual Bosch Security Systems, Inc. F.01U.315.927 Rev. 02...
  • Page 67: Download Firmware To The Keypanel Using The Firmware Upload Tool

    Also, the keypanel displays Firmware Download on the panel display until the download is complete. The KP-3016/3016A resets itself once the firmware download is complete and the flash reprogrammed. • While the firmware is downloading, chunk progress is displayed by incremental blocks. Also, the •...
  • Page 68 70 Firmware Download KP-3016/KP-3016A Series From the File menu, select Options. The Firmware Upload Tool Options window appears. Click the Change button. The folder network window appears. Navigate to the folder where the firmware resides. Click OK. Click OK, again.
  • Page 69 KP-3016/KP-3016A Series Firmware Download 71 From the list of firmware, select the firmware you want to download. Click the Start button. Once the firmware has been updated, the keypanel reboots automatically. Bosch Security Systems, Inc. Technical Manual F.01U.315.927 Rev. 02...
  • Page 70: Download Firmware Using The Bootloader

    To run the bootloader, do the following: Power off the keypanel. Verify the KP-3016/3016A is powered off, but still connected to the FRAME. At the same time, press and hold keypanel key 15 in the listen position (up) and keypanel key 16 in the talk position (down), while you connect the power cord to the keypanel.
  • Page 71 (the number and percentage of chunks completed). Also, the firmware progression is displayed on the KP-3016 panel display until the download is complete. NOTE: Once the Boot Loader is finished downloading, it reprograms the flash and reboots itself.
  • Page 72: Enable Downloading New Bootloader From The Keypanel

    From the Status menu, select Software Versions|Keypanels. The Keypanel Version Information window appears. Find the port number where the KP-3016/3016A is assigned. Highlight the Port (keypanel) to be updated. You may select more than one (1) at a time by holding CTRL key down while you select.
  • Page 73 Click Begin Download. The download begins. A progress bar appears to show the progress of the download. Click OK. The KP-3016/3016A firmware download to the Matrix finishes. The Download FPGA Firmware To The Keypanel begins. Bosch Security Systems, Inc. Technical Manual F.01U.315.927...
  • Page 74 76 Firmware Download KP-3016/KP-3016A Series Verify the Keypanel Version Information window is displaying the numbers of chunks (of data) transferred to the keypanel. Verify the keypanel displays the FPGA Downloading icon with progression bar. Once the download is complete, the keypanel has to process the downloaded file.
  • Page 75: Download A Splash Screen

    From the Status menu, select Software Versions|Keypanels. The Keypanel Version Information window appears. Find the port number where the KP-3016/3016A is assigned. Highlight the Port (keypanel) to be updated. You may select more than one (1) at a time by holding CTRL key down while you select.
  • Page 76 78 Firmware Download KP-3016/KP-3016A Series Select Download splash screen..The Splash Screen Download window appears. Click Open. The Download Splash Screen File window appears. In the Panel Size group box, select the 1RU radio button. Click Begin Download. The download begins. A progress bar appears to show the progress of the download.
  • Page 77: Download A Font File

    From the Status menu, select Software Versions|Keypanels. The Keypanel Version Information window appears. Find the port number where the KP-3016/3016A is assigned. Highlight the Port (keypanel) to be updated. You may select more than one (1) at a time by holding CTRL key down while you select.
  • Page 78 80 Firmware Download KP-3016/KP-3016A Series Click Begin Download. The download begins. A progress bar appears to show the progress of the download. Once the download is complete the Download Keypanel Font window closes. Verify the Keypanel Version Information window is displaying the numbers of chunks (of data) transferred to the keypanel.
  • Page 79: Download A Icon File

    KP-3016/KP-3016A Series Firmware Download 81 Verify the Keypanel Version Information window displays Processing download on the keypanel port you chose. Verify the keypanel displays the Processing Download icon with progression bar. Once the keypanel is finished processing the download, the keypanel begins to reprogram.
  • Page 80 82 Firmware Download KP-3016/KP-3016A Series Right-click the highlighted selection. A popup menu appears. Select Download icons..The Icon Download window appears. Navigate to the icon file (.bmp or .jpg) you want to use. Click Open. The Download Keypanel Font window appears.
  • Page 81 KP-3016/KP-3016A Series Firmware Download 83 Verify the Keypanel Version Information window is displaying the numbers of chunks (of data) transferred to the keypanel. Verify the keypanel displays the ICON Downloading icon with progression bar. Once the keypanel is finished downloading the icon file, the keypanel begins to reprogram.
  • Page 82 84 Firmware Download KP-3016/KP-3016A Series Technical Manual Bosch Security Systems, Inc. F.01U.315.927 Rev. 02...
  • Page 83: Kp-3016/3016A Menu System

    The Main Menu is the top most level of the menu structure. Available selections for this menu are: Audio Options Display Key Assign Key Options OMNEO Offers (Only available on KP-3016) Save Config Service Technical Manual Bosch Security Systems, Inc. F.01U.315.927...
  • Page 84: Menu System, Audio Options

    86 KP-3016/3016A Menu System KP-3016/KP-3016A Series To access the main menu structure, do the following: On the keypanel keypad, press the MENU button. The Main menu structure displays across the top of the panel display. Using the AUX Vol (MENU on the KP-3016A) encoder knob, navigate through the menu options.
  • Page 85 KP-3016/KP-3016A Series KP-3016/3016A Menu System 87 Audio Options Menu, Advanced • Compression • Filters • Gating • Metering • Mixing • Mix Mode • Noise Gate • The AGC (Automatic Gain Control) menu is used to set the speed at which a microphone becomes active and the speed at which a sustainable level is achieved through the use of the Attack menu and the Decay menu.
  • Page 86 88 KP-3016/3016A Menu System KP-3016/KP-3016A Series To configure the attack speed for a microphone source, do the following: Starting at the Audio Options|Advanced|AGC menu, select Attack. Press the SEL button. Hdst Mic and Panel Mic appear in the panel display.
  • Page 87 KP-3016/KP-3016A Series KP-3016/3016A Menu System 89 Filters Filters allow you to add a bandpass filter, a preset frequency response (equalization) filter or a notch filter to one (1) or more audio sources. Bandpass The Bandpass menu is used to enable using bandpass filters as well as set a low and high frequency range where frequencies within the two (2) frequency points are passed and anything outside of the range is rejected.
  • Page 88 90 KP-3016/3016A Menu System KP-3016/KP-3016A Series Using the AUX/MENU shaft encoder, select the output you desire to modify. If Headset is chosen: Press the SEL button. Both, Left Chan, and Right Chan appear in the panel display. Using the AUX/MENU shaft encoder, select either Both, Left Chan, or Right Chan.
  • Page 89 KP-3016/KP-3016A Series KP-3016/3016A Menu System 91 Using the AUX/MENU shaft encoder, select Presets. Press the SEL button. Default, Hiss Reduction, and Rumble Reduction appear in the panel display. Using the AUX/MENU shaft encoder, select Default, Hiss Reduction, or Rumble Reduction.
  • Page 90 92 KP-3016/3016A Menu System KP-3016/KP-3016A Series Gating Gating (also called VOX) allows you to minimize or eliminate background noise problems by shutting off an audio source when the audio level drops below a certain threshold. Gating can be applied to the following:...
  • Page 91 KP-3016/KP-3016A Series KP-3016/3016A Menu System 93 Metering Metering allows you to monitor an audio source connected to the keypanel. The energy of the incoming audio is split into five (5) bands and displayed on the left side of the keypanel when enabled.
  • Page 92 94 KP-3016/3016A Menu System KP-3016/KP-3016A Series Mixing Mixing allows you to route selected audio signals to the following destinations: To Matrix • Headset • Speaker • OMNEO 1 (only present if connected via the AIO, not available in the KP-3016A) •...
  • Page 93 KP-3016/KP-3016A Series KP-3016/3016A Menu System 95 To configure mixing, do the following: Starting at the Audio Options|Advanced menu, select Mixing. Press the SEL button. Headset, OMNEO 1, OMNEO 2, Speaker, and To Matrix appear in the panel display. NOTE: OMNEO 1 is only available in AIO mode. OMNEO 1 and 2 are not available on the KP-3016A.
  • Page 94 96 KP-3016/3016A Menu System KP-3016/KP-3016A Series Audio Options Menu, Chime The Chime menu is used to set the volume for each of the built-in chimes, as well as to enable or disable preview of chimes during chime selection in this menu and others that reference chimes.
  • Page 95 KP-3016/KP-3016A Series KP-3016/3016A Menu System 97 Audio Options Menu, Headset Mic The Headset Mic option allows the user to configure where audio is coming from and the type of microphone being used. By default, if no headset is detected, the headset mic input is muted to avoid allowing noise to get to the system. This feature can be disabled.
  • Page 96 98 KP-3016/3016A Menu System KP-3016/KP-3016A Series To configure the Headset Mic Mode, do the following: Starting at the Audio Options menu, select Headset Mic. Press the SEL button. Auto-Mute, Mode and Type appear in the panel display. Using the AUX/MENU shaft encoder, select Mode.
  • Page 97 KP-3016/KP-3016A Series KP-3016/3016A Menu System 99 Mode Available selections for the Mode menu are: Always On (d) Disabled Switched When set to Switched, the state of the Headset is controlled by the Mic Sel key. To configure the Headset Spkr Mode, do the following: Starting at the Audio Options|Headset Spkr menu, select Mode.
  • Page 98 100 KP-3016/3016A Menu System KP-3016/KP-3016A Series Audio Options Menu, Key Volumes The Key Volumes menu is used to enable or disable the adjusting of crosspoint listen gains. If key volumes are enabled, the user can adjust the list gains for Matrix crosspoints from the keypanels. Alternatively, you can reset key gains back to their default settings.
  • Page 99 Mic Gain allows the user to adjust the mic gain level. For more information, see “Keypanel Volume Adjustments” on page 38, “Keypanel Volume Adjustments” on page 38, and “Aux Volume Adjustments (KP-3016 Only)” on page 39. The range for this field is -20dB to 10dB.
  • Page 100 102 KP-3016/3016A Menu System KP-3016/KP-3016A Series Audio Options Menu, Mic Mute The Mic Mute menu is used to configure the actions of the Mic Mute key. Available options are: Disabled – By disabling the mic mute key, users are not able to mute the microphone from the front panel.
  • Page 101 KP-3016/KP-3016A Series KP-3016/3016A Menu System 103 Audio Options Menu, Panel Mic The Panel Mic menu option is used to configure how the panel mic operates. Available options for this field are: Disabled Enabled Switched When enabled, the state of the Panel Mic is controlled by the Mic Sel key.
  • Page 102 104 KP-3016/3016A Menu System KP-3016/KP-3016A Series Audio Options Menu, Speaker The Speaker menu option is used to configure how the speaker operates. Available selections are: Always On Disabled Switched When set to Switched, the state of the speaker is controlled by the Mic Sel key.
  • Page 103: Menu System, Display

    (Keypanel Firmware) Version Display Menu, Assign Type Assign Type displays the talk level 1 assignment types for all keys. To display the types of key assignments assigned to the KP-3016/3016A, do the following: On the keypanel, press MENU. The Information menu appears.
  • Page 104 106 KP-3016/3016A Menu System KP-3016/KP-3016A Series Display Menu, Chime Chime displays all keys with the chime option enabled on them in red. For more information, see “Key Options Menu, Chime” on page 114. To display keys with Chime enabled, do the following: Starting at the Display menu, select Chime.
  • Page 105 KP-3016/KP-3016A Series KP-3016/3016A Menu System 107 Display Menu, Key List Key List displays and allows users to see all the other assignments on other keypanel pages not currently showing in the keypanel display. To display the Key List information, do the following: Starting at the Display menu, select Key List.
  • Page 106 108 KP-3016/3016A Menu System KP-3016/KP-3016A Series Display Menu, Panel ID Panel ID displays the port number to which the keypanel is connected. NOTE: When the keypanel is not scroll enabled, the Panel ID displays only the port number in the panel display. When the keypanel is scroll enabled, the port number and port alpha are displayed.
  • Page 107: Menu System, Key Assign Menu

    You do not need to select matrix to assign keys to destinations in your own matrix. Also, you do not need to select matrix when assigning an auto function key to a matrix. To assign a remote assignment to the KP-3016/3016A, do the following: Starting at the KeyAssign|Matrix menu, select a remote intercom.
  • Page 108 110 KP-3016/3016A Menu System KP-3016/KP-3016A Series Key Assign Menu, Pt-to-Pt Pt-to-Pt assigns a key that talks or listens to another intercom port. NOTE: Some Pt-to-Pt destinations may be non-keypanel devices that cannot activate talk and listen paths. Therefore, if you want full communication, you may need to assign both talk and listen on the key. For more information, see “Key Assign Menu, Auto Func”...
  • Page 109 KP-3016/KP-3016A Series KP-3016/3016A Menu System 111 Key Assign Menu, Spcl List Spcl List assigns a key that talks and/or listens to a special list. The key is not available until members have been assigned to the special list in AZedit.
  • Page 110 112 KP-3016/3016A Menu System KP-3016/KP-3016A Series Key Assign Menu, Camera ISO Camera ISO assigns an ISO (isolate) assignment type to the key. By default, all ISOs are restricted. You must select the appropriate scroll enable check box in AZedit, to see ISOs.
  • Page 111 KP-3016/KP-3016A Series KP-3016/3016A Menu System 113 Key Assign Menu, Auto Func Auto Func assigns an auto function to the key. Available options for this menu are: Auto Follow for listen keys only. Listens to what is assigned on the Talk key.
  • Page 112: Menu System, Key Options Menu

    114 KP-3016/3016A Menu System KP-3016/KP-3016A Series Menu System, Key Options Menu The Key Options Menu is used to configure many of the keypanel operation options, such as auto dial functions, chime keys and duration, exclusive keys, key group assignments, solo key configuration, latching options, button lock, and tally operation.
  • Page 113 KP-3016/KP-3016A Series KP-3016/3016A Menu System 115 Key Options Menu, Clear The Clear menu option is used to clear any key options or clear UPG key programming that have been assigned to a specific key. To clear a key’s key options, do the following: Starting at the Key Options menu, select Clear.
  • Page 114 116 KP-3016/3016A Menu System KP-3016/KP-3016A Series Key Options Menu, Icons The Icons menu option is used to enable icon overlays for various key states. There are seven (7) key states that can be indicated using an icon. By default, icons are enabled, which means they are displayed.
  • Page 115 KP-3016/KP-3016A Series KP-3016/3016A Menu System 117 Key Options Menu, Key Groups Key Groups is used to create a key group. A key group allows the user to activate a group of keys by activating one (1) key (the master key). When the master key is activated, all keys in the group become active.
  • Page 116 118 KP-3016/3016A Menu System KP-3016/KP-3016A Series Key Options Menu, Lock (Button Lock) Lock is used to lock keypanel keys in the on or off position. Each key may be independently locked on or off. To lock a button on, do the following: Starting at the Key Options| menu, select Lock.
  • Page 117 NOTE: When KP-3016/3016A keypanels are connected to legacy intercoms (for example, intercoms that do not support Enhanced Tallies, the available options for this menu are relevant. When KP-3016/3016A keypanels are connected to intercoms that support Enhanced Tallies, the Enhanced Tallies view allows you to globally configure how the tally behaves.
  • Page 118: Menu System, Omneo Offers (Only Available For Kp-3016)

    120 KP-3016/3016A Menu System KP-3016/KP-3016A Series Menu System, OMNEO Offers (Only available for KP-3016) The OMNEO Offers menu item is used to configure the keypanel to communicate with the matrix via an OMNEO or AIO connection. From this menu, you can also configure the OMNEO channels to be used for AUX Inputs.
  • Page 119: Menu System, Save Config

    KP-3016/KP-3016A Series KP-3016/3016A Menu System 121 Menu System, Save Config The Save Config menu option is used to save custom settings made in the Audio Options, Key Options or Service menus. Once you have made modifications via these menus, run Save Cfg to store the custom settings in non-volatile memory. This ensures your custom settings are saved when the keypanel is powered down.
  • Page 120: Menu System, Service

    Menu System, Service The information available for key assign is as follows: Alphas Display Intercom Mode Key View Keypad LCD Backlight OMNEO Setup (only available for KP-3016) Page Change Reset Cfg RVON Setup Scrn Saver Set Address Snoop Tally Test Panel Service Menu, Alphas The Alphas menu is used to select the alpha size (length) and type to be displayed for key assignments.
  • Page 121 KP-3016/KP-3016A Series KP-3016/3016A Menu System 123 Service Menu, Display The Display menu is used to enable the menu context, display speaker volume and to switch the display to emulate a KP-32 keypanel. Display Volume The Display Volume feature is used to enable always-on display of the volume bar for Headset, Matrix, or Speaker, depending on what is selected from the encoder knobs.
  • Page 122 124 KP-3016/3016A Menu System KP-3016/KP-3016A Series Service Menu, Key View The Key View menu is used to configure the keypanel keys to show key crosspoint gains, show listen assignments, or show the matrix for each key assignment. NOTE: Show Lstn and Show Mtx are mutually exclusive options. Only one (1) of these options may be enabled at a time.
  • Page 123 KP-3016/KP-3016A Series KP-3016/3016A Menu System 125 Service Menu, Keypad The Keypad menu is used to configure the look and behavior of the keypad. Backlight The Backlight menu is used to select the color and brightness of the keypad backlight LEDs at various usage states and to configure the keypad mode.
  • Page 124 126 KP-3016/3016A Menu System KP-3016/KP-3016A Series To configure the Keypad Setup option, do the following: Starting at the Service| menu, select Backlight. Press the SEL button. Activation and Setup appear in the panel display. Using the AUX/MENU shaft encoder, select Setup.
  • Page 125 KP-3016/KP-3016A Series KP-3016/3016A Menu System 127 SEL Key The SEL Key menu allows the user to choose what function the SEL key performs when not in menu mode. This menu allows you to set up the SEL key functionality. Available selections for this field are:...
  • Page 126 128 KP-3016/3016A Menu System KP-3016/KP-3016A Series Service Menu, OMNEO Setup (KP-3016 Only) The OMNEO Setup menu option is used to configure the OMNEO device name, enable DHCP, address the OMNEO device for the keypanel and set up the static IP configuration, if DHCP is disabled.
  • Page 127 KP-3016/KP-3016A Series KP-3016/3016A Menu System 129 Verify DHCP is disabled. NOTE: When making changes to the OKP IP parameters, DHCP must be disable before changing the Domain name or IP Address. If DHCP is enabled, you can still view the IP Parameters, but you cannot make changes to them.
  • Page 128 130 KP-3016/3016A Menu System KP-3016/KP-3016A Series Using the AUX/MENU shaft encoder, select Netmask. Press the SEL button. The Netmask Address appears with the first octet blinking in the panel display. Using the AUX/MENU shaft encoder, enter the first octet number in the Netmask Address.
  • Page 129 KP-3016/KP-3016A Series KP-3016/3016A Menu System 131 Using the AUX/MENU shaft encoder, enter the last octet number in the DNS Address. Press the SEL button. The OMNEO Setup menu options appear in the panel display. Press CLR to exit menu mode.
  • Page 130 132 KP-3016/3016A Menu System KP-3016/KP-3016A Series Service Menu, Scrn Saver Scr Saver allows the user to configure the way the screen saver feature operates. Available selections for this menu are: Activate Allows the user to activate the screen saver immediately (used to test current display settings).
  • Page 131 Service Menu, Set Address Set Address is used to indicate the poll ID of the keypanel. See “KP-3016/3016A Addressing” on page 22 to determine if you need to set the keypanel address. The poll ID is the number (or address) at which an AIO card or intercom attempts to communicate with the keypanel.
  • Page 132 134 KP-3016/3016A Menu System KP-3016/KP-3016A Series Service Menu, Snoop Tally Snoop Tally, when enabled, indicates to keypanel users somebody is listening to them. For example, snoop tallies are displayed on keypanel 1, if there is another keypanel (2) which is listening to keypanel 1 via a point-to-point or a special list, but is not talking to keypanel 1.
  • Page 133 KP-3016/KP-3016A Series KP-3016/3016A Menu System 135 Service Menu, Test Panel Test Panel allows the user to check the operation of all keys and displays on the keypanel. Test Panel Key Descriptions TABLE 10. Display Action All alpha numeric displays show a % symbol when in Test Panel mode.
  • Page 134 136 KP-3016/3016A Menu System KP-3016/KP-3016A Series Technical Manual Bosch Security Systems, Inc. F.01U.315.927 Rev. 02...
  • Page 135: Centralized Auto-Dialing

    Cronus Firmware V1.5 or later • Zeus II Firmware V3.4.0 or later • Zeus III Firmware V1.0.0 or later • KP 32 CLD Firmware V1.3.0 or later • KP-3016/3016A Firmware V1.1.0 or later • Technical Manual Bosch Security Systems, Inc. F.01U.315.927 Rev. 02...
  • Page 136 138 Centralized Auto-Dialing KP-3016/3016A Series Centralized Auto Dial The Centralized Auto Dial can be used with TIF assignments. You can also configure locally stored auto dial numbers on the keypanel. To access the Auto Dials window, do the following: From the System menu in AZedit, select Auto Dial.
  • Page 137 KP-3016/3016A Series Centralized Auto-Dialing 139 Click Next to enter another number. The next blank Edit Auto Dials window appears. Click Done to close the Edit Auto Dial window. The Auto Dials window appears with the new number in the list.
  • Page 138: Receiving A Phone Call

    140 Centralized Auto-Dialing KP-3016/3016A Series To use centralized auto dial numbers, do the following: On the keypanel, press the TIF assignment key. Hang Up, Icom ADial, and Redial appear in the panel display. Using the AUX/MENU shaft encoder, scroll to Icom ADial.
  • Page 139: Keypanel Menu Quick Reference

    Compression Hdst Mic Compression Ratio: Panel Mic 3:1(default) Filters Bandpass Inputs (KP-3016 Only) OMNEO 1 - Only when KP-3016 is used and has an AIO connection. OMNEO 2 - KP-3016 only Frequencies 0 Hz (default) 15.6Hz Low Freq 31.5Hz 50Hz...
  • Page 140 22kHz (default) 16kHz 8KHz 4KHz Mode Disabled (default) Enabled Matrix Out OMNEO 1 - Only when KP-3016 is used and has an AIO connection. OMNEO 2 - KP-3016 only Frequencies Low Freq 0 Hz (default) 15.6Hz 31.5Hz 50Hz High Freq...
  • Page 141 KP-3016/KP-3016A Series Keypanel Menu Quick Reference 143 Gating Hdst Mic Matrix In OMNEO 1 - Only when KP-3016 is used and has an AIO connection. OMNEO 2 - KP-3016 only Panel Mic Threshold Disabled (default) -17dB – 18dB Metering Hdst Mic...
  • Page 142 Left Chan Disabled Right Chan Switched Inputs Matrix In Disabled Enabled (default) OMNEO 1 - Only when KP-3016 is used and has an AIO connection. Disabled Enabled (default) OMNEO 2 - KP-3016 only Disabled Enabled (default) Ganged Key Volumes Adjust...
  • Page 143 Toggle (default) Min Volume Headset Speaker Matrix In Min Volume: OMNEO 1 - Only when Mute (default) KP-3016 is used and has -48dB – 10dB an AIO connection OMNEO 2 - KP-3016 only Output Level Output 8dB (default) – 0dB...
  • Page 144: Display Menu

    146 Keypanel Menu Quick Reference KP-3016/KP-3016A Series Display Menu Assign Type Shows key’s assignment types Chans On Shows scroll list of current callers Chime Shows keys with Chime assigned Exclusive Shows which keys are Exclusive keys Key Groups Group 1 - shows which key is Master, and which keys are Group Slaves...
  • Page 145: Key Assign Menu

    KP-3016/KP-3016A Series Keypanel Menu Quick Reference 147 Key Assign Menu Matrix (only displays if there are remote matrices. Selecting Matrix displays a Listen list of remote intercoms.) Talk Lvl1 Pt-to-Pt Talk Lvl2 Party Line Talk+AF <Ports/Assignments> Tap Key Talk+AL Special List...
  • Page 146: Key Options Menu

    148 Keypanel Menu Quick Reference KP-3016/KP-3016A Series Key Options Menu Chime Chime <none> System #1 System #2 System #3 System #4 System #5 System #6 System #7 System #8 System #9 System #10 System #11 System #12 Duration One-shot (default)
  • Page 147 KP-3016/KP-3016A Series Keypanel Menu Quick Reference 149 Key Groups Group 1 Group 2 Master Tap Slave Key Group 3 Group 4 Latching Global Disabled Enabled (default) Per Key Tap Key Lock Tap Key Solo Tap Key Tallies Indefinite Disabled (default)
  • Page 148: Omneo Offers Menu (Kp-3016 Only)

    Disabled Enabled (default) Aux Input OMNEO 1 - Only when KP-3016 is used and has an AIO connection. <Port #> - shows currently selected connection offer, or <none> OMNEO 2 <Port #> - shows currently selected connection offer, or <none>...
  • Page 149: Service Menu

    KP-3016/KP-3016A Series Keypanel Menu Quick Reference 151 Service Menu Alphas 4 Chars (default) 6 Chars 8 Chars 8 Chars (Unicode) Display Menu Context Disabled Enabled (default) Show Volume Disabled (default) Enabled KP32 Emulation Disabled (default) Enabled Intercom Mode Alternate Standard (default)
  • Page 150 Both, Left, Right Brightness: 65% (default) 35% – 100% Both, Left, Right Brightness: 65% (default) 35% – 100% OMNEO Setup (KP-3016 Only) OEI-2 (if attached) Device Name <displays device name and allows editing> DHCP Disabled (default) Enabled IP Parameters IP Address <displays IP Address and allows editing>...
  • Page 151 KP-3016/KP-3016A Series Keypanel Menu Quick Reference 153 Display Dim Brightness: 25% (default) (0% – 100%) Mode Bitmap Bounce Scroll (default) Display Off Text (default) Bounce Scroll (default) Set Address Poll ID <1–8> Cancel Save and Restart Snoop Tally Chime: none (default), System #1, System #2, System #3, System #4...
  • Page 152 154 Keypanel Menu Quick Reference KP-3016/KP-3016A Series Bosch Security Systems, Inc. Technical Manual Rev. 02 F.01U.315.927...
  • Page 153: Unicode Support

    • AIO-16 v1.3.0 or later RP-1000 v2.0.0 • • Cronus v1.8.0 or later KP12/4U v1A.0.26 (Cyrillic character set only) • • Zeus III v1.3.0 KP-4016/5032 v1.0.2 • • KP-3016/3016A v1.1.0 • Technical Manual Bosch Security Systems, Inc. F.01U.315.927 Rev. 02...
  • Page 154 KP-3016/KP-3016A Series To configure the keypanel for Unicode operation, do the following: IMPORTANT: Before going further, save the setup file. This is needed to restore system configuration after enabling Unicode operation. On the keypanel, select Service|Alphas|8 Chars (Unicode)|Save and Restart.
  • Page 155 KP-3016/KP-3016A Series Click the Options tab. The Options page appears. Select the Enable Unicode Alphas check box. Click Apply. The Intercom Configuration window closes. From the Options menu, select Preferences. The Application Preferences window appears. Click the Alphas tab. The Alphas window appears.
  • Page 156 KP-3016/KP-3016A Series From the Preferred alpha size drop down menu, select 8-UNICODE characters. Click Apply. Click OK. The Application Preference window closes. To restore the system configuration, do the following: From the Online menu, select Send File. Navigate to the system configuration file (.adm) you want to restore.
  • Page 157: Power Supply Mounting

    Power Supply Mounting IMPORTANT: The KP-3016/3016A can only be mounted directly into a rack and cannot have the power supply mounted to the unit. However, the power supply can be mounted to the EKP-3016. For more information, see “Mounting the Power Supply to the EKP-3016” on page 163.
  • Page 158 KP-3016/KP-3016A Series Mounting Bracket – Vertical from a Crossbar FIGURE 24. Technical Manual Bosch Security Systems, Inc. F.01U.315.927 Rev. 02...
  • Page 159: Ekp-3016

    APPENDIX C EKP-3016 Introduction Connecting directly to the KP-3016/3016A color keypanel, the EKP-3016 (Expansion Panel) provides an additional 16 keys to your keypanel. Specifications LCD Display Active Area 120.10mm (wide) x 18.77mm (high) Dot Resolution 576 x 90 dots Color Resolution...
  • Page 160: Ekp-3016 Expansion Panel Reference View

    KP-3016/3016A Series EKP-3016 Expansion Panel Reference View EKP-3016 Expansion Panel Reference View - Front and Rear FIGURE 25. Expansion Keys AC/Power Power Supply Bracket Mounting Holes RJ-45 Expansion IN Power Supply Cable Tie Mounting Hole Expansion Panel Cabling Reference Expansion Panel Cabling FIGURE 26.
  • Page 161: Mounting The Power Supply To The Ekp-3016

    KP-3016/3016A Series Mounting the Power Supply to the EKP-3016 To mount the power supply mounting bracket to an EKP-3016, do the following: Align the power supply mounting bracket screw holes with the appropriate mounting holes on the rear panel of the EKP-3016 unit.
  • Page 162 KP-3016/3016A Series Carefully coil the power supply cord and insert it into the cord clip. Attach the AC power connector to the power outlet on the power supply. Plug the power cord into an electrical outlet. Technical Manual Bosch Security Systems, Inc.
