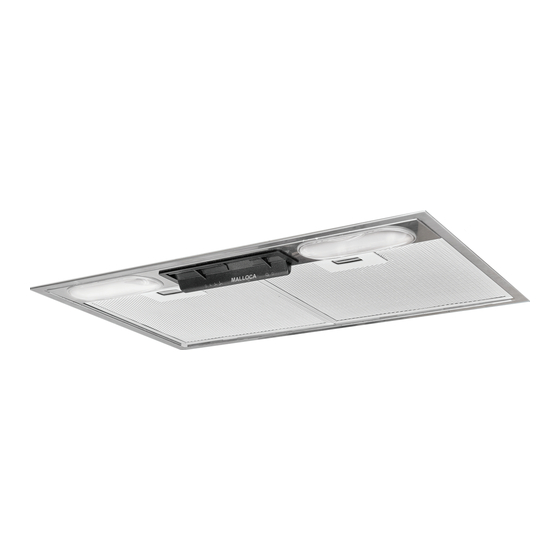

Table of contents Table of contents Technical Drawing.............. 4 WARNING AND SAFETY PRECAUTIONS......5 2.1 LETHAL RISK, DANGER OF POISONING....7 USAGE WITH AND WITHOUT CARBON FILTER.... 11 AF 100 Carbon Filter Replacement......... 12 CLEANING AND PREVENTIVE MAINTENANCE..... 13 5.1 ALUMINIUM FILTER CLEANING....... 14 5.2 Washing in Dishwasher..........
WARNING AND SAFETY PRECAUTIONS WARNING AND SAFETY PRECAUTIONS WARNING AND SAFETY PRECAU- This appliance can be used by children of 8 years and older, TIONS people with physical, sensory or mental capability deficiency or people with lack of experience or knowledge; as long as they are provided supervision or instructions for the safe use of the appliance and they comprehend the dangers.
Page 6
WARNING AND SAFETY PRECAUTIONS If your product's periodic cleaning is not made in a timely manner, it could pose risk of fire. De-energize the appliance before any maintenance operations. (Plug off the appliance or turn off the main switch.) When electric cooker hood and devices fed with energies other than electricity operate simultaneously, the negative pressure in the room must not exceed 4 Pa ( 4 X 10 bar ).
WARNING AND SAFETY PRECAUTIONS LETHAL RISK, DANGER OF POISONING 2.1 LETHAL RISK, DANGER OF POISONING DANGER! Warning - Choking Hazard The packaging materials are dangerous for chil- dren. Never allow children to play with packaging materials. DANGER! Warning - Death Hazard There are life-threatening danger and poisoning danger due to reabsorbed combustion gases.
Page 8
WARNING AND SAFETY PRECAUTIONS LETHAL RISK, DANGER OF POISONING WARNING! Fire danger! – The oil residue in the oil filter may catch fire.Clean the oil filter at least once every 3 months.Never operate the device without the oil filter. – The oil residue in the oil filter may catch fire.
Page 9
WARNING AND SAFETY PRECAUTIONS LETHAL RISK, DANGER OF POISONING DANGER! Danger of physical injury! – During the installation, there is a danger of physical injury due to the sharp edges. Use protective gloves throughout the installation process of the appliance. –...
Page 10
WARNING AND SAFETY PRECAUTIONS LETHAL RISK, DANGER OF POISONING NOTICE! If the feeder cable is damaged, it must be replaced by its manufacturer or its authorized technical service or any other personnel qualified at the same level, in order to avoid any dangerous situa- tion.
USAGE WITH AND WITHOUT CARBON FILTER USAGE WITH AND WITHOUT CARBON FILTER You can use this appliance in exhaust air mode and ventilated air mode. Exhaust air mode The absorbed air is cleaned by the grease filters, and is discharged through a piping system.Fig.
AF 100 Carbon Filter Replacement AF 100 Carbon Filter Replacement AF 100 CARBON FILTER 1-Place the carbon filter in its housing.Fig. 6 2-Rotating the carbon filter clockwise, ensure that it is com- pletely fit.Fig. 6 If carbon filter does not fit in completely, it might drop and damage your product.
CLEANING AND PREVENTIVE MAINTENANCE CLEANING AND PREVENTIVE MAINTENANCE CAUTION! Cleaning and user maintenance of the appliance shall not be performed by unattended children. The surface could be damaged due to aggressive and abrasive cleaning agents. Never use aggressive and abrasive cleaning agents.
CLEANING AND PREVENTIVE MAINTENANCE Hand Wash 5.1 ALUMINIUM FILTER CLEANING Aluminium Filter Tab Clean the aluminium oil filters periodically every 3 months. Press the aluminium filter tab (1) and pull the aluminium filter to the direction of the arrow (Fig. 7). As you remove the aluminium filter, hold it with your other hand to prevent it from dropping.
APPLIANCE POSITION APPLIANCE POSITION Min.65 cm Min.75 cm Fig. 8: MIN-MAX INSTALLATION DIMENSIONS After completing the installation of hood, the minimum distance must be 65 cm between the product and any electric cooker; and 75 cm between it and any gas ranges or cookers burning other fuels (Fig.
CLEANING AND PREVENTIVE MAINTENANCE Recommendations for Energy Saving CLEANING AND PREVENTIVE MAINTENANCE 7.1 Installation and Unpacking of the Appliance Check that your appliance is not deformed. Report the transport issues immediately to transport operator. Any faults encountered shall be reported to the dealer, too. Do not allow children to play the with packaging materials! 7.2 Recommendations for Energy Saving Replace the carbon filters on a regular basis.
CONTENT OF PACKAGE CONTENT OF PACKAGE Fig. 9: Current Content of Package 1- Product 2- Hanger Screws 3- Ø150/120 mm Flue Adapter (Optional) 4- User Manual 5- Assembly Pattern 16.10.2018 HOOD USER GUIDE ENGLISH...
ASSEMBLY OF PRODUCT ASSEMBLY OF PRODUCT Drilling the Hanger Holes For the 60 cm model; drill with Ø3 mm drill at locations speci- fied on the installation schematic with A, B, C and D on the surface where the product is to be installed. For the 90 cm model;...
USE OF PRODUCT How to use 5 Spd Dig Touch Control Product USE OF PRODUCT 11.1 3 Spd Digital Product Use Fig. 14: 3 Spd Dig Button Press this button to turn on the product. Product will also run on 1st speed level when this button is pressed.Fig. 14 Product will run on 2nd speed level when this button is pressed.Fig.
USE OF PRODUCT Slıder Rocker Product Use Dig display You can follow which speed the product is cur- rently working on this display.Fig. 15 Press this button to increase the motor speed.Fig. 15 When timer button is pressed, a 15-minute timer function will be activated;...
REPLACING THE LAMPS Plug Lamp Replacement REPLACING THE LAMPS 12.1 Lamp Replacement WARNING! Disconnect the electrical supply of the hood. Leave the lamps to cool down first because they could burn your hands when they are hot. It indicates the maximum power consumption of the lamp. A lamp with same power rating should be used when replacing the lamp.
Page 23
REPLACING THE LAMPS Plug Lamp Replacement Remove the aluminium cartridge filter. Remove the faulty bulb and replace with a new one with the same rating.Fig. 19 Fig. 19: Lamp Replacement 16.10.2018 HOOD USER GUIDE ENGLISH...
AUTHORIZED SERVICE AUTHORIZED SERVICE If Lighting is Not Functioning: Make sure that the plug is plugged in, and that the fuses are intact. Check the bulbs. Make sure you unplugged the device before performing this check. Tighten the bulbs if they are loose; you can replace the bulbs if they still don't work.
Page 25
AUTHORIZED SERVICE Fault description Cause Remedy It Does Not Discharge Air (in Check The Alumi- The aluminium cartridge filter should be washed flueless use) nium Filter. once a month under normal conditions. It Does Not Discharge Air (in Check The Carbon In products that work with carbon filters, carbon flueless use) Filter.
TECHNICAL TABLE TECHNICAL TABLE Supply Voltage 220 - 240 V 50Hz Insulation Class of Motor Insulation Class CLASS I This product complies with the 2014/30/EC (Regulation on Electro- magnetic Compliance) and 2014/35/EC (Regulation on Low Voltage Devices (LVD)) Directives. This device complies with the Directive on the Control of Waste Electrical and Electronic Equipment.
Page 27
