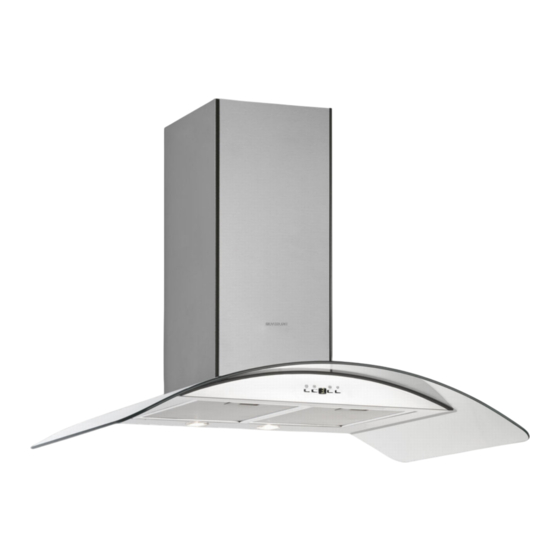

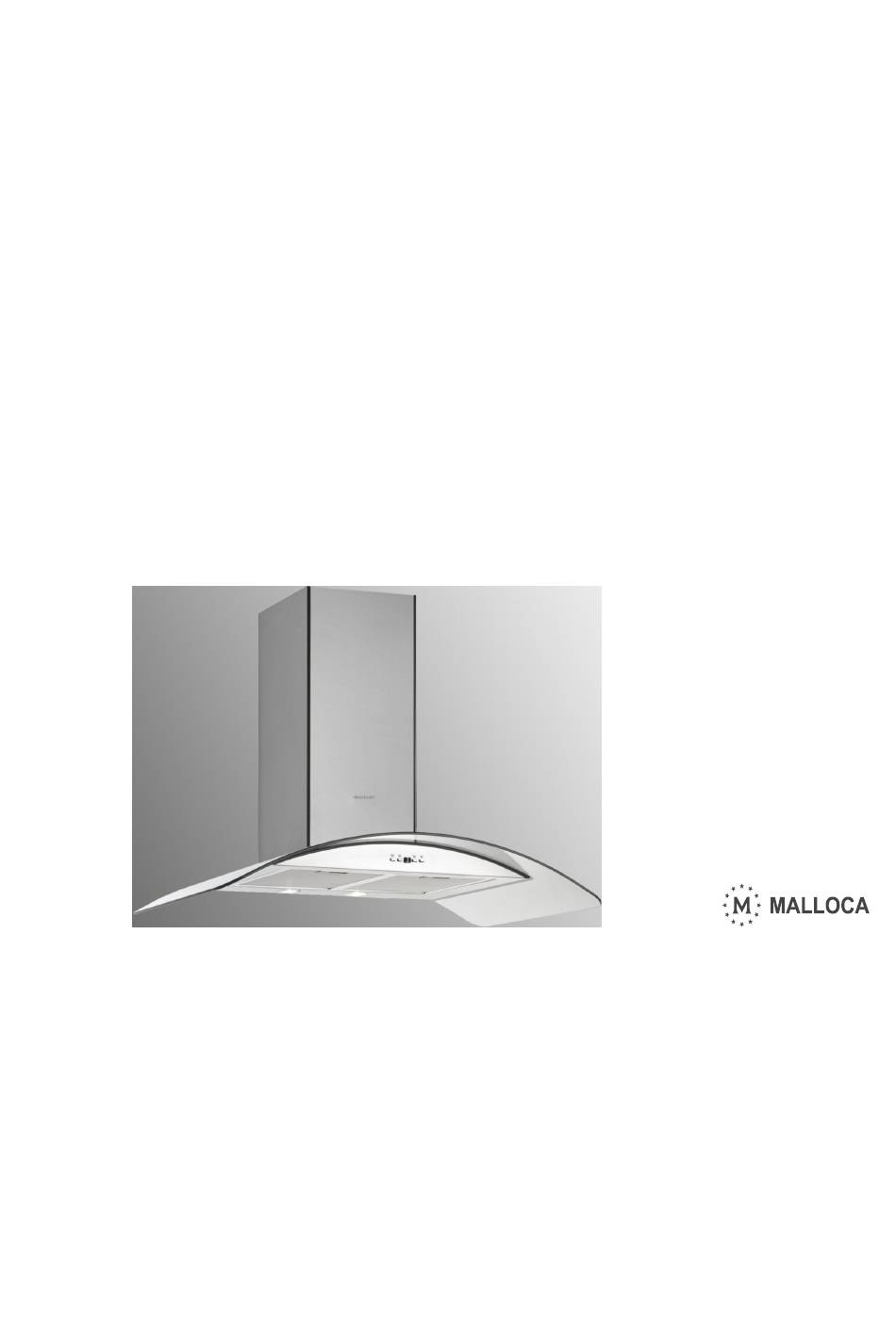

- Page 1 Assembly instructions USERS MANUAL CHIMNEY HOOD Gama K3155.7 Gama K3155.9 Read this manual prior to performing any task!
- Page 2 MALLOCA VIETNAM COMPANY LIMITED Showroom: 279 Nguyen Van Troi Street, Ward 10, Phu Nhuan Dist, HCM City Telephone: (84) 28 39975 893 / 94 Fax: (84) 28 38447 102 - (84) 28 38633 882 E-mail: info@malloca.com Customer Care: Hotline: 1800 12 12 E-mail: chamsockh@malloca.com...
-
Page 3: Table Of Contents
Table of contents Table of contents INPUT................... 4 Technical Drawing.............. 5 WARNING AND SAFETY PRECAUTIONS......7 3.1 LETHAL RISK, DANGER OF POISONING....9 USAGE WITH AND WITHOUT CARBON FILTER.... 13 CARBON FILTER REPLACEMENT........14 5.1 AF 100 Carbon Filter Replacement......14 CLEANING AND PREVENTIVE MAINTENANCE..... -
Page 4: Input
INPUT INPUT This guideline and the safety data includes all necessary informa- tion for a safe mounting as well as a safe use without defects. Please read all of this guideline and safety data before using the device. Keep the guideline in an appropriate place. If you pass the device onto others, make sure you also give this guideline and safety data. -
Page 5: Technical Drawing
Technical Drawing Technical Drawing Fig. 1 19.07.2018 USERS MANUAL CHIMNEY HOOD... - Page 6 Technical Drawing Fig. 2 USERS MANUAL CHIMNEY HOOD 19.07.2018...
-
Page 7: Warning And Safety Precautions
WARNING AND SAFETY PRECAUTIONS WARNING AND SAFETY PRECAUTIONS WARNING AND SAFETY PRECAU- This appliance can be used by children of 8 years and older, TIONS people with physical, sensory or mental capability deficiency or people with lack of experience or knowledge; as long as they are provided supervision or instructions for the safe use of the appliance and they comprehend the dangers. - Page 8 WARNING AND SAFETY PRECAUTIONS If your product's periodic cleaning is not made in a timely manner, it could pose risk of fire. De-energize the appliance before any maintenance operations. (Plug off the appliance or turn off the main switch.) When electric cooker hood and devices fed with energies other than electricity operate simultaneously, the negative pressure in the room must not exceed 4 Pa ( 4 X 10 bar ).
-
Page 9: Lethal Risk, Danger Of Poisoning
WARNING AND SAFETY PRECAUTIONS LETHAL RISK, DANGER OF POISONING 3.1 LETHAL RISK, DANGER OF POISONING DANGER! Warning - Choking Hazard The packaging materials are dangerous for chil- dren. Never allow children to play with packaging materials. DANGER! Warning - Death Hazard There are life-threatening danger and poisoning danger due to reabsorbed combustion gases. - Page 10 WARNING AND SAFETY PRECAUTIONS LETHAL RISK, DANGER OF POISONING WARNING! Fire danger! – The oil residue in the oil filter may catch fire.Clean the oil filter at least once every 3 months.Never operate the device without the oil filter. – The oil residue in the oil filter may catch fire.
- Page 11 WARNING AND SAFETY PRECAUTIONS LETHAL RISK, DANGER OF POISONING DANGER! Danger of physical injury! – During the installation, there is a danger of physical injury due to the sharp edges. Use protective gloves throughout the installation process of the appliance. –...
- Page 12 WARNING AND SAFETY PRECAUTIONS LETHAL RISK, DANGER OF POISONING NOTICE! If the feeder cable is damaged, it must be replaced by its manufacturer or its authorized technical service or any other personnel qualified at the same level, in order to avoid any dangerous situa- tion.
-
Page 13: Usage With And Without Carbon Filter
USAGE WITH AND WITHOUT CARBON FILTER USAGE WITH AND WITHOUT CARBON FILTER You can use this appliance in exhaust air mode and ventilated air mode. Exhaust air mode The absorbed air is cleaned by the grease filters, and is discharged through a piping system.Fig. -
Page 14: Carbon Filter Replacement
CARBON FILTER REPLACEMENT AF 100 Carbon Filter Replacement CARBON FILTER REPLACEMENT Under circumstances without a flue, an active carbon filter should be used to resend the inside air by re-filtering. An active carbon filter should be obtained from the service or your dealer. Discon- nect the device prior to replacing the carbon filter. -
Page 15: Cleaning And Preventive Maintenance
CLEANING AND PREVENTIVE MAINTENANCE CLEANING AND PREVENTIVE MAINTENANCE CAUTION! Cleaning and user maintenance of the appliance shall not be performed by unattended children. The surface could be damaged due to aggressive and abrasive cleaning agents. Never use aggressive and abrasive cleaning agents. -
Page 16: Aluminium Filter Cleaning
CLEANING AND PREVENTIVE MAINTENANCE Hand Wash 6.1 ALUMINIUM FILTER CLEANING Aluminium Filter Tab Clean the aluminium oil filters periodically every 3 months. Press the aluminium filter tab (1) and pull the aluminium filter to the direction of the arrow (Fig. 8). As you remove the aluminium filter, hold it with your other hand to prevent it from dropping. -
Page 17: Appliance Position
APPLIANCE POSITION Recommendations for Energy Saving APPLIANCE POSITION When hood is installed, the product must have at least 65 cm clearance with the electricity cookers and 75 cm with cookers oper- ating on gas or other fuels.Fig. 9 Fig. 9: LOCATION OF THE DEVICE 7.1 Installation and Unpacking of the Appliance Check that your appliance is not deformed. -
Page 18: Content Of Package
CONTENT OF PACKAGE CONTENT OF PACKAGE Fig. 10: CONTENT OF PACKAGE Product Product Hanging Plate Inner Flue 10- Ø6mm Plastic Dowel Outer Flue 11- Ø 10 mm Plastic wall plug Ø150/120mm Plastic Flue Adapter (Option) 12- 5.5x60 Wall Mount Screw Ø150 Plastic Flue Adapter (Option) 13- M5x35 Product Mount Screw Inner Flue Connection Plate... -
Page 19: Overview Of Hood
OVERVIEW OF hood OVERVIEW OF hood 1- Internal Flue 2- External Flue 3- Glass 4- Cooker Lighting 5- Control Panel 6- Filter Fig. 11: OVERVIEW OF THE HOOD 19.07.2018 USERS MANUAL CHIMNEY HOOD... -
Page 20: Assembly Of Product
ASSEMBLY OF PRODUCT Installation Diagram and Components ASSEMBLY OF PRODUCT 10.1 Installation Diagram and Components Fig. 12 Inner Flue 2x 3.9x22 Screw Outer Flue Flue Connection Plate Product Hanging Plate Fixing Screw 2x Ø6mm Plastic Dowel Product Hanging Plate 3x 5.5 x 60 Wall Mount Screw Glass 10- 3x Ø... -
Page 21: Air Exit Installation
ASSEMBLY OF PRODUCT AIR EXIT INSTALLATION Hang the hood from its hanging plates on the wall at points (A, B). If the hood is not parallel, position its shape to parallel by tightening or loosening M5x35 screw (3). Tighten A + B fixing screws on the wall, and completely secure the product at point C. -
Page 22: Assembly Of Sheet Metal Flues
ASSEMBLY OF PRODUCT ASSEMBLY OF SHEET METAL FLUES 10.3 ASSEMBLY OF SHEET METAL FLUES 1- Inner Flue 2- Flue Connection Plate Fixing Screws 3- Flue Connection Plate The outer and inner sheet metal flues are assembled one within the other (Fig. 14). The cooker hood is set in the midst, and then the flue con- necting plate (3) is directly affixed to the wall, under the cover or points E and F are marked after performing a measurement... -
Page 23: Use Of Product
USE OF PRODUCT 3 Spd Touch Product Usage USE OF PRODUCT 11.1 3 Spd Touch Product Usage Fig. 15: Touch Button When this button is pressed, product will operate at speed level 1. When this button is pressed, product will operate at speed level 2. -
Page 24: Replacing The Lamps
REPLACING THE LAMPS Halogen Lamp Replacement REPLACING THE LAMPS 12.1 Halogen Lamp Replacement WARNING! Disconnect the electrical supply of the hood. Leave the lamps to cool down first because they could burn your hands when they are hot. It indicates the maximum power consumption of the lamp. A lamp with same power rating should be used when replacing the lamp. -
Page 25: Authorized Service
AUTHORIZED SERVICE AUTHORIZED SERVICE If Lighting is Not Functioning: Make sure that the plug is plugged in, and that the fuses are intact. Check the bulbs. Make sure you unplugged the device before performing this check. Tighten the bulbs if they are loose; you can replace the bulbs if they still don't work. - Page 26 AUTHORIZED SERVICE Fault description Cause Remedy It Does Not Discharge Air (in Check The Alumi- The aluminium cartridge filter should be washed flueless use) nium Filter. once a month under normal conditions. It Does Not Discharge Air (in Check The Carbon In products that work with carbon filters, carbon flueless use) Filter.
-
Page 27: Technical Table
TECHNICAL TABLE TECHNICAL TABLE Supply Voltage 220 - 240 V 50Hz Insulation Class of Motor Insulation Class CLASS I This product complies with the 2014/30/EC (Regulation on Electro- magnetic Compliance) and 2014/35/EC (Regulation on Low Voltage Devices (LVD)) Directives. This device complies with the Directive on the Control of Waste Electrical and Electronic Equipment.
