COOKER HOOD
INSTRUCTION MANUAL
MODEL: MC 9082 ISLAND

Advertisement

loading
Need help?

Need help?

Do you have a question about the MC 9082 ISLAND and is the answer not in the manual?

Questions and answers

Related Manuals for Malloca MC 9082 ISLAND

Summary of Contents for Malloca MC 9082 ISLAND

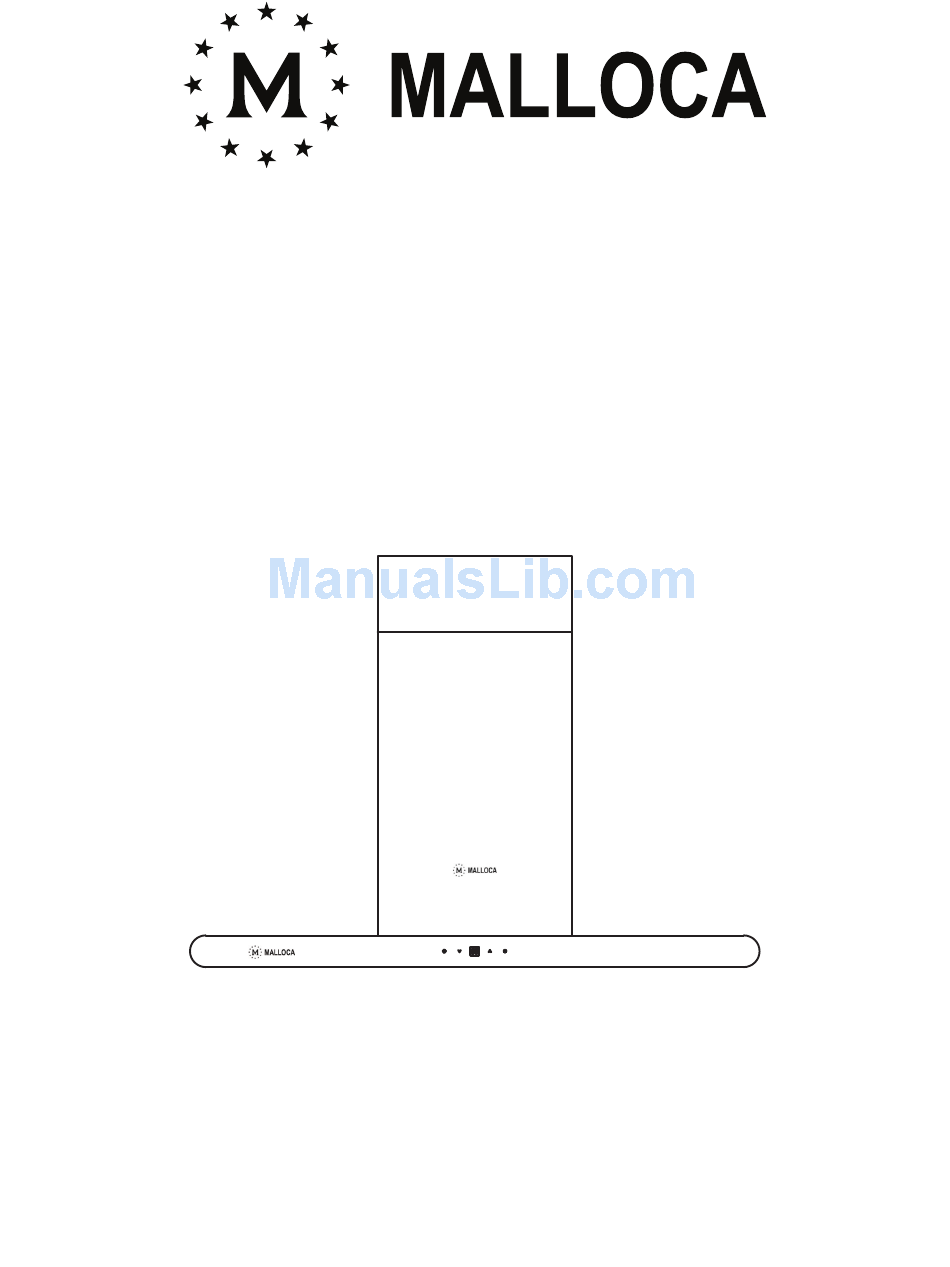

  • Page 1 COOKER HOOD INSTRUCTION MANUAL MODEL: MC 9082 ISLAND...
  • Page 2 Fi g. 1 Fi g. 2 Fi g. 3 Fi g. 4 Fi g. 5...
  • Page 3 Fig.6 Fig.7 Fig.8 Fig.9...
  • Page 4 Fi g. 10 Fi g. 11 Fi g. 12 Fi g. 13 Fi g. 14 Fi g. 15 Fi g. 16...

  • Page 5: Safety Precaution

    GENERAL Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed for use in the ducting version (air exhaust to the outside – Fig.1B), filtering version (air circulation on the inside – Fig.1A) SAFETY PRECAUTION 1.

  • Page 6: Installation Instructions

    2. WARNING ! In certain circumstances electrical appliances may be a danger hazard. A) Do not check the status of the filters while the cooker hood is operating B) Do not touch bulbs or adjacent areas, during or straight after prolonged use of the lighting installation.
  • Page 7 • Electric Connection The appliance has been manufactured as a class I, therefore earth cable is necessary. The connection to the mains is carried out as follows: IEC227 L=live Brown N=neutral Blue E=earth Green/Yellow If not provided, connect a plug for the electrical load indicated on the description label.
  • Page 8 the lower part. - Please attention that the arrow is positioned on the same side as the appliance controls. Make 4, Ø8 holes in the ceiling and drive in 3 screws without completely tightening them(Fig2). Pay attention not to insert the screw into the hole marked with an X on the hole template (the screws and expansion plugs must be suitable for the type of wall).

  • Page 9: Use And Maintenance

    - If the cooker hood is supplied with a lower chimney piece that must be fixed to the hood body with screws, remove the anti-grease filters from the hood by acting on the relevant handles (Fig.12). Then screw the lower chimney piece pipe to the inside of the hood, using screws P(Fig.13).
  • Page 10 every four months. The saturation of the active carbon filter depends on the frequency of use of the appliance, by the type of cooking and the regularity of cleaning the antigrease filters. (Fig.14) To remove the charcoal filters place on hand on one filter at a time and turn it toward the front part. The charcoal filter can now be removed.

  • Page 11: Troubleshooting

    Troubleshooting Problem Possible reason Solution Hood doesn’t work No electric supply Check the plug is connected Check the main switch is turned on Poor airflow Aluminum grease Clean the filters and replace when filters clogged Charcoal filters Replace the charcoal filters clogged Motor running but no Butterfly valve jammed Contact technician...
