MODELS
CORE
WW PRO
RGBW PRO
WARNING – To reduce the risk of FIRE OR INJURY TO PERSON:
• Turn off/unplug the fixture and allow to cool before handling; making any adjustments or repairs or replacing the
integrated light module.
• Integrated light module gets HOT quickly. Only touch the switch/plug when turning on.
• Do not touch the lens, guard, or enclosure when hot.
• Keep integrated light module away from materials that could ignite/ combust/ burn.
• Do not touch the integrated light module chip at any time. Use a soft cloth. The oils from skin could damage LED.
● Install in accordance with all local codes and ordinances.
●
A fixture shall not use tungsten halogen lamps unless the luminaire is marked for such lamps.
TRANSFORMER
●
Install in accordance with all local codes and ordinances.
●
Only use a UL1838 transformer for safety reasons and to ensure full lifespan of the fixture.
●
Ensure that the transformer is plugged in to a GFCI protected circuit.
FIXTURE
(DO NOT EXCEED 15 VOLTS INPUT)
•
Install in accordance with all local codes and ordinances.
•
This fixture functions best when the incoming voltage is between 10–15 volts. Voltages outside of this range
could damage the fixture, shorten the life, and cause unsatisfactory performance. The use of improper voltage
•
voids the product warranty.
Lumien Lighting | Website:

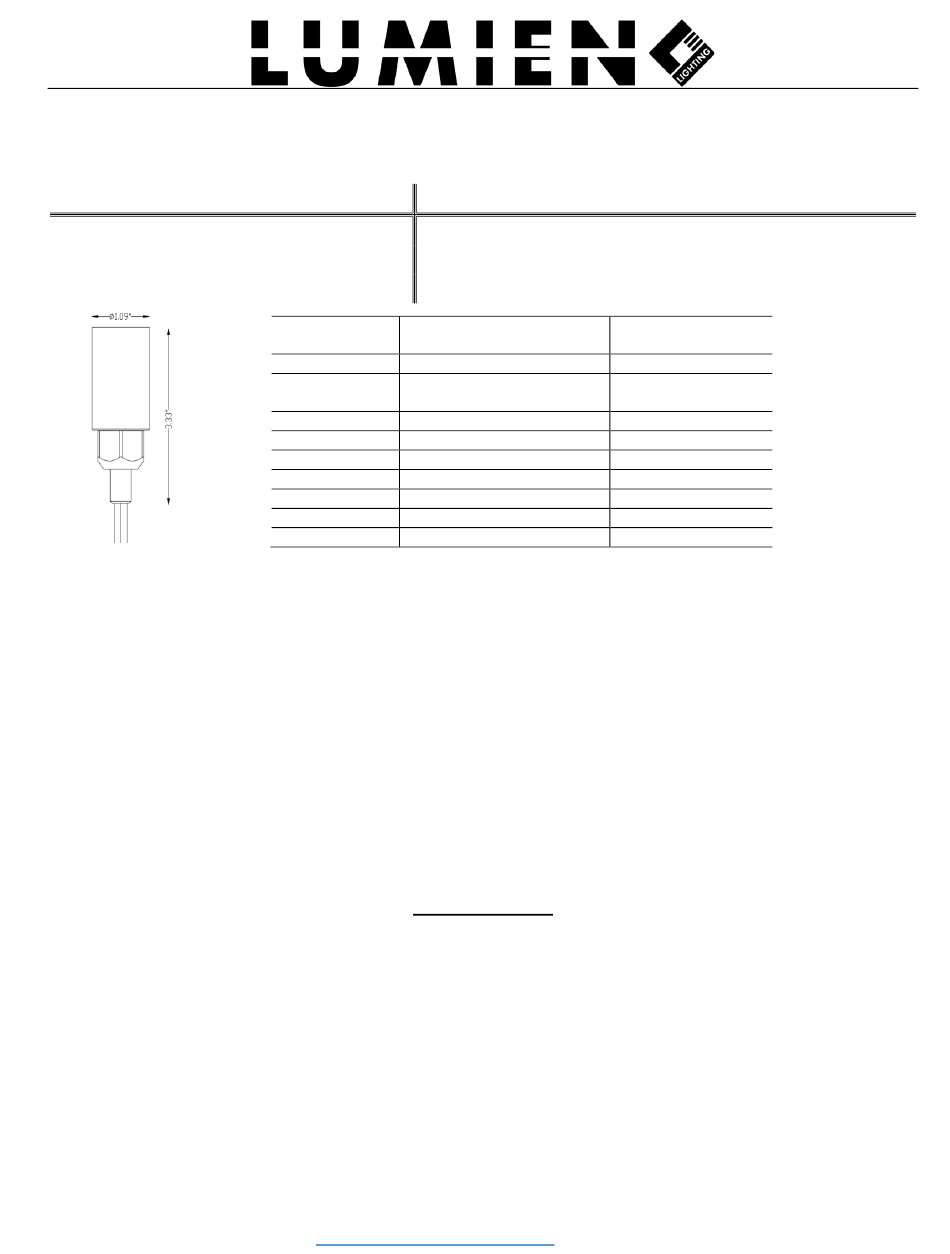

INSTRUCTION MANUAL
(MODULAR LED)
Wattage
CORE: 1.5W / 2.5W
Voltage Range
10-15V
Lumen Output
1.5W: 125 Lumens
2.5W: 205 Lumens
Color Temp
2700K/3000K
CRI
80+
Lifespan
50,000 Hrs.
Finishes
Antique
Housing Material
Brass
Wet Rated?
IP68
Light Source
Integrated LED
WARNING – Risk of Electric Shock:
IMPORTANT
www.lumienlighting.com
N4B1
N7B1
N8B1
PRO WW: 2.5W
PRO RGBW: 2.5W
10-15V
PRO WW: 200 Lumens
PRO RGBW: 87 Lumens
WW/RGBW
80+
50,000 Hrs.
Antique
Brass
IP68
Integrated LED
| E-mail: orders@lumienlighting.com
Advertisement
Table of Contents
Related Manuals for LUMIEN N4B1
Summary of Contents for LUMIEN N4B1
- Page 1 This fixture functions best when the incoming voltage is between 10–15 volts. Voltages outside of this range could damage the fixture, shorten the life, and cause unsatisfactory performance. The use of improper voltage • voids the product warranty. Lumien Lighting | Website: www.lumienlighting.com | E-mail: orders@lumienlighting.com...
-
Page 2: Low Voltage Cable
Pull the wire out of the PVC pipe (I) and connect the fixture to the main line with waterproof wire nuts (not included). • Insert the fixture (H), into the PVC Pipe. • For PRO modules, follow the instruction on our LumienPRO’s remote control. Lumien Lighting | Website: www.lumienlighting.com | E-mail: orders@lumienlighting.com... -
Page 3: Hanging Installation
Hanging Installation A1- Lock Nut A2- Ring Mount B - Female Connector C- O-Ring D- LED Module E- O-Ring F- Glass Shroud G- Assembled Fixture H-Stainless Steel Wire I- Waterproof Wire Nuts Lumien Lighting | Website: www.lumienlighting.com | E-mail: orders@lumienlighting.com... - Page 4 A1- Lock Nut A2- Quick Connect Spike B- Female Connector C- O-Ring D- LED Module E- O-Ring F- 360° Glass Bollard G – Assembled 360° Glass Bollard Fixture H- Quick Connect Riser I- Waterproof Wire Nuts Lumien Lighting | Website: www.lumienlighting.com...
- Page 5 • If the assembled fixture needs to be heightened, you can choose different lengths of quick-connect extension rods (J). • For PRO modules, follow the instruction on our LumienPRO’s remote control. Lumien Lighting | Website: www.lumienlighting.com | E-mail: orders@lumienlighting.com...
-
Page 6: Limited Warranty
The manufacturer specifically disclaims any liability and shall not be liable for any consequential or incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product. Lumien Lighting | Website: www.lumienlighting.com | E-mail: orders@lumienlighting.com...
