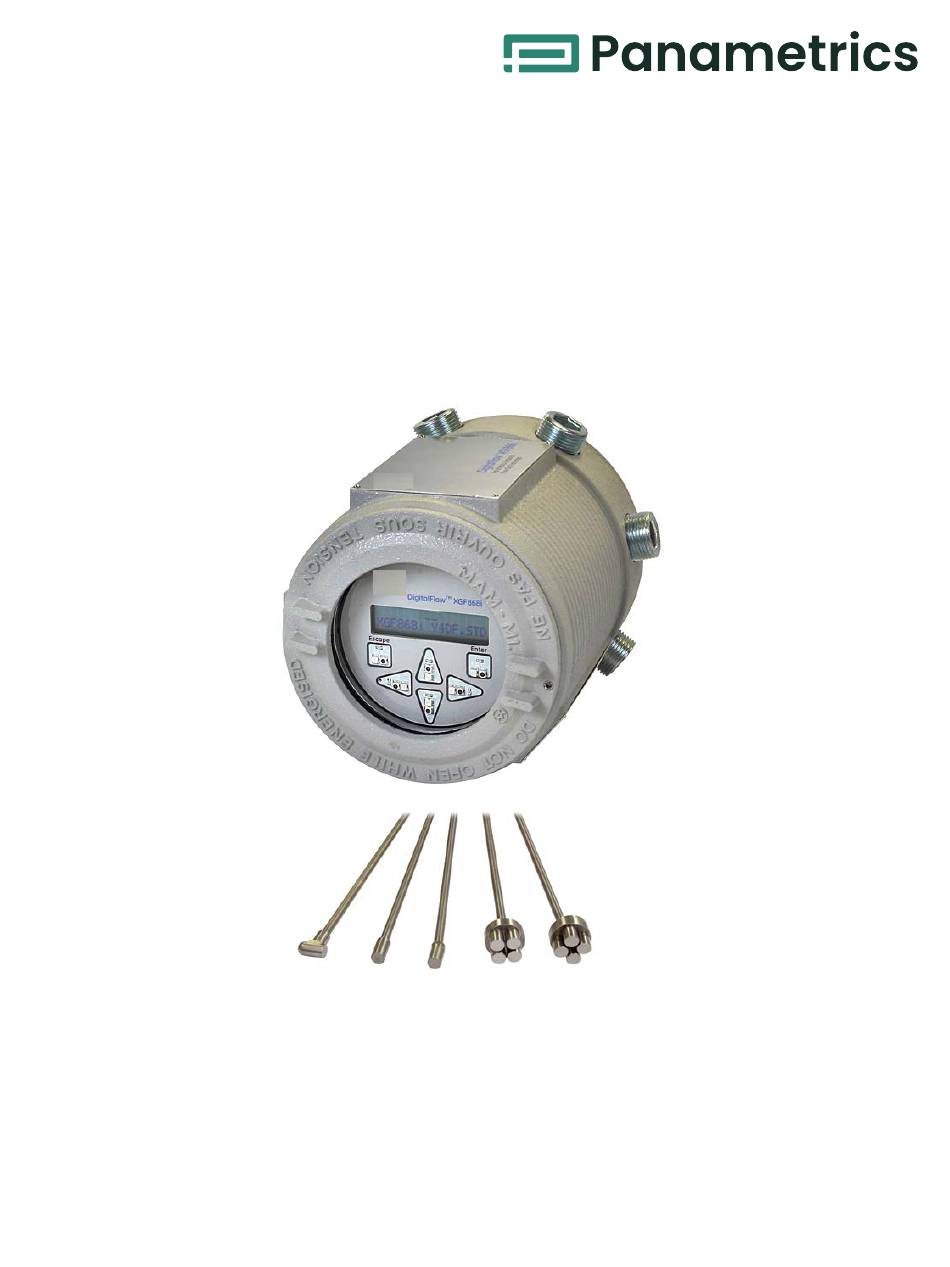

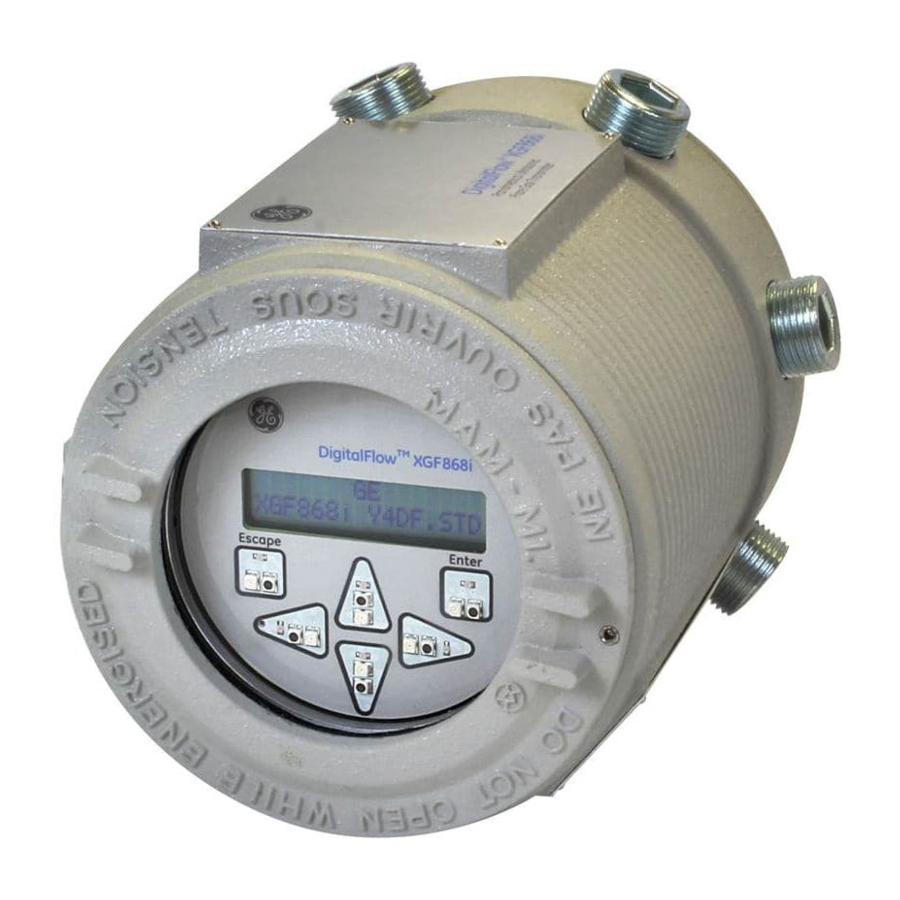

- Page 1 DigitalFlow™ XGF868i Panametrics Flare Gas Flow Transmitter Service Manual 910-198 SC panametrics.com June 2022...
- Page 3 DigitalFlow™ XGF868i Panametrics Flare Gas Flow Transmitter Service Manual 910-198 SC June 2022 panametrics.com Copyright 2022 Baker Hughes company. This material contains one or more registered trademarks of Baker Hughes Company and its subsidiaries in one or more countries. All third-party product and company names are trademarks of their respective...
- Page 4 [no content intended for this page]...
- Page 5 Preface Information Paragraphs Note: These paragraphs provide information that provides a deeper understanding of the situation, but is not essential to the proper completion of the instructions. IMPORTANT: These paragraphs provide information emphasizing instructions which are essential to proper setup of the equipment.
- Page 6 Preface WARNING! Make sure that power to the auxiliary equipment is turned OFF and locked out before you perform maintenance procedures on the equipment. Qualification of Personnel Make sure that all personnel have manufacturer-approved training applicable to the auxiliary equipment. Personal Safety Equipment Make sure that operators and maintenance personnel have all safety equipment applicable to the auxiliary equipment.
-
Page 7: Table Of Contents
Contents Chapter 1. Calibration Introduction ..................... .1 Accessing the Calibration Menu . - Page 8 Contents Testing the XGF868i Software and Hardware ..............45 B.5.1 Uploading the Signal Array Data .
-
Page 9: Chapter 1. Calibration
Chapter 1. Calibration Chapter 1. Calibration Introduction Calibrating the XGF868i analog outputs and inputs is explained in this chapter. In addition, testing the optional totalizer, frequency and alarm relay outputs is discussed. The chapter includes the following specific topics: • Calibrating the Slot 0 and Slot 1 analog outputs - page 2. •... -
Page 10: Calibrating And Testing The Analog Outputs
Chapter 1. Calibration Calibrating and Testing the Analog Outputs Every XGF868i flowmeter includes two built-in analog outputs (A and B) at terminal block J1, which is designated as Slot 0. Additional analog outputs may be added to the Model XGF868i by installing an appropriate option card in Slot 1. -
Page 11: Calibrating The Low End Of The Output Range
Chapter 1. Calibration 1.3.2 Calibrating the Low End of the Output Range From the Keypad Program, press the right arrow key to scroll to the CALIB menu. Press [Enter]. In the Cal menu, scroll to the Slot 0 or Slot 1 option, and press [Enter]. Note: The Slot 1 option only appears in the menu if an option card has been installed in this slot. -
Page 12: Calibrating The Analog Inputs
Chapter 1. Calibration Table 1 below lists the expected ammeter readings at various % Full Scale settings, for both 4-20 mA and 0-20 mA scales. Refer to this table to verify the accuracy of the ammeter readings taken above. Table 1: Expected Ammeter Readings % Full Scale 4-20 mA Scale* 0-20 mA Scale*... -
Page 13: Preparing For Calibration
Chapter 1. Calibration 1.4.1 Preparing for Calibration Prepare for the calibration procedure by connecting a Slot 0 analog output (or an independent calibrated current source) to the desired input on the option card. See Figure 4 on page 10 to identify the IN(+) and RTN(-) pins for the desired input on terminal block J2. -
Page 14: Calibrating The Rtd Inputs
Chapter 1. Calibration Calibrating the RTD Inputs RTD analog inputs may be added to the XGF868i by installing an appropriate option card in Slot 1. The option card contains two or four RTD inputs that are designated as A, B, C and D. Both the set point and slope point values for each input must be specified prior to use. - Page 15 Chapter 1. Calibration Totalizer Output Transmitter Pulse Counter Volts + (Int. Pwr. Sup.) Load Volts - (Common) Frequency Output Transmitter Frequency Counter Ω Common Figure 2: Totalizer & Frequency Output Wiring DigitalFlow™ XGF868i Service Manual...
-
Page 16: Testing The Output
Chapter 1. Calibration 1.6.2 Testing the Output From the Keypad Program, press the right arrow key to scroll to the CALIB menu. Press [Enter]. In the Cal window, scroll to Slot 1. Press [Enter]. Note: The Slot 1 option only appears at the above prompt if an option card is installed in this slot. Scroll to the desired Output. - Page 17 Chapter 1: Calibration [Esc] [Enter] [Esc] Keypad Pgm. PROG RESET CALIB CNTRS See Programming Manual Reset Totals DARKN LITEN STORE ABORT SLOT0 SLOT1 Slot 1 Option Card Slot 0 Analog Outputs Slot 1 Analog Inputs Slot 1 Alarm Relays ANALOG OUTPUT press [EXIT] key ALARMS 4 mA...
- Page 18 Chapter 1: Calibration OUT - A ALARM A - NO ALARM A - NO OUT - A OUT - A OUT - A OUT - A OUT - A ALARM A - COM RTN - A RTN - A RTN - A RTN - A RTN - A RTN - A...
-
Page 19: Chapter 2. Error Codes
Chapter 2. Error Codes Chapter 2. Error Codes Introduction The XGF868i ultrasonic flow transmitter is a reliable, easy to maintain instrument. When properly installed and operated, as described in the Startup Guide, the meter provides accurate flow rate measurements with minimal user intervention. - Page 20 Chapter 2. Error Codes E0: No Error Problem: No error condition currently exists. Cause: This message appears briefly to confirm that the response to another error message has corrected the problem. Action: No action is required. E1: Low Signal Problem: Poor ultrasonic signal strength or the signal exceeds the limits entered via the Keypad Program.
- Page 21 Chapter 2. Error Codes E4: Signal Quality Problem: The signal quality is outside the limits programmed in the Channelx-Set up-Signal submenu of the Keypad Program. Cause: The peak of the upstream or downstream correlation signals has fallen below the correlation peak limit, as set in the Channelx-Set up-Signal submenu.
- Page 22 Chapter 2. Error Codes E8: Temperature In Problem: This message indicates a temperature input error. Cause: The temperature exceeds the specified limits for the analog/RTD inputs option card or no input device is connected. Action: Check the temperature transmitter and the connecting cable. Refer to Chapter 1, Calibration, and recalibrate the analog/RTD inputs option card.
- Page 23 Chapter 2. Error Codes E13: Over Range Problem: This error code message indicates that the present measurement exceeds the range of the meter. Cause: A internal mathematical overflow has occurred in either the volumetric or mass flow calculations. Action: Select larger measurement units or a shorter time interval for the current measurement parameter. For example, choose KSCF/M instead of SCF/M in the Channelx-System menu.
- Page 24 Chapter 2. Error Codes [no content intended for this page] DigitalFlow™ XGF868i Service Manual...
-
Page 25: Chapter 3. Diagnostics
Chapter 3. Diagnostics Chapter 3. Diagnostics Introduction This chapter explains how to troubleshoot the XGF868i if problems arise with the electronics enclosure, the flowcell, or the transducers. Indications of a possible problem include: • Display of an error message on the LCD display screen •... - Page 26 Chapter 3. Diagnostics After leaving the Keypad Program, the XGF868i will reset itself and will begin to display the parameters specified in this section. If more than one parameter was set up, each of the parameters will be displayed in sequence, with a pause of several seconds between display changes.
-
Page 27: Flowcell Problems
The accuracy of the flow rate measurements is no better than the accuracy of the programmed pipe dimensions. For a flowcell supplied by Panametrics, the correct data will be included in the documentation. For other flowcells, measure the pipe wall thickness and diameter with the same accuracy desired in the flow rate readings. -
Page 28: Transducer Problems
If corrosion is suspected, remove the transducer from the flowcell and carefully inspect the electrical connector and the transducer face for roughness and/or pitting. Any transducer damaged in this manner must be replaced. Contact Panametrics for information on transducers in materials suitable for the application. -
Page 29: Chapter 4. Parts Replacement
Chapter 4. Parts Replacement Chapter 4. Parts Replacement Introduction The XGF868i has been designed to permit easy on-site upgrades and parts replacement. See Figure 6 on page 29 for details of the standard XGF868i electronics enclosure assembly. The instructions in this chapter, along with a few common tools, are all that is required to perform the following tasks: •... -
Page 30: Removing The Circuit Board Assembly
Chapter 4. Parts Replacement Removing the Circuit Board Assembly All parts replacement procedures for the XGF868i require the removal of the circuit board assembly from the electronics enclosure. Therefore, complete the instructions in this section before attempting any other service tasks. The XGF868i circuit board assembly consists of circular front and rear circuit boards with several rectangular circuit boards sandwiched between the circular end boards and oriented perpendicular to them. -
Page 31: Replacing The Lcd Display/Interconnect Board Subassembly
Chapter 4. Parts Replacement Replacing the LCD Display/Interconnect Board Subassembly The LCD display normally provides years of dependable service, but it is easily field-replaceable when necessary. To replace the LCD display, see Figure 7 on page 30 for the component locations, and complete the following steps: Complete the steps in “Removing the Circuit Board Assembly”... -
Page 32: Replacing The Fuse
IMPORTANT: This procedure applies only to the fuse on the DC power supply. The fuse on the AC power supply is not field-replaceable; please contact Panametrics for replacement. If the fuse in the XGF868i has been blown, complete the following steps to install a new fuse: Complete the steps in “Removing the Circuit Board Assembly”... -
Page 33: Replacing The User Program
Chapter 4. Parts Replacement Replacing the User Program The XGF868i’s User Program is stored on an erasable programmable read only memory (EPROM) chip. The EPROM, which is designated as component U6, is mounted in a socket on the front of the main circuit board. EPROM replacement may be required to replace a defective chip or to upgrade to a newer software version. -
Page 34: Installing An Option Card
Chapter 4. Parts Replacement Installing an Option Card The XGF868i flowmeter can accommodate up to two option cards. A communication card may be installed in Slot 2 and a variety of I/O option cards are available for installation in Slot 1. To install an option card, see Illustrations 9, 10 and 11 in Figure 8 on page 31 and complete the following steps: Complete the steps in “Removing the Circuit Board Assembly”... - Page 35 Chapter 4. Parts Replacement If necessary, replace the angle bracket on the main board, insert the screw (with flat washer and lock washer), and screw it into the standoff on the main board. See Illustration 11 in Figure 8 on page 31. IMPORTANT: The small angle bracket on the terminal board must be positioned on the outside of the main board with the previously removed nylon washer between them.
-
Page 36: Installing The Circuit Board Assembly
Appendix A, Service Record. To purchase the parts mentioned in this chapter or any items not specifically discussed, contact Panametrics for assistance. To make sure the proper components are obtained, be sure to include the serial number of your XGF868i when you place your parts order. - Page 37 Chapter 4: Parts Replacement Set Screw Set Screw Rear Cover (solid) Front Cover with Window Illustration 1 Electronics Assembly Enclosure Assembly Mounting Screw with Washer Assembly (4 places) Terminal Block on Slot 2 Option Card Ground Screw Label Plate with Ground Symbol Grounding Jumper Wire Illustration 2...
- Page 38 Chapter 4: Parts Replacement Mounting Screw and Fuse Cover DC Power Supply Board Washer Assembly (3 places) P9 Connector on Terminal Board LCD Display, connects to Keypad Board and J10 Connector on Main Board Interconnect Board J2 Connector Sub-Assembly P1 Connector Bracket Screw Green Grounding Jumper P4 Connector...
- Page 39 Chapter 4: Parts Replacement Screw with Washer Assembly and Mating Nut (not shown) I/O Heatsink Bridge (2 places) Gap Filler (white surface Power Supply Heatsink facing the Bridge) Screw, Lock Washer and Flat Washer (2 places) Screw with Washer Assembly (3 places) Gap Filler Power Supply Board (white surface...
- Page 40 Chapter 4: Parts Replacement DigitalFlow™ XGF868i Service Manual...
-
Page 41: Appendix A. Service Record
Appendix A. Service Record Appendix A. Service Record Introduction Whenever any service procedure is performed on the XGF868i flow transmitter, the details of the service should be recorded in this appendix. An accurate service history of the meter can prove very helpful in troubleshooting any future problems. - Page 42 Appendix A. Service Record Table 6: Data Entry Date Description of Service Performed By DigitalFlow™ XGF868i Service Manual...
-
Page 43: Diagnostic Parameters
Appendix A. Service Record Diagnostic Parameters After a successful initial installation of the XGF868i and whenever any system malfunction is noticed, the values for the diagnostic parameters should be entered in Table 7 below. Table 7: Diagnostic Parameters Parameter Initial Current Parameter Initial... - Page 44 Appendix A. Service Record [no content intended for this page] DigitalFlow™ XGF868i Service Manual...
-
Page 45: Appendix B. Calibration And Testing With Panaview
Appendix B. Calibration and Testing with PanaView Appendix B. Calibration and Testing with PanaView Introduction This appendix explains how to calibrate the XGF868i analog outputs and inputs using PanaView™ interface software. In addition, testing the optional totalizer, frequency and alarm relay outputs, and XGM868i hardware and software is discussed. -
Page 46: Accessing The Calibration/Test Menu
Appendix B. Calibration and Testing with PanaView Accessing the Calibration/Test Menu The Calibration/Test menu is accessed through the New Meter Browser menu of PanaView software. Use this menu to calibrate and test the Slot 0 analog outputs, as well as to calibrate and/or test any option cards that are installed in expansion Slot 1. -
Page 47: Calibrating Slot 0 Analog Outputs
Appendix B. Calibration and Testing with PanaView Calibrating Slot 0 Analog Outputs Every XGF868i flowmeter includes two built-in analog outputs (A and B) at terminal block J1, which is designated as Slot 0. Both the zero-point and full-scale values for each output must be calibrated. After calibrating the outputs, which have a resolution of 5.0 A (0.03% full scale), their linearity should be tested. - Page 48 Appendix B. Calibration and Testing with PanaView Double-click on % Test to test the linearity of the currently selected analog output. Check the ammeter reading at 50% output. Then, enter a different output (0-100%) and double-click on percent. Check the ammeter reading at this setting and click [Exit Page] when done. Table 8 on page 40 lists the expected ammeter readings at various % Full Scale settings, for both 4-20 mA and 0-20 mA scales.
-
Page 49: Calibrating Slot 1 Option Cards
Appendix B. Calibration and Testing with PanaView Calibrating Slot 1 Option Cards To calibrate any option card installed in Slot 1 of the XGF868i, enter the Calibration/Test menu as shown in Figure 10 on page 38. In the center pane, double-click on Slot 1. Note: The Slot 1 option only appears in the center pane if an option card has been installed in this slot. -
Page 50: Analog Outputs
Appendix B. Calibration and Testing with PanaView B.4.1 Analog Outputs Additional analog outputs may be added to the XGF868i by installing an appropriate option card in Slot 1. This option card contains two or four analog outputs, which are designated as A, B, C and D. Both the zero-point and full-scale values for each output must be calibrated. -
Page 51: Analog Inputs
Appendix B. Calibration and Testing with PanaView B.4.2 Analog Inputs Analog inputs may be added to the XGF868i by installing an appropriate option card in Slot 1. This option card contains two or four analog inputs, which are designated as A, B, C and D. Both the zero-point and full-scale values for each input must be calibrated. -
Page 52: Rtd Inputs
Appendix B. Calibration and Testing with PanaView B.4.3 RTD Inputs RTD inputs may be added to the XGF868i by installing an appropriate option card in Slot 1. This option card contains two or four RTD inputs, which are designated as A, B, C and D. Both the set and slope temperature values for each input must be calibrated. -
Page 53: Testing Frequency Outputs
Repeat steps 2 and 3 to test all of the available frequency outputs. If any of the frequency outputs fails the test, contact Panametrics for assistance. Click [Exit Page] to return to the Slot 1 window and calibrate additional inputs/outputs, or click [Exit Page] again to close the Calibration/Test menu. -
Page 54: Uploading The Signal Array Data
By uploading XGF868i signal array data for examination, a user can check if the transducer signal is the proper shape, and change setup parameters if necessary. IMPORTANT: Consult with Panametrics before using this data to change any parameters. In the Calibration/Test menu, double-click on the Signal Array Upload option. Double-click on the desired Channel. -
Page 55: Uploading The Xgf868I Memory
The Upload XGM Memory option is another diagnostic tool. IMPORTANT: Consult with Panametrics before using this data to change any parameters. In the Calibration/Test menu, double-click on the Upload XGM Memory option. The first prompt shows the Hex Start Address. Click [Next Item]. -
Page 56: Testing The Xgf868I Hardware
Test and set the contrast for the LCD • Set the number of channels (either 1 or 2) • Re-initialize the XGF868i to its default values IMPORTANT: Contact Panametrics if the XGF868i fails any of the tests in the following sections. DigitalFlow™ XGF868i Service Manual... - Page 57 Appendix B. Calibration and Testing with PanaView B.5.3.1 EPROM Test To test the EPROM from the Calibration/Test menu: From the left pane of the Calibration/Test window, double-click on Hardware Test. In the center pane, double-click on EPROM TEST. The right pane displays the EPROM Sum Value. Click [Next Item] or [Exit Page] to return to the Hardware Test option, and [Exit Page] again to return to the main Calibration/Test menu.
- Page 58 Appendix B. Calibration and Testing with PanaView B.5.3.3 RAM Test To check the RAM: Note: If you are in the Hardware Test option, skip to step 2. From the left pane of the Calibration/Test window, double-click on Hardware Test. In the center pane, double-click on RAM TEST. The right pane displays the RAM Value, along with an indication as to whether the RAM is functioning.
- Page 59 Appendix B. Calibration and Testing with PanaView B.5.3.6 LCD Contrast To change the LCD contrast: Note: If you are in the Hardware Test option, skip to step 2. From the left pane of the Calibration/Test window, double-click on Hardware Test. In the center pane, double-click on LCD CONTRAST.
- Page 60 Appendix B. Calibration and Testing with PanaView B.5.3.9 Calibration Values To display the calibration values: Note: If you are in the Hardware Test option, skip to step 2. From the left pane of the Calibration/Test window, double-click on Hardware Test. In the center pane, double-click on CALIBRATION VALUES.
- Page 61 Appendix B. Calibration and Testing with PanaView B.5.3.11 Reading an Optional Card EEPROM To read the data of the EEPROM for an optional card: From the left pane of the Calibration/Test window, double-click on Hardware Test. In the center pane, double-click on READ OPCARD EEPROM. Double-click on the Slot (1 or 2) that holds the optional card.
- Page 62 Appendix B. Calibration and Testing with PanaView Note: When you first initialize the XGF868i, the number of LCD parameters is set to OFF. You must program the LCD to display any measured parameters. In the Edit Functions menu, double-click on the Site Edit Menu. In the Site Edit Menu, double-click on the Global entry, and then on the Input/Output option.
- Page 63 Appendix B. Calibration and Testing with PanaView Table 10: Available Measurement Parameters Option Bar Description Good Displays the flow velocity N.A. N.A. VOLUM Displays the volumetric flow N.A. N.A. +TOTL Displays the forward totalized volume flow N.A. N.A. -TOTL Displays the reverse totalized volume flow N.A.
- Page 64 Appendix B. Calibration and Testing with PanaView [no content intended for this page] DigitalFlow™ XGF868i Service Manual...
-
Page 65: Appendix C. Factory Tests
Appendix C. Factory Tests Appendix C. Factory Tests Introduction For user security, the XGF868i offers two special functions in a separate menu: selection of one-channel or two-channel operation, and the factory-default reset. While the first function enables you to reset the channel configurations set during manufacturing, the reset function, by restoring the meter to its original state, allows you to purge potential errors in program memory. - Page 66 Appendix C. Factory Tests The previous two prompts repeat until all of the specified # of LCD Parameters have been set up. When all of the display parameters have been set up, the meter returns to the Global I/O window. To leave the Keypad Program, press the [Escape] key three times.
- Page 67 Index Symbols Display +MASS ..........18, 55 LCD .
- Page 68 Index LCD Contrast Service Record ......... . . 33 Changing with PanaView .
- Page 69 RETURN AUTHORIZATION NUMBER (RAN), and shipping instructions for the return of the instrument to a service center will be provided. If Panametrics Sensing instructs you to send your instrument to a service center, it must be shipped prepaid to the authorized repair station indicated in the shipping instructions.
- Page 70 Warranty [no content intended for this page] DigitalFlow™ XGF868i Service Manual...
- Page 72 Customer Support Centers U.S.A. The Boston Center 1100 Technology Park Drive Billerica, MA 01821 U.S.A. Tel: 800 833 9438 (toll-free) 978 437 1000 E-mail: mstechsupport@bakerhughes.com Ireland Sensing House Shannon Free Zone East Shannon, County Clare Ireland Tel: +353 (0)61 470200 E-mail: mstechsupport@bakerhughes.com Copyright 2022 Baker Hughes company.
