DewPro™ MMY31
Installation & Operation Manual
Panametrics.com
A40251548 Rev. B
April 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DewPro MMY31 and is the answer not in the manual?

Questions and answers

Summary of Contents for Panametrics DewPro MMY31

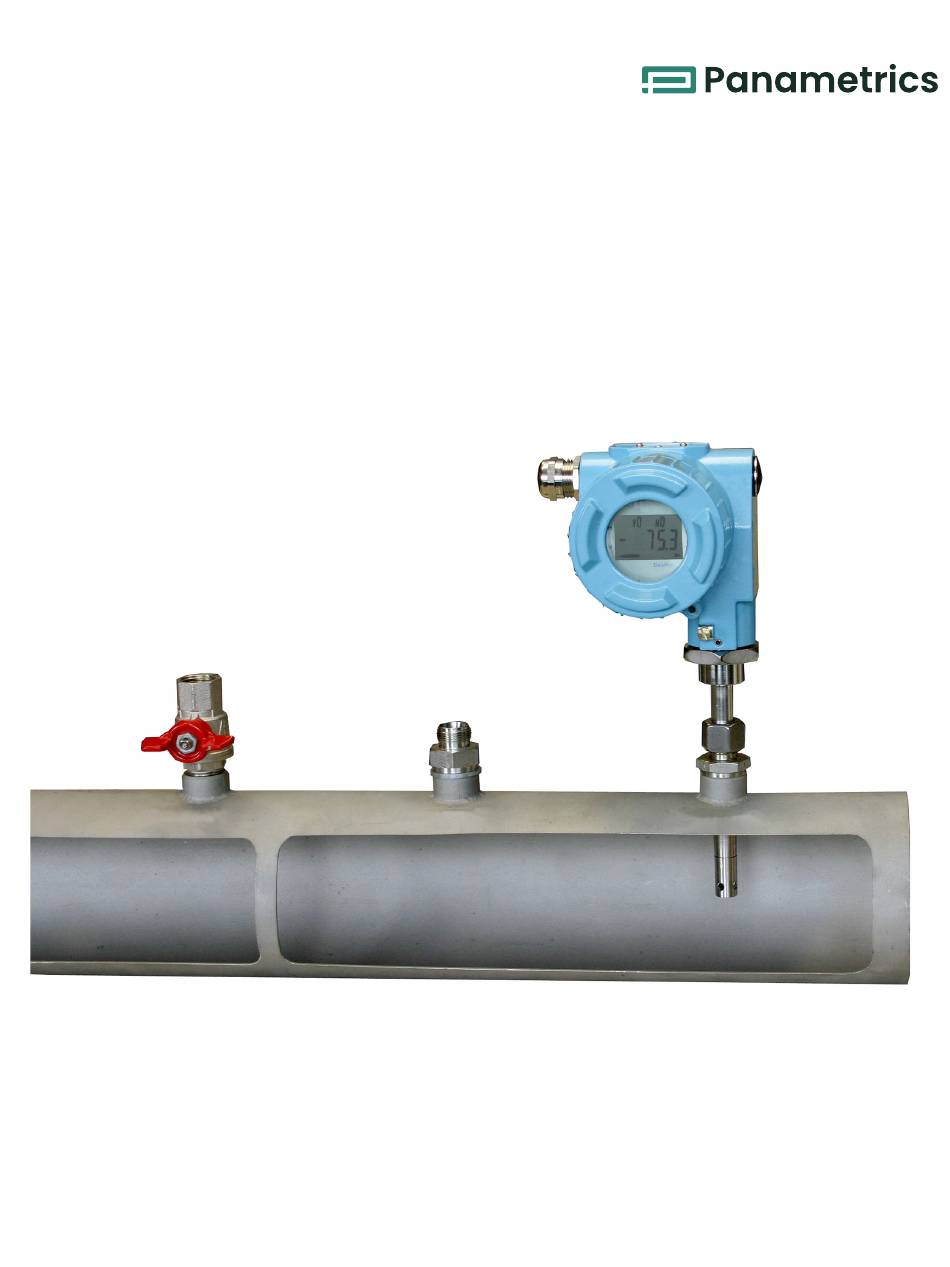

  • Page 1 DewPro™ MMY31 Installation & Operation Manual Panametrics.com A40251548 Rev. B April 2022...
  • Page 3 DewPro™ MMY31 Dew Point Transmitter Installation & Operation Manual A40251548. Rev. B April 2022 Panametrics.com A40251548 Rev. B...
  • Page 4 [no content intended for this page]...
  • Page 5: Table Of Contents

    Contents Chapter 1. General System Information Unpacking and Inspection..................1 Model Number Configuration.
  • Page 6 Contents [no content intended for this page] DewPro™ MMY31 Installation & Operation Manual...
  • Page 7: Chapter 1. General System Information

    Unpacking and Inspection Upon receipt of the DewPro MMY31, examine the shipping carton for broken or open packing, distortion, or any other evidence of mishandling. If inspection indicates damage to the unit or any of its components, notify the carrier (within 15 days of delivery) and request an inspection.
  • Page 8: Model Number Configuration

    Chapter 1. General System Information Model Number Configuration Table 1: Model Number Configuration Certification/Approvals: MMY31 Safe Area Config IS Config XP Config CI.I, Div.2 Config Zone 2 Config (self declared) Other Process Connection: ¾” NPT-M compression fitting ½” NPT-M compression fitting ¾”...
  • Page 9: Introduction

    4–20mA Loop The DewPro MMY31 Transmitter is powered by a voltage supply of 12 to 28 VDC. At the nominal 24 VDC supply, the maximum loop resistance is 600 ohms. The signal is represented by the 4–20 mA loop current and is directly proportional to the dewpoint temperature range in °C or °F.
  • Page 10 Chapter 1. General System Information [no content intended for this page] DewPro™ MMY31 Installation & Operation Manual...
  • Page 11: Chapter 2. Installation

    Figure 2 below shows the dimensions of the standard MMY31. 5.56 (141) 4.61 (117)* *without display 4.47 (114) 9.66 0.79 (20) (246) Dimensions are in inches (millimeters). 0.50 (12.7) Figure 2: DewPro MMY31 Outline and Compression Fitting DewPro™ MMY31 Installation & Operation Manual...
  • Page 12 Chapter 2. Installation Mount the MMY31 using a compression fitting connection. Be certain that the tip of the probe does not touch the inside wall of the pipe. IMPORTANT: Ensure that your probe has a stainless steel ferrule, which is required for use in pressurized systems. Adjust the ferrule for a probe insertion length of 1”...
  • Page 13: Wiring Configurations

    Note: If the DewPro is equipped with an optional display/user interface, please refer to Chapter 4. Figure 4 below illustrates various power supplies and displays for use with the DewPro MMY31. ’ 24 VDC (12...28 VDC) Figure 4: Various System Configurations 2.2.1...
  • Page 14: In A Normal Environment

    In Environments with Severe Electrical Noise The DewPro MMY31 meets the EMC requirements of IEC 61326 for equipment used in industrial locations. The MMY31 passed all tests to the standards IEC 61000-4- to the performance criterion A. Test details can be found in Chapter 5 Specifications.
  • Page 15: General Wiring Instructions

    Chapter 2. Installation 2.2.4 General Wiring Instructions To wire the DewPro MMY31: Unscrew the cap on the terminal side of the unit. Loosen the cable gland located on the side of the unit. Feed the cable through the conduit opening.
  • Page 16 Chapter 2. Installation [no content intended for this page] DewPro™ MMY31 Installation & Operation Manual...
  • Page 17: Chapter 3. Troubleshooting

    Chapter 3. Troubleshooting Chapter 3. Troubleshooting The Loop Current is Out of Range The loop current is outside the range of 4-20 mA, as shown on the display or the current meter. For an example of error current at 22mA, see below. SOLUTION: The process dewpoint is out of range.
  • Page 18 Chapter 3. Troubleshooting [no content intended for this page] DewPro™ MMY31 Installation & Operation Manual...
  • Page 19: Chapter 4. Optional Display/User Interface

    Chapter 4. Optional Display/User Interface Chapter 4. Optional Display/User Interface Installation If the DewPro MMY31 is equipped with an optional display/user interface, follow the procedure below to access the buttons. Figure 7: DewPro MMY31 with Display 4.1.1 Removing the Display Unscrew and remove the protective windowed lid from the DewPro (as shown in Figure 7 above), exposing the display module below.
  • Page 20: Programming Matrix

    Chapter 4. Optional Display/User Interface Programming Matrix In the DewPro MMY31 transmitter with display option, a matrix-style input is used for programming the unit of measure, measuring range, error status of output, and output adjustment. The following describes the features and usage of the various matrix locations as they apply to the MMY31.
  • Page 21 Chapter 4. Optional Display/User Interface Table 2: Matrix Options MMY31 Display Select Loop #1 Moisture Units at Fault Value 0 = °C 0 = –10% 1 = °F 1 = 110% 35 = 2 = Hold Point °C Point °C 20 mA 4 mA 20 mA...
  • Page 22: Push Buttons - Special Functions

    Chapter 4. Optional Display/User Interface Push Buttons - Special Functions 4.3.1 Reset to “Normal” Display Pressing the V and H buttons simultaneously returns the user to VH 00 (normal display). 4.3.2 Display Only Five (5) matrix locations are for display only and may not be changed by the user (see Table 2 on page 15). The “display only”...
  • Page 23: Matrix Functions

    Chapter 4. Optional Display/User Interface Matrix Functions This section describes the functions available to the user through the matrix, grouped by common function areas (refer to Table 2 on page 15). Each function is accessed by moving to its specified location within the matrix. 4.4.1 Display and Output Mode Table 3: Display and Output Mode Functions...
  • Page 24: Special Calibration

    Chapter 4. Optional Display/User Interface 4.4.2 Special Calibration Table 4: Special Calibration Functions Function Location Description Adjusting the VH 30 The process pressure constant is entered in bar (absolute), and is used to Pressure Constant calculate ppm . The moisture unit ppm is the ratio of water vapor pressure to the total process pressure and is, therefore, independent of the process pressure.
  • Page 25: Mode Of Operation

    Chapter 4. Optional Display/User Interface 4.4.3 Mode of Operation Table 5: Mode of Operation Functions Function Location Description Input Locking VH 89 Any number other than “50” will lock the instrument settings from inadvertent or unauthorized changes. (The instrument is unlocked only at “50.”) Displaying the Present VH 90...
  • Page 26 Chapter 4. Optional Display/User Interface [no content intended for this page] DewPro™ MMY31 Installation & Operation Manual...
  • Page 27: Chapter 5. Specifications

    Chapter 5. Specifications Chapter 5. Specifications Technical Specifications Sensing Element: Capacitive measurement, planar aluminium oxide sensor Measurement Range: –130° to +50°F (–90° to +10°C) dew point temperature. 0 to 10, 0 to 100, 0 to 1000 ppm (fully adjustable with integral display) Recommended Recalibration Cycle: 12 months, depending on the application Calibration Accuracy:...
  • Page 28: Optional Onboard Display With User Interface

    • MMY30-Fxxxx: Non-Sparking apparatus for ATEX Zone 2, II 3 G Ex nA IIC T4 (ATEX declaration by the manufacturer (Panametrics) Optional Onboard Display with User Interface The optional onboard display with user interface uses a matrix configurator for: •...
  • Page 29: Emc

    Chapter 5. Specifications Performance Criterion A: Conducted Emission Test as per CISPR 11 Class A, 2004 Radiated Emission Test as per CISPR 11 Class A, 2004 Radiated Susceptibility Test as per IEC 61000-4-3, 2002 Electrostatic Discharge Test as per IEC 61000-4-2, 2001 Electrical Fast Transient Test as per IEC 61000-4-4, 2004 High Energy Surge Immunity Test as per IEC 61000-4-5, 2001 Power Frequency Magnetic Field Test as per IEC 61000-4-8, 2001...
  • Page 30 Chapter 5. Specifications [no content intended for this page] DewPro™ MMY31 Installation & Operation Manual...
  • Page 31: Warranty

    • If Panametrics determines that the damage is not covered under the terms of the warranty, or if the warranty has expired, an estimate for the cost of the repairs at standard rates will be provided. Upon receipt of the owner’s approval to proceed, the instrument will be repaired and returned.
  • Page 32 Warranty [no content intended for this page] DewPro™ MMY31 Installation & Operation Manual...
  • Page 34 Contact Us! • Break/fix technical support issues for a prod- Global Technical Support Team uct you currently have Email: mstechsupport@bakerhughes.com Phone: 8000-833-9438, option 3. • RMA Repair Requests, Calibration Requests, International - Baker Hughes Customer care Document and Certificate requests for a mstechsupport@bakerhughes.com Email: product you currently have...
