Eco Convection Ovens | 4/5/7/10-Tray | Steam

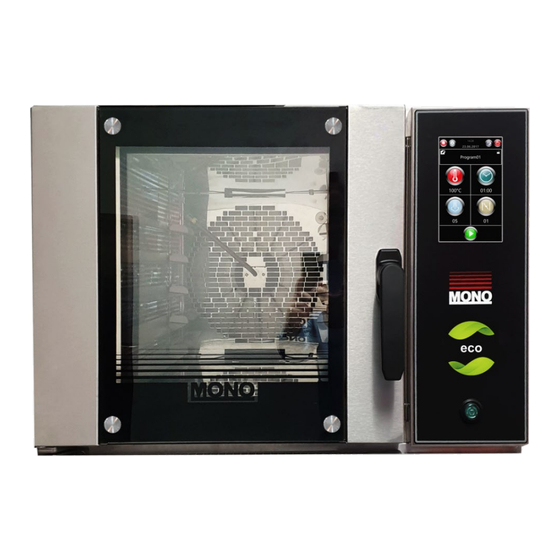

MONO Eco Convection Oven
Installation and Operation Manual
EN
Oven Serial Number _________________________________
Oven Code
Condenser Serial Number ____________________________ (if fitted)
In the event of an enquiry, please quote these serial numbers.
FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
138
149
150
Installation and Operation Manual
153
158
159
MonoEquip.com
170
173

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eco FG159 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mono Eco FG159

Summary of Contents for Mono Eco FG159

  • Page 1 Eco Convection Ovens | 4/5/7/10-Tray | Steam Installation and Operation Manual MonoEquip.com MONO Eco Convection Oven Installation and Operation Manual Oven Serial Number _________________________________ Oven Code Condenser Serial Number ____________________________ (if fitted) In the event of an enquiry, please quote these serial numbers.
  • Page 2 Eco Convection Ovens | 4/5/7/10-Tray | Steam Installation and Operation Manual MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 3 The reset-button hole can be at position 1 or 2 depending on the model B. Rear panel of 10-tray oven. The reset-button hole can be at position 1 or 2 depending on the model Reset-button hole on the rear panel of a 7-tray oven FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 4 Indicates a potential hazard with a medium risk that could result in death or serious physical injury if not avoided. CAUTION Indicates a hazardous situation that could result in minor or moderate injury if not avoided MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 5 The supply to this machine must be protected by a 30mA-rated Type ‘A’  Residual Current Device (RCD). Before installation, it is recommended that a qualified and competent  electrician first tests the electrical outlet (power socket) for electrical safety. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 6  Place an out-of-service notice on the oven.  Contact your oven supplier or MONO Equipment for technical assistance.  Ovens must be maintained and serviced at appropriate intervals to ensure the oven operates at optimum levels. See the Maintenance section on page 45.

  • Page 7: Table Of Contents

    8. Maintenance ......................45 General maintenance ......................... 45 Steam system maintenance ....................... 45 Light bulb replacement ........................45 9. Spare Parts ......................46 10. Condenser Unit (Option) ..................80 11. Passwords ......................99 FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...

  • Page 8: Introduction

    Thank you for purchasing this MONO Eco Convection Oven. “A combination of clean industrial design and the latest technology.” The MONO convection oven range is designed to take the baking Industry’s standard trays.  Ovens in the range are of stainless steel construction, and selected models have removable tray racks to ...

  • Page 9: Specifications

    See the Power section on pages 10 and 13 for further information. See the Condenser Unit chapter on page 80. Can be stacked with a 4/5-tray oven only. Base units are 300 mm up to 920 mm high.  Available Optional extra  FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 10 (Contact factory) (Contact factory) 40cm x 60cm 40cm x 80cm 10-Tray 18” x 26” 18” x 30” 415 Vac (50 Hz), 3-phase + neutral + earth 32 Amps 40cm x 60cm 40cm x 80cm MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 11 2.5 metres of cable factory-fitted with a LEGRAND (or equivalent) plug  Display 7-inch HD TFT resistive touchscreen, portrait format  Environmental specifications Table 3: Environmental specifications Noise level Less than 85 dB Water supply Required Drainage Not required FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...

  • Page 12: Safety

    − Stop using it. − Do not attempt any repairs. Contact MONO Equipment for technical assistance. − Never operate the oven with any covers or panels removed.  All utility connections to the oven must comply with the statuary requirements of ...
  • Page 13 Never climb onto the roof of the oven.  Only use the oven for baking bread, pastries, and cakes.  Contact MONO Equipment for other product-baking machines. No unauthorised modifications to the oven are permitted.  FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)

  • Page 14: Installation

    Figure 2: Main power supply connections NOTE L2 and L3 are for three-phase installations only.  See the Specifications section for electrical specifications.  MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)

  • Page 15: Water

    Before use For hygiene reasons, MONO highly recommend thoroughly wiping the inside of the oven and all accessories with a clean cloth soaked in warm soapy water before using the oven for the first time. Although the utmost care is taken during assembly and pre-delivery inspection, there is always a possibility of residue contaminating the first bake if this is not done.

  • Page 16: Ambient Working Temperatures

    It is the customer’s sole responsibility to arrange for adequate ventilation. Any component malfunctioning during the guarantee period found to have been subject to excessive humidity or ambient working temperature above 40 °C (115 °F) would not be covered by the component manufacturer guarantee or MONO’s product warranty. MONO...

  • Page 17: Isolation

    (Figure Figure 3: View of rear connections on a MONO Eco Convection Oven  Turn the appropriate valve 90° anti-clockwise ( ) to turn off the water supply.

  • Page 18: Touchscreen Operations

    Timer Timer for general use. Damper Damper control. Start Starts a baking program. Steam Steam control. Temperature Oven temperature control. NOTE: The images are for illustration purposes and may differ from your oven. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)

  • Page 19: Starting And Operating Using Ready-Made Recipes (Programs)

    The oven goes through a boot-up sequence. Please wait. NOTE The images are for illustration purposes and may differ from your oven. When a start-screen (wallpaper) appears, touch the screen anywhere to display the main screen. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 20 If the oven is too warm, the Temperature button turns blue and flashes. Open the door to help to  cool. A series of beep-beep sounds are heard when the oven is at the correct temperature. Close the door to maintain the temperature until ready for the next step. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 21 (a) The bake ends when the timer countdown reaches 00:00, and you hear a beep-beep alarm. (b) Touch the Stop button to switch off the oven alarm. 12. Carefully remove the trays and close the door to minimise heat loss. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...

  • Page 22: Continuous Bake (No Program Mode)

    (c) Touch the Tick () button to confirm the choice. Set the baking temperature required. (a) Touch the temperature button (A). (b) Use the keypad to edit the temperature, and then touch the Tick () button. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 23 (a) Touch the Clock button to set the time required. (b) Delete the value shown (by using the backspace key) and then enter the value required (e.g., 6). FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 24 When the timer reaches 00:00, an oven alarm is audible for a short period.  To reset the timer (at any time), touch the Stop button in the timer panel.  Touch the Stop button in the bottom panel when finished with the continuous bake. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)

  • Page 25: Setting The Time And Date

    Enter the password, and then touch the Tick () button. NOTE Default passwords for the various access levels are in the Passwords section. However, for security reasons, the passwords section may have been removed. Touch the Time & Date box. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 26  Touch the Tick () button to confirm the date and time settings. Touch the Home button to return to the main screen. NOTE See page 33 for information about other oven settings. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)

  • Page 27: Setting Up A New Program

    Eco Convection Ovens | 4/5/7/10-Tray | Steam Setting up a new program Touch the Program panel. Choose a new, unused program (e.g., Program05). If a pop-up window appears asking to save values, touch the No option. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 28 (b) Use the keypad to edit the temperature, and then touch the Tick () button. Set the timer function. (a) Touch the Clock button to set the countdown time required. (b) Use the keypad to enter the value required (e.g., 15). (c) Touch the Tick () button. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 29 (a) Touch the Damper button to set the operation time. (b) Use the keypad to enter the seconds required (e.g., 10). (c) Touch the Tick () button. NOTE The operation time availability is dependent on the baking time. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 30 Enter the password and touch the Tick () button. NOTE Default passwords for the various access levels are in the Passwords section. However, for security reasons, the passwords section may have been removed. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 31 (b) When a pop-up window appears asking to save values, touch the Yes option. (c) Enter the password and touch the Tick () button. 12. The display returns to the main operating screen. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...

  • Page 32: Putting The Oven Into Standby Mode

    The Standby button turns the oven off until the screen is touched again. Putting the oven into Sleep mode The Sleep button instructs the oven to maintain temperature to a pre-set fall-back setting. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)

  • Page 33: User Settings (Oven Setup)

    Default passwords for the various access levels are in the Passwords section. However, for security reasons, the passwords section may have been removed. 3. Touch the Settings/Service panel (A). 4. Touch the User panel (B). FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 34 Page 2 Page 3 6. To make an adjustment, touch the item and edit a new setting. 7. Touch the Home button at the top of the screen when the settings are as required. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)

  • Page 35: Factory Settings (Oven Setup)

    Default passwords for the various access levels are in the Passwords section. However, for security reasons, the passwords section may have been removed. 3. Touch the Settings/Service panel (A). 4. Touch the Factory Settings panel (B). FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 36 Page 2 Page 3 6. To make an adjustment, touch the item and edit a new setting. 7. Touch the Home button at the top of the screen when the settings are as required. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)

  • Page 37: Changing The Passwords

    Default passwords for the various access levels are in the Passwords section. However, for security reasons, the passwords section may have been removed. 3. Touch the Settings/Service panel (A). 4. Touch the Factory Settings panel (B). FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 38 Touch the Confirm New Password box (E), and enter the new password again. Touch the Tick () button. 7. Touch the Home button at the top of the screen when the settings are as required. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)

  • Page 39: Diagnostics

    Default passwords for the various access levels are in the Passwords section. However, for security reasons, the passwords section may have been removed. 3. Touch the Settings/Service panel (A). 4. Touch the Service panel (B). 5. Touch the Diagnostics panel (C). FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 40 The red square changes to a green square. 3. Touch the same Test button (A) again to end the test. − The green square changes back to a red square. 4. Touch the Home button to exit diagnostics mode. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)

  • Page 41: Cleaning

    Regular cleaning and maintenance of appliances is essential for optimal performance and longevity. Therefore, it is important to follow a manufacturer’s recommended cleaning instructions. Follow our simple daily and weekly cleaning guidelines to ensure your MONO Convection Oven correctly functions and has durability.

  • Page 42: Weekly Cleaning Tasks

    Re-secure the inner glass with the screws when finished cleaning. Figure 5: Location of the two screws for releasing the inner glass A. Undo the two screws to release the inner glass for cleaning MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)

  • Page 43: Monthly Cleaning Tasks

    Each sheet is marked at the front with either an ‘R’ (right) or an ‘L’ (left) to ensure each is refitted to − the correct side of the oven. Screw the perforated panels back onto the oven sides and clip the runners back in place. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 44 Removing and installing a runner rack A. Top pin slots B. Bottom pin slots C. Instructions in Figure 8 are viewed from this direction and show the left-hand rack. 4T = 4-trays side 5T = 5-trays side MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 45 A. Place slots nearest oven wall over top pins B. Swing rack to line up bottom slots with the bottom pins C. Lower rack onto bottom pins D. Rack held in place by the top and bottom pins FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 46 Eco Convection Ovens | 4/5/7/10-Tray | Steam Installation and Operation Manual Figure 9: Check for the correct number of runners on the left and right sides A. 4-tray runners B. 5-tray runners MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)

  • Page 47: Maintenance

     Unsafe equipment is dangerous. Do not use the appliance. Isolate the power  supply and contact MONO Equipment or your appointed service agent. Check for frayed or bare cables.  Do not use the machine if frayed or bare cables are visible.
  • Page 48 When ordering the spares, contact the Spares Department. Please quote the machine serial number (A) as found on the silver information plate of the machine and on the front cover of this manual. MONO Equipment Limited Queensway, Swansea West Industrial Park, Swansea, SA5 4EB, United Kingdom Email: spares@monoequip.com...
  • Page 49 C. Cooling Fan and Damper ..... (Part 1 / Section 3 on Page 53) D. Water System ....... (Part 1 / Section 4 on Page 54) E. Baking Chamber and Door Parts . (Part 1 / Section 5 on Page 56) FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 50 Heating element 240 Vac for 7 kW oven B847-04-074 Heating element 220 Vac for 7 kW oven Top not shown. NOTE Part numbers are referenced from electrical drawing M1500E25-75100 in the Electrical Manual. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 51 Table 5: Item numbers in Figure 12 Item Number Part Number Part Description Motor and Element Connections B888-30-014 Overheat thermostat NOTE Part numbers are referenced from electrical drawing M1500E25-75100 in the Electrical Manual. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 52 PT-10A (Top Forward) B801-08-031 Fan motor contactors PT-10B (Top Reverse) PT-11A (Bottom Forward) PT-11B (Bottom Reverse) B801-18-005 Interlock unit X2 NOTE Part numbers are referenced from electrical drawing M1500E25-75100 in the Electrical Manual. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 53 Damper solenoid R/H oven B869-75-018 Rear fan unit B842-85-025 Rear fan unit fuse B842-85-039 Auxiliary power outlet fuse 150-02-01000 Damper bracket 158-02-00600 Coupling NOTE Part numbers are referenced from electrical drawing M1500E25-75100 in the Electrical Manual. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 54 Water solenoid (including hoses) A900-34-087 Hose – blue (not shown attached) 150-07-00800 Delivery pipe – long 150-07-00700 Delivery pipe - short NOTE Part numbers are referenced from electrical drawing M1500E25-75100 in the Electrical Manual. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 55 A900-34-321 Bulkhead coupling A900-34-387 Equal elbow 150-00-11300 150-07-00500 Delivery pipe NOTE The complete steam assembly kit is part number 150-07-00003. Includes 150-01-07700 (pipe guide bracket x 2) and 150-07-00400 (double solenoid inlet valve). FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 56 Eco Convection Ovens | 4/5/7/10-Tray | Steam Installation and Operation Manual Part 1 | Section 5 | Baking Chamber and Door Parts (FG150) Figure 17: Baking Chamber and Door Parts (FG150) MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 57 Bottom hinge R/H oven 149-03-04100 Outer door glass 150-03-10100 Inner door glass B482-07-037 Door switch A900-27-254 Handle/Catch/Latch assembly NOTE Complete door assembly is part number 150-03-14400 (L/H) and 150-03-14401 (R/H). State which is required. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 58 C. Damper ......... (Part 2 / Section 3 on Page 61) D. Water System ....... (Part 2 / Section 4 on Page 62) E. Baking Chamber and Door Parts . (Part 2 / Section 5 on Page 64) MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 59 Item Number Part Number Part Description B720-74-005 Fan motor unit B847-04-068 Heating element, 240 Vac B847-04-073 Heating element, 220 Vac NOTE Part numbers are referenced from electrical drawing M159E25-75000 in the Electrical Manual. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 60 B801-08-021 Element contactor B869-75-018 Rear cooling fan B888-30-014 Overheat thermostat B842-85-042 Light fuse B842-85-025 Fan fuse B842-85-039 Auxiliary socket fuse NOTE Part numbers are referenced from electrical drawing M159E25-75000 in the Electrical Manual. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 61 Part Number Part Description B749-83-003 Damper solenoid L/H oven B749-83-004 Damper solenoid R/H oven 158-02-00300 Damper solenoid bracket 158-02-00600 Coupling NOTE Part numbers are referenced from electrical drawing M159E25-75000 in the Electrical Manual. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 62 Water inlet assembly (including hose) A900-34-253 Copper pipe (10 mm OD x 20 SWG) A900-34-321 Bulkhead coupling (under insulation) A900-34-087 Hose – blue NOTE Part numbers are referenced from electrical drawing M159E25-75000 in the Electrical Manual. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 63 Bulkhead coupling B847-04-068 Heating element, 240 Vac B847-04-073 Heating element, 220 Vac 150-00-11300 Individual part numbers not available for pipes. All pipes made from A900-34-253 Copper Pipe 10 mm O/D x 20 SWG wall. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 64 Eco Convection Ovens | 4/5/7/10-Tray | Steam Installation and Operation Manual Part 2 | Section 5 | Baking Chamber and Door Parts (FG159) Figure 24: Baking Chamber and Door Parts (FG159) MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 65 Bottom hinge R/H oven 153-03-04000 Outer door glass 159-03-06600 Inner door including glass B482-07-037 Door switch A900-27-254 Handle/Catch/Latch assembly NOTE Complete door assembly part numbers are: 159-03-06500 (L/H hinge door) and 159-03-06501 (R/H hinge door). FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 66 C. Damper and fan ......(Part 3 / Section 3 on Page 69) D. Water System ....... (Part 3 / Section 4 on Page 70) E. Baking Chamber and Door Parts . (Part 3 / Section 5 on Page 72) MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 67 Item Number Part Number Part Description B720-74-005 Fan motor unit B847-04-067 Heating element, 240 Vac B847-04-074 Heating element, 220 Vac NOTE Part numbers are referenced from electrical drawing M158E25-75200 in the Electrical Manual. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 68 Fan motor reverse contact B801-08-021 Element contactor B888-30-014 Overheat thermostat B842-85-042 Light fuse B842-85-025 Fan fuse B842-85-039 Auxiliary socket fuse NOTE Part numbers are referenced from electrical drawing M158E25-75200 in the Electrical Manual. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 69 B749-83-003 Damper solenoid L/H oven B749-83-004 Damper solenoid R/H oven B869-75-018 Rear cooling fan 158-02-00300 Damper solenoid bracket 158-02-00600 Coupling NOTE Part numbers are referenced from electrical drawing M158E25-75200 in the Electrical Manual. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 70 A900-34-253 Copper pipe (10 mm OD x 20 SWG) A900-34-321 Bulkhead coupling (under insulation) A900-34-087 Hose – blue (not shown) NOTE Part numbers are referenced from electrical drawing M158E25-75200 in the Electrical Manual. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 71 Bulkhead coupling B847-04-067 Heating element, 240 Vac B847-04-074 Heating element, 220 Vac 150-00-11200 Individual part numbers not available for pipes. All pipes made from A900-34-253 Copper Pipe 10 mm O/D x 20 SWG wall. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 72 Eco Convection Ovens | 4/5/7/10-Tray | Steam Installation and Operation Manual Part 3 | Section 5 | Baking Chamber and Door Parts (FG158) Figure 31: Baking Chamber and Door Parts (FG158) MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 73 Bottom hinge R/H oven 158-03-06000 Outer door glass 158-03-41600 Inner door glass B482-07-037 Door switch A900-27-254 Handle/Catch/Latch assembly NOTE Complete door assembly part numbers are: 158-03-05900 (L/H hinge door) and 158-03-05901 (R/H hinge door). FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 74 C. Damper and fan ......(Part 4 / Section 3 on Page 77) D. Water System ....... (Part 4 / Section 4 on Page 78) E. Baking Chamber and Door Parts . (Part 4 / Section 5 on Page 80) MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 75 Item Number Part Number Part Description B720-74-005 Fan motor unit B847-04-067 Heating element, 240 Vac B847-04-074 Heating element, 220 Vac NOTE Part numbers are referenced from electrical drawing M158E25-75200 in the Electrical Manual. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 76 Fan motor reverse contact B801-08-021 Element contactor B888-30-014 Overheat thermostat B842-85-042 Light fuse B842-85-025 Fan fuse B842-85-039 Auxiliary socket fuse NOTE Part numbers are referenced from electrical drawing M158E25-75200 in the Electrical Manual. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 77 B749-83-003 Damper solenoid L/H oven B749-83-004 Damper solenoid R/H oven B869-75-018 Rear cooling fan 158-02-00300 Damper solenoid bracket 158-02-00600 Coupling NOTE Part numbers are referenced from electrical drawing M158E25-75200 in the Electrical Manual. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 78 A900-34-253 Copper pipe (10 mm OD x 20 SWG) A900-34-321 Bulkhead coupling (under insulation) A900-34-087 Hose – blue (Not shown) NOTE Part numbers are referenced from electrical drawing M158E25-75200 in the Electrical Manual. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 79 Bulkhead coupling B847-04-067 Heating element, 240 Vac B847-04-074 Heating element, 220 Vac 150-00-11200 Individual part numbers not available for pipes. All pipes made from A900-34-253 Copper Pipe 10 mm O/D x 20 SWG wall. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 80 Eco Convection Ovens | 4/5/7/10-Tray | Steam Installation and Operation Manual Part 4 | Section 5 | Baking Chamber and Door Parts (FG153) Figure 38: Baking Chamber and Door Parts (FG153) MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 81 Bottom hinge L/H oven 158-03-05201 Bottom hinge R/H oven 153-03-01700 Outer/inner door glass B482-07-037 Door switch A900-27-254 Handle/Catch/Latch assembly NOTE Complete door assembly part numbers are: 153-03-05900 (L/H hinge door) and 153-03-05901 (R/H hinge door). FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 82 Safety ............page 86 Installation ..........page 87 Operation ........... page 90 Spares ............page 91 Other versions that may be fitted ... page 91 NOTE See the Electrics Manual for electrical information. MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 83 Eco Convection Ovens | 4/5/7/10-Tray | Steam Introduction (condenser unit) If required, a condenser unit can be fitted to any MONO oven (or stacked ovens). The thermostatic control can be adjusted to operate in most ambient temperatures. A simple water connection (washing machine type fitting) and a hose to drain are required to operate efficiently.
  • Page 84 Eco Convection Ovens | 4/5/7/10-Tray | Steam Installation and Operation Manual Dimensions (condenser unit) Figure 40: Dimensions of a condenser unit Water out Water in Rear of the oven MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 85 Washing machine type connection to the normal water supply via steam water connection to the oven(s).  Noise Less than 85 dB  Weight Approximately 18 kg / 39.7 lb (excluding water)  FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 86 While the oven is in operation (and for some time after use), touching the – condenser or the surroundings is inadvisable because of conducted heat. No unauthorised modifications to the condenser are permitted.  Only use MONO spare parts on this condenser.  MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 87 If fixing holes are not present on the top sheet of the oven, they should be marked and drilled at this stage. Position the condenser correctly and mark hole positions (centre of each slot). Remove the condenser and drill holes of 6.5 mm diameter at four positions. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 88 Eco Convection Ovens | 4/5/7/10-Tray | Steam Installation and Operation Manual Figure 41: Installation of a condenser unit MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 89 Eco Convection Ovens | 4/5/7/10-Tray | Steam Figure 42: Water pipe connections Condenser solenoid Oven #1 Oven #2 Bracket fixings for the water tap Mains water supply inlet Tee-pipe for double oven connection FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 90 It is suggested that, as a starting point, the thermostat is set at 60. It can then be decreased if the performance drops or increased if it is found that the water is being replaced too often. Figure 43: Thermostat control on the condenser Thermostat control Setting position MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 91 Eco Convection Ovens | 4/5/7/10-Tray | Steam Spares (condenser unit) This section is for Engineer use only. Do not attempt any modifications to the condenser or oven. If in doubt, contact MONO Equipment for advice. Figure 44: Main parts of the condenser unit FG1BX-UK-MAN-0100 | Rev.
  • Page 92 Reducer ¼-in. BSP (male) x ¼-in. BSPT (male) A900-34-245 Elbow B811-33-001 Spacer B839-17-003 Cable gland type 251 B842-17-005 Cable gland type 206-6096 B842-30-003 Thermostat B842-40-002 Fan guard B842-50-005 Porcelain connecting block B869-75-033 B867-83-011 Solenoid valve MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 93 The following evaporation design versions could be fitted to your oven. They only require to be plugged into the socket found at the rear of the oven (Figure 45). This connection powers the fan and evaporation pad. No drain is required. Figure 45: Plugging in the condenser unit FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 94 Eco Convection Ovens | 4/5/7/10-Tray | Steam Installation and Operation Manual Figure 46: Condenser unit FG150/AC5 MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 95 Installation and Operation Manual Eco Convection Ovens | 4/5/7/10-Tray | Steam Figure 47: Condenser assembly FG155/X38 FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 96 Eco Convection Ovens | 4/5/7/10-Tray | Steam Installation and Operation Manual Figure 48: Condenser assembly FG158/AC1 MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 97 Installation and Operation Manual Eco Convection Ovens | 4/5/7/10-Tray | Steam Figure 49: Reduced height condenser FG158/AC3 FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 98 Eco Convection Ovens | 4/5/7/10-Tray | Steam Installation and Operation Manual Figure 50: Reduced height condenser FG158/AC4 MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)
  • Page 99 Installation and Operation Manual Eco Convection Ovens | 4/5/7/10-Tray | Steam Figure 51: Condenser FG159/AC1 FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
  • Page 100 Eco Convection Ovens | 4/5/7/10-Tray | Steam Installation and Operation Manual (Intentional Blank Page) MONO FG1BX-UK-MAN-0100 | Rev. C23 (July 2023)

  • Page 101: Passwords

    Oven setting access – setting time/date, etc. 3142 Oven factory settings access. NOTE If the passcodes have been changed and are not available, contact MONO Equipment for a master number that opens all screens. FG1BX-UK-MAN-0100 | Rev. C23 (July 2023) MONO...
