Alula RE619 Quick Start Manual

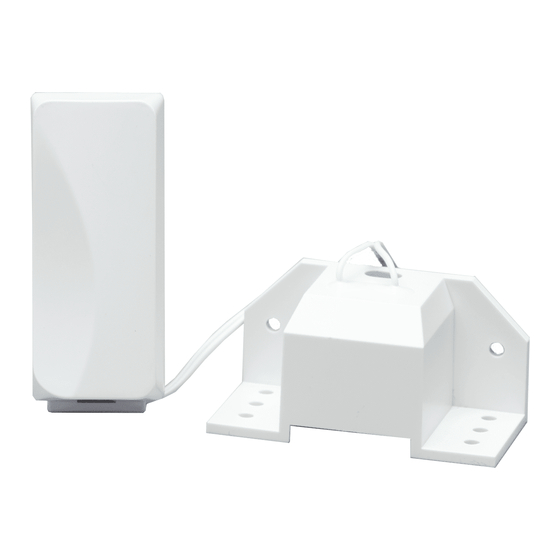

The RE619 Home Disaster
sensor that detects flood and extreme temperature
conditions.

Features

• Titanium probes for unmatched corrosion immunity
• Detects flood, freeze, and heat conditions
• Secure encrypted wireless transmissions
• 5-year warranty

Enroll

by placing the panel into wireless enrollment mode,
and then sending an enrollment signal from the sensor.
Alternatively, the sensor can be enrolled by scanning its
bar code using the Connect+ Installer App or by entering
its 8-character serial number on the interactive service
provider's web portal. NOTE, freeze and heat inputs must
be enabled as additional zones using the installer app or
the interactive service provider's web portal.
Sending an Enrollment Signal
• Remove the battery tab and remove the cover
to trip the tamper

Install

by placing the remote flood probe in the location
requiring flood or leak detection. If desired, the flood
probe can be screwed to the floor or baseboard. Next,
mount the sensor to the wall using the mounting screw
locations. Finally, connect the flood probe wires to the
sensor's terminal blocks.
Detects
water pooled under the sensor and reports extreme
temperature conditions.

Default Temperature Trip Points

• Heat alarms when over 100°F (38°C)
• Heat restores when under 97°F (36°C)
• Freeze alarms when under 45°F (7°C)
• Freeze restores when over 48°F (9°C)
is an integrated environmental
Use the panel installation guide to verify proper system setup.
RE619 Home Disaster
Connect+
™
™
Encrypted
Wire
Entry
Hole
I
Mounting
Screw
Holes
