Alula Connect+ RE659 Manual

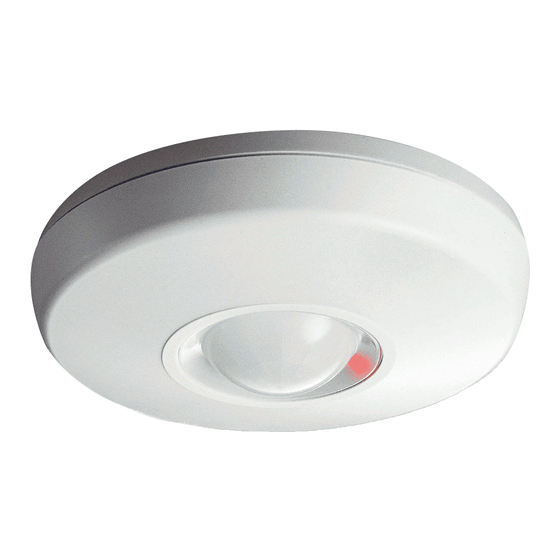

360 PIR Motion Sensor
It is a commercial battery-powered ceiling mount sensor
with a 360 degree detection range.
Features
• 360° detection range with 62 distinct detection zones
• Range up to 40 feet in diameter
• Selectable pulse count 2 or 4
• Designed for commercial applications
• 5 year warranty
Enroll
by entering the serial number into the security panel.
Alternatively, the sensor can be enrolled by placing the
panel into enrollment mode, and then pulling the battery
tab or tampering the device.
Install
by screwing two #8 screws into the ceiling, leaving 1/4
inch of thread exposed. Next, slide the back plate over the
screws and rotate the back plate. Screw the third #8 screw
through the wall tamper into the ceiling, ensuring that the
wall tamper screw is attached to something solid. Tighten
all screws until snug. Then, insert the square nut into the
square slit of the cover and start threading the #4 screw into
the side of the cover. Close the cover and conduct a walk
test. After testing, take the unit out of walk test mode and
close the cover again. Finally, finish threading the #4 screw
until it is snug.
Mounting Tips
• Avoid direct sunlight
• Avoid facing directly to AC or heating vents
• Avoid vapor or high humidity
• Avoid curtains, screens, etc. from blocking detection
• Do not install outdoors
RE659 360 Motion Sensor
Connect+
alarms when motion is sensed.
Use the panel's installation guide to verify proper system setup.
Encrypted
™
