1 YOUR TH1500NP THERMOSTAT
2 INSTALL YOUR THERMOSTAT
3 ADVANCED SETTINGS
4 OFF MODE
5 TECHNICAL SPECIFICATIONS
6 Documents / Resources
- 6.1 References
- 6.2 Download manual

Sinope TH1500NP - Double-Pole Thermostat for Electric Heating Manual

YOUR TH1500NP THERMOSTAT

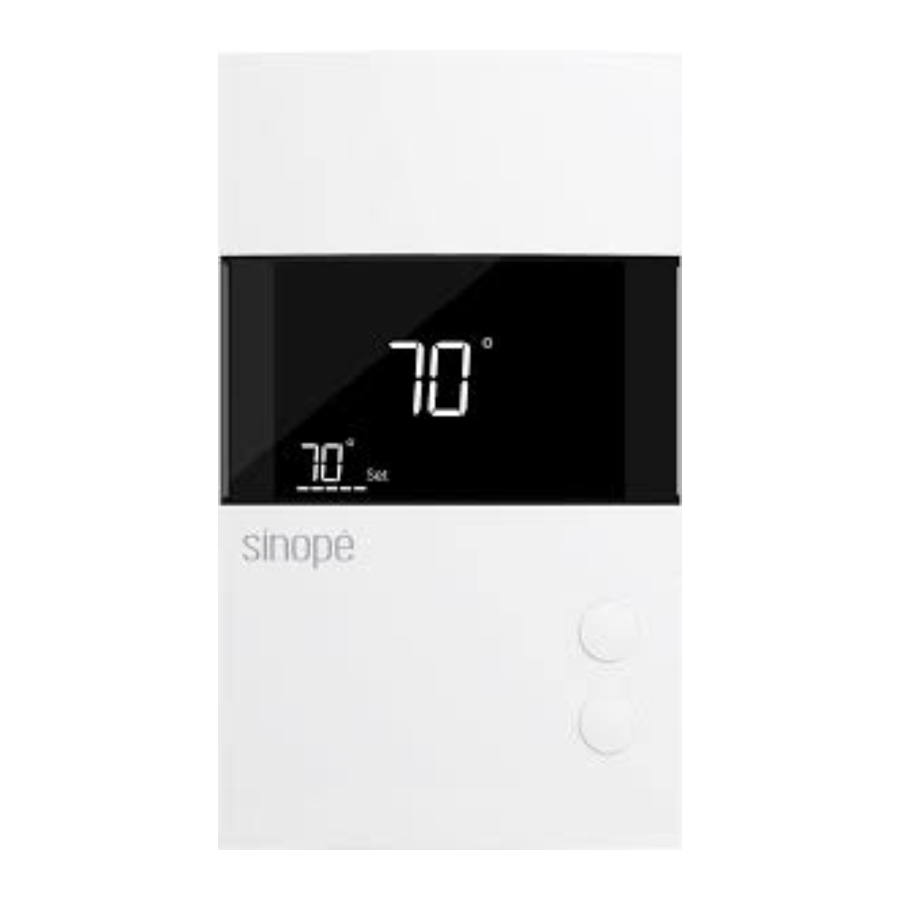

Overview

The installation of this thermostat must be performed by a certified electrician and comply with the national and local electrical codes and regulations.

INSTALL YOUR THERMOSTAT

Make sure that the breakers for your heating system are off at the main electrical panel.
Unlock and lift the thermostat cover.
Use the provided connectors to connect the load/line wires located on the back of the thermostat.
Use the screws to secure the thermostat to the electrical box.
Replace the cover and lock.
Power up the thermostat.

Make sure to firmly tighten the wire connectors for a secure connection. A loose connection can be a fire hazard. To install wire connectors, you must:

Insert the two wires into the wire nut so that their copper ends are parallel.
Turn the wire connector clockwise until there is strong tension.
Pull on the threads to make sure they are secure, leaving no gaps between them. * If the threads seem to come loose, repeat the process.

* Improperly installed electrical wires could burn the wire connectors.

ADVANCED SETTINGS

ADVANCED SETTINGS
To change the thermostat's settings, you need to:
Get the setpoint to its minimum and hold the button for 10 seconds to access the menu.
Press the or button to change the setting.
Press the and buttons simultaneously to save and go to the next parameter. Continue to press until the end of the list to exit the menu.

#	Name	Parameters & settings	Display
1	Load	Load power 0 W to 4155 W
2	Scale	Temperature scale °C or °F (Default: °F)
3	Setpoint Min	Minimum setpoint 41°F to 97°F – (Default: 41°F)
4	Setpoint Max	Maximum setpoint 41°F to 97°F – (Default: 97°F)
5	Backlight	Backlight control ON, OFF or BED – (Default: ON) ON (backlight always active, will dim according to ambient light) OFF (will only turn on when a button is pressed) BED (bedroom mode - backlight will dim according to ambient light and will turn OFF below 20% of luminosity)

OFF MODE

To put the thermostat in OFF mode, hold the buttons and for 10 seconds.
To exit the OFF mode, hold the buttons and for 10 seconds or raise/lower the setpoint.

TECHNICAL SPECIFICATIONS

Operatlng voltage: 120/208/240/277 Vac, 50/60 Hz
Maximum load:
1800 W @ 120 V / 15 A
3120 W @ 208 V / 15 A
3600 W @ 240 V / 15 A
4155 W @ 277 V / 15 A
Setpoint range: 41 ˚F to 97 ˚F (5 ˚C to 36 ˚C)
Display range: 32 ˚F to 99 ˚F (0 ˚C to 50 ˚C)
Resolution: ± 1 ˚F (± 0.5 ˚C)
Storage: -4 ˚F to 122 ˚F (-20 ˚C to 50 ˚C)
Operation: 32 ˚F to 122 ˚F (0 ˚C to 50 ˚C)

Compatible with an electric heating system such as:

Baseboard heater
Convector
Fan-forced convector
Radiant ceiling heating

3-year limited warranty
