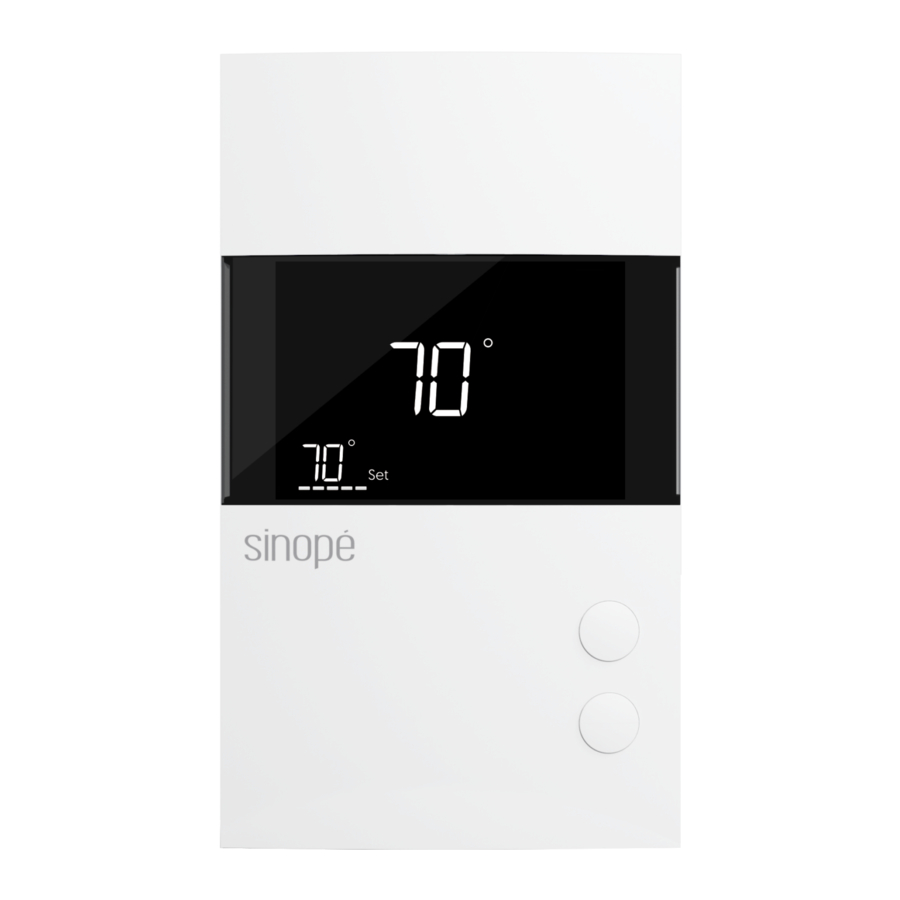

Sinope TH1300NP - 3600W Non-Programmable Floor Heating Thermostat Manual

INSTALL YOUR THERMOSTAT

The installation of this thermostat must be performed by a certified electrician and comply with the national and local electrical codes and regulations.
Before starting the installation of your new thermostat, make sure that the breakers for your heating system are off at the main electrical panel!

1. Unlock and lift the thermostat cover.

2. Connect the heating floor by using the load / line wire connectors located on the back of the thermostat. Connect the ground wire to the screw in the electrical box intended for this purpose.

3. Connect the sensor.
   (Only for control applications in F mode or with floor limit.)

4. Use the screws to secure the thermostat to the electrical box.
   Replace the cover and lock.

5. Power up the thermostat.
   After performing a test sequence, the thermostat should display the floor temperature. If not, refer to the troubleshooting guide in this manual.


Increasing or lowering the temperature
To adjust the temperature, press or . The requested temperature will blink to confirm the new setpoint. Alimentez le thermostat.

USER SETTINGS

Get the setpoint to its minimum and hold the button for 10 seconds to access the menu.
Press the or button to change the setting.

Press the and buttons simultaneously to save and go to the next parameter. Continue to press until the end of the list to exit the menu.

Settings which can be modified directly on the device:

#	Name	Parameters & settings	Display
1	Load	Load power 0 watt to 3600 watt
2	Display	Temperature format °C or °F (default: °F)
3	Control	Control mode A (Air), F (Floor) (default: F)
4	Setpoint Min	Minimum setpoint 41°F to 97°F – (Default: 41°F)
5	Setpoint Max	Maximum setpoint 41°F to 97°F – (Default: 97°F)
6	Max Air	Maximum ambient temperature limit (Only visible in F mode) 41°F to 97°F (default: OFF)
7	Max Floor	Maximum floor temperature limit (Only visible in A mode) 41°F to 97°F (default: OFF)
8	Min Floor	Minimum floor temperature limit (Only visible in A mode) 41°F to 97°F (default: OFF)
9	Aux	Assignment of auxiliary output OFF, EXP, 15 sec, 15 min (default: OFF)
10	Backlight	Backlight control ON, OFF or BED – (Default: ON) ON (backlight always active, will dim according to ambient light) OFF (will only turn on when a button is pressed) BED (bedroom mode - backlight will dim according to ambient light and will turn OFF below 20% of luminosity)
11	Sensor	Floor sensor 10K or 12K (default: 10K)

3. The thermostat offers 2 temperature regulation modes:

F mode (default): Regulates the floor temperature by means of an external temperature sensor with the possibility to limit ambient temperature.
A mode: Regulates ambient temperature with the possibility to limit floor temperature by means of an external temperature sensor.

6. Maximum limit of the ambient temperature (F mode)
   Thermostat limits floor heating so as not to exceed the set ambient temperature limit
7. Maximum floor temperature limit (A mode)
   The thermostat limits floor heating to the set temperature to ensure it does not exceed the selected limit; ideal for protecting engineered wood floors.
8. Minimum floor temperature limit (A mode)
   The thermostat limits the minimum temperature of the floor in order to keep it at a comfortable temperature.
   This parameter can only be used when a floor sensor is connected to the thermostat.
9. Assigning the auxiliary output:
   The thermostat provides an auxiliary output that has three functions which are set from the user settings.

15 sec function: Short cycle auxiliary output (15 seconds): used for a heater controlled through an electronic relay (SSR).
15 min function: Long cycle auxiliary output (15 minutes): used for a heater controlled through an electromechanical relay or equipped with a fan.
In the 15 sec and 15 min functions, the thermostat controls the ambient temperature with the floor. Once the floor temperature has reached its limit, if the desired ambient temperature is not reached, the auxiliary output activates the heating device to reach the set temperature. (The auxiliary output acts as a second heating stage.)
EXP function: Auxiliary output to connect several heating floors (TR1310 expansion unit sold separately).
OFF function (default): Disables the auxiliary output.

When installing your floor heating system: add a second sensor in the floor and store the tip in the thermostat housing. This additional sensor can be plugged in and used as a replacement without haltering your floor heating system.

OFF MODE

To put the thermostat in OFF mode, hold the and buttons for 10 seconds.
To exit the OFF mode, hold the and buttons for 10 seconds or raise/lower the setpoint.

CONNECT AN EXPANSION UNIT (TR1310)

It is possible to connect up to 10 expansion units to the same device. (EXP function)

CONNECT THE AUXILIARY OUTPUT

Second heating stage (15 sec / 15 min functions)

GROUND FAULT PROTECTION

The thermostat is equipped with a ground fault protection that can detect a current leakage of 5 mA. When a current leakage is detected, the ground fault protection is triggered and quickly interrupts the power supply to prevent any serious injuries.

Resetting the ground fault protection

The RESET button warning light turns ON (red) when the ground fault protection is triggered. If the RESET button warning light turns ON during normal operation of the thermostat, simply press the RESET button to reset the ground fault protection. The light will turn OFF. If for any reason this situation occurs again, cut the power to the heating system from the main electrical panel and ask a qualified electrician to verify the installation.

Testing the ground fault protection

This thermostat has an Auto Test which periodically verifies the correct operation of the protection circuit.
You can also do this manually:

1. Press the TEST button. If the RESET button's red warning light does not turn ON, the test has failed. Cut the power to the heating system from the main electrical panel and ask a qualified electrician to verify the installation.
2. Press the RESET button to restart the thermostat's base.

TROUBLESHOOTING GUIDE

What should I do if the E1F code appears on my thermostat's display?
The E1F code means that the thermostat is in "Floor" mode and there is no connected sensor.
If your thermostat is not intended to control a heated floor, change the thermostat's control mode for the "A mode".

TECHNICAL SPECIFICATIONS

Operating voltage: 120/208/240 Vac, 50/60 Hz
Maximum load:
1800 W @ 120 V / 15 A
3120 W @ 208 V / 15 A
3600 W @ 240 V / 15 A
Setpoint range: 41°F to 97°F (5°C to 36°C)
Display range: 32°F to 99°F (0°C to 50°C)
Resolution: ± 1°F (± 0.5°C)
Storage: -4°F to 122°F (-20°C to 50°C)
Auxiliary output: 24 Vac/Vdc / 0.1 A
GFCI protection: Class A (5mA)

3-year limited warranty

SINOPÉ TECHNOLOGIES INC. warrants the components of their products against defects in material and workmanship for a 3 year period from the date of purchase, under normal use and service, when proof of purchase of such is provided to the manufacturer. This warranty does not cover any transportation costs that may be incurred by the consumer. Nor does it cover a product that has been improperly installed, misused or accidentally damaged. The obligation of SINOPÉ TECHNOLOGIES INC., under the terms of this warranty, will be to supply a new unit and this releases the manufacturer from paying the installation costs or other secondary charges linked to replacing the unit or the components.

For more information, visit our Website: www.sinopetech.com
