Summary of Contents for Sinope TH1133WF

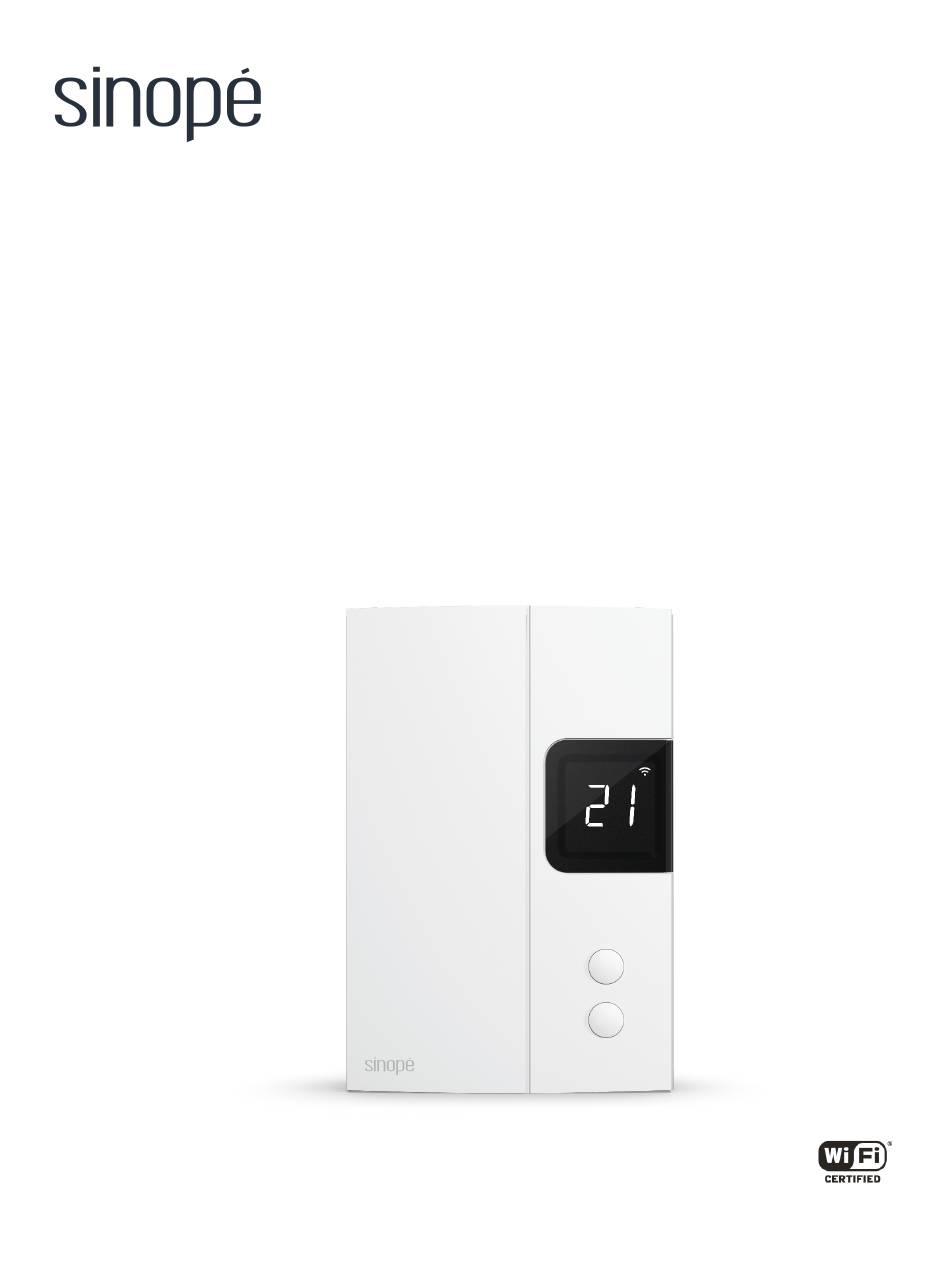

- Page 1 Smart Thermostat LITE for Baseboard Heating Installation guide TH1133WF 660-0336-0001 / 23012025...
-
Page 2: Table Of Contents
Table of contents Table of contents............................ 2 Included in the box..........................3 Tools required............................3 Your TH1133WF thermostat........................4 Technical specifications........................5 Installation and configuration......................6 Warnings....................................6 Installation......................................7 240 V installation.................................. 8 120 V installation..................................9 Configuration....................................10 Settings......................................11 Settings which can be modified on the device directly................11 Adjusting the temperature setpoint........................ -
Page 3: Included In The Box
Included in the box Inside the box, you will find: TH1133WF thermostat 2 x mounting screws Welcome guide 3 x wire connectors Tools required Square or flat screwdriver Wire stripper (optional) Pliers (optional) -
Page 4: Your Th1133Wf Thermostat
Your TH1133WF thermostat TH133WF - Installation guide... -
Page 5: Technical Specifications
Technical specifications Operating voltage 120 / 208 / 240 Vac, 60 Hz Maximum load 12.5 A / 3000 W @ 240 Vac 12.5 A / 1500 W @ 120 Vac Minimum load 1.25 A / 300W @ 240 Vac Resistive load only Dimensions (W x H x D) 85.6 mm (3.35 in) x 127.3 mm (5 in) x 29.6 mm ( 1.14 in) -
Page 6: Installation And Configuration
Installation and configuration Warnings The installation of this thermostat must be performed by a certified electrician and comply with the national and local electrical codes and regulations. Special CO/ ALR solderless connectors must be used when connecting with aluminum conductors. To function correctly, this thermostat requires a minimum of two cables in the electrical box, each containing at... -
Page 7: Installation
Installation Turn off the power. Before beginning the thermostat installation, make sure to power off the circuit from the electrical panel to avoid any risk of electrical shock. Unlock the thermostat with the screwdriver, then lift the thermostat cover to access the mounting screw holes. -
Page 8: 240 V Installation
240 V installation C. Connect the thermostat red wire A. Connect the thermostat black line labeled L2 to the electrical box red wire labeled L1 to the Line black wire wires with the remaining wire (L1) using one of the wire connectors connector. -
Page 9: 120 V Installation
120 V installation C. Connect the thermostat red wire A. Connect the thermostat black line labeled L2 (N) with the electrical box wire labeled L1 to the Line black wire white wires with the remaining wire using one of the provided wire connector. -
Page 10: Configuration
Use the mounting screws to secure the thermostat to the electrical box. Replace the cover and lock it in place. Power up the thermostat. After switching on the breaker, your Sinopé thermostat should turn on automatically. The start-up screen will appear for a few moments. -
Page 11: Settings
Settings All of the thermostat's settings can be set through the Neviweb app. However, if you have not created your account and wish to change the temperature format or the control cycle, you need to: Get the setpoint to its minimum and hold ⬇... -
Page 12: Adjusting The Temperature Setpoint
Adjusting the temperature setpoint ⬇ ⬆ To adjust the temperature, press The requested temperature will blink to confirm the new setpoint. Disconnecting your thermostat from the Wi-Fi router To disconnect your thermostat from the ⬇ ⬆ Wi-Fi router, press the buttons simultaneously for 10 seconds. -
Page 13: Configuration With The Neviweb App
Configuration with the Neviweb app The Neviweb app allows you to access all the features of your smart thermostat. If you do not have an account yet, download the Neviweb app on your smartphone to complete the configuration of your thermostat. Get the app 2. -
Page 14: Settings
Settings Configuration Default value in bold. Settings Description Options Temperature Celsius Temperature format featured on the thermostat display. unit Fahrenheit On Demand: The backlight turns on when you press the thermostat buttons and turns off after 12 sec. On Demand Adaptative: The display backlight is always on, and its Backlight Adaptative... -
Page 15: Advanced Configuration
Advanced configuration Default value in bold. Settings Description Options Modify the length of the control cycle according to the Short Main cycle type of heater Long length Cycle length depending on the type of heater Type of heater Cycle length Electric baseboard Short Convector... -
Page 16: Troubleshooting And Support
Troubleshooting and support If you encounter any difficulties during the installation or operation of the thermostat, the Neviweb application, or when connecting to other platforms, we invite you to consult Sinopé's support website by visiting https://support.sinopetech.com/en/. The technical support team will be happy to assist you. Call us at : 1 (855) 741-7701 Write to us at:... -
Page 17: Ised Canada Compliance Statement
Controlling this HomeKit-enabled accessory automatically and away from home requires a HomePod, Apple TV, or iPad set up as a home hub. It is recommended that you update to the latest software and operating system. Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards.
