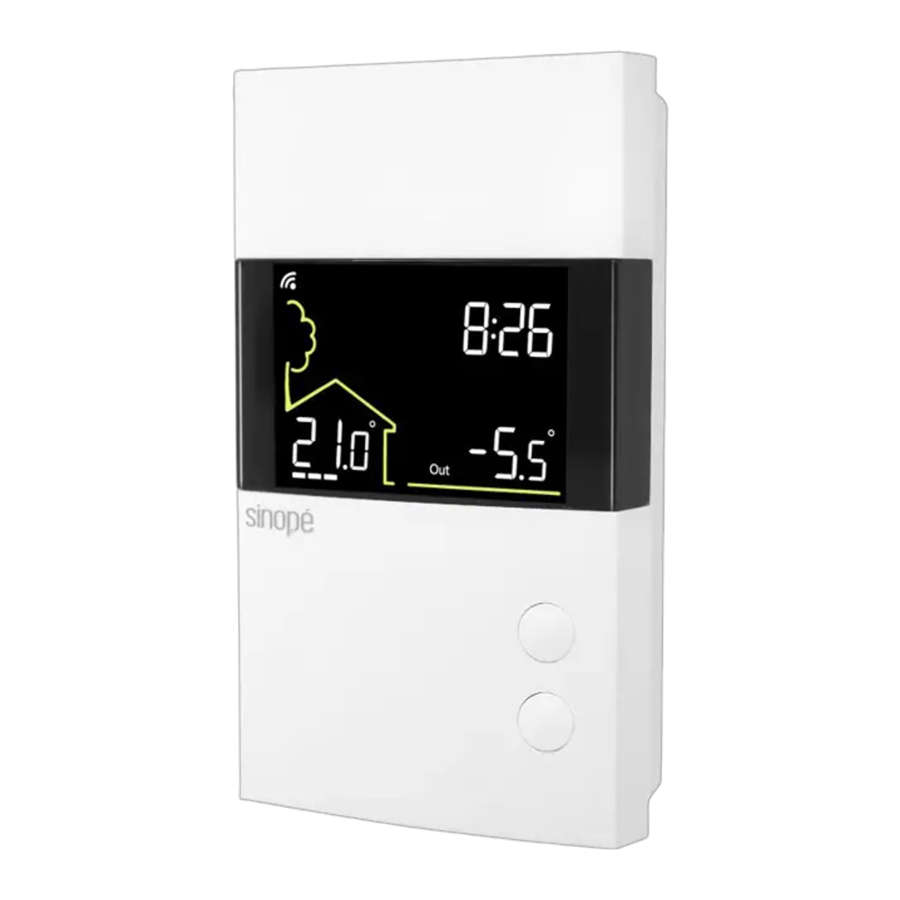

Sinope TH1500WF - Smart Double Pole Thermostat Manual

INSTALL YOUR THERMOSTAT

The installation of this thermostat must be performed by a certified electrician and comply with the national and local electrical codes and regulations.
Before starting the installation of your new thermostat. make sure that the breakers for your heating system are off at the main electrical panel!

Unlock and lift the thermostat cover.
Use the provided connectors to connect the load/line wires located on the back of the thermostat.
Make sure to firmly tighten the wire connectors for a secure connection. A loose connection can be a fire hazard.
Use the screws to secure the thermostat to the electrical box.
Replace the cover and lock.
Power up the thermostat.

USER SETTINGS

Ali of the thermostat's settings can be set through the Neviweb app. However. if you have not created your account and wish to change the temperature format, you need to:
USER SETTINGS
Get the setpoint to its minimum and hold the button for 10 seconds to access the menu.
Press the or button to change the setting,
Press the and buttons simultaneously to save and go to the next parameter. Continue to press until the end of the list to exit the menu.

SETTINGS WHICH CAN BE MODIFIED ON THE DEVICE DIRECTLY

#	Name	Parameters & settings	Display
1	Load	Load power 0 W to 4155 W
2	Temp	Temperature format °C or °F (Default: °C)
3	Min	Minimum setpoint 5°C to 30°C (Default: 5°C)
4	Max	Maximum setpoint 5°C to 30°C (Default: 30°C)

Load power
Reading of the load power connected to the thermostat, featured in watts.

ADD YOUR THERMOSTAT TO THE NEVIWEB APP

If you do not have an account yet, download the Neviweb app for iOS or Android to create an account and add your device.
Tap the , then select "Add Device".

Select "Thermostats", then tap on your thermostat model: TH1500WF.
Follow the steps of the Installation Wizard.

DISCONNECT YOUR THERMOSTAT FROM THE WI-FI ROUTER OR THE NEVIWEB APP

To disconnect your thermostat from the Wi-Fi router, press the and buttons simultaneously for 10 seconds. The symbol will disappear from the display.
To remove your thermostat from Neviweb, press "Delete" in the thermostat's settings.

TECHNICAL SPECIFICATIONS

Operating voltage: 120/208/240/277Vac, 50/60 Hz

Maximum load:

1800 W @ 120 V / 15 A
3120 W @ 208 V / 15 A
3600 W @ 240 V / 15 A
4155 W @ 277 V / 15 A

Setpoint range: 5°C to 30°C (41°F to 86°F)
Display range: 0°C to 50°C (32°F to 99°F)
Resolution: ± 0.5°C (± 1°F)
Storage: -20°C to 50°C (-4°F to 122°F)
Operation: 0°C to 50°C (32°F to 122°F)
Protocol: Wi-Fi
Standard: IEEE 802.11 b/g/n
Frequency: 2.4 GHz

Controlling this HomeKit-enabled accessory automatically and away from home requires a HomePod. Apple TV. or iPad set up as a home hub. lt is recommended that you update to the latest software and operating system.

Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
HomeKit is a trademark of Apple Inc.

Neviweb® is a registered trademark of Sinopé Technologies Inc. in Canada and the United States.
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. Google Play and the Google Play logo are trademarks of Google Inc.
The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance®

Transmitter Module IC: 21098-ESPWROOM32 / FCC ID: 2AC7Z-ESPWROOM32
