Smart thermostat
HVAC
Installation and
configuration guide
TH6250WF
660-6730-0002 / 05052025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TH6250WF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sinope TH6250WF

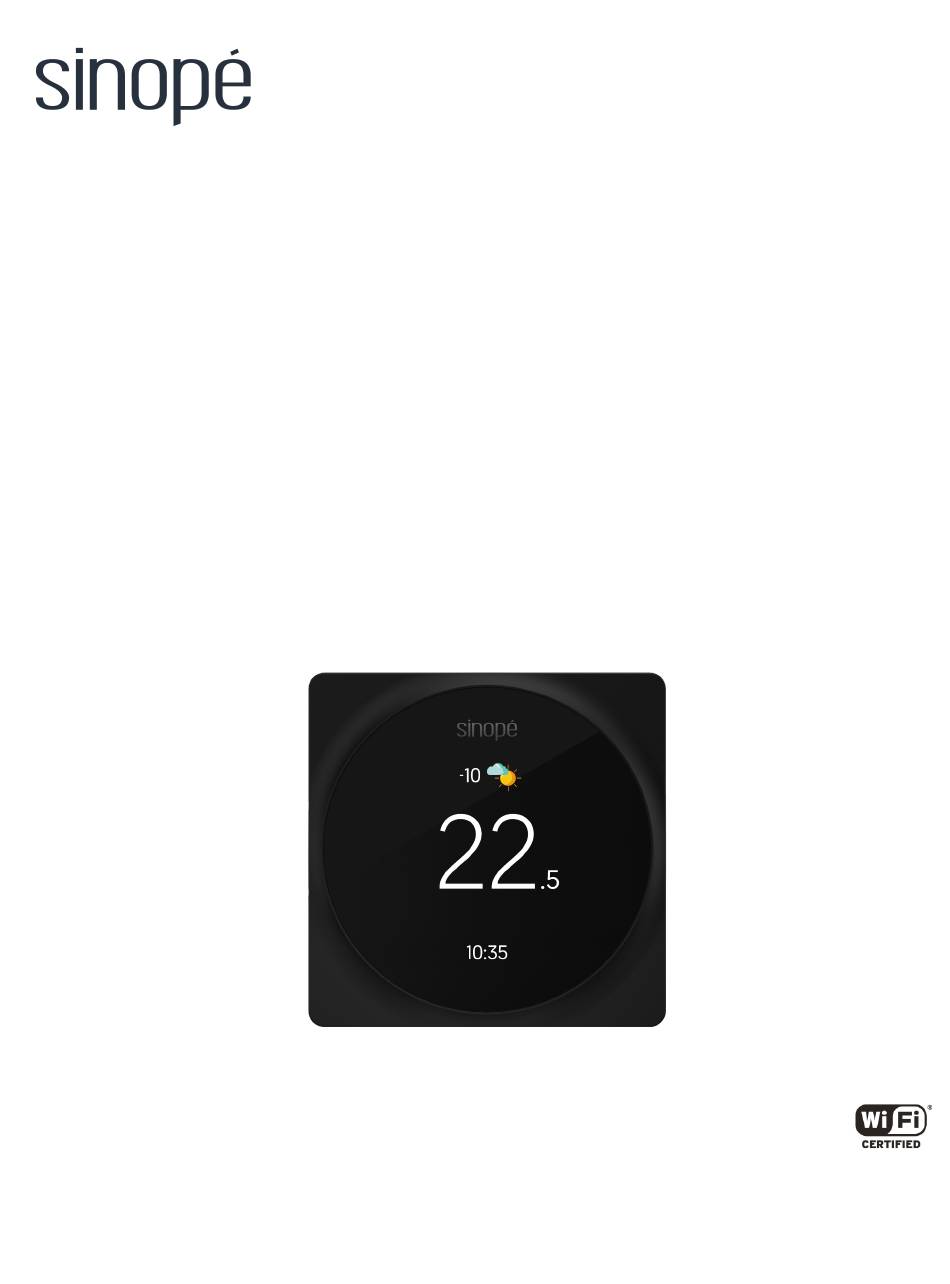

  • Page 1 Smart thermostat HVAC Installation and configuration guide TH6250WF 660-6730-0002 / 05052025...
  • Page 2: Table Of Contents

    Included in the box Installation requirements Connections System compatibility Installation and configuration Recommendations Installation - Smart Wi-Fi thermostat TH6250WF Configuration - Smart Wi-Fi thermostat TH6250WF Two options are available for the next steps: Configuration with Neviweb Configuration without Wi-Fi Settings...
  • Page 3 ISED Canada compliance statement FCC compliance statement Wiring diagrams Conventional system Wiring: 1H Wiring: 1H Wiring: 1C Wiring: 1H1C Heat pump Wiring: 1H1C Wiring: 2H1C Additional system Wiring: Acc. Humidifier Wiring: Dual-energy Additional accessories Decorative mounting plates AC6500-01 Decorative Mounting Plate (sold separately) AC6500-02 Decorative Mounting Plate (sold separately)
  • Page 4: Included In The Box

    2x anchors Installation requirements Flathead or Phillips screwdriver for ● wall installation of the mounting plate - Phillips #2/slot M7.0 Optional for easier setup: ● → Wi-Fi connection → Smartphone or tablet → Neviweb account TH6250WF - Installation and configuration guide...
  • Page 5: Connections

    Connections Connection Description 24 Vac common power supply 24 Vac power supply from the heat pump Circulation fan First stage of heating or first stage of auxiliary heating Reversing valve First stage of the heat pump or air conditioner Connection for accessories. Used to connect additional accessories or external equipment Dual-Energy input System compatibility...
  • Page 6: Installation And Configuration

    By following these recommendations and avoiding potential risks, you can ensure the safe and efficient installation of the HVAC thermostat to your system. For your safety and those around you, hire a qualified professional. TH6250WF - Installation and configuration guide...
  • Page 7: Installation - Smart Wi-Fi Thermostat Th6250Wf

    Warning Check your system’s compatibility If your old thermostat has a label of 120V or 240V or thick wires with connection caps, it is a high-voltage system. Your system is not compatible with the TH6250WF thermostat.
  • Page 8 Fix the mounting plate. Pass the wires through the center of the base, then fasten it to the wall with the screws. Use anchors if necessary. TH6250WF - Installation and configuration guide...
  • Page 9 Connect the wires. When the wires are correctly inserted into the connector holes, screw them in precisely to ensure a secure, stable connection. Once all the wires are inserted, carefully tuck them into the wall. IMPORTANT Insert the wires through the sides of the terminals, not from the top.
  • Page 10 Attach the screen. Press the screen onto the base until it clicks into place. Restore the power supply. The start-up screen will appear for a few moments. TH6250WF - Installation and configuration guide...
  • Page 11: Configuration - Smart Wi-Fi Thermostat Th6250Wf

    Configuration - Smart Wi-Fi thermostat TH6250WF Once your thermostat is powered on, the startup screen will briefly appear. Then, follow the steps below to configure it. Startup screen Language selection Select the language displayed on your thermostat. Temperature unit Select the temperature format displayed on the...
  • Page 12 Select, if applicable, whether your humidifier is activated on heating or fan. Reversing valve* Determine whether the heat pump reversing valve is activated in cooling or heating mode. * This screen is only available if the O/B wire is connected. TH6250WF - Installation and configuration guide...
  • Page 13 Balance point Select the outdoor temperature above which your heat pump becomes ineffective. Installation type * Select the type of installation for your equipment Add-On: If the auxiliary system is activated, the heat pump will be deactivated. Conventional: The auxiliary system and heat pump can operate simultaneously.
  • Page 14: Two Options Are Available For The Next Steps

    B. Navigate the various equipment configuration menu settings to complete the installation. Configuration with Neviweb The Neviweb app allows you to access all the features of your smart thermostat. Tap on the Wi-Fi icon displayed on the screen. TH6250WF - Installation and configuration guide...
  • Page 15 Tap on 'Neviweb'. By choosing Neviweb, you can configure all the settings of your thermostat using your smartphone, benefit from features such as the weather displayed on the screen, and access several functionalities within the platform. Additionally, you can add your device to Apple Home later.
  • Page 16: Configuration Without Wi-Fi

    Configuration without Wi-Fi Several settings of your new thermostat can be configured directly from its interface. Press on the screen, except for the Wi-Fi icon, which is a shortcut to the Wi-Fi connection menu. TH6250WF - Installation and configuration guide...
  • Page 17: Settings

    Press on to access your thermostat's settings. Press on one of the Settings submenus of your choice to customize your device. Settings Display options Default value in bold. Settings Description Options Temperature Celsius Temperature format featured on the thermostat display. unit Fahrenheit Français...
  • Page 18: Equipment Configuration Option

    Heat cycle 20 min shorter cycle will increase your comfort but will also length in W 15 min increase the wear of your equipment. 10 min Not available if heating source is fossil fuel TH6250WF - Installation and configuration guide...
  • Page 19 Settings Description Options 25 min The requested cycle length of your heating system. A Auxiliary cycle 20 min shorter cycle will increase your comfort but will also length 15 min increase the wear of your equipment. 10 min* 1 ˚C 2 ˚C Heating/Cooling The minimum temperature delta authorized between the...
  • Page 20 Other parameters, such as temperature format, setpoints, schedules, Factory reset and the Wi-Fi connection, will remain unchanged. Device Reset: Resets all custom data and previous settings, allowing the user to restart the installation process from scratch. TH6250WF - Installation and configuration guide...
  • Page 21: Summary Of Settings

    Summary of settings TH6250WF Neviweb Display Temperature unit Language Device Configuration Temperature unit Language Time format Screen brightness Screen access Filter change reminder Away heating setpoint Away cooling setpoint Dual-energy optimization - Éco Sinopé Fan optimization - Éco Sinopé Maximum setpoint heating...
  • Page 22: System Definition

    Factory reset System definition Temperature controller The TH6250WF uses an adaptive deadband controller with a programmable cycle length. The thermostat's control band adjusts automatically to achieve the desired cycle length for controlling your system. Note: The control band represents the variation between the maximum and minimum temperatures reached in the room when the system operates at 50% power, directly impacting comfort.
  • Page 23: Heat Pump

    For example, a thermostat set to a 15-minute cycle may initially only achieve an 18-minute cycle at startup. The thermostat will adjust the control band until the desired cycle time is reached. While setting a very short control cycle to increase comfort may be tempting, this approach should not be prioritized.
  • Page 24: Accessories

    If you have a steam humidifier, select 'Humidifier on Fan' in the accessory settings. The thermostat will activate the humidifier only if heating ventilation is activated and humidification is necessary. TH6250WF - Installation and configuration guide...
  • Page 25: User Guide

    User guide Main screen Note: The outdoor temperature, weather conditions, and time are available if the thermostat has been added to the Neviweb application.
  • Page 26: Menu

    Menu TH6250WF - Installation and configuration guide...
  • Page 27: Interface

    Interface Your system is currently cooling Your system is currently heating Your system is in auxiliary heating mode Your system is in dual-energy mode...
  • Page 28 Your device takes part in a peak event Your device is not connected to Wi-Fi An error is detected, press the screen to Outdoor temp. settings prevent system obtain details activation TH6250WF - Installation and configuration guide...
  • Page 29: Wi-Fi Connection

    Wi-Fi connection You can connect your thermostat to Wi-Fi in two ways: Setup with Neviweb ● Setup with Apple Home ● We recommend starting with setup through Neviweb. This platform allows you to configure all your thermostat settings using your smartphone easily. Additionally, Neviweb provides the option to display weather conditions on the screen and access various features within the platform.
  • Page 30 Once the Wi-Fi connection is complete, tap on the tile corresponding to your thermostat in the Neviweb app. Setting configuration Tap on to access the device settings. Continue configuring your system preferences in the various configuration menus. TH6250WF - Installation and configuration guide...
  • Page 31: Association With Apple Home

    Association with Apple Home If you have already connected your device via Neviweb and now want to add it to Apple Home, please follow the steps below: Tap on the main screen to access the menu. Tap on to access settings. Tap on 'Wi-Fi Connection'.
  • Page 32 Then tap on 'Apple Home Configuration.’. Follow the on-screen steps and tap 'Connection'. Follow the steps displayed on the screen. TH6250WF - Installation and configuration guide...
  • Page 33 Tap the arrow in the top left corner to exit the connection menu.
  • Page 34: Wi-Fi Connection Via Apple Home

    Wi-Fi connection via Apple Home Tap on the 'Wi-Fi icon' displayed on the screen. Tap on ‘Apple Home’. Follow the on-screen steps and tap 'Connection'. TH6250WF - Installation and configuration guide...
  • Page 35 Follow the steps displayed on the screen. We recommend continuing the setup and adding your thermostat to the Neviweb application. This platform lets you easily adjust all thermostat settings directly from your smartphone. Additionally, Neviweb offers the ability to display weather conditions on the thermostat’s screen and access various additional features.
  • Page 36: Explore More With Neviweb

    Change time display format. ● Customize setpoints: Adjust settings based on your schedules and geofencing. ● View energy consumption graphs. ● Add devices to Éco Sinopé: Optimize energy consumption during peak events. ● TH6250WF - Installation and configuration guide...
  • Page 37: Troubleshooting And Support

    Troubleshooting and support If you encounter any difficulties during the installation or operation of the thermostat, the Neviweb application, or when connecting to other platforms, we invite you to consult Sinopé's support website by visiting https://support.sinopetech.com/en/. The technical support team will be happy to assist you. Call us at : 1 (855) 741-7701 Write to us at:...
  • Page 38: 3-Year Limited Warranty

    The manufacturer shall not be liable for incidental, consequential, or special damages arising at or in connection with product use or performance. TH6250WF - Installation and configuration guide...
  • Page 39: Technical Information

    Technical information...
  • Page 40: Smart Wi-Fi Thermostat For Central System

    Sensors Humidity sensor Proximity sensor Light sensor for adaptive display Communication protocol Protocol: Wi-Fi Standard: IEEE 802.11 b/g/n Frequency: 2.4 GHz Encryption key: WPA2 Communication module IC: 21098-ESPC6WROOM1 FCC ID: 2AC7Z-ESPC6WROOM1 Warranty 3 years TH6250WF - Installation and configuration guide...
  • Page 41: Mounting Plate

    Mounting plate Dimensions (W x H x D) 63.6 mm (2.5 in) x 77.8 mm (3.0 in) x 10.2 mm (0.4 in) Connectors 8 connectors Wire range (Solid): 18-22 AWG Wire range (Stranded): 20-22 AWG Wire clearance manufacturer's recommendation: 6.5 - 7.0 mm...
  • Page 42: Ised Canada Compliance Statement

    Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. ● TH6250WF - Installation and configuration guide...
  • Page 43: Wiring Diagrams

    Wiring diagrams...
  • Page 44: Conventional System

    Conventional system Wiring: 1H This system refers to a single-stage heating system without ventilation. Standard connection for furnaces. TH6250WF - Installation and configuration guide...
  • Page 45: Wiring: 1H

    Wiring: 1H This system refers to a single-stage heating system with ventilation control. Standard connection for furnaces.
  • Page 46: Wiring: 1C

    Wiring: 1C This system refers to a single-stage air conditioning system with ventilation control. Standard connection for air conditioners. TH6250WF - Installation and configuration guide...
  • Page 47: Wiring: 1H1C

    Wiring: 1H1C This system refers to a heating, ventilation, and air conditioning system designed for one heating and one cooling stage.
  • Page 48: Heat Pump

    Heat pump Wiring: 1H1C System to control heating and cooling functions, as well as fan operation, at a single stage. Standard connection for heat pumps. TH6250WF - Installation and configuration guide...
  • Page 49: Wiring: 2H1C

    Wiring: 2H1C Refers to an HVAC system with two heating stages and one air conditioning stage with ventilation control. Standard connection for heat pumps.
  • Page 50: Additional System

    Additional system Wiring: Acc. Humidifier Humidifier powered by the HVAC system. Humidifier with an independent external power supply TH6250WF - Installation and configuration guide...
  • Page 51 Humidifier with an independent internal power supply...
  • Page 52: Wiring: Dual-Energy

    Wiring: Dual-energy Connection for dual-energy signal. TH6250WF - Installation and configuration guide...
  • Page 53: Additional Accessories

    Additional accessories Decorative mounting plates Designed to cover wall imperfections left by the previous thermostat, they also include a steel plate for installing the thermostat above an electrical box. AC6500-01 Decorative Mounting Plate (sold separately) Dimensions : 180.5 mm (7.11 in) X 112.5 mm (4.43 in) X 5 mm (0.20 in) (W x H x D) Included in the box: Decorative mounting plate...
  • Page 54 Installation diagrams for the AC6500-01 decorative mounting plate: TH6250WF - Installation and configuration guide...
  • Page 55: Ac6500-02 Decorative Mounting Plate (Sold Separately)

    AC6500-02 Decorative Mounting Plate (sold separately) Dimensions : 114.3 mm (4.5 in) X 114.3 mm (4.5 in) X 4.8 mm (0.19 in) (W x H x D) Included in the box: Decorative mounting plate ● Steel plate, installation sheet ● 2x screws for the decorative plate ●...
  • Page 56 Installation diagrams for the AC6500-02 decorative mounting plate: TH6250WF - Installation and configuration guide...
