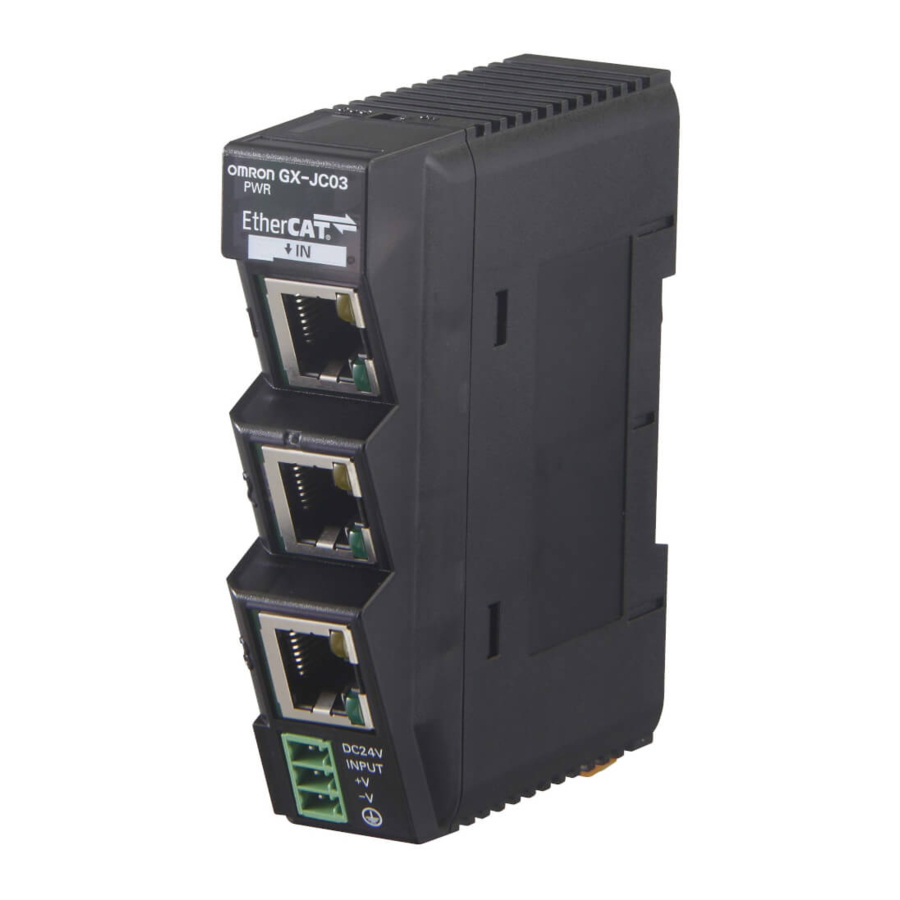

Omron GX-JC03, GX-JC06 - EtherCAT Junction Slave Manual

Safety Precautions

Meanings of Signal Words

	Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Additionally, there may be severe property damage.
	Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury, or property damage.

Warning Symbols

Do not attempt to disassemble this unit and do not touch the interior of any Unit while the power is being supplied. In addition, do not turn on electricity in the state that founded a cover. Doing so may result in electric shock.

Do not attempt to disassemble, repair, or modify this unit. Any attempt to do so may result in malfunction, fire, or electric shock.

Take a fail-safe countermeasures by the customer to secure safety in case of an abnormal signal caused by broken signal line and momentary power interruption.
Not doing so may result in serious accidents.

Emergency stop circuits, interlock circuits, limit circuits, and similar safe measures must be externally provided to Slave Unit.

Do not apply the voltage/current outside the specified range to this product. It may cause a malfunction or fire.

Pay careful attention to the polarities (+/-) when the DC power supply. A wrong connection may cause malfunction of the system.

Precautions for Safe Use

• When transporting this product, use special packing boxes and protect it from being to excessive vibration or impact during transportation.
• Mount the Units securely using DIN track.
• Always separate cables by at least 5 mm to prevent unstable operation due to interference. Do not bundle cables.
• Make sure that the terminal blocks, communications cables, and other items with locking devices are properly locked into place. Improper locking may result in malfunction.
• Do not extend connection distances or the number of connected nodes beyond the ranges given in the EtherCAT specifications.
• Do not allow foreign matter to enter this product.
• Always use the specified communications cables and connectors.
• Confirm the polarity of all terminals before wiring them.
• Always use the power supply voltage specified in the instruction manual. An incorrect voltage may result in malfunction or burning.
• Do not bend cables past their natural bending radius or pull on cables.
• Observe the following precautions when wiring the communications cable.
  • Separate the communications cables from the power lines or high-tension
  • Do not bend the communications cables past their natural bending radius.
  • Do not pull on the communications cables.
  • Do not place heavy objects on top of the communications cables.
  • Always lay communications cable inside ducts.
• Be sure to ground when installing the unit.
• Turn off the power of Controller and all slaves before wiring the communication
• Take appropriate measures to ensure that the specified power with the rated voltage and frequency is supplied. Be particularly careful in places where the power supply is unstable. An incorrect power supply may result in malfunction.
• Install external breakers and take other safety measures against short-circuiting in external wiring. Insufficient safety measures against short-circuiting may result in burning.
• Fail-safe measures must be taken by the customer to ensure safety in the event of incorrect, missing, or abnormal signals caused by broken signal lines, momentary power interruptions, or other causes.
• Check the user program for proper execution before actually running it on the Unit. Not checking the program may result in unexpected operation.
• Check all wiring and switch settings to be sure they are correct.

Precautions for Correct Use

• Install correctly according to instructions in the instruction manual. Improper installation of the Unit may result in malfunction.
• Do not drop any Unit or subject any Unit to excessive shock or vibration. Otherwise, Unit failure or malfunction may occur.
• Do not operate the control system in the following locations:
  • Locations subject to direct sunlight.
  • Locations subject to temperatures or humidity outside the range specified in the specifications.
  • Locations subject to condensation as the result of severe changes in temperature.
  • Locations subject to corrosive or flammable gases.
  • Locations subject to dust (especially iron dust) or salts.
  • Locations subject to exposure to water, oil, acid, or chemicals.
  • Locations subject to shock or vibration.
• Take appropriate and sufficient countermeasures when installing systems in the following locations:
  • Locations subject to static electricity or other forms of noise.
  • Locations subject to possible exposure to radioactivity.
  • Locations close to power lines.
  • Locations subject to strong electromagnetic fields.
• Wire all connections correctly according to instructions in the instruction manual.
• Use the correct wiring materials to wire the Units.
• Confirm voltage specifications when wiring communications, the power supply. Incorrect wiring may result in malfunction.
• Please pull out the connector inserted in Port 4,5,6 at first when all the ports of GX-JC06 is used.
• Default node setting is 0, please set the node by tool.
• Please do not connect EtherCAT Junction unit with OMRON position control unit, Model CJ1W-NC□81/ □82.

Each Part Name

LED

LAN PORT

Precautions for Compliance with UL Standards and CSA Standards

Notice to Users of EtherCAT Junction Slave in the USA and Canada

Please use the following installation information instead of the general information in the instruction manuals in order to use the product under certified conditions of UL and CSA when the product is installed in the USA or Canada. These conditions are required by NFPA 70, National Electrical Code in the USA and the Canadian Electrical Code, Part in Canada and may vary from information given in the product manuals or safety precautions.

Wiring for Unit power connector

The external power supply must be an isolated DC source. It must be equipped with an over-current protection with current limitation in 4A.

Applicable wire size for Unit power source terminal block.

Do not use ferrule terminals. Insert the strand or solid wire directly into the holes on the terminal block.

LAN Cable

Direction for installation

Vertical only

Compliance with Class I Division 2 Hazardous Location

Input and output wiring must be in accordance with Class In Div.2 wiring methods and in accordance with the authority having jurisdiction.

1. This equipment is suitable for use in Class I, Div.2, Group A, B, C, D or Non-Hazardous Locations Only.
2.
   Explosion Hazard - Substitution of Components may Impair Suitability for Class I, Div.2.
3.
   Explosion Hazard - Do not Disconnect Equipment Unless Power Has Been Switched off or the Area Is Known to Be Non-Hazardous.
4. This device is open-type and is required to be installed in an enclosure suitable for the environment and can only be accessed with the use of a tool or key.

Troubleshooting

Specification

Conformance to EC Directives

• This product is EMC-compliant when assembled in PLC system. To ensure the EC Directive conformance of customer's machinery or equipment in which the product is incorporated, be sure to observe the following precautions.
  1. This product is defined as an in-panel device and must be installed within a control panel.
  2. Reinforced insulation or double insulation must be used for the DC power supply connected to the DC power supply unit, communication unit, and I/O unit.
  3. This product complies with the common emission standard (EN61131-2, EN61000-6-4) with regard to EMI. For the radiated emission requirement (10-m regulations), in particular, please note that the actual emission varies depending on the configuration of the control panel to be used, the connected devices, and wiring methods. Therefore, the customer must confirm the EC Directive conformance of the overall machinery or equipment by themselves, even if this EC conforming product is used.
• This is a class A product. In residential areas it may cause radio interference, in which case the user maybe required to take adequate measures to reduce interference.
• This product is EMC-compliant when the recommend power supply(S8**) is used

SUITABILITY FOR USE

OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer's application or use of the products.

Take all necessary steps to determine the suitability of the product for the systems, machines, and equipment with which it will be used. Please know and observe all prohibitions of use applicable to the products.

NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCTS ARE PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.

See also product catalogs for Warranty and Limitations of Liability.
