Paradox REM15 - Remote Control Manual

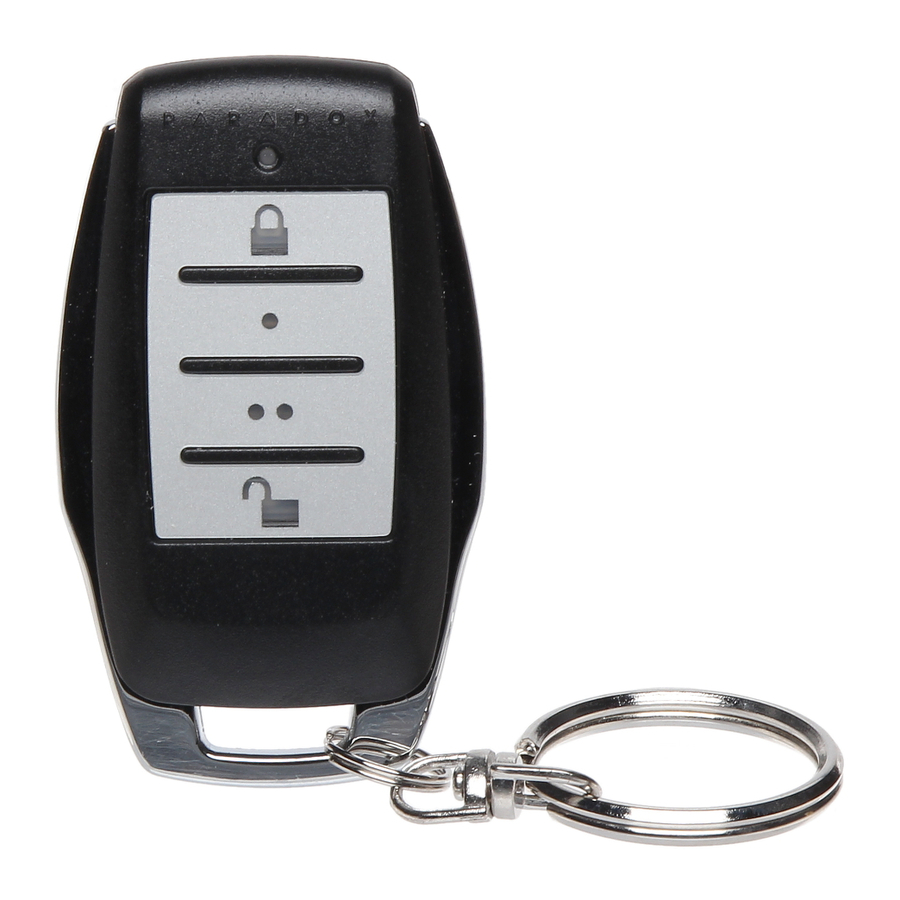

The REM15 is a water-resistant 4-button remote control that is available in a 433MHz or 868MHz version.

Compatibility

• Magellan All-In-One Wireless Console (MG6130 / MG6160 / MG-6030 / MG-6060)
• 32-Zones Wireless Transceiver Control Panel (MG5000 / MG5050)
• Magellan Wireless Expansion Module (RTX3 / MG-RCV3)
• Wireless Receiver (RX1)
• Omnia Wireless Expansion Module (OMN-RCV3)
• Spectra 1759EX control panel (Omnia protocol)
• Spectra 1759MG control panel (Magellan protocol)

Range

• 30m (100ft) with the all-in-one consoles and RX1
• 45m (150ft) with the MG5000 / MG5050
• 60m (200ft) with the RTX3, MG-RCV3, OMN-RCV3, 1759EX and 1759MG

Battery

One 3V lithium battery (CR2032).

Setting the Operational Mode

The REM15 functions in Magellan mode or Omnia mode. For wireless receivers that use the Magellan protocol, the remote control must be in Magellan mode. For wireless receivers that use the Omnia protocol, the remote control must be in Omnia mode. By default, the remote control is in Magellan mode.

To set the operational mode, press and hold the and buttons simultaneously for 5 seconds. If the remote control LED flashes once, it is in Magellan mode. If the LED flashes twice, it is in Omnia mode.

LED Functionality

The REM15 will perform different flashing sequences of its LED during normal operation that will inform the user whether the remote control is in Magellan or Omnia mode. When the remote control is in Magellan mode, the LED will flash rapidly when transmitting. When the remote control is in Omnia mode, the LED will stay illuminated when transmitting.

Assigning Remote Controls

For instructions on how to assign a REM15 to a system, refer to the respective control panel's Programming Guide.

Replacing the Battery

1. Using a coin, turn the battery cover to the unlocked position.
2. Remove the battery cover and battery.
3. Replace the battery (use 3V CR2032) and close the cover as shown in Figure 1.
   Figure 1 Replacing the Battery


Danger of explosion exists if the lithium battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

PARADOX.COM
Printed in Canada - 12/2009
