Paradox REM101 User Manual

REM101: Single-button Remote Control with EZ Panic
User Guide V1.1
PARADOX.COM
Printed in Canada - 08/2019
REM101-EU05
What's New in V1.1
• A "Low Battery Signal" is sent to the control panel when battery is low. Upon power-up, a "Low
Battery Restore Signal" is sent to the control panel when the battery voltage level has reached
an acceptable level for normal operation. Compatible with MG5000, MG5050 (V4.9), SP4000,
SP65 (V5.1), K32LX (V1.1), RTX3 (V5.16), and MG6250 (V1.5x).
• The REM101 now complies with EN 50131 standards.

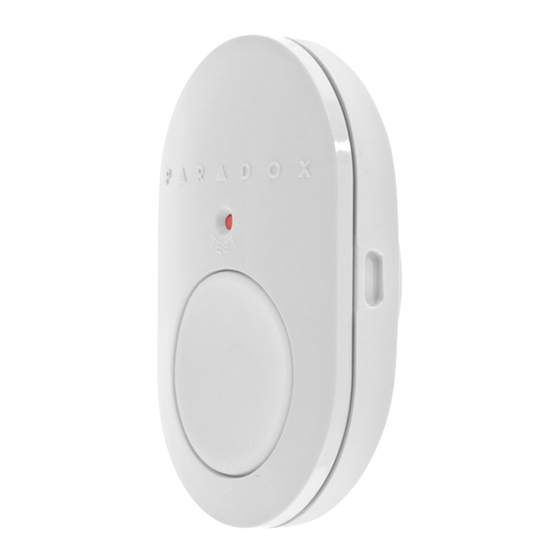

Overview
The REM101 is a single-button remote control, with easy panic functionality and battery test
button. It is available in both 433 or 868 MHz versions.
Battery Test Button/LED
Action Button
Lanyard slot
Battery cover/wrist
Belt clip slot
strap slot
Compatibility and Technical Specifications
• Magellan All-in-one Wireless Console (MG6250)
• 32-Zone Wireless Transceiver Control Panels (MG5000 / MG5050)
• Magellan Wireless Expansion Module (RTX3)
• Wireless Receiver (RX1)
• LCD Keypads with Built-in Transceivers (K32LX / K641LX)
• EN 50131-3 Grade 2 Class II (portable type B; certification body = Intertek)
• Consumption: standby = 2uA (11mA during transmission)
• Battery: One 3V lithium battery (CR2032)
• Temperature range: -10 to +55°C (14 to 131° F) / Humidity: 5-90%
• Weight: 16 grams (0.5 oz)
• Dimensions: 32 x 51 x 13 mm (1.2 x 2.0 x 0.5 in)
Wireless Range
• 30 m (100 ft.) with Magellan All-in-one Wireless Console (MG6250) and RX1
• 45 m (150 ft.) with the MG5000 / MG5050, RTX3, K32LX, and K641LX
Battery
One 3V lithium battery (CR2032) is included with the remote. Refer to Testing the Battery for details
on when to replace the battery, and Replacing the Battery for instructions on how to replace it.
Accessories
The following carrying accessories are available for your REM101: Lanyard attachment to wear
around neck (standard), Belt clip (optional), Wrist strap (optional).
Using Your Remote Control
You can use the REM101 to perform the following actions:
• Arm your system (no disarming) / Activate PGMs / Activate panic alarms (police, medical, fire)
NOTE: Since the REM101 is a single-button remote control, it can only perform one of the above-
mentioned actions at a single time. Refer to your control panel's respective programming guide
for details on programming your remote according to the user's needs.
