Inateck P6 - 2.4GHz Wireless Barcode Scanner with 60m Range Manual

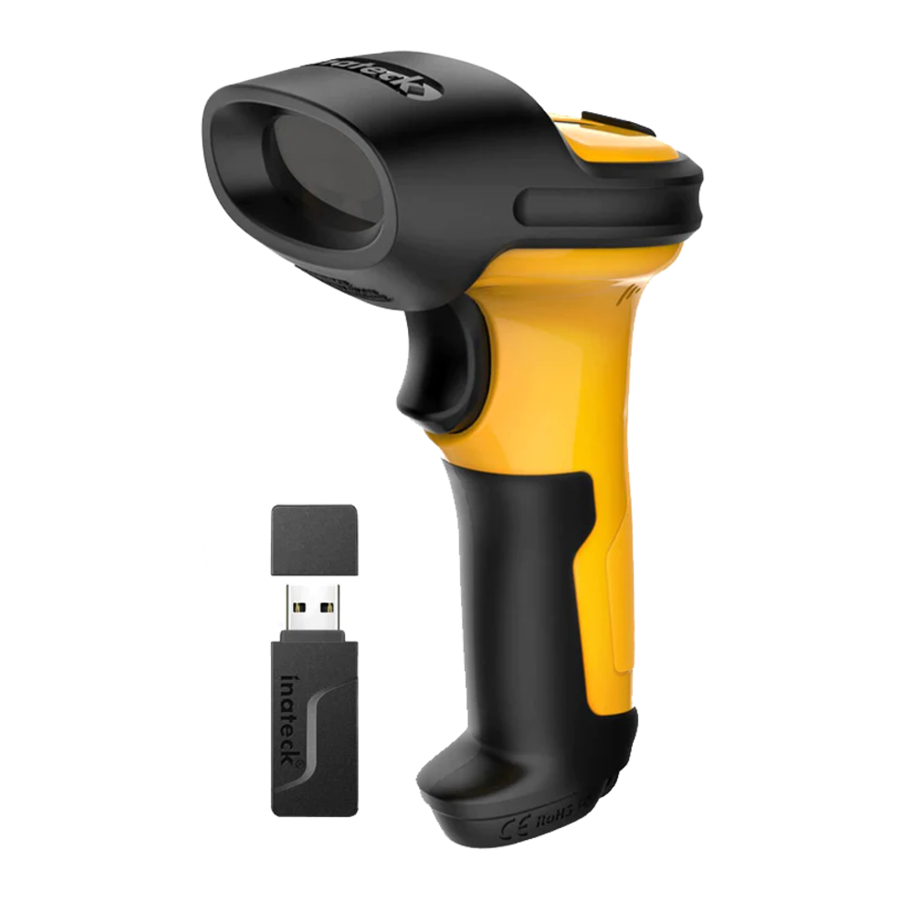

Overview

Use

Startup

Note:

Inateck P6 will start sleep mode if there is no operation on it over 3 minutes. Short press on the trigger can wake it up.
When the distance between Inateck P6 and its adapter exceeds the effective range, scanned data will be kept in the buffer of Inateck P6. Quickly double press on the trigger can upload data from buffer.

Wireless Mode

Insert the 2.4G USB adapter into the USB port of computer. The initialization is completed if blue LED on the adapter blinks once.
Power on Inateck P6 by toggling switch from OFF to ON. Short press the trigger to emit red laser beam and scan barcodes.
Open a file on computer and move cursor to the blank where scanning output should be placed. Scanning results can be displayed on computer then.

Wired Mode

Connect Inateck P6 with computer via USB cable
Power on Inateck P6 by toggling switch from OFF to ON and short press the trigger. Inateck P6 will continuously beep. Beep stops after successful connection.
Open a file on computer and move cursor to the blank where scanning output should be placed. Scanning results can be displayed on computer then.

Function Setup

(Note: The barcode marked by "*"means default setting of Inateck P6.)
Users must read setup barcodes in order to change the default settings in Inateck P6 Barcode Scanner.
Function Setup

Status indication

Buzzer Indication

Beeping	Meaning
One short high note(100ms)	Read barcode successfully
One short high note(20ms)	Data upload from scanner to Computer
One long high note(400ms)	Wrong Setup (on setup status, blue LED stays on) Invalid scanning due to full buffer (Scanned barcode not saved.) Pairing Failure (Occurs only during the pairing process)
Two or more long high tones(800ms)	USB being configured(It happens when USB cable is inserted)
Three chord sounds	Enter setup mode(Blue LED on) Exit setup mode(Blue LED off)
Two short notes(tone from low to high)	Correct Setup
Two short beeps (tone from high to low)	The connection between Inateck P6 and computer is disrupted.

LED Indication

Indicator color	Meaning
Green LED flashes once (LED2)	Barcode successfully read and uploaded to computer
Blue LED flashes once (LED2)	Barcode successfully read and saved in buffer, but not uploaded to computer
Blue LED stays on (LED2)	Inateck P6 scanner on setup status
Yellow LED blinks(light/shade ratio0.5s: 0.5s) (LED1)	Low battery
Red LED stays on (LED1)	Inateck P6 scanner in charge (Red LED off when battery is full)

Frequently Used Barcodes

Setting for Keyboard Language

Read 'Enter setup' Barcode

Enter Setup
Select and Scan your keyboard language Barcode
Scan"Exit with Save" Barcode to end language setting

Exit with Save

Note: The keyboard language of Inateck P6 should keep consistent with that on computer, otherwise, garbled might appear in scanning result.

Setting for Prefix/Suffix

Users can add prefix/suffix to scanning result. The prefix/suffix can have 1 to 32 digits. More details are as below.

Scan "Enter setup'" Barcode

Enter Setup
Scan "Prefix Setting" or "Suffix Setting"
Scan the character barcode (32 characters at the most). For instance, "H#" is the prefix/suffix to be added to the scanning result, scan the character barcode of "H" and "#" below.
Scan "Exit with Save" Barcode to end the setting

Exit with Save

Frequently Used Prefix/Suffix Barcodes

Frequently Used Prefix/Suffix Barcodes - Example 1

Note:
Scanning result will come with prefix/suffix after the setting. Nevertheless, prefix/ suffix can be hidden or recovered. To hide prefix/suffix, scan "Enter Setup" barcode, "Hide Prefix/Suffix" barcode, and then "Exit with Save" barcode. To recover prefix/ suffix, scan "Enter Setup" barcode, "Recover Prefix/Suffix" barcode, and then "Exit with Save" barcode.

Frequently Used Prefix/Suffix Barcodes - Example 2

Delete Character(s) on Output Result

Inateck P6 can help users delete character(s) on output result, either beginning characters or the ending ones. 0 to 99 digits can be deleted. As default setting, no character, or say 0 digit is deleted as output result. More details are as below.

Scan "Enter Setup" Barcode

Enter Setup
Scan "Delete Beginning Character(s)" Barcode or "Delete Ending Character(s)"
Scan the digit(s) barcode to be deleted.
Scan "Exit with Save" Barcode to end the setting

Exit with Save

Note: Refer to the setting of "delete 0 digit character" if no character should be deleted.

Inventory Mode

Users may use inventory mode to keep scanned barcodes in the buffer of Inateck P6, and upload them to computer in batches. Under inventory mode users are not restricted to the time and location when upload data. Of course, history data can be cleared in buffer. More details about inventory mode are as below.

Scan the barcode to enter Inventory Mode

Enter Inventory Mode
Scan the barcode to return to Common Mode

(*)Return to Common Mode
Scan the barcode to clear data in buffer (for Inventory Mode only).

Clear Data in Buffer(for Inventory Mode only)
Scan the barcode to upload data from buffer (for Inventory Mode only)

Data Upload (for Inventory Mode only)
Scan the barcode to upload the number of scanned barcodes (for Inventory Mode only)

Upload the Number of scanned barcodes
(for Inventory Mode only)

Note:

To use inventory mode, users just need scan "Enter Inventory Mode" barcode; and do not have to scan "Enter Setup" barcode before that.
To end inventory mode, users just need scan "Return to Common Mode" barcode.
