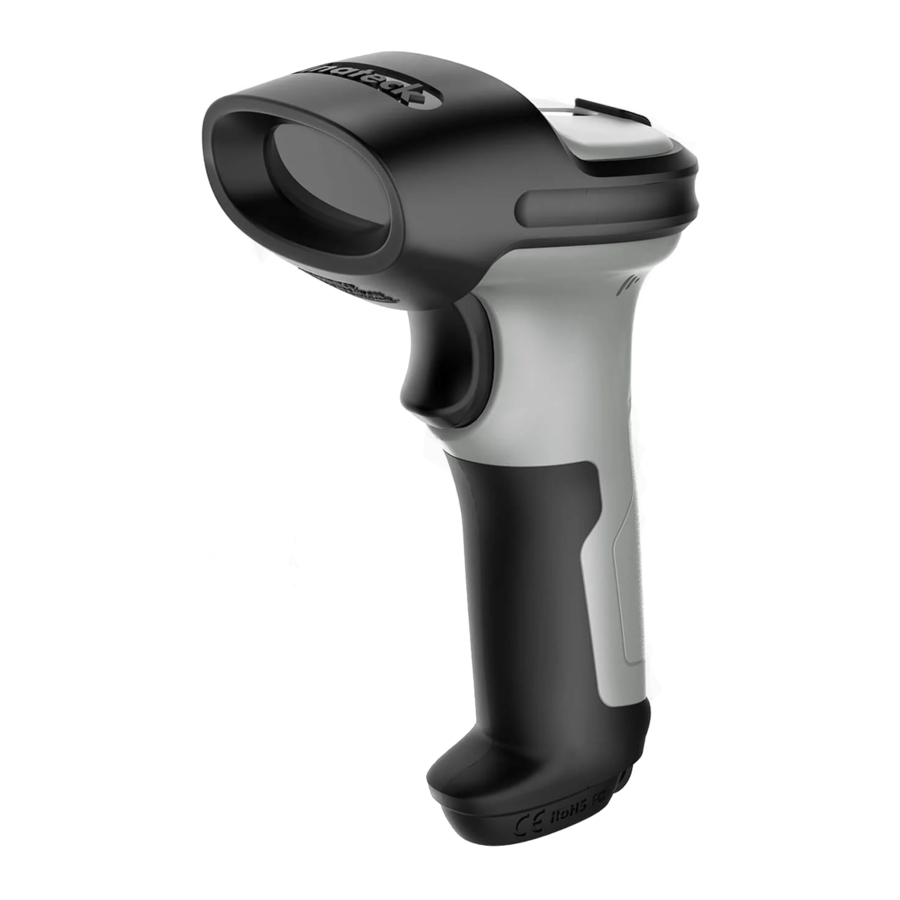

Inateck BCST-70 - Bluetooth Wireless Barcode Scanner with 35m Range Manual

Overview

Use of Inateck BCST-70

Startup

Note:

1. Inateck BCST-70 will start sleep mode if there is no operation on it over 3 minutes. Short press on the trigger can wake it up.
2. Bluetooth connection will be disrupted when the distance between BCST-70 and the connected device is beyond the valid transmission range. Scanning result will be saved in the buffer of BCST-70. Quickly double press on the trigger can upload data from buffer.

Bluetooth Mode (HID):

1. Power on Inateck BCST -70 by toggling switch from OFF to ON.
2. Scan "Enter Setup" barcode and then "Bluetooth Pairing", BCST-70 will enter Bluetooth pairing status.

3. Enable the Bluetooth of the device to be connected, e.g. PC, cellphone or tablet. You can do that like below.
   Windows XP: Click Control Panel->Printers and Other Hardware->Add Bluetooth Device
   Windows 7/8/8.1: Click Control Panel->Add Devices
   Windows 10: Click Setting->Devices->Bluetooth
   mac OS: Click System Preference->Bluetooth
   iOS: Click Setting->Bluetooth android: Click Setting->Bluetooth
   Enable the Bluetooth on host device and it will automatically search for BCST-70. After a few seconds 'BCST-70******' will appear in the list of available devices. Pair the two devices. A chords sound means successful pairing.
4. Open a file on computer and move cursor to the blank where scanning output should be placed. Scanning results can be displayed on computer then.

Note:

1. Normally BCST-70 can re-connect to previously connected device automatically. If it fails, please remove the paring history of BCST-70 in the list of host device. Afterwards, pair them again.
2. HID and SPP are two modes of Bluetooth. The pairing method mentioned above refers to HID, which is the most commonly used mode. If you want to use BCST-70 under SPP mode, please contact our customer service.

Wired Mode:

1. Connect Inateck BCST-70 with computer via USB cable
2. Power on Inateck BCST-70 by toggling switch from OFF to ON and short press the trigger. Inateck BCST-70 will continuously beep. Beep stops after successful connection.
3. Open a file on computer and move cursor to the blank where scanning output should be placed. Scanning results can be displayed on computer then.

Function Setup
(Note: The barcode marked by "*" means default setting of Inateck BCST-70.)
Users must read setup barcodes in order to change the default settings in Inateck BCST-70 Barcode Scanner.

• Scan "Enter setup" barcode;
• Change scanner setting by scanning certain function setup barcode;
• Scan "Exit with save" barcode to finish the setup.

Status indication

Buzzer Indication

LED Indication

Frequently Used Barcodes

Setting for Keyboard Language

BCST-70 is compatible with Windows, Android, mac OS and iOS. Under default setting it is compatible with Windows and Android. If you need use it with other OS, please select and scan corresponding barcodes below.

Note:

1. When use BCST-70 with iOS devices, long press the trigger to pop virtual keyboard. An additional long press can have it hidden.
2. When use BCST-70 with Android device, please use Gboard (Google) as the input method, and set the keyboard of BCST-70 to "US Keyboard".

Please set keyboard like below:

1. Read 'Enter setup' Barcode

2. Select and Scan your keyboard language Barcode

3. Scan"Exit with Save" Barcode to end language setting


Note: The keyboard language of Inateck BCST-70 should keep consistent with that on computer, otherwise, garbled might appear in scanning result.

Setting for Prefix/Suffix

Users can add prefix/suffix to scanning result. The prefix/suffix can have 1 to 32 digits. More details are as below.

1. Scan "Enter setup'" Barcode

2. Scan "Prefix Setting" or "Suffix Setting"

3. Scan the character barcode (32 characters at the most). For instance, "H#" is the prefix/suffix to be added to the scanning result, scan the character barcode of "H" and "#" below.

4. Scan "Exit with Save" Barcode to end the setting


Frequently Used Prefix/Suffix Barcodes

Note:
Scanning result will come with prefix/suffix after the setting. Nevertheless, prefix/ suffix can be hidden or recovered. To hide prefix/suffix, scan "Enter Setup" barcode, "Hide Prefix/Suffix" barcode, and then "Exit with Save" barcode. To recover prefix/ suffix, scan "Enter Setup" barcode, "Recover Prefix/Suffix" barcode, and then "Exit with Save" barcode.

Delete Character(s) on Output Result

Inateck BCST-70 can help users delete character(s) on output result, either beginning characters or the ending ones. 0 to 99 digits can be deleted. As default setting, no character, or say 0 digit is deleted as output result. More details are as below.

1. Scan "Enter Setup" Barcode

2. Scan "Delete Beginning Character(s)" Barcode or "Delete Ending Character(s)" Barcode

3. Scan the digit(s) barcode to be deleted. If 13 characters need be deleted, please scan the barcodes of 1 digit and then 3 digits.

4. Scan "Exit with Save" Barcode to end the setting


Note: Refer to the setting of "delete 0 digit character" if no character should be deleted.

Inventory Mode

Users may use inventory mode to keep scanned barcodes in the buffer of Inateck BCST-70, and upload them to computer in batches. Under inventory mode users are not restricted to the time and location when upload data. Of course, history data can be cleared in buffer. More details about inventory mode are as below.

1. Scan the barcode to enter Inventory Mode

2. Scan the barcode to return to Common Mode

3. Scan the barcode to clear data in buffer (for Inventory Mode only).

4. Scan the barcode to upload data from buffer (for Inventory Mode only)

5. Scan the barcode to upload the number of scanned barcodes (for Inventory Mode only)


Note:

1. To use inventory mode, users just need scan "Enter Inventory Mode" barcode; and do not have to scan "Enter Setup" barcode before that.
2. To end inventory mode, users just need scan "Return to Common Mode" barcode.

Function Setup Barcodes
