- Page 1 MANUAL ENGLISH Pixelstrip 40 Order code: 44502 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Pixelstrip 40 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Rigging .................................... 4 Return Procedure ................................5 Claims ....................................5 Description of the Device ..............................6 Overview ..................................6 Installation ................................... 7 Setup and Operation ................................ 7 Connecting Multiple Pixelstrips ........................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture will be returned in the original factory box and packing. Your shipment includes: ● Showtec Pixelstrip 40 ● CAT-5 data cable (1,3 m) ● User manual... -
Page 4: Operating Determinations
● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. ●... -
Page 5: Rigging
Pixelstrip 40 Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Improper installation can cause serious injuries and/or damage of property! Fig. 01 The Pixelstrip 40 can be mounted to any kind of truss with a clamp. Order code: 44502... -
Page 6: Return Procedure
Pixelstrip 40 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the... -
Page 7: Description Of The Device

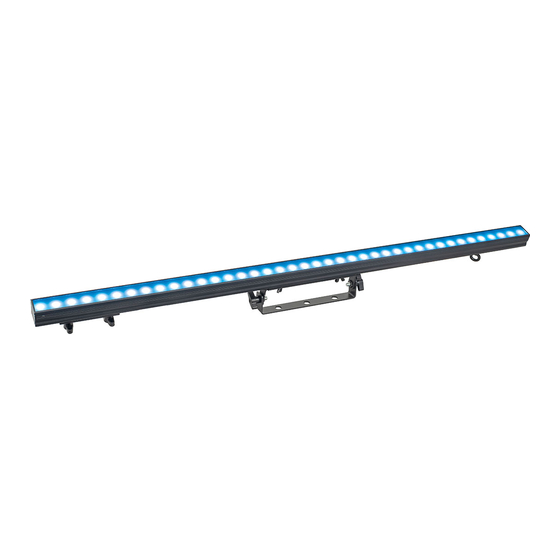

Pixelstrip 40 Description of the Device Features The Pixelstrip 40 is designed to be operated with the Pixel Controller. ● Light source: 40 x SMD5050 RGB LEDs (0,3 W) ● Pixel pitch: 25 mm ● Maximum cable length: 10 m (CAT-5/CAT-6) from the Pixel Controller to the Pixelstrip ●... -
Page 8: Installation
Pixelstrip 40 Installation Remove all packing materials from the Pixelstrip 40. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 9: How To Make A Data Cable
Pixelstrip 40 How To Make a Data Cable A standard ETHERNET cable can be used to replace the data cable required to transmit the data. Please follow the instructions below in order to create an extra network cable. Take a standard network cable (CAT-5/ 5E /6) and connect it to the RJ45 connector, as shown in Fig. 04. The wires should now be colored as follows: Fig. -
Page 10: Maintenance
Suspect three potential problem areas as: the power supply, the LEDs and the controller. 01) Power supply. Check if the Pixel Controller is plugged into an appropriate power supply. 02) The LEDs. Return the device to your Showtec dealer. 03) The controller. Refer to the user manual of the Pixel Controller. -
Page 11: Product Specifications
Pixelstrip 40 Product Specifications Model: Showtec Pixelstrip 40 Dimensions: 1000 x 37 x 100 mm (LxWxH) Weight: 1,3 kg Light source: 40 x SMD5050 RGB LEDs (0,3 W) Pixel pitch: 25 mm Maximum cable length: 10 m (CAT-5/CAT-6) from the Pixel Controller to the... - Page 12 ©2020 Showtec...
